LH80-MD (1985)

Toyota Hiace Truck

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LH80

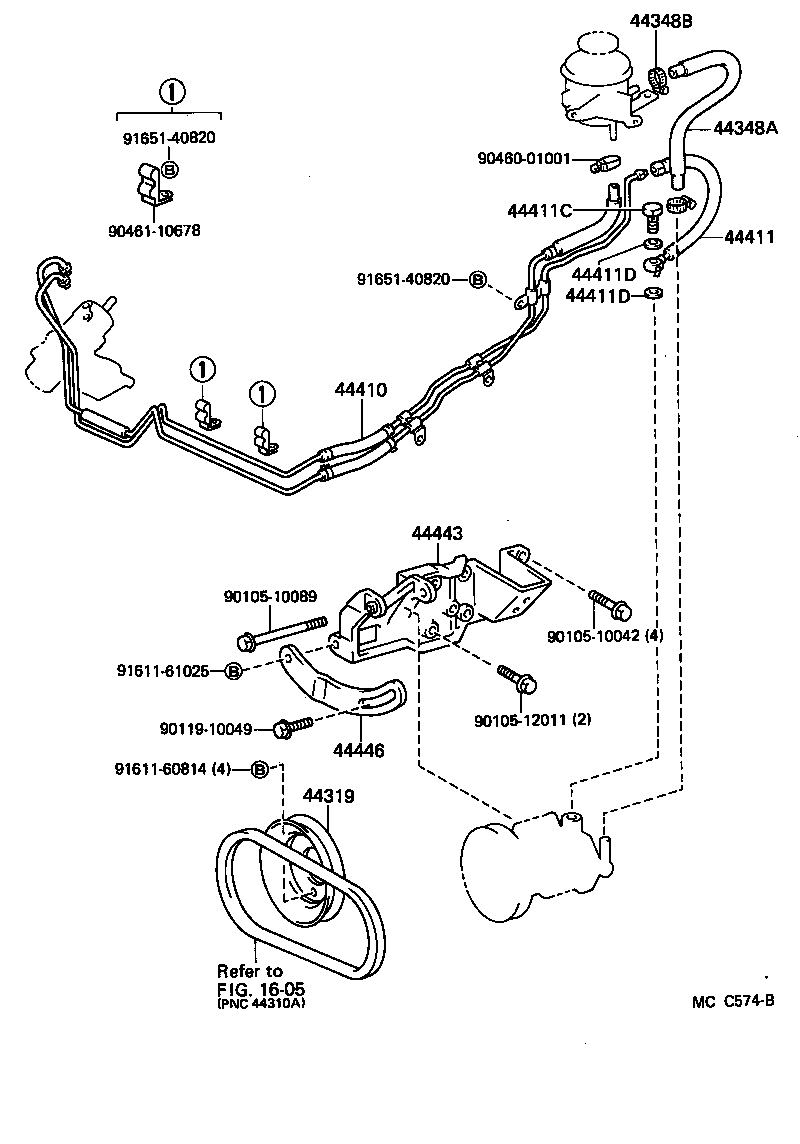

Click highlighted areas on diagram

diagram 1605 44319 44348A 44348B 44410 44411 44411C 44411D 44411D 44443 44446 9010510042 9010510089 9010512011 9011910049 9046001001 9046110678 9161160814 9161161025 9165140820 9165140820
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-30030

LH80

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-25020

LH80

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

LH80

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-26060

LH80

 1
44411 - HOSE, PRESSURE FEED
44411-26020

LH80

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16005

LH80

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

LH80

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

LH80

 2
44443 - BRACKET, PUMP
44443-30080

LH80

 1
44446 - STRUT, ADJUSTING
44446-30070

LH80

 1
Common parts
90105-10042
90105-10089
90105-12011
90119-10049
90460-01001
90461-10678
91611-60814
91611-61025
91651-40820
Linked diagrams
1605
