LH80-MD (1987)
Toyota Hiace Truck
(8708- )

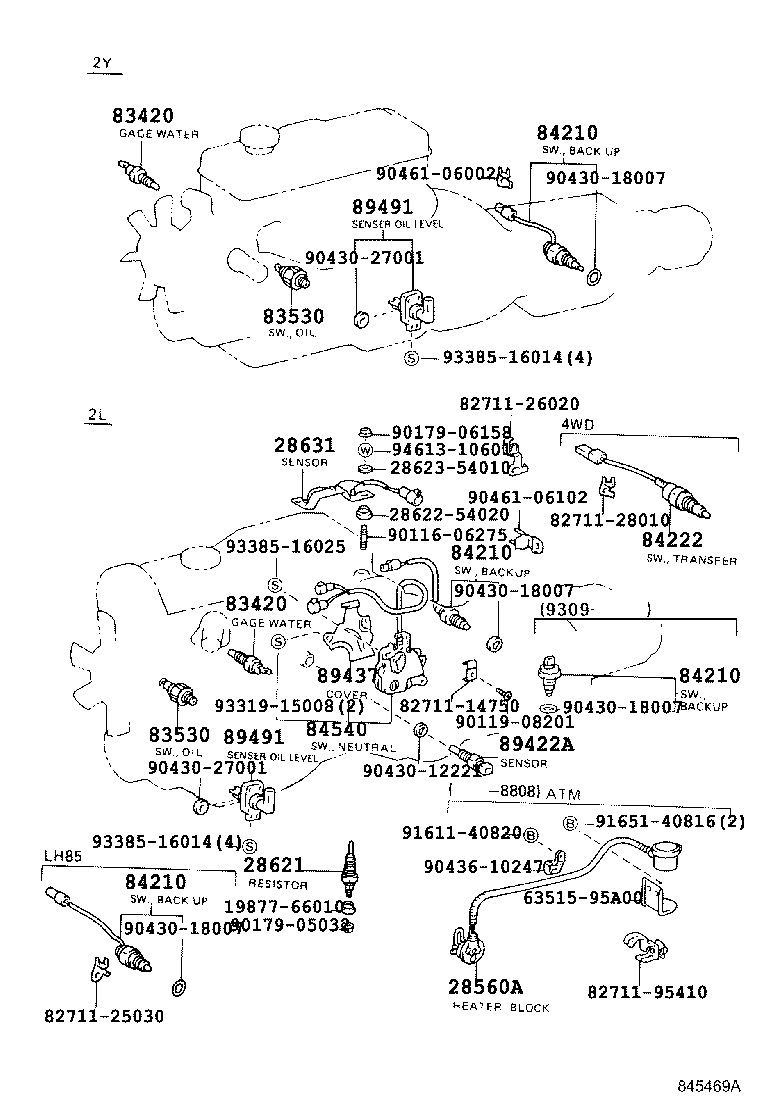

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-54080 |
2L..LH8# |
1 | ||
| 28621-54031 |
2L..LH8# |
1 | ||
| 28621-54080 |
2L..LH8#,9# |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-54040 |
2L..LH8# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
LH8#,9# NIPPONDENSO |
1 | ||
| 83420-20030 |
LH8#,9# YAZAKI |
1 | ||
| 83420-20020 |
LH8#,9#,YH81 |
1 | ||
| 83420-16040 |
LH8#,9#,YH81 NIPPONDENSO |
1 | ||
| 83420-20030 |
LH8#,9#,YH81 YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
LH8#,9# NIPPONDENSO |
1 | ||
| 83420-20030 |
LH8#,9# YAZAKI |
1 | ||
| 83420-20020 |
LH8#,9#,YH81 |
1 | ||
| 83420-16040 |
LH8#,9#,YH81 NIPPONDENSO |
1 | ||
| 83420-20030 |
LH8#,9#,YH81 YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LH8#,9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LH8#,9# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LH8#,YH81..5F |
1 | ||
| 84210-60021 |
LH8#,9#,YH81..5F |
1 | ||
| 84210-12040 |
LH8#,9#,YH81..5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LH8#,YH81..5F |
1 | ||
| 84210-60021 |
LH8#,9#,YH81..5F |
1 | ||
| 84210-12040 |
LH8#,9#,YH81..5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LH8#,YH81..5F |
1 | ||
| 84210-60021 |
LH8#,9#,YH81..5F |
1 | ||
| 84210-12040 |
LH8#,9#,YH81..5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LH8#,YH81..5F |
1 | ||
| 84210-60021 |
LH8#,9#,YH81..5F |
1 | ||
| 84210-12040 |
LH8#,9#,YH81..5F |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-30020 |
LH8# |
1 | ||
| 89422-20010 |
LH8#,9# |
1 | ||
| 89422-20010 |
LH80 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26100 |
LH80,90 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26100 |
LH80,90 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 63515-95A00 | ||||
| 82711-14750 | ||||
| 82711-25030 | ||||
| 82711-26020 | ||||
| 82711-28010 | ||||
| 82711-95410 | ||||
| 90116-06275 | ||||
| 90119-08201 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90430-27001 | ||||
| 90436-10247 | ||||
| 90461-06002 | ||||
| 90461-06102 | ||||
| 91611-40820 | ||||
| 91651-40816 | ||||
| 93319-15008 | ||||
| 93385-16014 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||
(8708- )

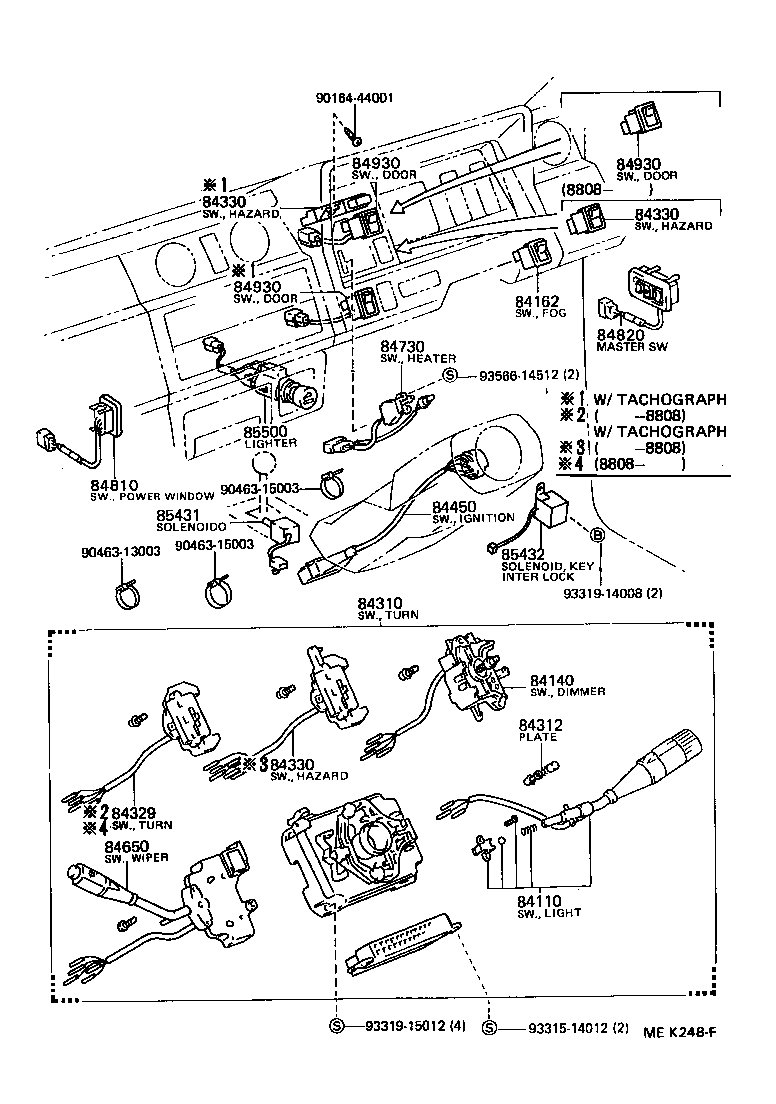

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39305 |
LH8#,9#,YH81 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-36090 |
LH8#,9#,YH81 |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95400 |
LH85,9#,YH81;LH80..T1,T2,T3 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26620 |
LH80..T1..CBU |
1 | ||
| 84310-36360 |
LH8#,YH81 |
1 | ||
| 84310-36310 |
LH8#,YH81 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LH8#,9#,YH81 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-36010 |
LH8#,9#,YH81 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20190 |
LH8#,9#,YH81 |
1 | ||
| 84332-36070 |
LH8#,YH81 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20190 |
LH8#,9#,YH81 |
1 | ||
| 84332-36070 |
LH8#,YH81 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20190 |
LH8#,9#,YH81 |
1 | ||
| 84332-36070 |
LH8#,YH81 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36030 |
LH8#,YH81 |
1 | ||
| 84450-36050 |
LH8#,9#,YH81 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26390 |
LH80..T1..CBU |
1 | ||
| 84652-36210 |
LH8#,YH81 |
1 | ||
| 84652-36270 |
LH8#,YH81 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95406 |
LH8#,9#,YH81 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37010B0 |
LH8#,9#,YH81 GRAY,TRIM1# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37010B0 |
LH8#,9#,YH81 GRAY,TRIM1# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-95702 |
LH80 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 84931-95400 |
LH80,90 |
1 | ||
| 84931-95400 |
LH80..T1,T2,T3 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 84931-95400 |
LH8#,9#,YH81 |
1 | ||
| 84931-95400 |
LH80..T1,T2,T3 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-95702 |
LH80 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 84931-95400 |
LH80,90 |
1 | ||
| 84931-95400 |
LH80..T1,T2,T3 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 84931-95400 |
LH8#,9#,YH81 |
1 | ||
| 84931-95400 |
LH80..T1,T2,T3 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-95702 |
LH80 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 84931-95400 |
LH80,90 |
1 | ||
| 84931-95400 |
LH80..T1,T2,T3 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 84931-95400 |
LH8#,9#,YH81 |
1 | ||
| 84931-95400 |
LH80..T1,T2,T3 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37020 |
LH8#,9#,YH81 |
1 | ||
| 85500-95403 |
LH8#,YH81 |
1 | ||
| Common parts | ||||
| 90164-44001 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||
(8708- )

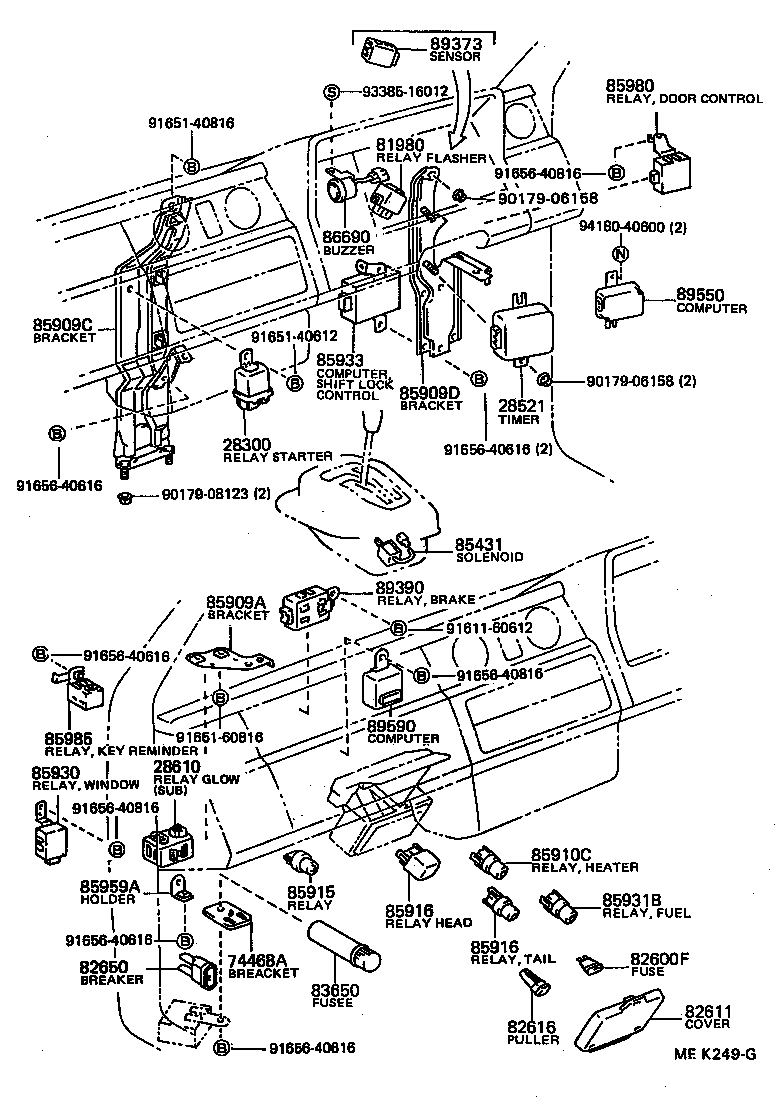

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-48010 |
2L..LH8#,9# |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54480 |
2L..LH8#,9# |
1 | ||
| 28521-54181 |
2L..LH8# |
1 | ||
| 28521-54340 |
2L..LH8# |
1 | ||
| 28521-54340 |
2L..LH8# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64060 |
2L..LH8# MAIN |
1 | ||
| 28610-54021 |
2L..LH8#,9# SUB |
1 | ||
| 28610-64080 |
2L..LH8#,9# MAIN |
1 | ||
| 28610-54021 |
2L..LH8# SUB |
1 | ||
| 74468A - BRACKET, RELAY BLOCK | ||||
| 74468-95700 |
LH8#,9#,YH81 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37040 |
LH8#,9#,YH81 |
1 | ||
| 81980-16010 |
LH8#,YH81 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
LH8#,YH81 20A,黄 |
2 | ||
| 90982-09005 |
LH8#,YH81 7.5A |
3 | ||
| 90982-09004 |
LH8#,9#,YH81 20A,黄 |
1 | ||
| 90982-09002 |
LH8#,9#,YH81 10A |
2 | ||
| 90982-09003 |
LH8#,9#,YH81 15A |
8 | ||
| 90982-09005 |
LH90..5F;LH80..5F..CBU 7.5A,7.5A |
3 | ||
| 90982-09004 |
LH90..5F;LH80..5F..CBU 20A,黄,20A |
2 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95012 |
LH8#,YH81 |
1 | ||
| 82611-95013 |
LH8#,9#,YH81 |
1 | ||
| 82611-95011 |
LH8#,YH81 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LH8#,9#,YH81 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
LH8#,YH81 20A |
1 | ||
| 82650-12020 |
LH8#,9#,YH81 14A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
LH8#,9#,YH81 |
2 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 85909-95405 |
LH8#,9#,YH81 |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-95010 |
LH8#,9#,YH81 |
1 | ||
| 85909D - BRACKET SUB-ASSY, RELAY, NO.2 | ||||
| 85907-95400 |
LH8#,9#,YH81 |
1 | ||
| 85907-37010 |
LH8#,9#,YH81 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LH8#,9# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
LH8#,9#,YH81 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH8#,9#,YH81 TAIL |
1 | ||
| 90987-02006 |
LH8#,9#,YH81 HEAD |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH8#,9#,YH81 TAIL |
1 | ||
| 90987-02006 |
LH8#,9#,YH81 HEAD |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-25010 |
LH8#,9#,YH81 |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02004 |
LH8# |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36010 |
LH8# |
1 | ||
| 85959-36010 |
LH80 |
1 | ||
| 85959-36010 |
LH8#,9# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-25010 |
LH8#,9#,YH81 |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-26010 |
LH8#,9#,YH81 |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-26050 |
LH8#,9#,YH81 |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 89390-25010 |
LH8#,9# |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-36140 |
LH8#,9#,YH81 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08123 | ||||
| 91611-60612 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91651-60816 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 93385-16012 | ||||
| 94180-40600 | ||||
(8708- )

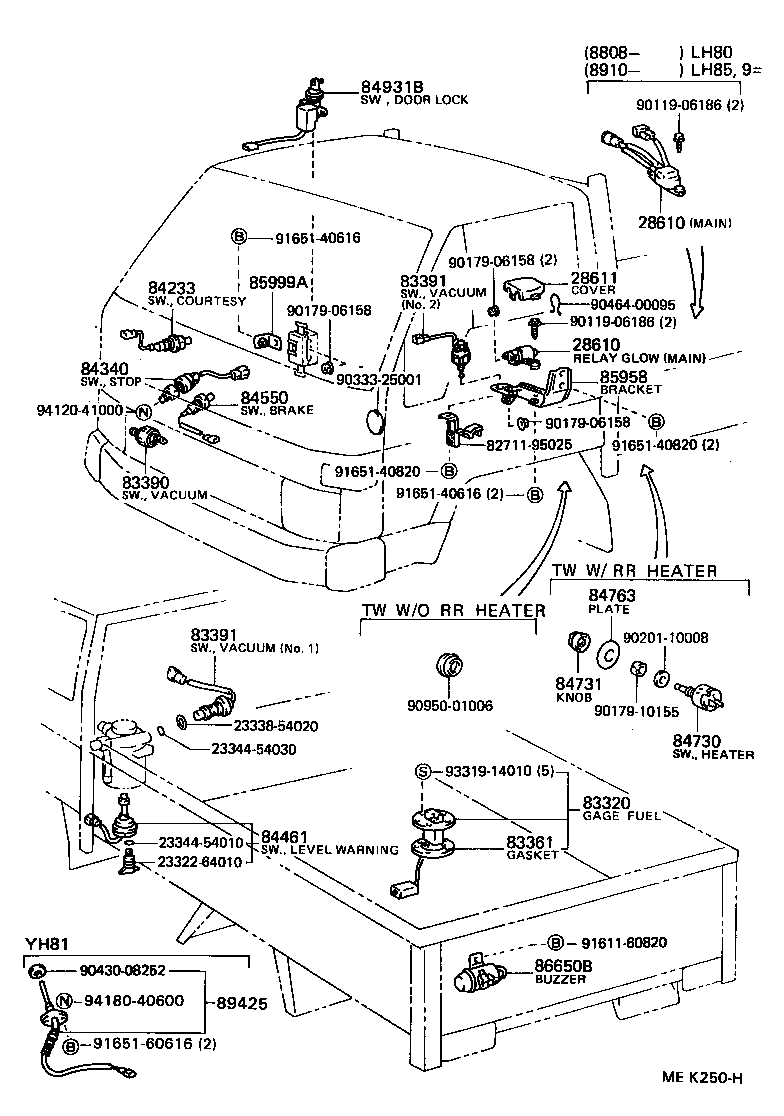

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64060 |
2L..LH8# MAIN |
1 | ||
| 28610-54021 |
2L..LH8#,9# SUB |
1 | ||
| 28610-64080 |
2L..LH8#,9# MAIN |
1 | ||
| 28610-54021 |
2L..LH8# SUB |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64060 |
2L..LH8# MAIN |
1 | ||
| 28610-54021 |
2L..LH8#,9# SUB |
1 | ||
| 28610-64080 |
2L..LH8#,9# MAIN |
1 | ||
| 28610-54021 |
2L..LH8# SUB |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
2L..LH8# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39565 |
LH8#,9#,YH81 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LH8#,9#,YH81 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LH8#,9# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-32020 |
LH8# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-32020 |
LH8# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28020 |
LH8#,9#,YH81 |
1 | ||
| 84231-20080 |
LH8#,YH81 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36050 |
LH8#,9#,YH81 |
1 | ||
| 84340-22072 |
LH8#,YH81 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-35030 |
LH8# |
1 | ||
| 84461-26030 |
LH8#,9#..T1,T2,T3 |
1 | ||
| 84461-60040 |
LH8#,9#..T1,T2,T3 |
1 | ||
| 84461-26030 |
LH8# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-20030 |
LH8#,9#,YH81 |
1 | ||
| 84550-20030 |
LH8#,YH81 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95406 |
LH8#,9#,YH81 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-37010 |
LH90..TW;LH80..(T1,TW)..CBU ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 84931-37020 |
LH85,9#..TW;LH80,YH81..(T1,TW)..CBU ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 84931-37020 |
LH90..TW;LH80..(T1,TW)..CBU ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 85958 - BRACKET, MAIN RELAY | ||||
| 85958-95010 |
LH8#,9#,YH81..T1,T2,T3 |
1 | ||
| 85958-25010 |
LH8#,9#,YH81..T1,T2,T3 |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-95A08 |
LH8#,9#,YH81..ST |
1 | ||
| Common parts | ||||
| 23322-64010 | ||||
| 23338-54020 | ||||
| 23344-54010 | ||||
| 23344-54030 | ||||
| 82711-95025 | ||||
| 90119-06186 | ||||
| 90179-06158 | ||||
| 90179-10155 | ||||
| 90201-10008 | ||||
| 90333-25001 | ||||
| 90430-08252 | ||||
| 90464-00095 | ||||
| 90950-01006 | ||||
| 91611-60820 | ||||
| 91651-40616 | ||||
| 91651-40820 | ||||
| 91651-60616 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||
| 94180-40600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
