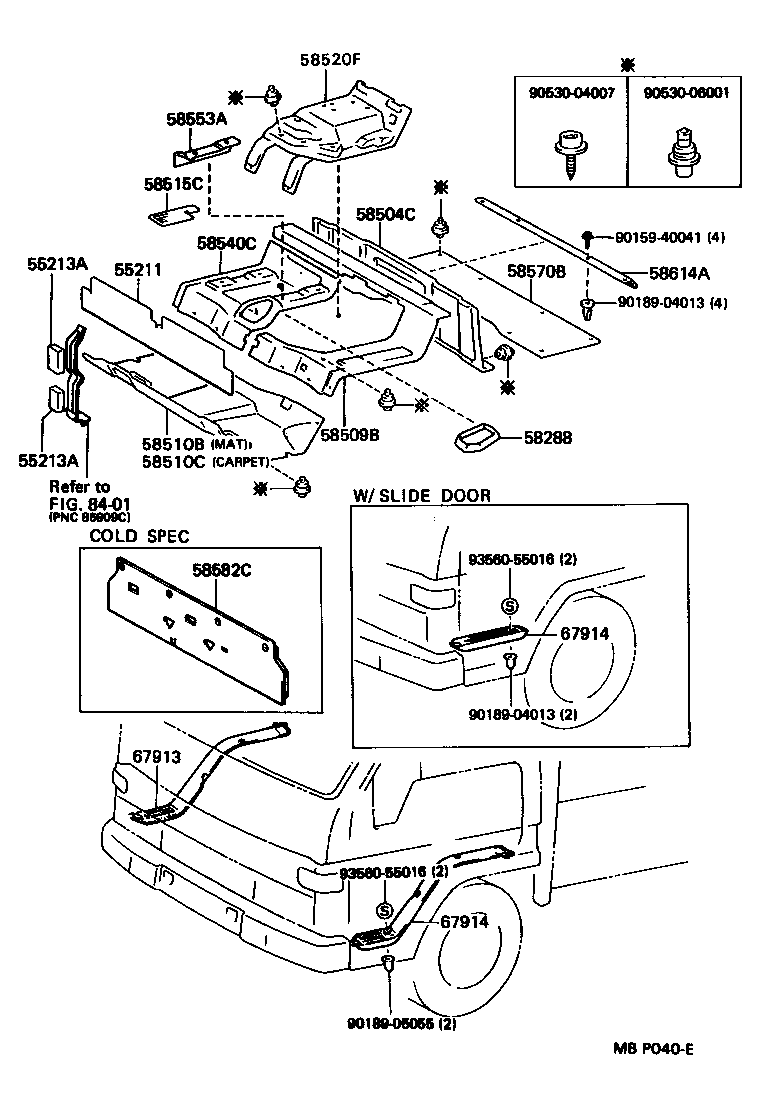

LH80-MD (1987)
Toyota Hiace Truck
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55211 - SILENCER, FRONT PANEL | ||||
| 55211-95404 |
LH8#,9#,YH81 |
1 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-95401 |
LH8#,9#,YH81 LOWER |
1 | ||
| 55213-95400 |
LH8#,9#,YH81 UPPER |
1 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-95401 |
LH8#,9#,YH81 LOWER |
1 | ||
| 55213-95400 |
LH8#,9#,YH81 UPPER |
1 | ||
| 58509B - MAT SUB-ASSY, SEAT FLOOR | ||||
| 58509-95027B0 |
LH80,90..T1,T2,T3 ｱﾘ(ｽﾗｲﾄﾞ ﾄﾞｱ),GRAY,TRIM1# |
1 | ||
| 58509-9502604 |
LH8#,YH81..T1,T2,T3 BLUE,TRIM8# |
1 | ||
| 58509-9502704 |
LH80..T1,T2,T3 ｱﾘ(ｽﾗｲﾄﾞ ﾄﾞｱ),BLUE,TRIM8# |
1 | ||
| 58509-95028B0 |
LH85..T3..IV;LH80..4FC..WT;LH85..(T2,T3)..CBU;LH9#,YH81..T1,T2,T3;LH80..5F..(T1,T2,T3) ｶｽﾀﾑ B ｼﾖｳ-*99,GRAY,TRIM1# |
1 | ||
| 58509-95026B0 |
LH8#,9#,YH81..T1,T2,T3 GRAY,TRIM1# |
1 | ||
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-9503804 |
LH80,YH81 BLUE,TRIM8# |
1 | ||
| 58510-95A09B0 |
LH80,90,YH81 GRAY,TRIM1# |
1 | ||
| 58510-95A0904 |
LH80,YH81 BLUE,TRIM8# |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-95A06B1 |
LH80,90,YH81..5F..(T1,T2,T3) ｶｽﾀﾑ B ｼﾖｳ-*99 OR ｷﾔﾝﾋﾟﾝｸﾞ ｶ- ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 58515C - MAT, FRONT FLOOR, REAR NO.1 | ||||
| 58515-9540404 |
LH8#,YH81 BLUE,TRIM8# |
1 | ||
| 58515-95404B0 |
LH8#,9#,YH81 GRAY,TRIM1# |
1 | ||
| 58520F - MAT ASSY, ENGINE COVER | ||||
| 58520-95010B0 |
LH8#,9#,YH81 GRAY,TRIM1# |
1 | ||
| 58520-9501004 |
LH8#,YH81 BLUE,TRIM8# |
1 | ||
| 58520-95017B0 |
LH85..T3..IV;LH80..4FC..WT;LH85..(T2,T3)..CBU;LH9#,YH81..T1,T2,T3;LH80..5F..(T1,T2,T3) ｶｽﾀﾑ B ｼﾖｳ-*99,GRAY,TRIM1# |
1 | ||
| 58540C - MAT ASSY, FLOOR, REAR | ||||
| 58540-95017B0 |
LH80,90,YH81..5F GRAY,TRIM1# |
1 | ||
| 58540-9501704 |
LH80,YH81..5F BLUE,TRIM8# |
1 | ||
| 58540-95019B0 |
LH80,90,YH81..5F..(T1,T2,T3) ｶｽﾀﾑ B ｼﾖｳ-*99,GRAY,TRIM1# |
1 | ||
| 58553A - CARPET, FLOOR REAR SEAT SIDE | ||||
| 58553-95010B1 |
LH85..T3..IV;LH80..4FC..WT;LH85..(T2,T3)..CBU;LH9#,YH81..T1,T2,T3;LH80..5F..(T1,T2,T3) GRAY,TRIM1# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-95403B0 |
LH8#,9#,YH81 GRAY,TRIM1# |
1 | ||
| 67913-9540304 |
LH8#,YH81 BLUE,TRIM8# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-95402B0 |
LH80,90..T1,T2,T3 ｱﾘ(ｽﾗｲﾄﾞ ﾄﾞｱ),GRAY,TRIM1# |
1 | ||
| 67914-9540204 |
LH80..T1,T2,T3 ｱﾘ(ｽﾗｲﾄﾞ ﾄﾞｱ),BLUE,TRIM8# |
1 | ||
| 67914-9540304 |
LH8#,YH81 BLUE,TRIM8# |
1 | ||
| 67914-95403B0 |
LH8#,9#,YH81 GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-95402B0 |
LH80,90..T1,T2,T3 ｱﾘ(ｽﾗｲﾄﾞ ﾄﾞｱ),GRAY,TRIM1# |
1 | ||
| 67914-9540204 |
LH80..T1,T2,T3 ｱﾘ(ｽﾗｲﾄﾞ ﾄﾞｱ),BLUE,TRIM8# |
1 | ||
| 67914-9540304 |
LH8#,YH81 BLUE,TRIM8# |
1 | ||
| 67914-95403B0 |
LH8#,9#,YH81 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-40041 | ||||
| 90189-04013 | ||||
| 90189-05055 | ||||
| 90530-04007 | ||||
| 90530-06001 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
