LH80-MD (1987)

Toyota Hiace Truck

Production Aug 1987 - May 1995
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

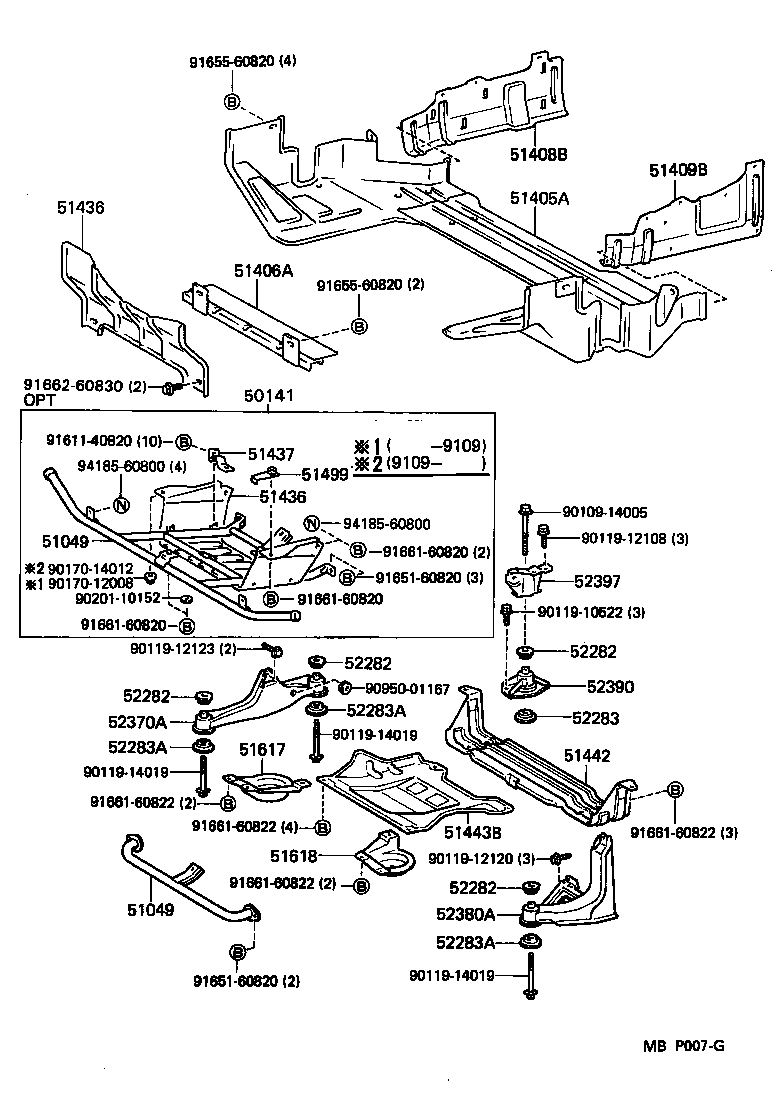

Click highlighted areas on diagram

diagram 50141 51049 51049 51405A 51406A 51408B 51409B 51436 51436 51437 51442 51443B 51499 51617 51618 52282 52282 52282 52282 52283 52283A 52283A 52283A 52370A 52380A 52390 52397 9010914005 9011910522 9011912108 9011912120 9011912123 9011914019 9011914019 9011914019 9017012008 9017014012 9020110152 9095001167 9161140820 9165160820 9165160820 9165560820 9165560820 9166160820 9166160820 9166160820 9166160822 9166160822 9166160822 9166160822 9166260830 9418560800 9418560800
Part # Description Qty Price
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-26010

LH80,90

 1
51406A - COVER SUB-ASSY, ENGINE UNDER, NO.2
51406-26010

LH80,90

 1
51408B - COVER SUB-ASSY, ENGINE UNDER, RH
51408-26010

LH80,90

 1
51409B - COVER SUB-ASSY, ENGINE UNDER, LH
51409-26020

LH80,90

 1
51436 - PROTECTOR, ENGINE FRONT SUPPORT
51436-26020

LH80

 1
51436-26040

LH80,90

 1
51436 - PROTECTOR, ENGINE FRONT SUPPORT
51436-26020

LH80

 1
51436-26040

LH80,90

 1
Common parts
90109-14005
90119-10522
90119-12108
90119-12120
90119-12123
90119-14019
90170-12008
90170-14012
90201-10152
90950-01167
91611-40820
91651-60820
91655-60820
91661-60820
91661-60822
91662-60830
94185-60800
