LH24-QDP (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

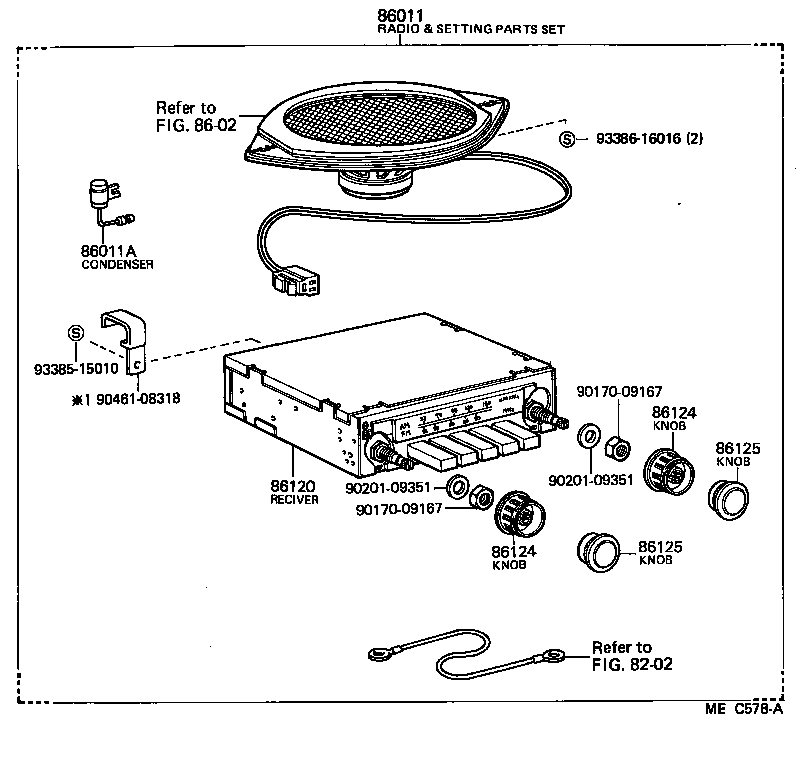

ILLUST NO. 1 OF 2(8211- )

Click highlighted areas on diagram

diagram 8202 86011 86011A 8602 86120 86124 86124 86125 86125 9017009167 9017009167 9020109351 9020109351 9046108318 9338515010 9338616016
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-29235

LH24,RH24

AM,5-BUTTON

 1
86011A - CONDENSER, RADIO SETTING
90980-04040

LH24,RH24

VOLTAGE REGULATOR

 1
86120 - RECEIVER ASSY, RADIO
86120-95A05

LH24,RH24

AM,5-BUTTON

 1
86120-95A07

LH24,RH24..DLX

AM/FM,5-BUTTON

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-95A01

LH24,RH24

 2
86124 - KNOB, RADIO RECEIVER CONTROL
86124-95A01

LH24,RH24

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-20040

LH24,RH24

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-20040

LH24,RH24

 2
Common parts
90170-09167
90201-09351
90461-08318
93385-15010
93386-16016
Linked diagrams
8202
8602

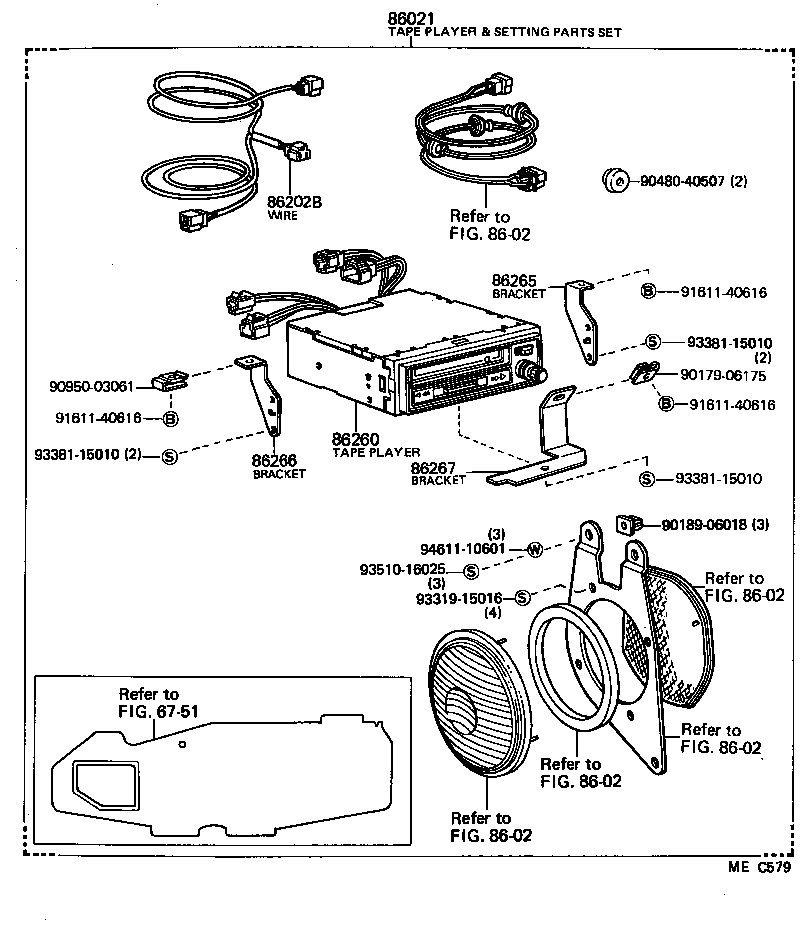

ILLUST NO. 2 OF 2(8211- )

Click highlighted areas on diagram

diagram 6751 8602 8602 8602 8602 8602 86021 86202B 86260 86265 86266 86267 9017906175 9018906018 9048040507 9095003061 9161140616 9161140616 9161140616 9331915016 9338115010 9338115010 9338115010 9351016025 9461110601
Part # Description Qty Price
86021 - TAPE PLAYER AND SETTING PARTS SET
86021-95A01

LH24,RH24

 1
86202B - WIRE, TAPE PLAYER
82409-95A00

LH24,RH24

 1
86260 - TAPE PLAYER ASSY
86260-95A01

LH24,RH24

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86237-95A01

LH24,RH24

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86238-95A01

LH24,RH24

 1
86267 - BRACKET, TAPE PLAYER, NO.3
86239-95A01

LH24,RH24

 1
Common parts
90179-06175
90189-06018
90480-40507
90950-03061
91611-40616
93319-15016
93381-15010
93510-16025
94611-10601
Linked diagrams
6751
8602
