LH24-QDLT3 (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

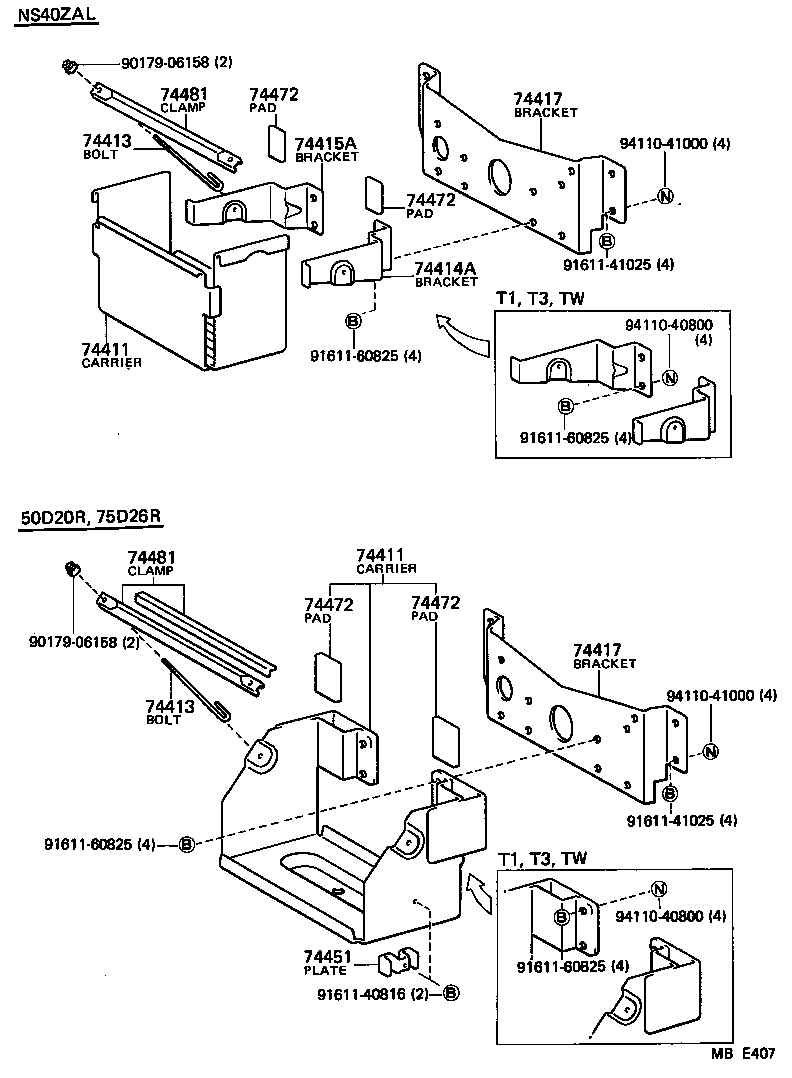

ILLUST NO. 1 OF 2(8211- )

Click highlighted areas on diagram

diagram 74411 74411 74413 74413 74414A 74415A 74417 74417 74451 74472 74472 74472 74472 74481 74481 9017906158 9017906158 9161140816 9161141025 9161141025 9161160825 9161160825 9161160825 9161160825 9411040800 9411040800 9411041000 9411041000
Part # Description Qty Price
74411 - CARRIER, BATTERY
74421-36120

LH24..WT

NX110-5X2

 1
74421-25020

LH24,RH24

50D20R,75D26R

 1
74411 - CARRIER, BATTERY
74421-36120

LH24..WT

NX110-5X2

 1
74421-25020

LH24,RH24

50D20R,75D26R

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

LH24,RH24

 2
90101-08223

LH24..WT

NX110-5X2

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

LH24,RH24

 2
90101-08223

LH24..WT

NX110-5X2

 1
74414A - BRACKET, BATTERY, NO.1
74401-26010

LH24..WT

NX110-5X2

 1
74415A - BRACKET, BATTERY, NO.2
74402-26010

LH24..WT

NX110-5X2

 1
74417 - BRACKET, BATTERY CARRIER
74417-26010

LH24,RH24..WT

 1
74417 - BRACKET, BATTERY CARRIER
74417-26010

LH24,RH24..WT

 1
74451 - PLATE, BATTERY CARRIER SUPPORT
74451-36050

LH24..WT

NX110-5X2

 2
74472 - PAD, BATTERY SIDE
74472-25020

LH24,RH24

50D20R,75D26R

 2
74472 - PAD, BATTERY SIDE
74472-25020

LH24,RH24

50D20R,75D26R

 2
74472 - PAD, BATTERY SIDE
74472-25020

LH24,RH24

50D20R,75D26R

 2
74472 - PAD, BATTERY SIDE
74472-25020

LH24,RH24

50D20R,75D26R

 2
74481 - CLAMP, BATTERY HOLD DOWN
74404-25010

LH24,RH24

50D20R,75D26R

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-25010

LH24,RH24

50D20R,75D26R

 1
Common parts
90179-06158
91611-40816
91611-41025
91611-60825
94110-40800
94110-41000

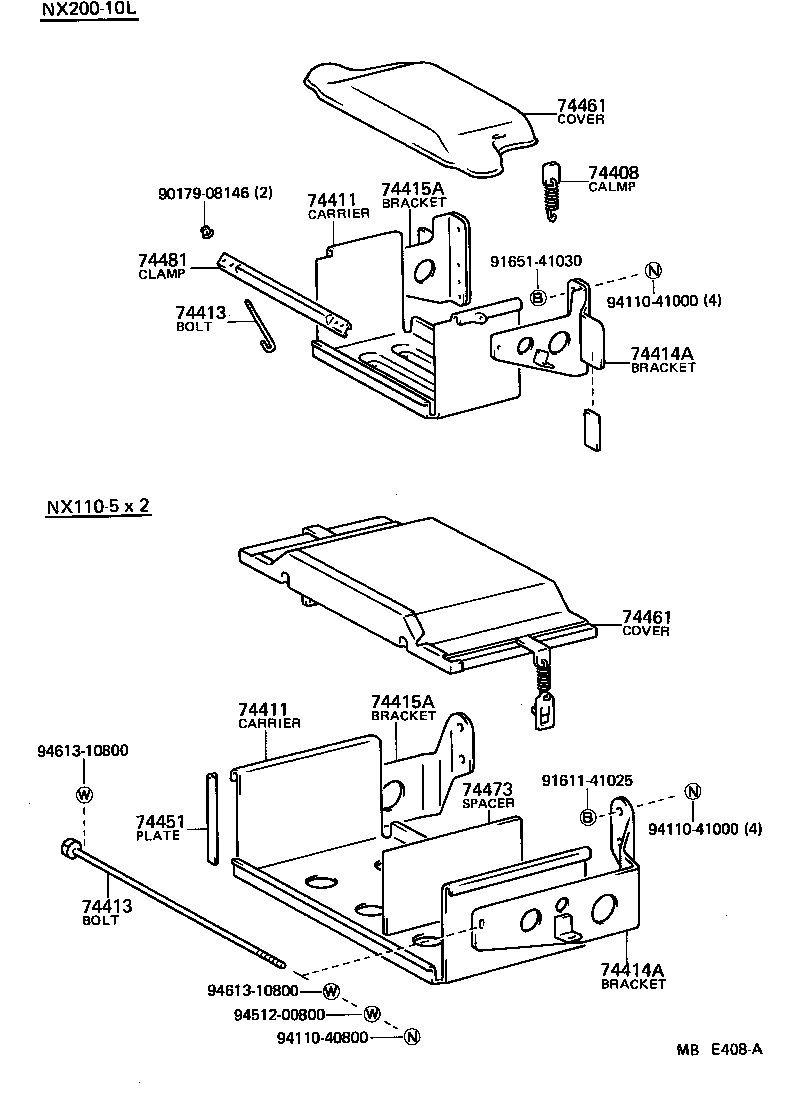

ILLUST NO. 2 OF 2(8211- )LH24

Click highlighted areas on diagram

diagram 74408 74411 74411 74413 74413 74414A 74414A 74415A 74415A 74451 74461 74461 74473 74481 9017908146 9161141025 9165141030 9411040800 9411041000 9411041000 9451200800 9461310800 9461310800
Part # Description Qty Price
74411 - CARRIER, BATTERY
74421-36120

LH24..WT

NX110-5X2

 1
74421-25020

LH24,RH24

50D20R,75D26R

 1
74411 - CARRIER, BATTERY
74421-36120

LH24..WT

NX110-5X2

 1
74421-25020

LH24,RH24

50D20R,75D26R

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

LH24,RH24

 2
90101-08223

LH24..WT

NX110-5X2

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

LH24,RH24

 2
90101-08223

LH24..WT

NX110-5X2

 1
74414A - BRACKET, BATTERY, NO.1
74401-26010

LH24..WT

NX110-5X2

 1
74414A - BRACKET, BATTERY, NO.1
74401-26010

LH24..WT

NX110-5X2

 1
74415A - BRACKET, BATTERY, NO.2
74402-26010

LH24..WT

NX110-5X2

 1
74415A - BRACKET, BATTERY, NO.2
74402-26010

LH24..WT

NX110-5X2

 1
74451 - PLATE, BATTERY CARRIER SUPPORT
74451-36050

LH24..WT

NX110-5X2

 2
74461 - COVER, BATTERY
74405-36022

LH24..WT

NX110-5X2

 1
74461 - COVER, BATTERY
74405-36022

LH24..WT

NX110-5X2

 1
74473 - SPACER, BATTERY
74473-36010

LH24..WT

NX110-5X2,T=3.0

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-25010

LH24,RH24

50D20R,75D26R

 1
Common parts
90179-08146
91611-41025
91651-41030
94110-40800
94110-41000
94512-00800
94613-10800
