LH24-QDLT3 (1982)
Toyota Hiace Truck
Production
Nov 1982
-
Jul 1985
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )

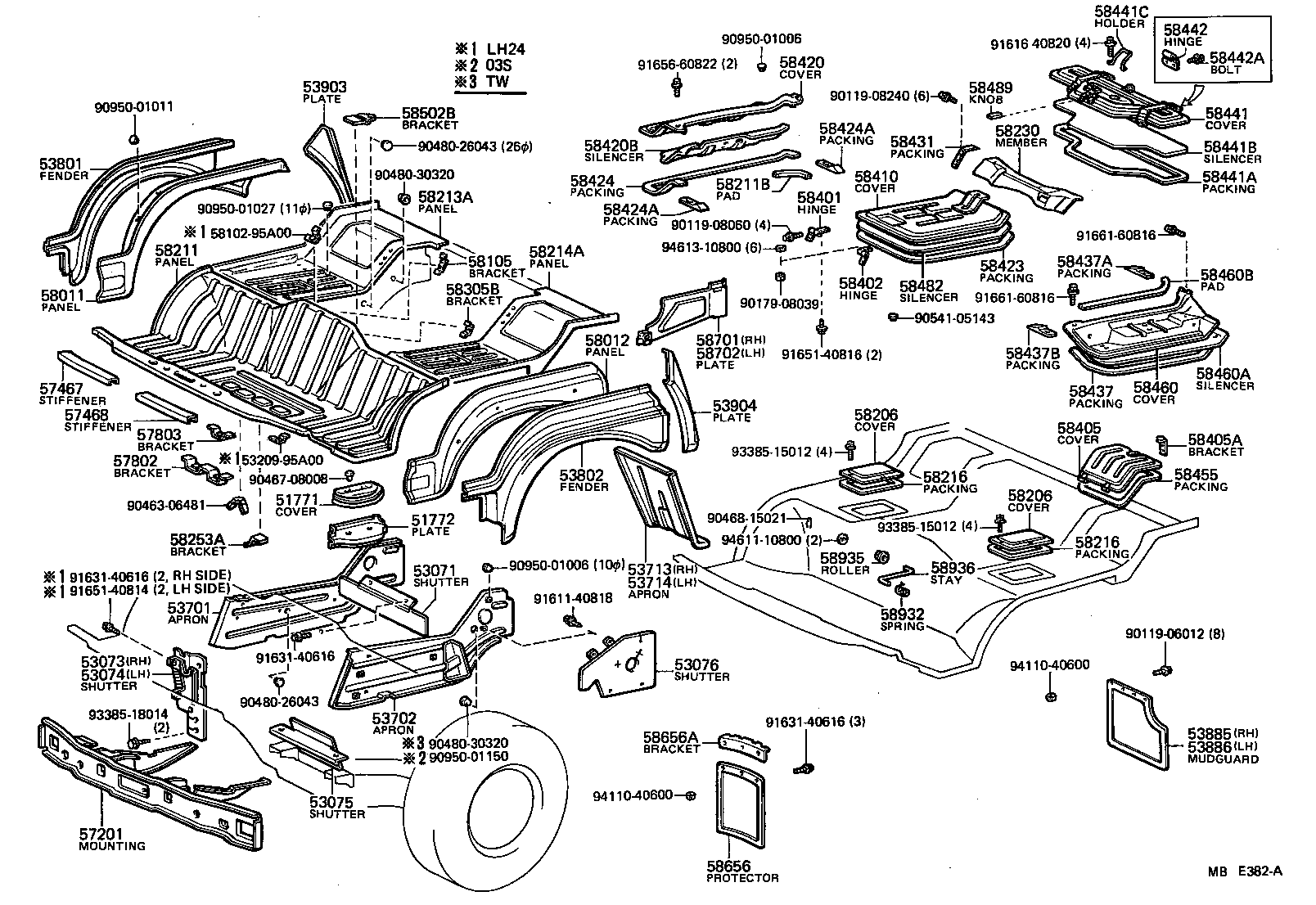

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771 - COVER, STEP PLATE, INNER | ||||
| 51772-95A01 |
LH24,RH24 LH |
1 | ||
| 51771-95A01 |
LH24,RH24 RH |
1 | ||
| 51772 - PLATE, STEP | ||||
| 61404-95A02 |
LH24,RH24 LH |
1 | ||
| 61403-95A02 |
LH24,RH24 RH |
1 | ||
| 53071 - SHUTTER SUB-ASSY, HOT AIR, UPPER | ||||
| 53071-95A01 |
LH24 |
1 | ||
| 53073 - SHUTTER SUB-ASSY, HOT AIR SIDE, RH | ||||
| 53073-95A00 |
LH24,RH24 |
1 | ||
| 53074 - SHUTTER SUB-ASSY, HOT AIR SIDE, LH | ||||
| 53074-95A03 |
LH24 |
1 | ||
| 53075 - SHUTTER SUB-ASSY, HOT AIR, LOWER | ||||
| 53075-95A00 |
LH24;RH24..03S |
1 | ||
| 53076 - SHUTTER SUB-ASSY, HOT AIR, REAR | ||||
| 53076-95A16 |
LH24..03S |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-95A09 |
LH24,RH24..03S |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-95A35 |
LH24..03S |
1 | ||
| 53713 - APRON, FENDER SIDE, RH | ||||
| 53703-95A00 |
LH24,RH24 |
1 | ||
| 53714 - APRON, FENDER SIDE, LH | ||||
| 53714-95A06 |
LH24..03S |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 61411-95A01 |
LH24,RH24 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 61412-95A01 |
LH24,RH24 |
1 | ||
| 53885 - MUDGUARD, FRONT RH | ||||
| 53881-95A01 |
LH24,RH24 |
1 | ||
| 53886 - MUDGUARD, FRONT LH | ||||
| 53881-95A01 |
LH24,RH24 |
1 | ||
| 53903 - PLATE SUB-ASSY, FENDER, REAR RH | ||||
| 61423-95A03 |
LH24,RH24 |
1 | ||
| 53904 - PLATE SUB-ASSY, FENDER, REAR LH | ||||
| 61424-95A03 |
LH24,RH24 |
1 | ||
| 57201 - MOUNTING SUB-ASSY, FRONT FLOOR | ||||
| 57310-95A00 |
LH24,RH24 |
1 | ||
| 57467 - STIFFENER, FRONT FLOOR SIDE, RH | ||||
| 57467-95A00 |
LH24,RH24 |
1 | ||
| 57468 - STIFFENER, FRONT FLOOR SIDE, LH | ||||
| 57468-95A00 |
LH24,RH24 |
1 | ||
| 57802 - BRACKET SUB-ASSY, BRAKE TUBE, NO.1 | ||||
| 58105-95A00 |
LH24,RH24 |
1 | ||
| 57803 - BRACKET SUB-ASSY, BRAKE TUBE, NO.2 | ||||
| 58106-95A00 |
LH24,RH24 |
2 | ||
| 58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH | ||||
| 61421-95A01 |
LH24,RH24 |
1 | ||
| 58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 61422-95A02 |
LH24,RH24 |
1 | ||
| 58105 - BRACKET SUB-ASSY, CLAMP SET | ||||
| 58107-95A00 |
LH24,RH24 |
2 | ||
| 58206 - COVER SUB-ASSY, CAMBER SERVICE HOLE | ||||
| 58215-95700 |
LH24,RH24 |
2 | ||
| 58206 - COVER SUB-ASSY, CAMBER SERVICE HOLE | ||||
| 58215-95700 |
LH24,RH24 |
2 | ||
| 58211 - PANEL, FRONT FLOOR | ||||
| 58211-95A00 |
LH24,RH24 |
1 | ||
| 58211B - PAD, FRONT FLOOR PANEL | ||||
| 58291-95703 |
LH24,RH24 |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58204-95A00 |
LH24,RH24..03S |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58205-95A00 |
LH24,RH24..03S |
1 | ||
| 58216 - PACKING, CAMBER SERVICE HOLE COVER | ||||
| 58216-95700 |
LH24,RH24 |
2 | ||
| 58216 - PACKING, CAMBER SERVICE HOLE COVER | ||||
| 58216-95700 |
LH24,RH24 |
2 | ||
| 58230 - MEMBER ASSY, CENTER FLOOR CROSS | ||||
| 58203-95A02 |
LH24,RH24 |
1 | ||
| 58253A - BRACKET, PARKING CABLE CLAMP | ||||
| 58308-95700 |
LH24,RH24 |
1 | ||
| 58305B - BRACKET ASSY, HEATER HOSE | ||||
| 58305-95600 |
LH24,RH24 |
2 | ||
| 58401 - HINGE SUB-ASSY, ENGINE SERVICE HOLE COVER, RH | ||||
| 58043-95A02 |
LH24,RH24 |
1 | ||
| 58402 - HINGE SUB-ASSY, ENGINE SERVICE HOLE COVER, LH | ||||
| 58044-95A02 |
LH24,RH24 |
1 | ||
| 58405 - COVER SUB-ASSY, AIR CLEANER SERVICE HOLE | ||||
| 58202-95A00 |
LH24,RH24 |
1 | ||
| 58202-95A01 |
LH24..03S |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58401-95A02 |
LH24,RH24 |
1 | ||
| 58420 - COVER ASSY, ENGINE SERVICE HOLE, NO.2 | ||||
| 58402-95A19 |
LH24 |
1 | ||
| 58420B - SILENCER, ENGINE SERVICE HOLE COVER, NO.2 | ||||
| 58471-95A04 |
LH24,RH24 |
1 | ||
| 58423 - PACKING, ENGINE SERVICE HOLE COVER, NO.2 | ||||
| 58435-95A00 |
LH24,RH24 |
1 | ||
| 58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1 | ||||
| 58436-95A02 |
LH24,RH24 |
1 | ||
| 58424A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1 | ||||
| 58423-95A00 |
LH24,RH24 |
2 | ||
| 58424A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1 | ||||
| 58423-95A00 |
LH24,RH24 |
2 | ||
| 58431 - PACKING, CENTER FLOOR CROSSMEMBER | ||||
| 58421-95A00 |
LH24,RH24 |
2 | ||
| 58437 - PACKING, ENGINE SERVICE HOLE COVER, NO.3 | ||||
| 58436-95A02 |
LH24,RH24 |
1 | ||
| 58437A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1 | ||||
| 58423-95A00 |
LH24,RH24 |
1 | ||
| 58437B - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.2 | ||||
| 58424-95A00 |
LH24,RH24 |
1 | ||
| 58441 - COVER ASSY, ENGINE, REAR | ||||
| 58404-95A07 |
LH24..03S |
1 | ||
| 58441A - PACKING, ENGINE REAR COVER | ||||
| 58438-95A02 |
LH24,RH24 |
1 | ||
| 58438-95A01 |
LH24,RH24 |
1 | ||
| 58441B - SILENCER, ENGINE REAR COVER | ||||
| 58464-95A02 |
LH24,RH24 |
1 | ||
| 58441C - HOLDER, ENGINE REAR COVER | ||||
| 58475-95A00 |
LH24,RH24..03S |
1 | ||
| 58442A - BOLT, ENGINE REAR COVER HINGE SET | ||||
| 91616-40820 |
LH24,RH24 |
4 | ||
| 58455 - PACKING, AIR CLEANER SERVICE HOLE | ||||
| 58049-95A01 |
LH24,RH24 |
1 | ||
| 58460 - COVER ASSY, ENGINE SERVICE HOLE, NO.3 | ||||
| 58433-95A00 |
LH24,RH24 |
1 | ||
| 58460A - SILENCER, ENGINE SERVICE HOLE COVER, NO.3 | ||||
| 58472-95A02 |
LH24,RH24 |
1 | ||
| 58460B - PAD, ENGINE COVER | ||||
| 58411-95A00 |
LH24,RH24 |
1 | ||
| 17719-95400 |
LH24,RH24 |
1 | ||
| 58482 - SILENCER, ENGINE COVER | ||||
| 58463-95A00 |
LH24,RH24 |
1 | ||
| 58489 - KNOB, ENGINE COVER REAR LEVER | ||||
| 58489-95A01 |
LH24,RH24 |
1 | ||
| 58502B - BRACKET SUB-ASSY, ENGINE COVER | ||||
| 58502-95A00 |
LH24,RH24 |
1 | ||
| 58656 - PROTECTOR, CONTROL LINK | ||||
| 58656-95A00 |
LH24,RH24 |
1 | ||
| 58656A - BRACKET, CONTROL LINK PROTECTOR | ||||
| 58651-95A00 |
LH24,RH24 |
1 | ||
| 58701 - PLATE SUB-ASSY, SEAT FLOOR UNDER SHIELD, RH | ||||
| 57501-95A00 |
LH24,RH24..03S |
1 | ||
| 58702 - PLATE SUB-ASSY, SEAT FLOOR UNDER SHIELD, LH | ||||
| 57502-95A00 |
LH24,RH24..03S |
1 | ||
| 58932 - SPRING, ENGINE COVER STAY | ||||
| 90508-20005 |
LH24,RH24 |
1 | ||
| 58935 - ROLLER, ENGINE COVER STAY | ||||
| 58935-95600 |
LH24,RH24 |
1 | ||
| 58936 - STAY, ENGINE COVER | ||||
| 58936-95A00 |
LH24,RH24 |
1 | ||
| Common parts | ||||
| 53209-95A00 | ||||
| 58102-95A00 | ||||
| 90119-06012 | ||||
| 90119-08060 | ||||
| 90119-08240 | ||||
| 90179-08039 | ||||
| 90463-06481 | ||||
| 90467-08008 | ||||
| 90468-15021 | ||||
| 90480-26043 | ||||
| 90480-30320 | ||||
| 90541-05143 | ||||
| 90950-01006 | ||||
| 90950-01011 | ||||
| 90950-01027 | ||||
| 90950-01150 | ||||
| 91611-40818 | ||||
| 91616-40820 | ||||
| 91631-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91656-60822 | ||||
| 91661-60816 | ||||
| 93385-15012 | ||||
| 93385-18014 | ||||
| 94110-40600 | ||||
| 94611-10800 | ||||
| 94613-10800 | ||||
