LH24-QDLT (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

Click highlighted areas on diagram

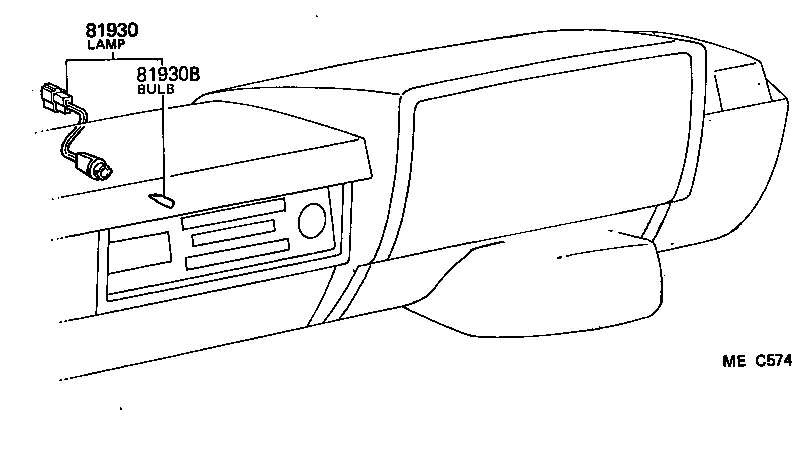

diagram 81930 81930B
Part # Description Qty Price
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-95A02

LH24,RH24

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11014

LH24,RH24

14V 1.4W,12V 1.4W

 1
