LH24-QDLT (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8211- )

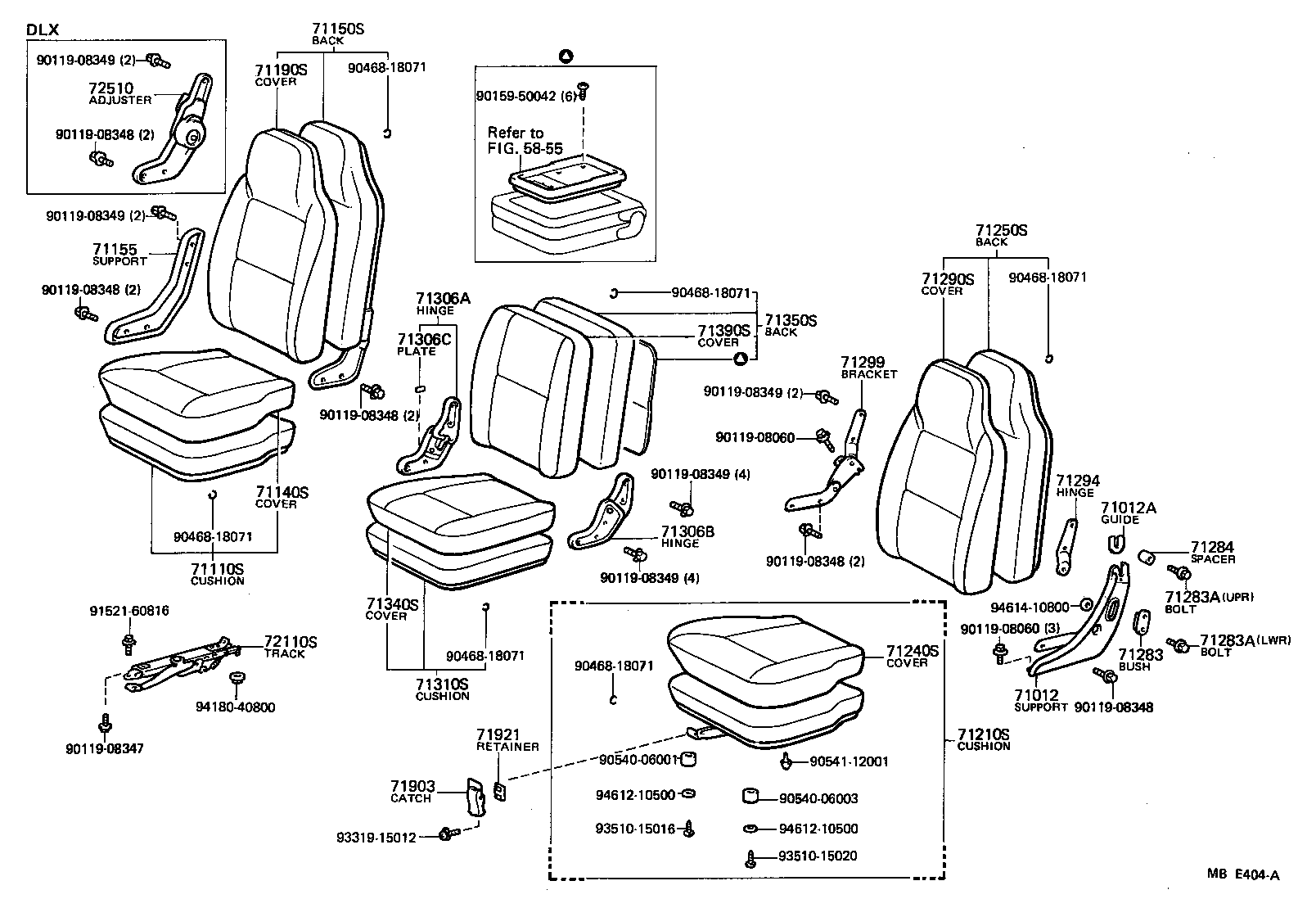

Click highlighted areas on diagram

diagram 5855 71012 71012A 71110S 71140S 71150S 71155 71190S 71210S 71240S 71250S 71283 71283A 71283A 71284 71290S 71294 71299 71306A 71306B 71306C 71310S 71340S 71350S 71390S 71903 71921 72110S 72510 9011908060 9011908060 9011908347 9011908348 9011908348 9011908348 9011908348 9011908348 9011908349 9011908349 9011908349 9011908349 9011908349 9015950042 9046818071 9046818071 9046818071 9046818071 9046818071 9046818071 9054006001 9054006003 9054112001 9152160816 9331915012 9351015016 9351015020 9418040800 9461210500 9461210500 9461410800
Part # Description Qty Price
71012 - SUPPORT SUB-ASSY, FRONT SEAT BACK, LH
71012-95A05

LH24,RH24

 1
71012A - GUIDE, FRONT SEAT BACK SUPPORT, LH
71297-95A00

LH24,RH24

 1
71110S - CUSHION ASSY, FRONT SEAT, RH
71110-95A50

LH24,RH24..DLX

 1
71140S - COVER, FRONT SEAT CUSHION, RH
71140-95A38

LH24,RH24..DLX

 1
71150S - BACK ASSY, FRONT SEAT, RH
71170-95A11

LH24,RH24..DLX

 1
71190S - COVER, FRONT SEAT BACK, RH
71190-95A71

LH24,RH24..DLX

 1
71210S - CUSHION ASSY, FRONT SEAT, LH
71210-95A49

LH24,RH24..DLX

 1
71240S - COVER, FRONT SEAT CUSHION, LH
71240-95A52

LH24,RH24..DLX

 1
71250S - BACK ASSY, FRONT SEAT, LH
71270-95A04

LH24,RH24..DLX

 1
71283 - BUSH, FRONT SEAT BACK SUPPORT, LH
71283-95A00

LH24,RH24

 1
71283A - BOLT, FRONT SEAT BACK SUPPORT, LH
71282-95A00

LH24,RH24

LWR

 1
71285-95A00

LH24,RH24

UPR

 1
71283A - BOLT, FRONT SEAT BACK SUPPORT, LH
71282-95A00

LH24,RH24

LWR

 1
71285-95A00

LH24,RH24

UPR

 1
71284 - SPACER, FRONT SEAT BACK SUPPORT, LH
71284-95A00

LH24,RH24

 1
71290S - COVER, FRONT SEAT BACK, LH
71290-95A17

LH24,RH24..DLX

 1
71294 - HINGE, FRONT SEAT BACK, LH
71294-95A05

LH24,RH24

 1
71299 - BRACKET, FRONT SEAT BACK, LH
71209-95A15

LH24,RH24

 1
71306A - HINGE SUB-ASSY, CENTER SEAT, RH
71330-95A07

LH24,RH24

 1
71306B - HINGE SUB-ASSY, CENTER SEAT, LH
71308-95A07

LH24,RH24

 1
71306C - PLATE, CENTER SEAT HINGE CAUTION
71386-95A00

LH24,RH24

 1
71310S - CUSHION ASSY, FRONT SEAT, CENTER
71310-95A34

LH24,RH24

 1
71340S - COVER, FRONT SEAT CUSHION, CENTER
71340-95A31

LH24,RH24

 1
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-95A43

LH24,RH24

 1
71390S - COVER, FRONT SEAT BACK, CENTER
71390-95A36

LH24,RH24

 1
71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT
71901-95016

LH24,RH24

 1
71921 - RETAINER, ENGINE SERVICE HOLE COVER CATCH
71921-95700

LH24,RH24

 1
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72710-95A00

LH24,RH24

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95A09

LH24,RH24..DLX

 1
Common parts
90119-08060
90119-08347
90119-08348
90119-08349
90159-50042
90468-18071
90540-06001
90540-06003
90541-12001
91521-60816
93319-15012
93510-15016
93510-15020
94180-40800
94612-10500
94614-10800
Linked diagrams
5855
