LH24-QDGT (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8211- )

Click highlighted areas on diagram

diagram 48046 48046A 48047 48210A 48210B 48210B 48210G 48210K 48210L 48306 48344 48401 48402 48404 48405 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 9161140820 9161141020 9161141020 9411541400 9411541400 9411551400 9451201400 9451201400 9453101400
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-26070

LH24,RH24..WT

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-14200

LH24,RH24

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-26070

LH24,RH24..WT

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18046

LH24,RH24

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

LH24,RH24

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

LH24,RH24

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

LH24,RH24

 4
48210K - SHACKLE KIT, REAR SPRING
04483-26030

LH24,RH24..WT

 2
48210L - PIN KIT, REAR SPRING
04484-27010

LH24,RH24

 2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-26040

LH24,RH24..WT

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-26030

LH24,RH24..WT

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48414-26030

LH24,RH24..WT

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-26030

LH24,RH24..WT

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48417-26020

LH24,RH24..WT

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-29635

LH24,RH24..WT

ﾏｰｸ 48531−26070

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LH24,RH24

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LH24,RH24

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LH24,RH24

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LH24,RH24

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03012

LH24,RH24

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

LH24,RH24

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03012

LH24,RH24

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

LH24,RH24

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-29635

LH24,RH24..WT

ﾏｰｸ 48531−26070

 1
Common parts
91611-40820
91611-41020
94115-41400
94115-51400
94512-01400
94531-01400

ILLUST NO. 2 OF 2(8211- )

Click highlighted areas on diagram

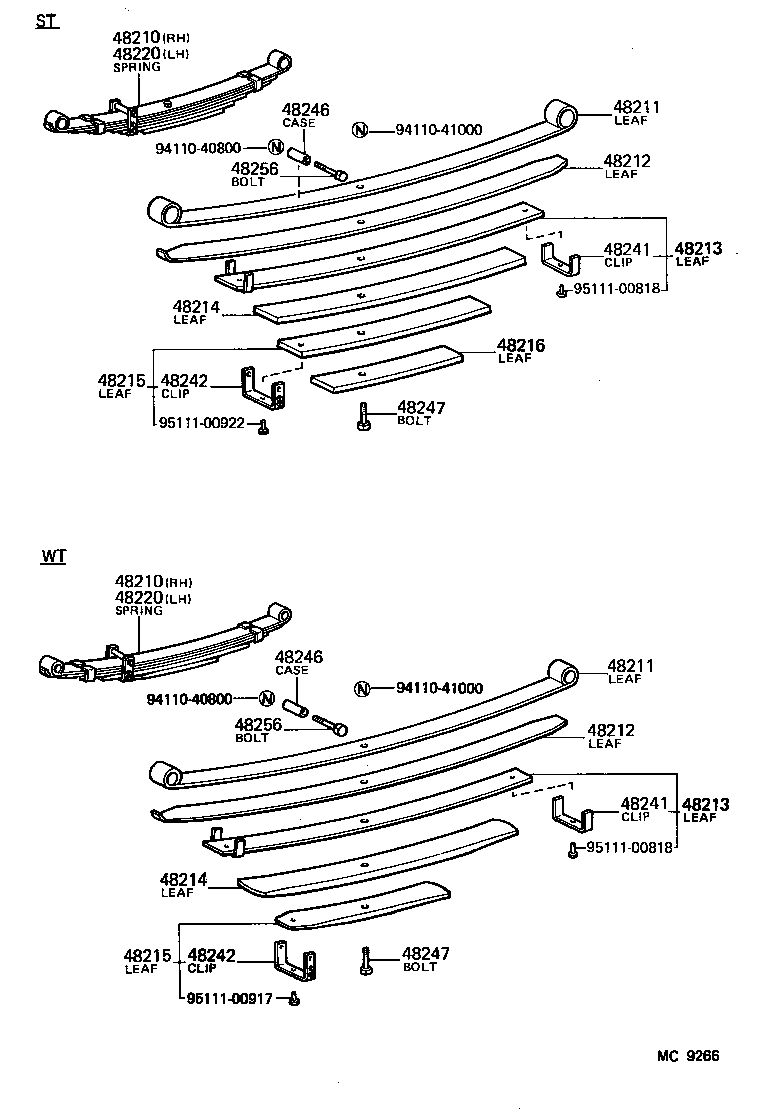

diagram 48210 48210 48211 48211 48212 48212 48213 48213 48214 48214 48215 48215 48216 48220 48220 48241 48241 48242 48242 48246 48246 48247 48247 48256 48256 9411040800 9411040800 9411041000 9411041000 9511100818 9511100818 9511100917 9511100922
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-26112

LH24,RH24..WT

 1
48210-26111

LH24,RH24..WT

 1
48210 - SPRING ASSY, REAR RH
48210-26112

LH24,RH24..WT

 1
48210-26111

LH24,RH24..WT

 1
48211 - LEAF, REAR SPRING, NO.1
48211-26112

LH24,RH24..WT

 2
48211-26111

LH24,RH24..WT

 2
48211 - LEAF, REAR SPRING, NO.1
48211-26112

LH24,RH24..WT

 2
48211-26111

LH24,RH24..WT

 2
48212 - LEAF, REAR SPRING, NO.2
48212-26111

LH24,RH24..WT

 2
48212-26112

LH24,RH24..WT

 2
48212 - LEAF, REAR SPRING, NO.2
48212-26111

LH24,RH24..WT

 2
48212-26112

LH24,RH24..WT

 2
48213 - LEAF, REAR SPRING, NO.3
48202-26111

LH24,RH24..WT

 2
48202-26112

LH24,RH24..WT

 2
48213 - LEAF, REAR SPRING, NO.3
48202-26111

LH24,RH24..WT

 2
48202-26112

LH24,RH24..WT

 2
48214 - LEAF, REAR SPRING, NO.4
48214-26112

LH24,RH24..WT

 2
48214-26111

LH24,RH24..WT

 2
48214 - LEAF, REAR SPRING, NO.4
48214-26112

LH24,RH24..WT

 2
48214-26111

LH24,RH24..WT

 2
48215 - LEAF, REAR SPRING, NO.5
48203-26111

LH24,RH24..WT

 2
48203-26112

LH24,RH24..WT

RH

 1
48204-26112

LH24,RH24..WT

LH

 1
48215 - LEAF, REAR SPRING, NO.5
48203-26111

LH24,RH24..WT

 2
48203-26112

LH24,RH24..WT

RH

 1
48204-26112

LH24,RH24..WT

LH

 1
48220 - SPRING ASSY, REAR LH
48220-26112

LH24,RH24..WT

 1
48220-26111

LH24,RH24..WT

 1
48220 - SPRING ASSY, REAR LH
48220-26112

LH24,RH24..WT

 1
48220-26111

LH24,RH24..WT

 1
48241 - CLIP, REAR SPRING, NO.1
48241-26060

LH24,RH24

 4
48241 - CLIP, REAR SPRING, NO.1
48241-26060

LH24,RH24

 4
48242 - CLIP, REAR SPRING, NO.2
48242-26111

LH24,RH24..WT

 2
48242 - CLIP, REAR SPRING, NO.2
48242-26111

LH24,RH24..WT

 2
48246 - CASE, REAR SPRING CLIP BOLT
48246-26060

LH24,RH24

 2
48246 - CASE, REAR SPRING CLIP BOLT
48246-26060

LH24,RH24

 2
48247 - BOLT, REAR SPRING, CENTER
48247-25020

LH24,RH24..WT

 2
48247 - BOLT, REAR SPRING, CENTER
48247-25020

LH24,RH24..WT

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-26010

LH24,RH24

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-26010

LH24,RH24

 2
Common parts
94110-40800
94110-41000
95111-00818
95111-00917
95111-00922

ILLUST NO. 2 OF 2(8309- )

Click highlighted areas on diagram

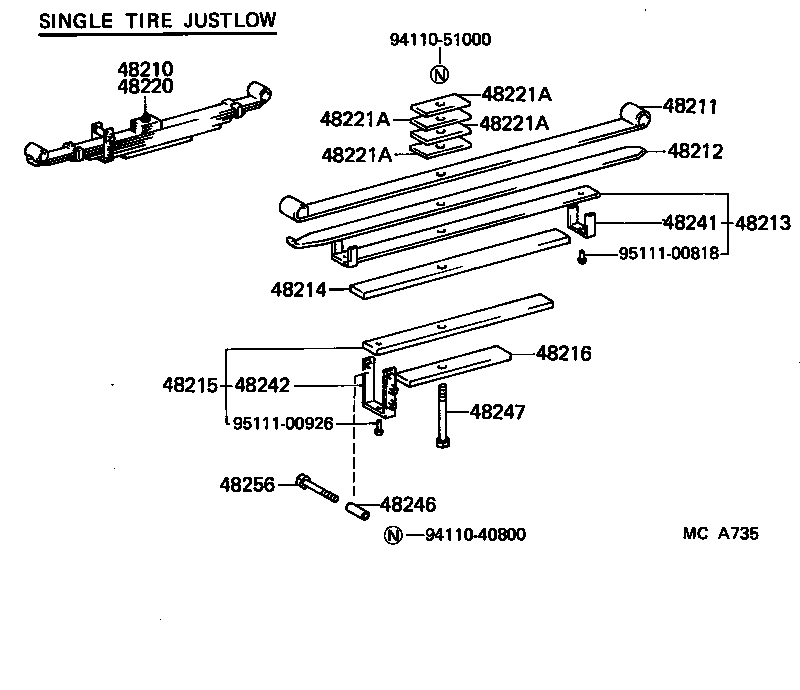

diagram 48210 48211 48212 48213 48214 48215 48216 48220 48221A 48221A 48221A 48221A 48241 48242 48246 48247 48256 9411040800 9411051000 9511100818 9511100926
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-26112

LH24,RH24..WT

 1
48210-26111

LH24,RH24..WT

 1
48211 - LEAF, REAR SPRING, NO.1
48211-26112

LH24,RH24..WT

 2
48211-26111

LH24,RH24..WT

 2
48212 - LEAF, REAR SPRING, NO.2
48212-26111

LH24,RH24..WT

 2
48212-26112

LH24,RH24..WT

 2
48213 - LEAF, REAR SPRING, NO.3
48202-26111

LH24,RH24..WT

 2
48202-26112

LH24,RH24..WT

 2
48214 - LEAF, REAR SPRING, NO.4
48214-26112

LH24,RH24..WT

 2
48214-26111

LH24,RH24..WT

 2
48215 - LEAF, REAR SPRING, NO.5
48203-26111

LH24,RH24..WT

 2
48203-26112

LH24,RH24..WT

RH

 1
48204-26112

LH24,RH24..WT

LH

 1
48220 - SPRING ASSY, REAR LH
48220-26112

LH24,RH24..WT

 1
48220-26111

LH24,RH24..WT

 1
48241 - CLIP, REAR SPRING, NO.1
48241-26060

LH24,RH24

 4
48242 - CLIP, REAR SPRING, NO.2
48242-26111

LH24,RH24..WT

 2
48246 - CASE, REAR SPRING CLIP BOLT
48246-26060

LH24,RH24

 2
48247 - BOLT, REAR SPRING, CENTER
48247-25020

LH24,RH24..WT

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-26010

LH24,RH24

 2
Common parts
94110-40800
94110-51000
95111-00818
95111-00926
