LH24-QDB (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

Click highlighted areas on diagram

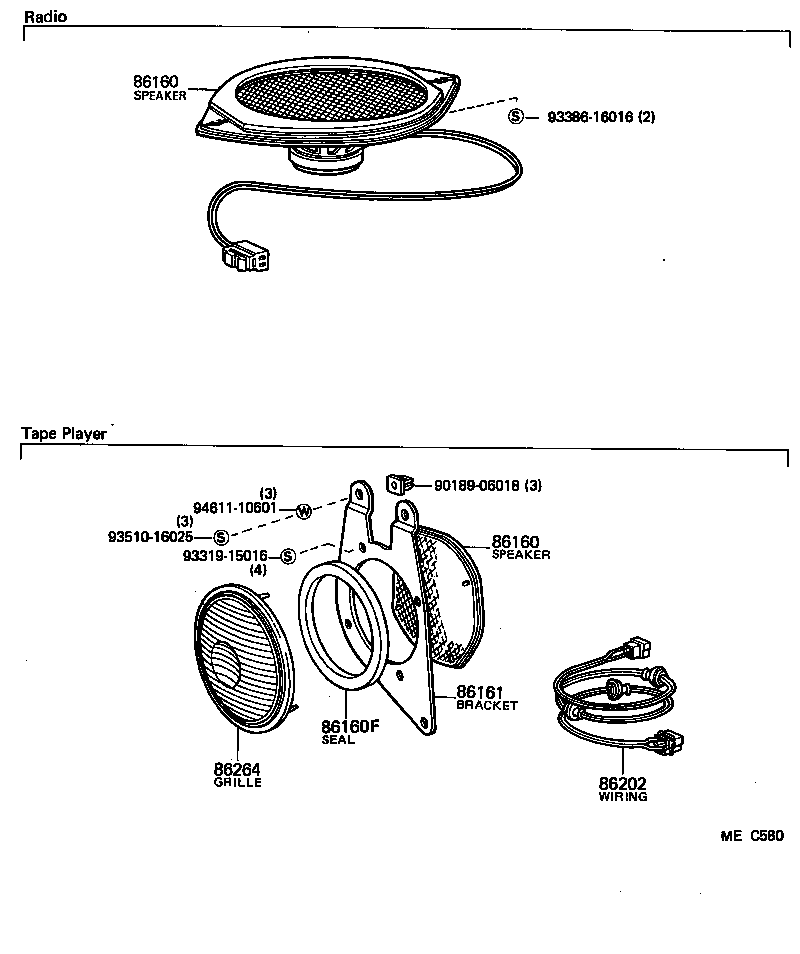

diagram 86160 86160 86160F 86161 86202 86264 9018906018 9331915016 9338616016 9351016025 9461110601
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-95A04

LH24,RH24

RADIO

 1
86160-95A01

LH24,RH24

TAPE PLAYER

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-95A04

LH24,RH24

RADIO

 1
86160-95A01

LH24,RH24

TAPE PLAYER

 2
86160F - SEAL, SPEAKER, FRONT
67619-95A00

LH24,RH24

 2
86161 - BRACKET, SPEAKER, FRONT NO.1
86112-95A00

LH24,RH24

LH

 1
86111-95A00

LH24,RH24

RH

 1
86202 - WIRE, SPEAKER, NO.1
82402-95A00

LH24,RH24

 2
86264 - GRILLE, SPEAKER, FRONT
62529-95A00

LH24,RH24

 2
Common parts
90189-06018
93319-15016
93386-16016
93510-16025
94611-10601
