LH24-QDB (1982)
Toyota Hiace Truck
Production
Nov 1982
-
Jul 1985
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

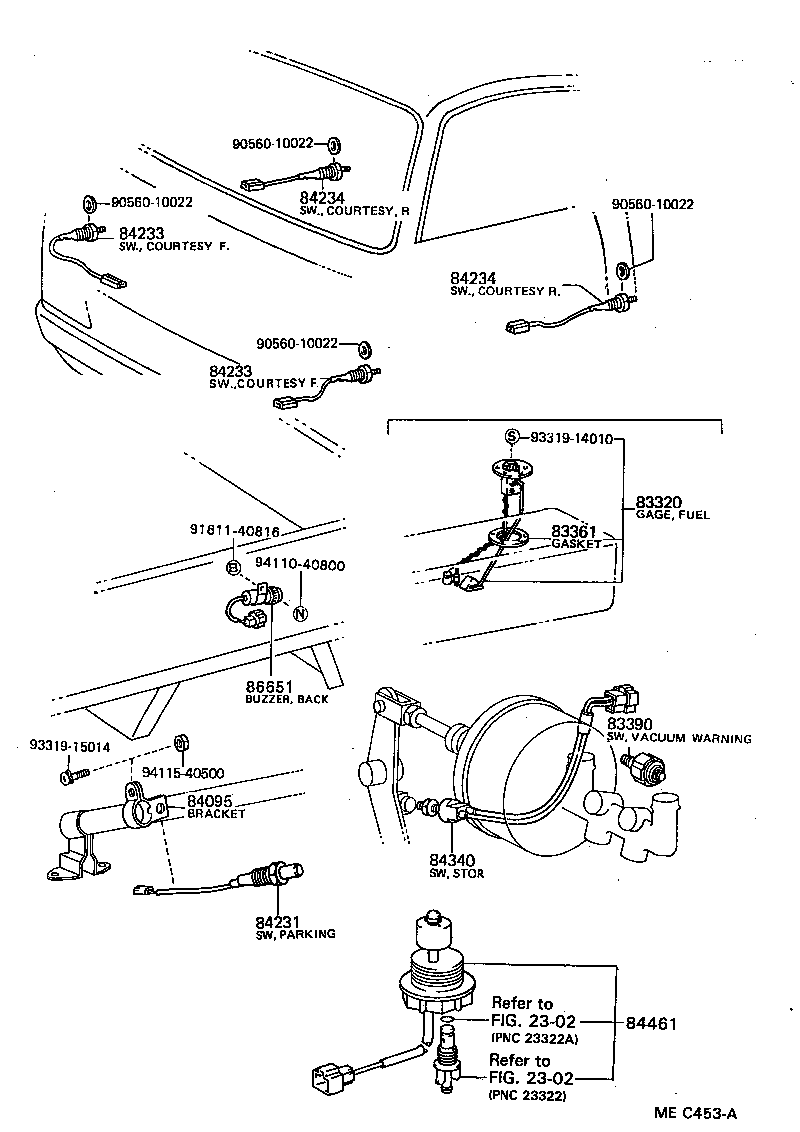

ILLUST NO. 1 OF 4(8211- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29755 |
LH24 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LH24,RH24 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LH24 |
1 | ||
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-26020 |
LH24,RH24 |
1 | ||
| 84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE) | ||||
| 84550-20030 |
LH24,RH24 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-95A00 |
LH24,RH24 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-95A00 |
LH24,RH24 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
LH24,RH24 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-14030 |
LH24 |
1 | ||
| 86651 - BUZZER ASSY, BACK | ||||
| 86650-95406 |
LH24,RH24 |
1 | ||
| Common parts | ||||
| 90560-10022 | ||||
| 91611-40816 | ||||
| 93319-14010 | ||||
| 93319-15014 | ||||
| 94110-40800 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 2302 | ||||

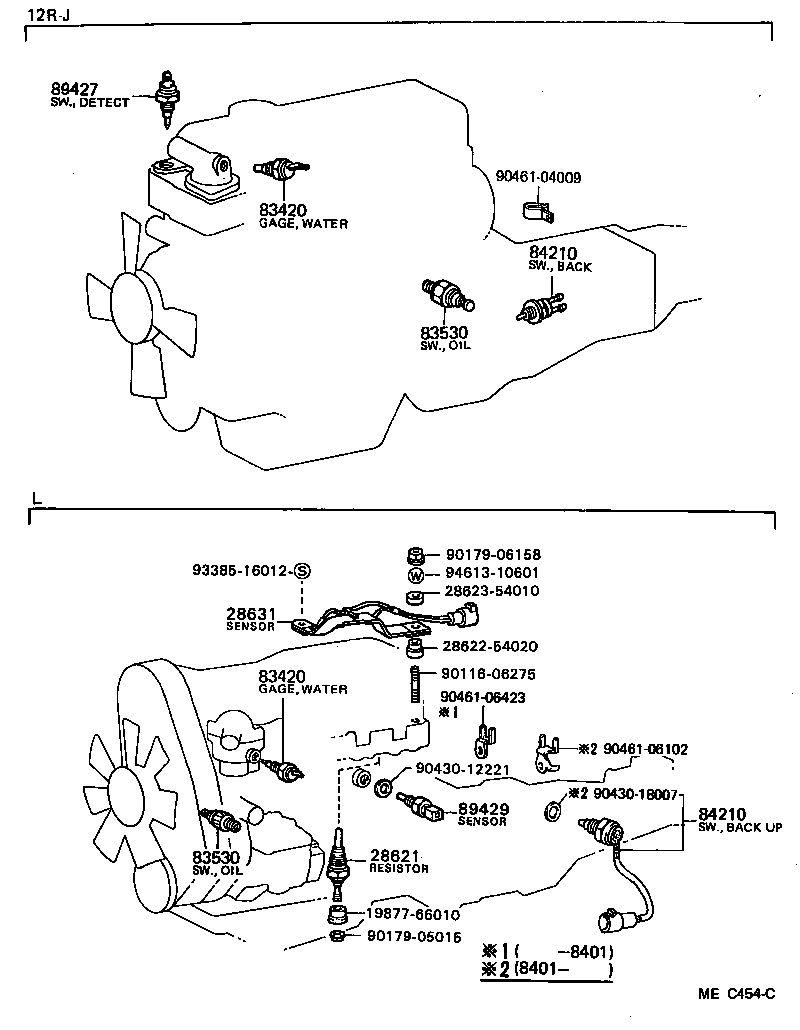

ILLUST NO. 2 OF 4(8211- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-54031 |
L..LH24 12V |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-54040 |
L..LH24 12V |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
LH24,RH24 DENSO |
1 | ||
| 83420-20020 |
LH24,RH24 YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
LH24,RH24 DENSO |
1 | ||
| 83420-20020 |
LH24,RH24 YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LH24 |
1 | ||
| 83530-36011 |
LH24 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LH24 |
1 | ||
| 83530-36011 |
LH24 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LH24 |
1 | ||
| 84210-35020 |
LH24 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LH24 |
1 | ||
| 84210-35020 |
LH24 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
LH24 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 90116-06275 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-04009 | ||||
| 90461-06102 | ||||
| 90461-06423 | ||||
| 93385-16012 | ||||
| 94613-10601 | ||||

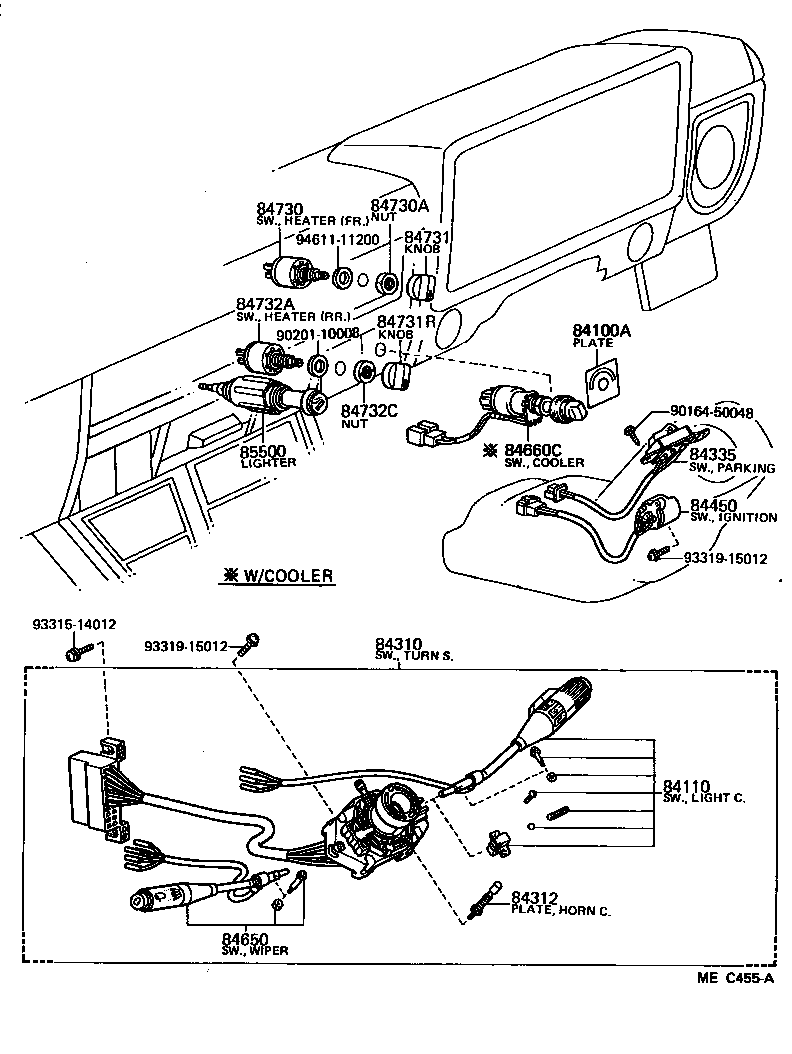

ILLUST NO. 3 OF 4(8211- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84100A - PLATE, SWITCH CAUTION | ||||
| 88549-95A00 |
LH24,RH24 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29096 |
LH24,RH24 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26032 |
LH24,RH24..DLX |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LH24,RH24 |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-95A02 |
LH24,RH24 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-30131 |
LH24,RH24 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29027 |
LH24,RH24..DLX |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-95A00 |
LH24,RH24 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12020 |
LH24,RH24 |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
LH24,RH24 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
LH24,RH24 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30340 |
LH24,RH24 |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90201-10008 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 94611-11200 | ||||

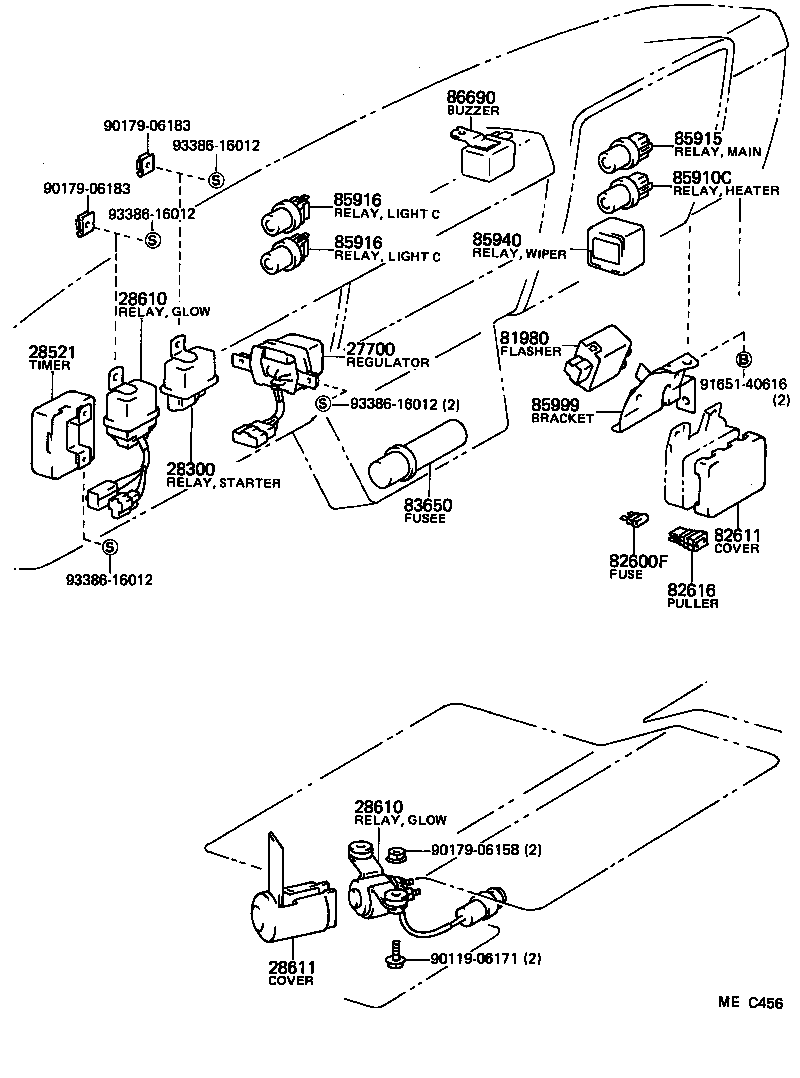

ILLUST NO. 4 OF 4(8211- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-41021 |
L,12RJ..LH24,RH24 12V |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-48010 |
L..LH24 |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54190 |
L..LH24 12V |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54150 |
L..LH24 12V,SUB RELAY |
1 | ||
| 28610-54190 |
L..LH24 12V,MAIN RELAY |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54150 |
L..LH24 12V,SUB RELAY |
1 | ||
| 28610-54190 |
L..LH24 12V,MAIN RELAY |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-54020 |
L..LH24 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
LH24,RH24 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
LH24,RH24 15A,15A |
5 | ||
| 90982-09001 |
LH24,RH24 5A,5A |
3 | ||
| 90982-09002 |
LH24,RH24 10A,10A |
7 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95A04 |
LH24,RH24 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LH24,RH24 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
LH24,RH24 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LH24,RH24 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
LH24,RH24 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH24,RH24 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH24,RH24 |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22051 |
LH24,RH24..DLX |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85907-95A02 |
LH24,RH24 |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-95011 |
LH24 |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90179-06158 | ||||
| 90179-06183 | ||||
| 91651-40616 | ||||
| 93386-16012 | ||||
