LH24-QDB (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

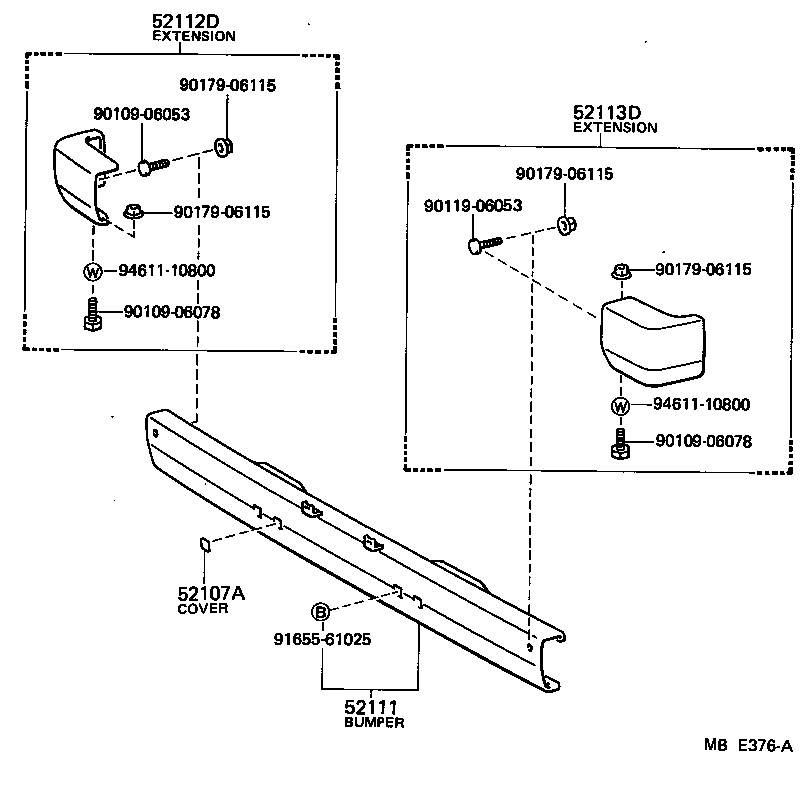

Click highlighted areas on diagram

diagram 52107A 52111 52112D 52113D 9010906053 9010906078 9010906078 9011906053 9017906115 9017906115 9017906115 9017906115 9165561025 9461110800 9461110800
Part # Description Qty Price
52107A - COVER, FRONT BUMPER ARM HOLE
52158-95A02

LH24,RH24

 4
52111 - BUMPER ASSY, FRONT
52101-29145

LH24,RH24

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-29035

LH24,RH24

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-29035

LH24,RH24

 1
Common parts
90109-06053
90109-06078
90119-06053
90179-06115
91655-61025
94611-10800
