LH24-QDB (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )L

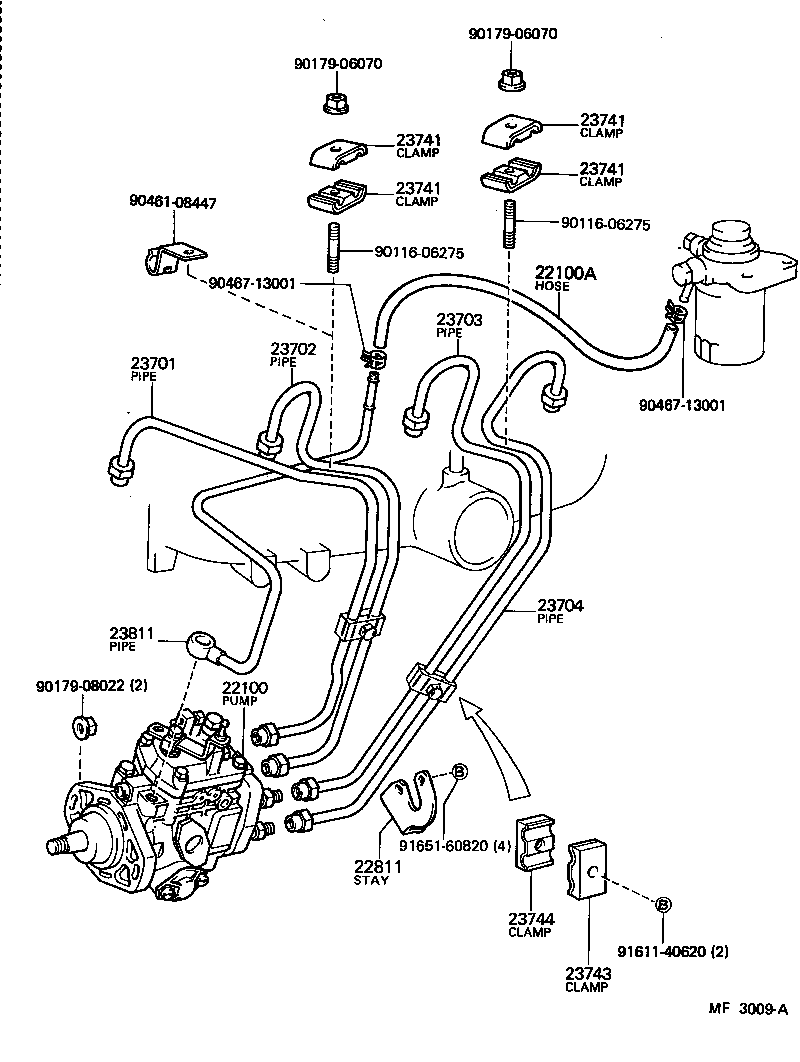

Click highlighted areas on diagram

diagram 22100 22100A 22811 23701 23702 23703 23704 23741 23741 23741 23741 23743 23744 23811 9011606275 9011606275 9017906070 9017906070 9017908022 9046108447 9046713001 9046713001 9161140620 9165160820
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-54131

L..LH24

 1
22100-54132

L..LH24

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95332-08040

L..LH24

*H,L=320,内径=7.6

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-54040

L..LH24

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54051

L..LH24

 1
23701-54082

L..LH24

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54050

L..LH24

 1
23702-54081

L..LH24

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54050

L..LH24

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54050

L..LH24

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

L..LH24

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

L..LH24

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

L..LH24

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

L..LH24

 4
23743 - CLAMP, INJECTION PIPE, NO.3
23741-54010

L..LH24

 2
23744 - CLAMP, INJECTION PIPE, NO.4
23742-54010

L..LH24

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54051

L..LH24

 1
Common parts
90116-06275
90179-06070
90179-08022
90461-08447
90467-13001
91611-40620
91651-60820
