LH24-QD3 (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )TS

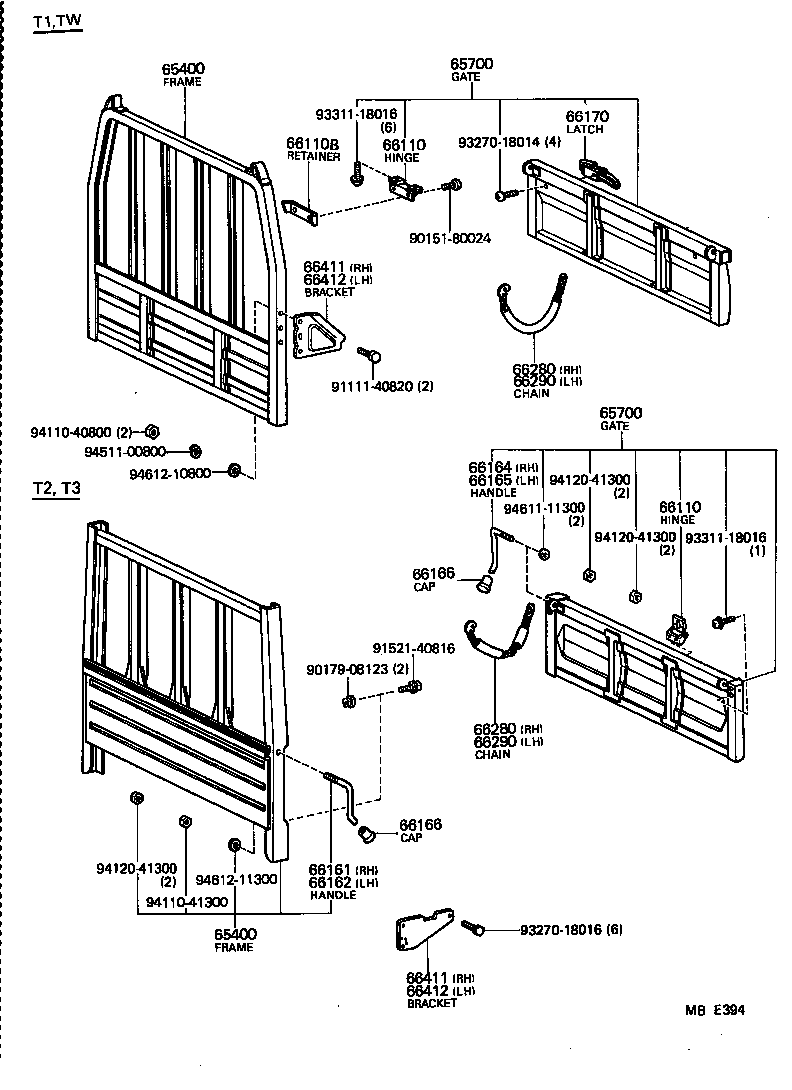

Click highlighted areas on diagram

diagram 65400 65400 65700 65700 66110 66110 66110B 66161 66162 66164 66165 66166 66166 66170 66280 66280 66290 66290 66411 66411 66412 66412 9015180024 9017908123 9111140820 9152140816 9327018014 9327018016 9331118016 9331118016 9411040800 9411041300 9412041300 9412041300 9412041300 9451100800 9461111300 9461210800 9461211300
Part # Description Qty Price
65400 - FRAME ASSY, REAR BODY GUARD
65400-95A00

LH24,RH24..T1,TW

 1
65400 - FRAME ASSY, REAR BODY GUARD
65400-95A00

LH24,RH24..T1,TW

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-95602

LH24,RH24..T1,TW

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-95602

LH24,RH24..T1,TW

 1
66110 - HINGE ASSY, TAIL GATE
66110-95A00

LH24,RH24..T1,TW

 3
66110 - HINGE ASSY, TAIL GATE
66110-95A00

LH24,RH24..T1,TW

 3
66110B - RETAINER, TAIL GATE HINGE, LOWER
66115-95012

LH24,RH24..T1,TW

 3
66170 - LATCH ASSY, REAR BODY TAIL GATE
66170-95112

LH24,RH24..T1,TW

 2
66280 - CHAIN ASSY, TAIL GATE, RH
66280-95011

LH24,RH24..TS

 1
66280 - CHAIN ASSY, TAIL GATE, RH
66280-95011

LH24,RH24..TS

 1
66290 - CHAIN ASSY, TAIL GATE, LH
66280-95011

LH24,RH24..TS

 1
66290 - CHAIN ASSY, TAIL GATE, LH
66280-95011

LH24,RH24..TS

 1
66411 - BRACKET, GUARD FRAME, RH
66411-95018

LH24,RH24..T1,TW

 1
66411 - BRACKET, GUARD FRAME, RH
66411-95018

LH24,RH24..T1,TW

 1
66412 - BRACKET, GUARD FRAME, LH
66412-95017

LH24,RH24..T1,TW

 1
66412 - BRACKET, GUARD FRAME, LH
66412-95017

LH24,RH24..T1,TW

 1
Common parts
90151-80024
90179-08123
91111-40820
91521-40816
93270-18014
93270-18016
93311-18016
94110-40800
94110-41300
94120-41300
94511-00800
94611-11300
94612-10800
94612-11300
