LH24-QD (1982)
Toyota Hiace Truck
Production
Nov 1982
-
Jul 1985
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8211- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
LH24,RH24 |
1 | ||
| 44606-32010 |
LH24,RH24 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-26150 |
LH24..ST FR DISC BRAKE |
1 | ||
| 44610-26170 |
LH24 |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-26110 |
LH24..ST FR DISK BRAKE |
1 | ||
| 04443-26130 |
LH24 FR DRUM BRAKE |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
LH24,RH24 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
LH24,RH24 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
LH24,RH24..ST FR DISC BRAKE |
1 | ||
| 44642-27120 |
LH24,RH24 |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
LH24,RH24 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

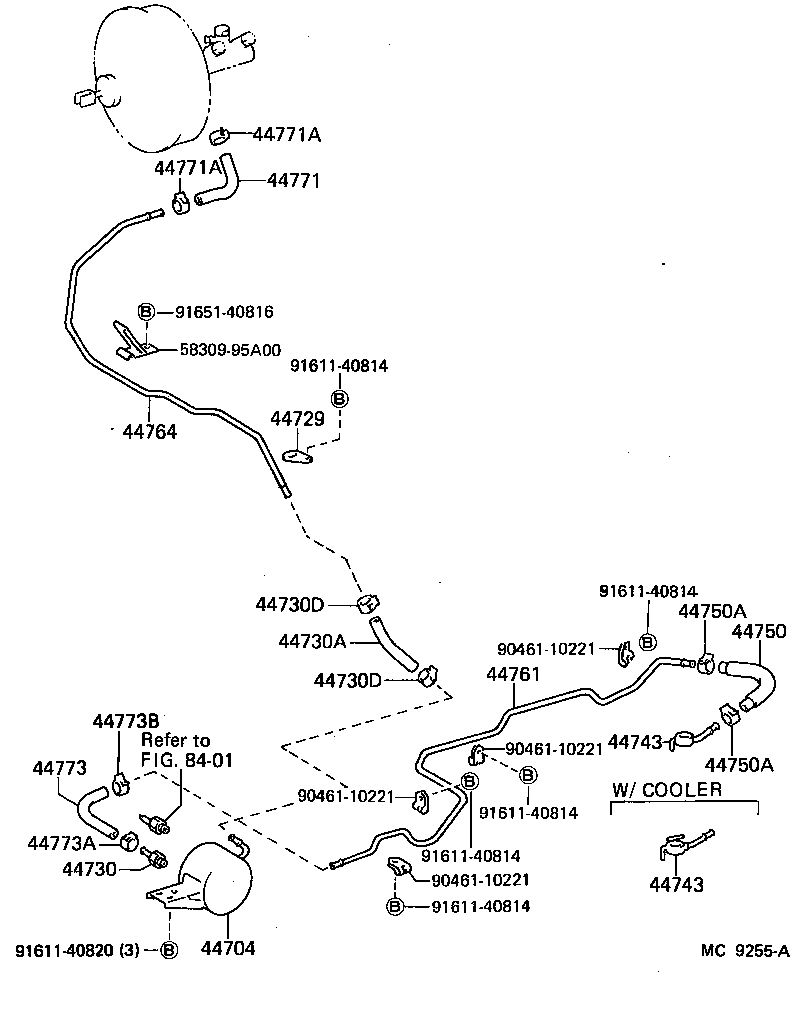

ILLUST NO. 2 OF 2(8211- )LH24
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-26010 |
LH24 |
1 | ||
| 44704-26050 |
LH24 |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-26010 |
LH24,RH24 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
LH24 |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-17039 |
LH24 L=90 |
1 | ||
| 95441-09170 |
LH24 L=170 |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LH24,RH24 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LH24,RH24 |
2 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09067 |
LH24 W/COOLER |
1 | ||
| 90405-09068 |
LH24 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09067 |
LH24 W/COOLER |
1 | ||
| 90405-09068 |
LH24 |
1 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-26030 |
LH24 |
1 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90467-16141 |
LH24 |
2 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90467-16141 |
LH24 |
2 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-26080 |
LH24 |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-26020 |
LH24,RH24 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 95441-09160 |
LH24 |
1 | ||
| 44774-26060 |
LH24 |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
LH24,RH24 |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
LH24,RH24 |
2 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 95441-09200 |
LH24 |
1 | ||
| 95441-09250 |
LH24 |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
LH24,RH24 |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
LH24,RH24 |
1 | ||
| Common parts | ||||
| 58309-95A00 | ||||
| 90461-10221 | ||||
| 91611-40814 | ||||
| 91611-40820 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
