LH80VH-SNLTF (1985)
Toyota Hiace Quick Delivery

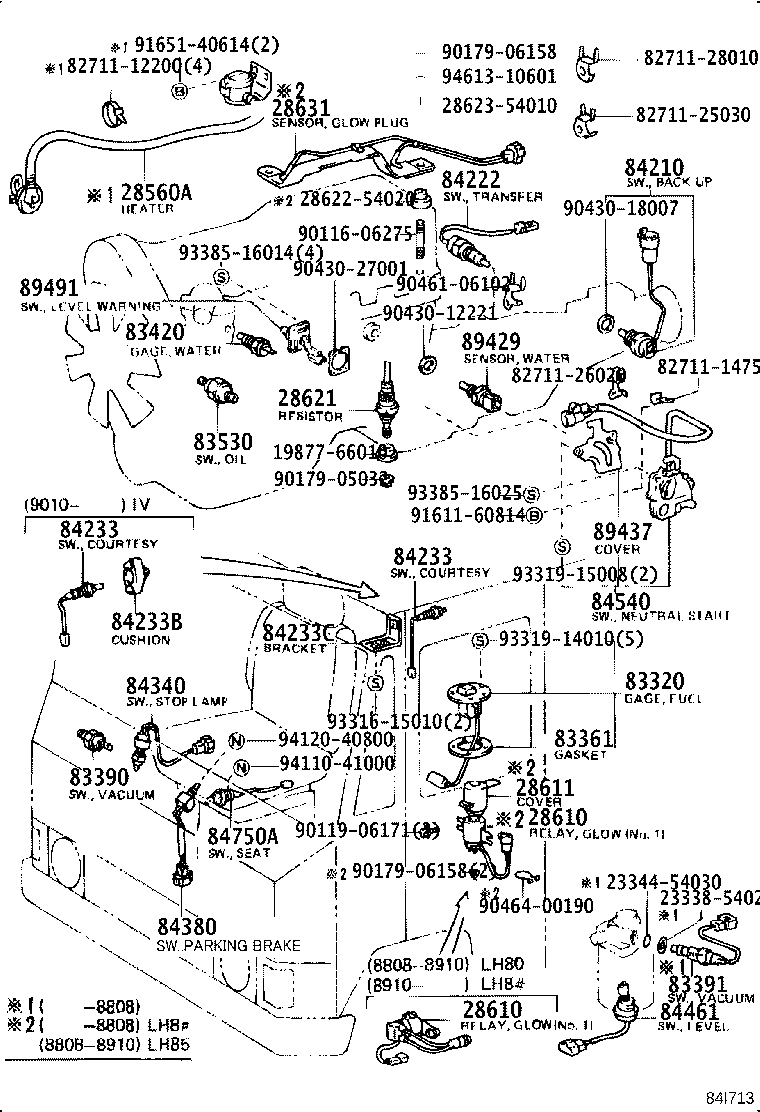

ILLUST NO. 1 OF 3(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28560A - BLOCK, HEATER | ||||
| 28560-95A00 |
2L..LH80..4HC |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54190 |
2L..LH80 NO.1 |
1 | ||
| 28610-54150 |
2L..LH8# NO.2 |
1 | ||
| 28610-64060 |
2L..LH8# NO.1 |
1 | ||
| 28610-54300 |
2L..LH80 NO.2 |
1 | ||
| 28610-64060 |
2L..LH8# NO.1 |
1 | ||
| 28610-64080 |
2L..LH8# NO.1 |
1 | ||
| 28610-64080 |
2L..LH80 NO.1 |
1 | ||
| 28610-54300 |
2L..LH8# NO.2 |
1 | ||
| 28610-54150 |
2L..LH8# NO.2 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54190 |
2L..LH80 NO.1 |
1 | ||
| 28610-54150 |
2L..LH8# NO.2 |
1 | ||
| 28610-64060 |
2L..LH8# NO.1 |
1 | ||
| 28610-54300 |
2L..LH80 NO.2 |
1 | ||
| 28610-64060 |
2L..LH8# NO.1 |
1 | ||
| 28610-64080 |
2L..LH8# NO.1 |
1 | ||
| 28610-64080 |
2L..LH80 NO.1 |
1 | ||
| 28610-54300 |
2L..LH8# NO.2 |
1 | ||
| 28610-54150 |
2L..LH8# NO.2 |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-54020 |
2L..LH80 |
1 | ||
| 28611-55010 |
2L..LH8# |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-54031 |
2L..LH8# |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-54040 |
2L..LH8# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39565 |
LH8# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LH8# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LH8# |
1 | ||
| 83390-27120 |
LH8# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-32020 |
LH8# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LH8# |
1 | ||
| 83420-16040 |
LH8# NIPPONDENSO |
1 | ||
| 83420-20030 |
LH8# YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LH8# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22051 |
LH80 |
2 | ||
| 84230-12120 |
LH8# |
2 | ||
| 84230-12120 |
LH8#..CBU |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22051 |
LH80 |
2 | ||
| 84230-12120 |
LH8# |
2 | ||
| 84230-12120 |
LH8#..CBU |
2 | ||
| 84233C - BRACKET, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84233-90D01 |
LH8# |
2 | ||
| 84233-90D01 |
LH8#..CBU |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
LH8# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-35010 |
LH8# |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-35030 |
LH8# |
1 | ||
| 84461-14030 |
LH8# |
1 | ||
| 84461-26060 |
LH8# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-26010 |
LH80..4HC |
1 | ||
| 84750A - SWITCH ASSY, SEAT | ||||
| 84230-90D00 |
LH80..D |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
LH8# |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-26010 |
LH80..4HC |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26100 |
LH80 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 23338-54020 | ||||
| 23344-54030 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 82711-12200 | ||||
| 82711-14750 | ||||
| 82711-25030 | ||||
| 82711-26020 | ||||
| 82711-28010 | ||||
| 90116-06275 | ||||
| 90119-06171 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90430-27001 | ||||
| 90461-06102 | ||||
| 90464-00190 | ||||
| 91611-60814 | ||||
| 91651-40614 | ||||
| 93316-15010 | ||||
| 93319-14010 | ||||
| 93319-15008 | ||||
| 93385-16014 | ||||
| 93385-16025 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94613-10601 | ||||

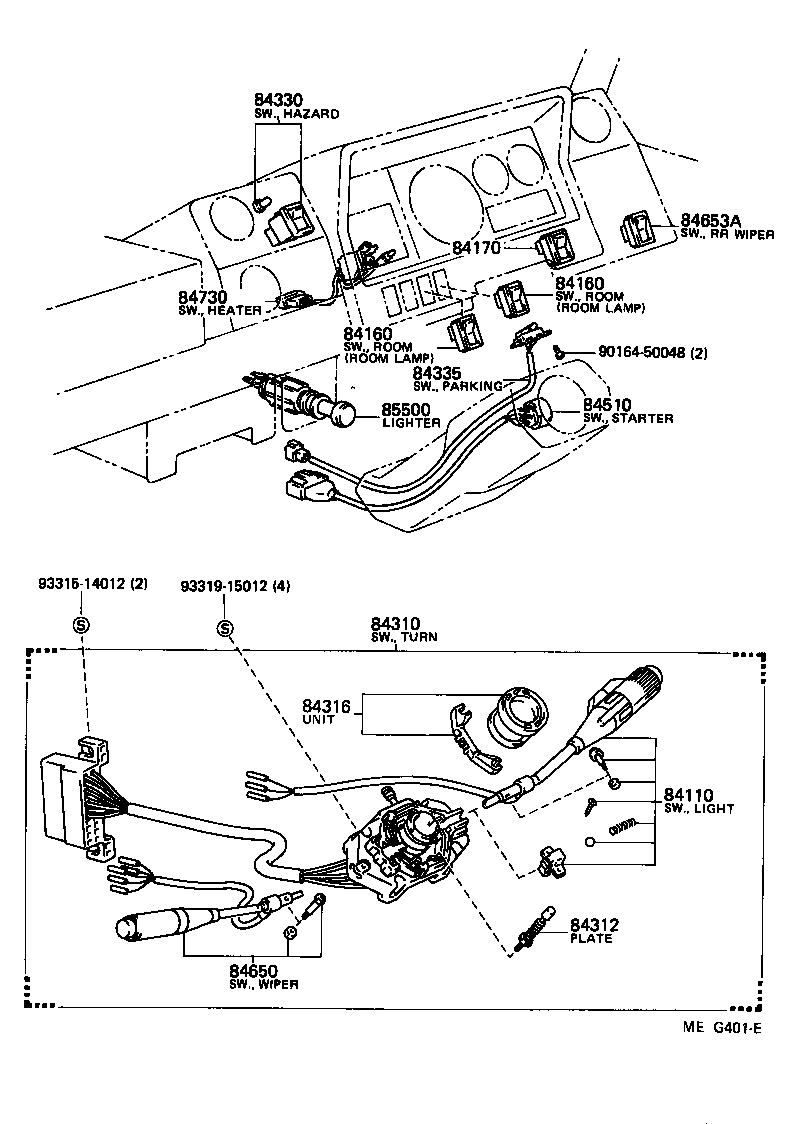

ILLUST NO. 2 OF 3(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29096 |
LH8# |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84170-90D00 |
LH8#..N |
3 | ||
| 84170-90D00 |
LH8#..D |
1 | ||
| 84170-90D00 |
LH8# |
3 | ||
| 84170-90D00 |
LH8#..D..CBU ｱﾘ(ﾙ-ﾑﾗﾝﾌﾟ=ｳﾝﾃﾝｼﾂ-ﾊｸﾈﾂﾄｳ1ｺ & ｹｲｺｳﾄｳ1ｺ,ﾆｼﾂ- ｹｲｺｳﾄｳ1ｺ) |
3 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84170-90D00 |
LH8#..N |
3 | ||
| 84170-90D00 |
LH8#..D |
1 | ||
| 84170-90D00 |
LH8# |
3 | ||
| 84170-90D00 |
LH8#..D..CBU ｱﾘ(ﾙ-ﾑﾗﾝﾌﾟ=ｳﾝﾃﾝｼﾂ-ﾊｸﾈﾂﾄｳ1ｺ & ｹｲｺｳﾄｳ1ｺ,ﾆｼﾂ- ｹｲｺｳﾄｳ1ｺ) |
3 | ||
| 84170 - SWITCH ASSY, INTERIOR DOME LAMP | ||||
| 84170-90D00 |
LH8# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26230 |
LH8#..125 |
1 | ||
| 84310-26032 |
LH80..125 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LH8# |
1 | ||
| 84316 - UNIT, TURN SIGNAL | ||||
| 84316-26010 |
LH8# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-26071 |
LH8# |
1 | ||
| 84332-20190 |
LH8# |
1 | ||
| 84332-26070 |
LH8# |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-95A02 |
LH80 |
1 | ||
| 84510 - SWITCH ASSY, STARTER | ||||
| 84450-30131 |
LH80 |
1 | ||
| 84450-30131 |
LH80..4HC |
1 | ||
| 84450-30131 |
LH85;LH80..4HC;LH80..5H..D |
1 | ||
| 84450-27120 |
LH80..4HC;LH8#..5H..D |
1 | ||
| 84450-30131 |
LH80..4HC;LH8#..5H..D |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29027 |
LH8#..125 |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-22020 |
LH8#..D..CBU |
1 | ||
| 84653-22020 |
LH8#..D..CBU |
1 | ||
| 84653-22020 |
LH80..CBU |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95404 |
LH80 |
1 | ||
| 84732-95406 |
LH8# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30340 |
LH8# |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||

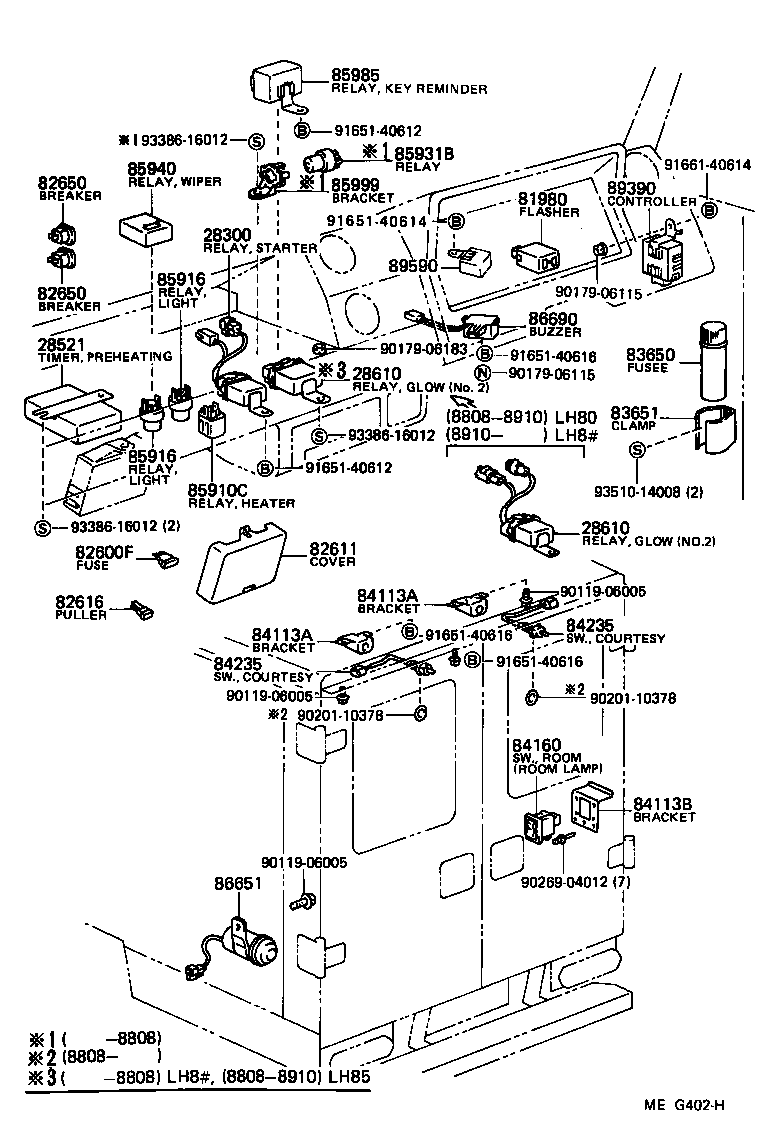

ILLUST NO. 3 OF 3(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-48010 |
2L..LH8# |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54480 |
2L..LH8# |
1 | ||
| 28521-54181 |
2L..LH8# |
1 | ||
| 28521-54340 |
2L..LH8# |
1 | ||
| 28521-54340 |
2L..LH80 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54190 |
2L..LH80 NO.1 |
1 | ||
| 28610-54150 |
2L..LH8# NO.2 |
1 | ||
| 28610-64060 |
2L..LH8# NO.1 |
1 | ||
| 28610-54300 |
2L..LH80 NO.2 |
1 | ||
| 28610-64060 |
2L..LH8# NO.1 |
1 | ||
| 28610-64080 |
2L..LH8# NO.1 |
1 | ||
| 28610-64080 |
2L..LH80 NO.1 |
1 | ||
| 28610-54300 |
2L..LH8# NO.2 |
1 | ||
| 28610-54150 |
2L..LH8# NO.2 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54190 |
2L..LH80 NO.1 |
1 | ||
| 28610-54150 |
2L..LH8# NO.2 |
1 | ||
| 28610-64060 |
2L..LH8# NO.1 |
1 | ||
| 28610-54300 |
2L..LH80 NO.2 |
1 | ||
| 28610-64060 |
2L..LH8# NO.1 |
1 | ||
| 28610-64080 |
2L..LH8# NO.1 |
1 | ||
| 28610-64080 |
2L..LH80 NO.1 |
1 | ||
| 28610-54300 |
2L..LH8# NO.2 |
1 | ||
| 28610-54150 |
2L..LH8# NO.2 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
LH8# |
1 | ||
| 81980-20140 |
LH8# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
LH8# 7.5A,7.5A |
5 | ||
| 90982-09005 |
LH8# 7.5A |
6 | ||
| 90982-09003 |
LH8# 15A |
8 | ||
| 90982-09003 |
LH8# 15A,15A |
7 | ||
| 90982-09004 |
LH8# 20A,黄 |
3 | ||
| 90982-09004 |
LH8# 20A,黄,20A |
3 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-90D02 |
LH8#..CBU |
1 | ||
| 82611-90D01 |
LH80 |
1 | ||
| 82611-90D02 |
LH8# |
1 | ||
| 82611-90D02 |
LH8# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LH8#..CBU |
1 | ||
| 82616-12010 |
LH8# |
1 | ||
| 82616-12010 |
LH8# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
LH8#..N 20A |
1 | ||
| 82650-35010 |
LH8#..N 20A,20A |
1 | ||
| 82650-35010 |
LH80 20A,20A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
LH8#..N 20A |
1 | ||
| 82650-35010 |
LH8#..N 20A,20A |
1 | ||
| 82650-35010 |
LH80 20A,20A |
2 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
LH8# |
1 | ||
| 90986-01003 |
LH8# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 62199-90P80 |
LH8# |
1 | ||
| 81713-90500 |
LH8# |
1 | ||
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84233-90D00 |
LH8# |
2 | ||
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84233-90D00 |
LH8# |
2 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84170-90D00 |
LH8#..N |
3 | ||
| 84170-90D00 |
LH8#..D |
1 | ||
| 84170-90D00 |
LH8# |
3 | ||
| 84170-90D00 |
LH8#..D..CBU ｱﾘ(ﾙ-ﾑﾗﾝﾌﾟ=ｳﾝﾃﾝｼﾂ-ﾊｸﾈﾂﾄｳ1ｺ & ｹｲｺｳﾄｳ1ｺ,ﾆｼﾂ- ｹｲｺｳﾄｳ1ｺ) |
3 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-28010 |
LH8# |
2 | ||
| 84230-22051 |
LH8# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-28010 |
LH8# |
2 | ||
| 84230-22051 |
LH8# |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
LH8# |
1 | ||
| 85913-30020 |
LH8# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH8# TAIL LAMP;HEADLAMP |
1 | ||
| 90987-01003 |
LH8# |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LH8# TAIL LAMP;HEADLAMP |
1 | ||
| 90987-01003 |
LH8# |
2 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02004 |
LH8# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22051 |
LH8# |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-26020 |
LH8# |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-12050 |
LH8# |
1 | ||
| 86651 - BUZZER ASSY, BACK | ||||
| 86650-95406 |
LH80 |
1 | ||
| 86650-95409 |
LH8# |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-22090 |
LH8# |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 89390-25010 |
LH8# |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-28020 |
LH8# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-06115 | ||||
| 90179-06183 | ||||
| 90201-10378 | ||||
| 90269-04012 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91661-40614 | ||||
| 93386-16012 | ||||
| 93510-14008 | ||||
