LH80VH-SNLTF (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

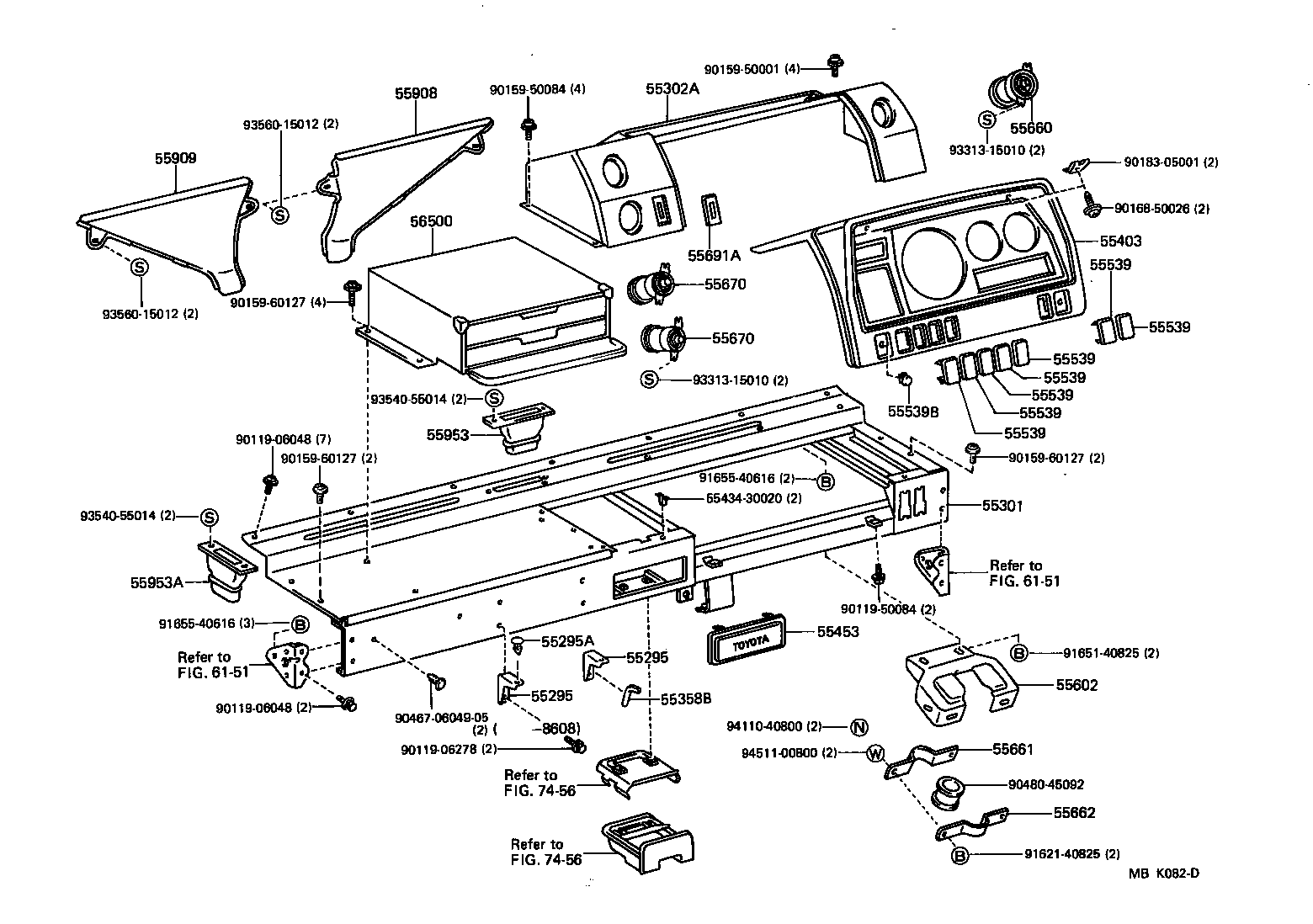

Click highlighted areas on diagram

diagram 55295 55295 55295A 55301 55302A 55358B 55403 5543430020 55453 55539 55539 55539 55539 55539 55539 55539 55539B 55602 55660 55661 55662 55670 55670 55691A 55908 55909 55953 55953A 56500 6151 6151 7456 7456 9011906048 9011906048 9011906278 9011950084 9015950001 9015950084 9015960127 9015960127 9015960127 9016850026 9018305001 904670604905 9048045092 9162140825 9165140825 9165540616 9165540616 9331315010 9331315010 9354055014 9354055014 9356015012 9356015012 9411040800 9451100800
Part # Description Qty Price
55295 - STAY, TABLE, NO.1
55295-90D02

LH8#

 2
55295 - STAY, TABLE, NO.1
55295-90D02

LH8#

 2
55295A - CLIP(FOR TABLE STAY)
90467-1004502

LH8#

MAROON,RED/MAROON

 2
90467-1004512

LH8#

MAROON,TRIM4#

 2
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-90D32

LH80..N

 1
55301-90D34

LH8#..N

 1
55301-90D32

LH80..D

ｱﾘ(ﾃ-ﾌﾞﾙ)

 1
55301-90D33

LH8#..D

 1
55301-90D34

LH80..D

ｱﾘ(ﾃ-ﾌﾞﾙ)

 1
55301-90D30

LH80..D

 1
55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER
55302-90D03

LH8#

 1
55302-90D02

LH80

 1
55358B - PROTECTOR, KNEE
55358-90D04

LH8#

 2
55403 - HOOD SUB-ASSY, METER
55403-90D0006

LH8#..D

BROWN,TRIM4#

 1
55403-90D0106

LH8#..D

ｱﾘ(ﾀｺ ｸﾞﾗﾌ),BROWN,TRIM4#

 1
55403-90D0106

LH8#

W/TACHOGRAPH,BROWN,BROWN

 1
55403-90D0006

LH8#..D

BROWN,BROWN

 1
55403-90D0106

LH8#..N

BROWN,TRIM4#

 1
55453 - COVER, RADIO TUNER OPENING
55522-14070

LH8#..D

 1
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

LH8#

BLACK,BLACK

 7
55539-3201011

LH8#..D

BLACK,TRIM4#

 7
55539-3201011

LH8#..N

BLACK,TRIM4#

 4
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

LH8#

BLACK,BLACK

 7
55539-3201011

LH8#..D

BLACK,TRIM4#

 7
55539-3201011

LH8#..N

BLACK,TRIM4#

 4
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

LH8#

BLACK,BLACK

 7
55539-3201011

LH8#..D

BLACK,TRIM4#

 7
55539-3201011

LH8#..N

BLACK,TRIM4#

 4
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

LH8#

BLACK,BLACK

 7
55539-3201011

LH8#..D

BLACK,TRIM4#

 7
55539-3201011

LH8#..N

BLACK,TRIM4#

 4
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

LH8#

BLACK,BLACK

 7
55539-3201011

LH8#..D

BLACK,TRIM4#

 7
55539-3201011

LH8#..N

BLACK,TRIM4#

 4
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

LH8#

BLACK,BLACK

 7
55539-3201011

LH8#..D

BLACK,TRIM4#

 7
55539-3201011

LH8#..N

BLACK,TRIM4#

 4
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

LH8#

BLACK,BLACK

 7
55539-3201011

LH8#..D

BLACK,TRIM4#

 7
55539-3201011

LH8#..N

BLACK,TRIM4#

 4
55539B - COVER, SPARE SWITCH HOLE, NO.2
55537-9501006

LH8#

BROWN,TRIM4#

 1
55537-9501006

LH8#

BROWN,BROWN

 1
55602 - STAY SUB-ASSY, STEERING COLUMN, UPPER
55602-90500

LH8#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-90K0001

LH8#

BLACK,BLACK

 1
55660-60060

LH8#

 1
55660-90K0001

LH8#

BLACK,TRIM4#

 1
55661 - CLAMP, STEERING COLUMN, UPPER
55612-90501

LH8#

 1
55662 - CLAMP, STEERING COLUMN, LOWER
55612-90501

LH8#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-90K0001

LH8#

BLACK,TRIM4#

 2
55670-90K0001

LH8#

BLACK,BLACK

 2
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-90K0001

LH8#

BLACK,TRIM4#

 2
55670-90K0001

LH8#

BLACK,BLACK

 2
55691A - PLATE, AIR DAMPER CONTROL NAME, NO.1
55692-90D00

LH8#

 1
55908 - NOZZLE SUB-ASSY, DEFROSTER, RH
55950-95010

LH8#

 1
55909 - NOZZLE SUB-ASSY, DEFROSTER, LH
55960-90F00

LH8#

 1
55953 - REGISTER, DEFROSTER, CENTER
55953-95408

LH8#

 3
55953-95408

LH8#

 1
55953A - REGISTER, DEFROSTER, CENTER
55953-95408

LH8#

 2
56500 - CABINET ASSY
56500-90D03

LH8#

 1
Common parts
55434-30020
90119-06048
90119-06278
90119-50084
90159-50001
90159-50084
90159-60127
90168-50026
90183-05001
90467-0604905
90480-45092
91621-40825
91651-40825
91655-40616
93313-15010
93540-55014
93560-15012
94110-40800
94511-00800
Linked diagrams
6151
7456
