LH80VH-SNLTF (1985)
Toyota Hiace Quick Delivery
Production
Aug 1985
-
May 1995
Engine
2L
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )4HC

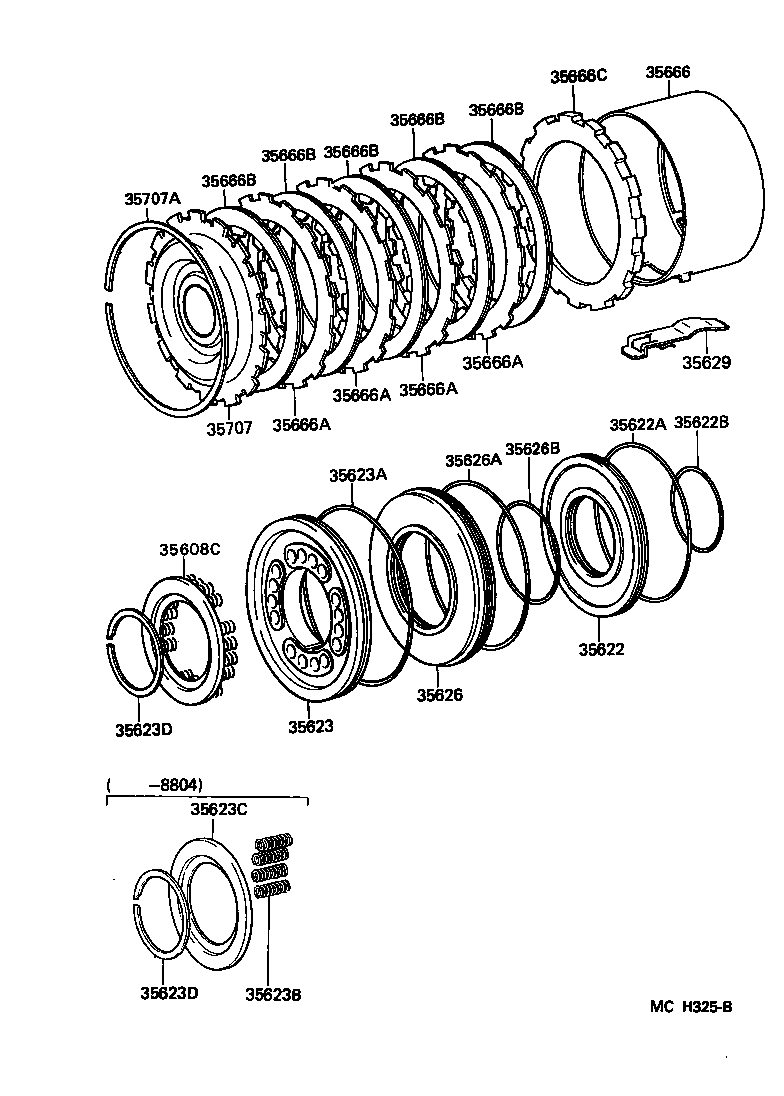

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608C - SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN | ||||
| 35608-20020 |
LH80..4HC |
1 | ||
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-22010 |
LH80..4HC |
1 | ||
| 35622A - RING (FOR BRAKE PISTON OUTER) | ||||
| 90301-99193 |
LH80..4HC |
1 | ||
| 35622B - RING (FOR BRAKE PISTON INNER) | ||||
| 90301-57188 |
LH80..4HC |
1 | ||
| 35623 - PISTON, BRAKE, NO.3 | ||||
| 35623-22010 |
LH80..4HC |
1 | ||
| 35623A - RING, O (FOR BRAKE PISTON NO.3 ) | ||||
| 90301-99192 |
LH80..4HC |
1 | ||
| 35623B - SPRING (FOR BRAKE PISTON RETURN) | ||||
| 90501-10671 |
LH80..4HC |
16 | ||
| 35623C - SEAT, BRAKE RETURN SPRING | ||||
| 35627-22010 |
LH80..4HC |
1 | ||
| 35623D - RING, SHAFT SNAP (FOR BRAKE) | ||||
| 90520-52262 |
LH80..4HC |
1 | ||
| 35623D - RING, SHAFT SNAP (FOR BRAKE) | ||||
| 90520-52262 |
LH80..4HC |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-22010 |
LH80..4HC |
1 | ||
| 35626A - RING (FOR BRAKE REACTION SLEEVE OUTER) | ||||
| 90301-99200 |
LH80..4HC |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-68191 |
LH80..4HC |
1 | ||
| 35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER) | ||||
| 35629-22010 |
LH80..4HC |
1 | ||
| 35666 - TUBE, BRAKE APPLY | ||||
| 35666-30010 |
LH80..4HC |
1 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35647-22010 |
LH80..4HC |
4 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35647-22010 |
LH80..4HC |
4 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35647-22010 |
LH80..4HC |
4 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35647-22010 |
LH80..4HC |
4 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30050 |
LH80..4HC |
5 | ||
| 35633-30060 |
LH80..4HC |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30050 |
LH80..4HC |
5 | ||
| 35633-30060 |
LH80..4HC |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30050 |
LH80..4HC |
5 | ||
| 35633-30060 |
LH80..4HC |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30050 |
LH80..4HC |
5 | ||
| 35633-30060 |
LH80..4HC |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30050 |
LH80..4HC |
5 | ||
| 35633-30060 |
LH80..4HC |
5 | ||
| 35666C - PLATE, CLUTCH PRESSURE (FOR BRAKE) | ||||
| 35639-22010 |
LH80..4HC |
1 | ||
| 35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER | ||||
| 35707-30040 |
LH80..4HC |
1 | ||
| 35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE) | ||||
| 90521-99140 |
LH80..4HC |
1 | ||
