Toyota Hiace quick delivery LH80 SEAT & SEAT TRACK

LH80VH-SNLT (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995

Engine 2L

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

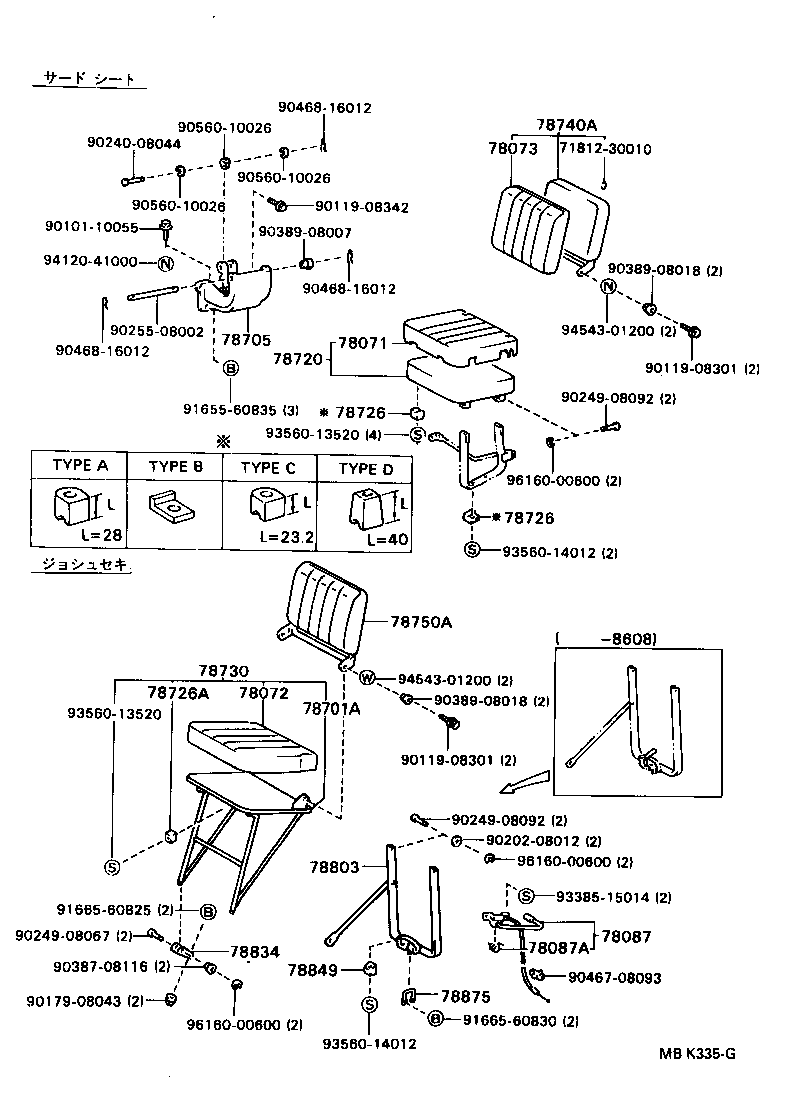

ILLUST NO. 2 OF 2(8508-8708)

Click highlighted areas on diagram

Part #	Description	Period	Qty
78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH
78072-90D0306	LH80 DARK BROWN,TRIM4#	04/1988 - 05/1995	1
78072-90D00	LH80	08/1985 - 08/1987	1
78072-90D0306	LH80 DARK BROWN,DARK BROWN,TRIM4#	08/1987 - 04/1988	1
78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH
78071-90D0206	LH8# DARK BROWN,TRIM4#	04/1988 - 05/1995	1
78071-90D01	LH80	08/1985 - 08/1987	1
78071-90D0206	LH8# DARK BROWN,DARK BROWN,TRIM4#	08/1987 - 04/1988	1
78073 - COVER SUB-ASSY, SUB SEAT BACK, RH
78081-90D00	LH80	08/1985 - 05/1995	1
78087 - LEVER SUB-ASSY, SUB SEAT LOCK
78087-90D00	LH8#	08/1986 - 05/1995	1
78087A - SPRING, TORSION (FOR SUB SEAT LOCK LEVER)
90508-16080	LH8#	08/1986 - 05/1995	1
78701A - FRAME SUB-ASSY, SUB SEAT CUSHION
78701-90D03D0	LH8# DARK BROWN,DARK BROWN,TRIM4#	04/1988 - 10/1991	1
78701-90D03D0	LH8# DARK BROWN,TRIM4#	10/1991 - 05/1995	1
78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION
78705-90M00	LH80	08/1985 - 05/1995	1
78720 - CUSHION ASSY, SUB SEAT, RH
78730-90D00	LH80	08/1985 - 08/1987	1
78730-90D0306	LH80 DARK BROWN,TRIM4#	04/1988 - 05/1995	1
78730-90D0306	LH80 DARK BROWN,DARK BROWN,TRIM4#	08/1987 - 04/1988	1
78726 - CUSHION, SUB SEAT CUSHION FRAME
78726-90B01	LH80 ﾀｲﾌﾟ A	04/1988 - 05/1995	3
78726-90B01	LH80 TYPE A	08/1985 - 08/1987	2
78726-90D01	LH8# TYPE D	07/1987 - 04/1988	1
78726-90C00	LH80 TYPE B	08/1987 - 04/1988	4
78726-90B01	LH80 TYPE A	08/1987 - 04/1988	3
78726-90C00	LH80 ﾀｲﾌﾟ B	04/1988 - 05/1995	4
78726-90C00	LH80 TYPE B	08/1985 - 08/1987	2
78726 - CUSHION, SUB SEAT CUSHION FRAME
78726-90B01	LH80 ﾀｲﾌﾟ A	04/1988 - 05/1995	3
78726-90B01	LH80 TYPE A	08/1985 - 08/1987	2
78726-90D01	LH8# TYPE D	07/1987 - 04/1988	1
78726-90C00	LH80 TYPE B	08/1987 - 04/1988	4
78726-90B01	LH80 TYPE A	08/1987 - 04/1988	3
78726-90C00	LH80 ﾀｲﾌﾟ B	04/1988 - 05/1995	4
78726-90C00	LH80 TYPE B	08/1985 - 08/1987	2
78726A - CUSHION, SUB SEAT CUSHION FRAME, NO.2
78726-90D01	LH8#	08/1985 - 05/1995	1
78730 - CUSHION ASSY, SUB SEAT, LH
78720-90D0606	LH8# DARK BROWN,TRIM4#	04/1988 - 05/1995	1
78720-90D0306	LH80 DARK BROWN,DARK BROWN,TRIM4#	08/1986 - 08/1987	1
78720-90D0606	LH8# DARK BROWN,DARK BROWN,TRIM4#	08/1987 - 04/1988	1
78740A - BACK ASSY, SUB SEAT, RH
78740-90D02	LH80	08/1985 - 05/1995	1
78750A - BACK ASSY, SUB SEAT, LH
78740-90D01	LH8#	08/1985 - 05/1995	1
78803 - LEG SUB-ASSY, SUB SEAT
78803-90D02	LH80	08/1986 - 08/1987	1
78803-90D0306	LH8# BROWN,BROWN,TRIM4#	08/1987 - 04/1988	1
78803-90D0306	LH8# BROWN,TRIM4#	04/1988 - 05/1995	1
78834 - BRACKET, SUB SEAT LEG
78834-90D01	LH8#	08/1986 - 05/1995	1
78849 - BUMPER, SUB SEAT LEG
78849-90D00	LH8#	08/1985 - 05/1995	1
78875 - STRIKER, SUB SEAT LOCK
78808-90D00	LH8#	08/1985 - 05/1995	1
Common parts
71812-30010
90101-10055
90119-08301
90119-08342
90179-08043
90202-08012
90240-08044
90249-08067
90249-08092
90255-08002
90387-08116
90389-08007
90389-08018
90467-08093
90468-16012
90560-10026
91655-60835
91665-60825
91665-60830
93385-15014
93560-13520
93560-14012
94120-41000
94543-01200
96160-00600

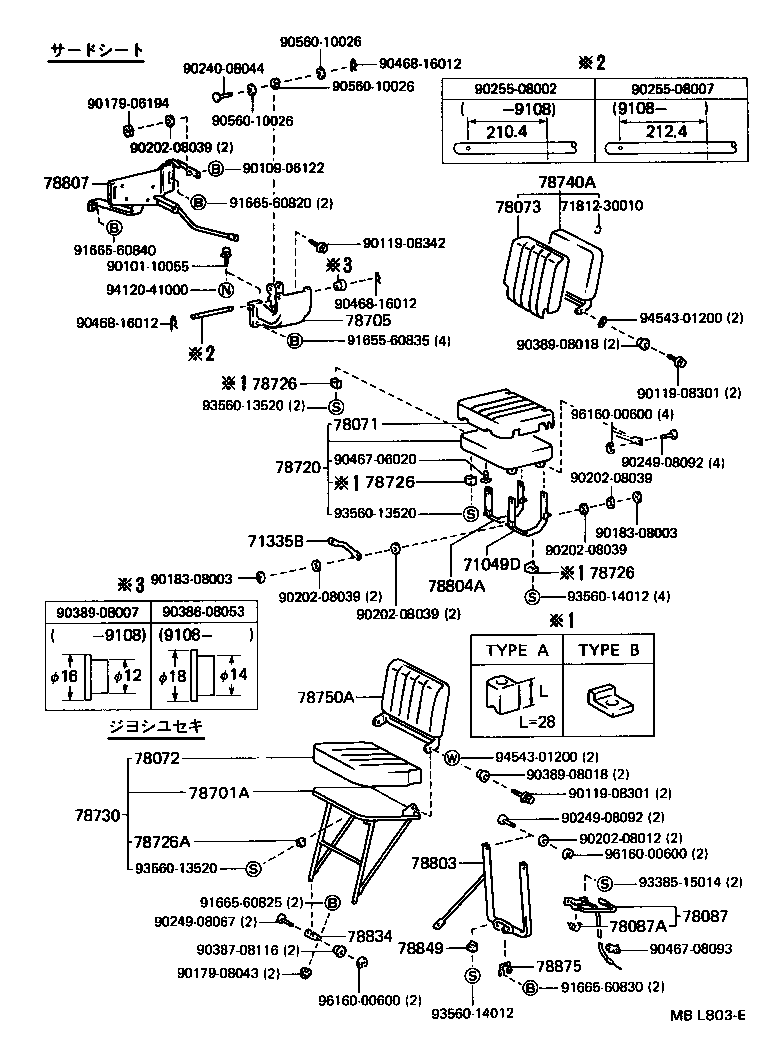

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
71049D - LEG SUB ASSY, CENTER SEAT, LH
71049-90D00	LH80	08/1985 - 05/1995	1
71335B - STAY, CENTER SEAT LEG
71335-90D0006	LH80 BROWN,BROWN,TRIM4#	08/1987 - 04/1988	1
71335-90D0006	LH80 BROWN,TRIM4#	04/1988 - 05/1995	1
78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH
78072-90D0306	LH80 DARK BROWN,TRIM4#	04/1988 - 05/1995	1
78072-90D00	LH80	08/1985 - 08/1987	1
78072-90D0306	LH80 DARK BROWN,DARK BROWN,TRIM4#	08/1987 - 04/1988	1
78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH
78071-90D0206	LH8# DARK BROWN,TRIM4#	04/1988 - 05/1995	1
78071-90D01	LH80	08/1985 - 08/1987	1
78071-90D0206	LH8# DARK BROWN,DARK BROWN,TRIM4#	08/1987 - 04/1988	1
78073 - COVER SUB-ASSY, SUB SEAT BACK, RH
78081-90D00	LH80	08/1985 - 05/1995	1
78087 - LEVER SUB-ASSY, SUB SEAT LOCK
78087-90D00	LH8#	08/1986 - 05/1995	1
78087A - SPRING, TORSION (FOR SUB SEAT LOCK LEVER)
90508-16080	LH8#	08/1986 - 05/1995	1
78701A - FRAME SUB-ASSY, SUB SEAT CUSHION
78701-90D03D0	LH8# DARK BROWN,DARK BROWN,TRIM4#	04/1988 - 10/1991	1
78701-90D03D0	LH8# DARK BROWN,TRIM4#	10/1991 - 05/1995	1
78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION
78705-90M00	LH80	08/1985 - 05/1995	1
78720 - CUSHION ASSY, SUB SEAT, RH
78730-90D00	LH80	08/1985 - 08/1987	1
78730-90D0306	LH80 DARK BROWN,TRIM4#	04/1988 - 05/1995	1
78730-90D0306	LH80 DARK BROWN,DARK BROWN,TRIM4#	08/1987 - 04/1988	1
78726 - CUSHION, SUB SEAT CUSHION FRAME
78726-90B01	LH80 ﾀｲﾌﾟ A	04/1988 - 05/1995	3
78726-90B01	LH80 TYPE A	08/1985 - 08/1987	2
78726-90D01	LH8# TYPE D	07/1987 - 04/1988	1
78726-90C00	LH80 TYPE B	08/1987 - 04/1988	4
78726-90B01	LH80 TYPE A	08/1987 - 04/1988	3
78726-90C00	LH80 ﾀｲﾌﾟ B	04/1988 - 05/1995	4
78726-90C00	LH80 TYPE B	08/1985 - 08/1987	2
78726 - CUSHION, SUB SEAT CUSHION FRAME
78726-90B01	LH80 ﾀｲﾌﾟ A	04/1988 - 05/1995	3
78726-90B01	LH80 TYPE A	08/1985 - 08/1987	2
78726-90D01	LH8# TYPE D	07/1987 - 04/1988	1
78726-90C00	LH80 TYPE B	08/1987 - 04/1988	4
78726-90B01	LH80 TYPE A	08/1987 - 04/1988	3
78726-90C00	LH80 ﾀｲﾌﾟ B	04/1988 - 05/1995	4
78726-90C00	LH80 TYPE B	08/1985 - 08/1987	2
78726 - CUSHION, SUB SEAT CUSHION FRAME
78726-90B01	LH80 ﾀｲﾌﾟ A	04/1988 - 05/1995	3
78726-90B01	LH80 TYPE A	08/1985 - 08/1987	2
78726-90D01	LH8# TYPE D	07/1987 - 04/1988	1
78726-90C00	LH80 TYPE B	08/1987 - 04/1988	4
78726-90B01	LH80 TYPE A	08/1987 - 04/1988	3
78726-90C00	LH80 ﾀｲﾌﾟ B	04/1988 - 05/1995	4
78726-90C00	LH80 TYPE B	08/1985 - 08/1987	2
78726A - CUSHION, SUB SEAT CUSHION FRAME, NO.2
78726-90D01	LH8#	08/1985 - 05/1995	1
78730 - CUSHION ASSY, SUB SEAT, LH
78720-90D0606	LH8# DARK BROWN,TRIM4#	04/1988 - 05/1995	1
78720-90D0306	LH80 DARK BROWN,DARK BROWN,TRIM4#	08/1986 - 08/1987	1
78720-90D0606	LH8# DARK BROWN,DARK BROWN,TRIM4#	08/1987 - 04/1988	1
78740A - BACK ASSY, SUB SEAT, RH
78740-90D02	LH80	08/1985 - 05/1995	1
78750A - BACK ASSY, SUB SEAT, LH
78740-90D01	LH8#	08/1985 - 05/1995	1
78803 - LEG SUB-ASSY, SUB SEAT
78803-90D02	LH80	08/1986 - 08/1987	1
78803-90D0306	LH8# BROWN,BROWN,TRIM4#	08/1987 - 04/1988	1
78803-90D0306	LH8# BROWN,TRIM4#	04/1988 - 05/1995	1
78804A - LEG SUB ASSY, CENTER SUB SEAT CUSHION
78804-90D01	LH80	01/1990 - 05/1995	1
78807 - BRACKET SUB-ASSY, CENTER SUB SEAT
78807-90D00	LH80	08/1985 - 08/1987	1
78807-90D0106	LH80 BROWN,BROWN,TRIM4#	08/1987 - 04/1988	1
78807-90D0106	LH80 BROWN,TRIM4#	04/1988 - 05/1995	1
78834 - BRACKET, SUB SEAT LEG
78834-90D01	LH8#	08/1986 - 05/1995	1
78849 - BUMPER, SUB SEAT LEG
78849-90D00	LH8#	08/1985 - 05/1995	1
78875 - STRIKER, SUB SEAT LOCK
78808-90D00	LH8#	08/1985 - 05/1995	1
Common parts
71812-30010
90101-10055
90109-06122
90119-08301
90119-08342
90179-06194
90179-08043
90183-08003
90202-08012
90202-08039
90240-08044
90249-08067
90249-08092
90255-08002
90255-08007
90386-08053
90387-08116
90389-08007
90389-08018
90467-06020
90467-08093
90468-16012
90560-10026
91655-60835
91665-60820
91665-60825
91665-60830
91665-60840
93385-15014
93560-13520
93560-14012
94120-41000
94543-01200
96160-00600

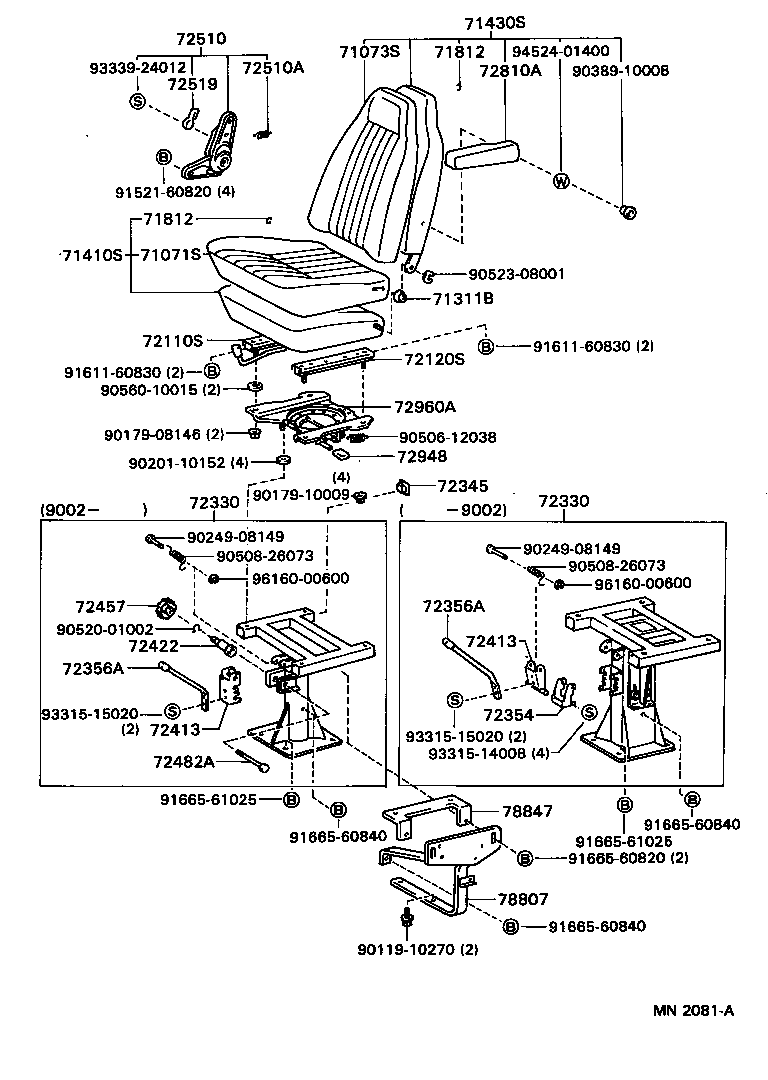

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-90D0506	LH80..D ｱﾘ(ｶｲﾃﾝｼｷｼ-ﾄ),DARK BROWN,TRIM4#	04/1988 - 08/1990	1
71071-90D0406	LH8# DARK BROWN,TRIM4#	04/1988 - 08/1990	1
71071-90D0406	LH8# DARK BROWN,DARK BROWN,TRIM4#	08/1987 - 04/1988	1
71071-90D0606	LH8# DARK BROWN,TRIM4#	08/1990 - 05/1995	1
71071-90D01	LH80 TYPE B	05/1986 - 08/1987	1
71071-90D03	LH80..N TYPE A	08/1985 - 08/1987	1
71071-90D0506	LH80..D W/RETRACTABLE,DARK BROWN,DARK BROWN,TRIM4#	08/1987 - 04/1988	1
71071-90D02	LH80..D W/RETRACTABLE TYPE,TYPE B	08/1985 - 08/1987	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-90D07	LH80..D ｱﾘ(ｱ-ﾑﾚｽﾄ)	04/1988 - 08/1990	1
71073-90D0806	LH80 W/CENTER SUB SEAT,DARK BROWN,DARK BROWN,TRIM4#	08/1987 - 04/1988	1
71073-90D07	LH80..N	04/1988 - 08/1990	1
71073-90D05	LH8#	08/1987 - 04/1988	1
71073-90D0806	LH80..D DARK BROWN,TRIM4#	04/1988 - 08/1990	1
71073-90D05	LH80	08/1985 - 08/1987	1
71073-90D05	LH85;LH80..D	04/1988 - 08/1990	1
71073-90D07	LH80 W/ARMREST	08/1985 - 04/1988	1
71073-90D1006	LH80..D ｱﾘ(ｺﾃｲｼｷｼ-ﾄ & ｱ-ﾑﾚｽﾄ),DARK BROWN,TRIM4#	08/1990 - 05/1995	1
71073-90D1006	LH80..N DARK BROWN,TRIM4#	08/1990 - 05/1995	1
71073-90D0806	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ),DARK BROWN,TRIM4#	04/1988 - 08/1990	1
71073-90D1106	LH85;LH80..D DARK BROWN,TRIM4#	08/1990 - 05/1995	1
71073-90D1106	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ),DARK BROWN,TRIM4#	08/1990 - 05/1995	1
71073-90D05	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	04/1988 - 08/1990	1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12005	LH8#	08/1985 - 05/1995	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-90D0506	LH80..D W/RETRACTABLE TYPE,DARK BROWN,DARK BROWN,TRIM4#	08/1987 - 04/1988	1
71410-90D02	LH80..D W/RETRACTABLE TYPE,TYPE B	08/1985 - 08/1987	1
71410-90D03	LH80..N TYPE A	08/1985 - 08/1987	1
71410-90D0406	LH8# DARK BROWN,TRIM4#	04/1988 - 08/1990	1
71410-90D01	LH80 TYPE B	05/1986 - 08/1987	1
71410-90D0506	LH80..D ｱﾘ(ｶｲﾃﾝｼｷｼ-ﾄ),DARK BROWN,TRIM4#	04/1988 - 08/1990	1
71410-90D0406	LH8# DARK BROWN,DARK BROWN,TRIM4#	08/1987 - 04/1988	1
71410-90D0606	LH8# DARK BROWN,TRIM4#	08/1990 - 05/1995	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-90D05	LH80	08/1985 - 08/1987	1
71430-90D08	LH80..N	04/1988 - 08/1990	1
71430-90D05	LH8#	08/1987 - 04/1988	1
71430-90D05	LH85;LH80..D	04/1988 - 08/1990	1
71430-90D05	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	04/1988 - 08/1990	1
71430-90D0906	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ),DARK BROWN,TRIM4#	04/1988 - 08/1990	1
71430-90D0906	LH80..D DARK BROWN,TRIM4#	04/1988 - 08/1990	1
71430-90D1106	LH80..N BROWN,TRIM4#	08/1990 - 05/1995	1
71430-90D08	LH80..D ｱﾘ(ｱ-ﾑﾚｽﾄ)	04/1988 - 08/1990	1
71430-90D0906	LH80 W/CENTER SUB SEAT,DARK BROWN,DARK BROWN	08/1987 - 04/1988	1
71430-90D1206	LH80..D BROWN,TRIM4#	08/1990 - 05/1995	1
71430-90D08	LH80 W/ARMREST	08/1985 - 04/1988	1
71430-90D1106	LH80..D ｱﾘ(ｺﾃｲｼｷｼ-ﾄ & ｱ-ﾑﾚｽﾄ),BROWN,BROWN,TRIM4#	08/1990 - 05/1995	1
71430-90D1206	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ),BROWN,TRIM4#	08/1990 - 05/1995	1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071	LH8#	08/1985 - 04/1988	33
90468-18071	LH8#	04/1988 - 05/1995	1
71812-30010	LH80	08/1985 - 04/1988	3
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071	LH8#	08/1985 - 04/1988	33
90468-18071	LH8#	04/1988 - 05/1995	1
71812-30010	LH80	08/1985 - 04/1988	3
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-90D01	LH80	08/1985 - 05/1995	1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-90D00	LH80	01/1988 - 05/1995	1
72120-90740	LH80	08/1985 - 01/1988	1
72330 - STAND ASSY,SEAT
72330-90D32	LH80..N ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D24	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D44	LH8#..N ｱﾘ(ｼﾖｳｶｷ)	08/1985 - 02/1990	1
72330-90D34	LH80..N ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D41	LH80..D ｱﾘ(ｶｲﾃﾝｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D29	LH80..D ｱﾘ(ｼﾖｳｶｷ & ｶｲﾃﾝｼｷｼ-ﾄ) & ﾅｼ(ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 08/1990	1
72330-90D22	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D47	LH80..D ｱﾘ(ｶｲﾃﾝｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 08/1990	1
72330-90D10	LH80..D ｱﾘ(ｻ-ﾄﾞｼ-ﾄ)	08/1985 - 05/1995	1
72330-90D18	LH80..D ｱﾘ(ｺﾃｲｼｷｼ-ﾄ & ｱ-ﾑﾚｽﾄ) & ﾅｼ(ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 05/1995	1
72330-90D42	LH80..D..CBU ｱﾘ(ｼﾖｳｶｷ & ｶｲﾃﾝｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D49	LH8#..N	02/1990 - 05/1995	1
72330-90D39	LH80..D ｱﾘ(ｺﾃｲｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D48	LH80..D..CBU ｱﾘ(ｼﾖｳｶｷ & ｶｲﾃﾝｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 08/1990	1
72330-90D08	LH80..D	08/1985 - 05/1995	1
72330-90D14	LH80..D ｱﾘ(ｶｲﾃﾝｼｷｼ-ﾄ) & ﾅｼ(ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 08/1990	1
72330-90D26	LH80..D ｱﾘ(ｼﾖｳｶｷ)	08/1985 - 05/1995	1
72330-90D46	LH80..D ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 05/1995	1
72330-90D31	LH80..D ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ & ｱ-ﾑﾚｽﾄ) & ﾅｼ(ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 05/1995	1
72330-90D27	LH80..D ｱﾘ(ｼﾖｳｶｷ)	08/1985 - 05/1995	1
72330-90D40	LH80..D ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D45	LH80..D ｱﾘ(ｺﾃｲｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 05/1995	1
72330-90D54	LH80..N ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 05/1995	1
72330-90D50	LH80..N ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 05/1995	1
72330-90D43	LH8#..N	08/1985 - 02/1990	1
72330-90D52	LH8#..N ｱﾘ(ｼﾖｳｶｷ)	02/1990 - 05/1995	1
72330-90D53	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 05/1995	1
72330-90D51	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 05/1995	1
72330 - STAND ASSY,SEAT
72330-90D32	LH80..N ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D24	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D44	LH8#..N ｱﾘ(ｼﾖｳｶｷ)	08/1985 - 02/1990	1
72330-90D34	LH80..N ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D41	LH80..D ｱﾘ(ｶｲﾃﾝｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D29	LH80..D ｱﾘ(ｼﾖｳｶｷ & ｶｲﾃﾝｼｷｼ-ﾄ) & ﾅｼ(ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 08/1990	1
72330-90D22	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D47	LH80..D ｱﾘ(ｶｲﾃﾝｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 08/1990	1
72330-90D10	LH80..D ｱﾘ(ｻ-ﾄﾞｼ-ﾄ)	08/1985 - 05/1995	1
72330-90D18	LH80..D ｱﾘ(ｺﾃｲｼｷｼ-ﾄ & ｱ-ﾑﾚｽﾄ) & ﾅｼ(ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 05/1995	1
72330-90D42	LH80..D..CBU ｱﾘ(ｼﾖｳｶｷ & ｶｲﾃﾝｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D49	LH8#..N	02/1990 - 05/1995	1
72330-90D39	LH80..D ｱﾘ(ｺﾃｲｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D48	LH80..D..CBU ｱﾘ(ｼﾖｳｶｷ & ｶｲﾃﾝｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 08/1990	1
72330-90D08	LH80..D	08/1985 - 05/1995	1
72330-90D14	LH80..D ｱﾘ(ｶｲﾃﾝｼｷｼ-ﾄ) & ﾅｼ(ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 08/1990	1
72330-90D26	LH80..D ｱﾘ(ｼﾖｳｶｷ)	08/1985 - 05/1995	1
72330-90D46	LH80..D ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 05/1995	1
72330-90D31	LH80..D ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ & ｱ-ﾑﾚｽﾄ) & ﾅｼ(ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 05/1995	1
72330-90D27	LH80..D ｱﾘ(ｼﾖｳｶｷ)	08/1985 - 05/1995	1
72330-90D40	LH80..D ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	08/1985 - 02/1990	1
72330-90D45	LH80..D ｱﾘ(ｺﾃｲｼｷｼ-ﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 05/1995	1
72330-90D54	LH80..N ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 05/1995	1
72330-90D50	LH80..N ｱﾘ(ｼﾖｳｶｷ & ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 05/1995	1
72330-90D43	LH8#..N	08/1985 - 02/1990	1
72330-90D52	LH8#..N ｱﾘ(ｼﾖｳｶｷ)	02/1990 - 05/1995	1
72330-90D53	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 05/1995	1
72330-90D51	LH80..N ｱﾘ(ｺﾃｲｼｷｼ-ﾄ) & ﾅｼ(ｱ-ﾑﾚｽﾄ & ﾜﾝﾀﾂﾁｼﾞﾖｳｹﾞｱｼﾞﾔｽﾀ)	02/1990 - 05/1995	1
72345 - CAP, SEAT STAND FRAME
72345-90D00	LH8#	08/1985 - 05/1995	2
72354 - CATCH, VERTICAL ADJUSTER LOCK, NO.2
72354-90D00	LH8#	08/1985 - 02/1990	1
72356A - PLATE, VERTICAL ADJUSTER RELEASE
72356-90D00	LH8#	08/1985 - 02/1990	1
72356-90D01	LH8#	02/1990 - 05/1995	1
72356A - PLATE, VERTICAL ADJUSTER RELEASE
72356-90D00	LH8#	08/1985 - 02/1990	1
72356-90D01	LH8#	02/1990 - 05/1995	1
72413 - LEVER, VERTICAL ADJUSTER LOCK
72413-90D00	LH8#	08/1985 - 02/1990	1
72413-90D01	LH8#	02/1990 - 05/1995	1
72413 - LEVER, VERTICAL ADJUSTER LOCK
72413-90D00	LH8#	08/1985 - 02/1990	1
72413-90D01	LH8#	02/1990 - 05/1995	1
72422 - ROD, VERTICAL ADJUSTER
72422-90D00	LH8#	02/1990 - 05/1995	1
72457 - KNOB, VERTICAL SEAT ADJUSTER
72457-2005003	LH8# GRAY,TRIM4#	02/1990 - 05/1995	1
72482A - ROD, VERTICAL ADJUSTER, NO.2
72482-90D00	LH80..D	02/1990 - 05/1995	1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-90D00	LH8#	12/1985 - 05/1995	1
72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)
90506-12287	LH8#	08/1985 - 05/1995	1
72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM
72553-12010	LH8#	08/1985 - 05/1995	1
72810A - ARMREST ASSY, SEAT, RH
72830-90D01	LH80	08/1985 - 05/1995	1
72948 - KNOB, SEAT TURN LOCK
72948-90D00	LH80..D	08/1985 - 08/1990	1
72960A - TABLE ASSY, SEAT TURN
72960-90D00	LH80..D	08/1985 - 08/1990	1
78807 - BRACKET SUB-ASSY, CENTER SUB SEAT
78807-90D00	LH80	08/1985 - 08/1987	1
78807-90D0106	LH80 BROWN,BROWN,TRIM4#	08/1987 - 04/1988	1
78807-90D0106	LH80 BROWN,TRIM4#	04/1988 - 05/1995	1
78847 - PLATE, CENTER SUB SEAT BRACKET
78847-90D00	LH80	08/1985 - 08/1987	1
78847-90D01	LH80	08/1987 - 05/1995	1
Common parts
90119-10270
90179-08146
90179-10009
90201-10152
90249-08149
90389-10008
90506-12038
90508-26073
90520-01002
90523-08001
90560-10015
91521-60820
91611-60830
91665-60820
91665-60840
91665-61025
93315-14008
93315-15020
93339-24012
94524-01400
96160-00600

LH80VH-SNLT (1985)

ILLUST NO. 2 OF 2(8508-8708)

ILLUST NO. 2 OF 2(8708- )

ILLUST NO. 1 OF 2(8508- )

Part Price Details
