LH80VH-SDLTF (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

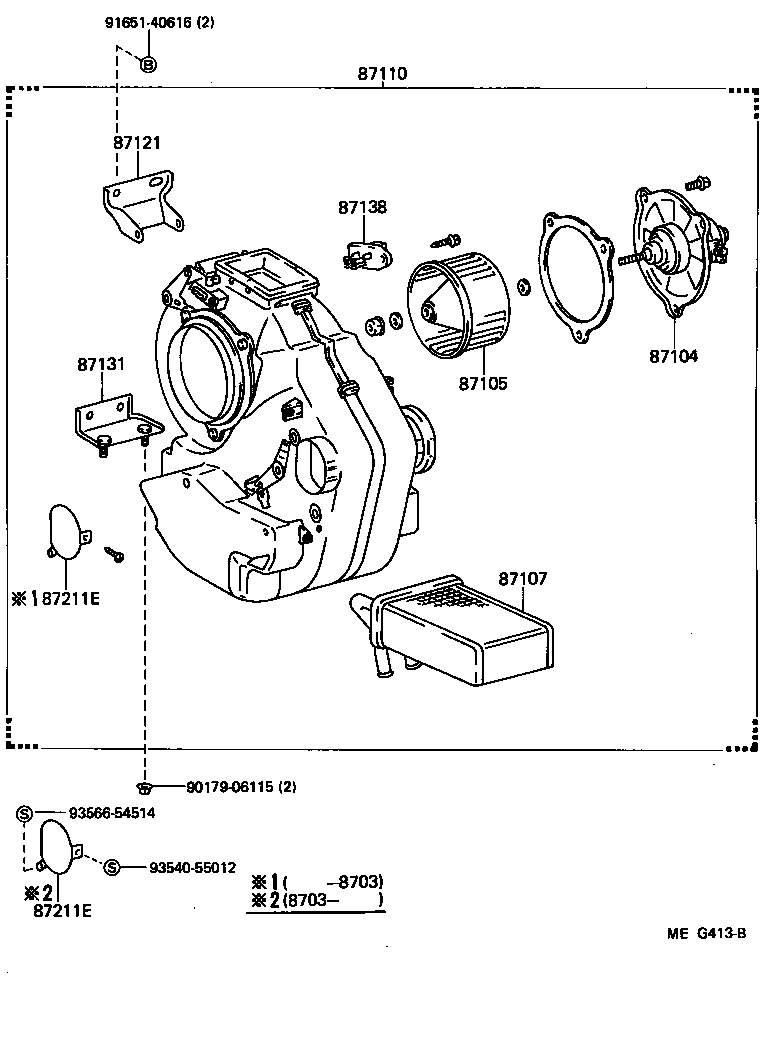

Click highlighted areas on diagram

diagram 87104 87105 87107 87110 87121 87131 87138 87211E 87211E 9017906115 9165140616 9354055012 9356654514
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95404

LH8#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-16020

LH8#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-90D03

LH8#

COLD SPEC

 1
87107-90D03

LH8#

ｶﾝﾚｲﾁｼﾖｳ

 1
87107-90D01

LH8#

 1
87110 - HEATER ASSY
87110-90D06

LH8#

 1
87110-90D07

LH8#

ｶﾝﾚｲﾁｼﾖｳ

 1
87110-90D07

LH8#

COLD SPEC

 1
87121 - BRACKET, HEATER, FRONT RH
87121-90D00

LH8#

 1
87131 - BRACKET, HEATER, FRONT LH
87121-90D01

LH8#

 1
87138 - RESISTOR, HEATER BLOWER
87138-95409

LH8#

 1
87138-26020

LH8#

 1
87211E - DUCT, AIR
87211-90D05

LH8#

 1
87211E - DUCT, AIR
87211-90D05

LH8#

 1
Common parts
90179-06115
91651-40616
93540-55012
93566-54514
