LH80VH-SDLTF (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508-8807)

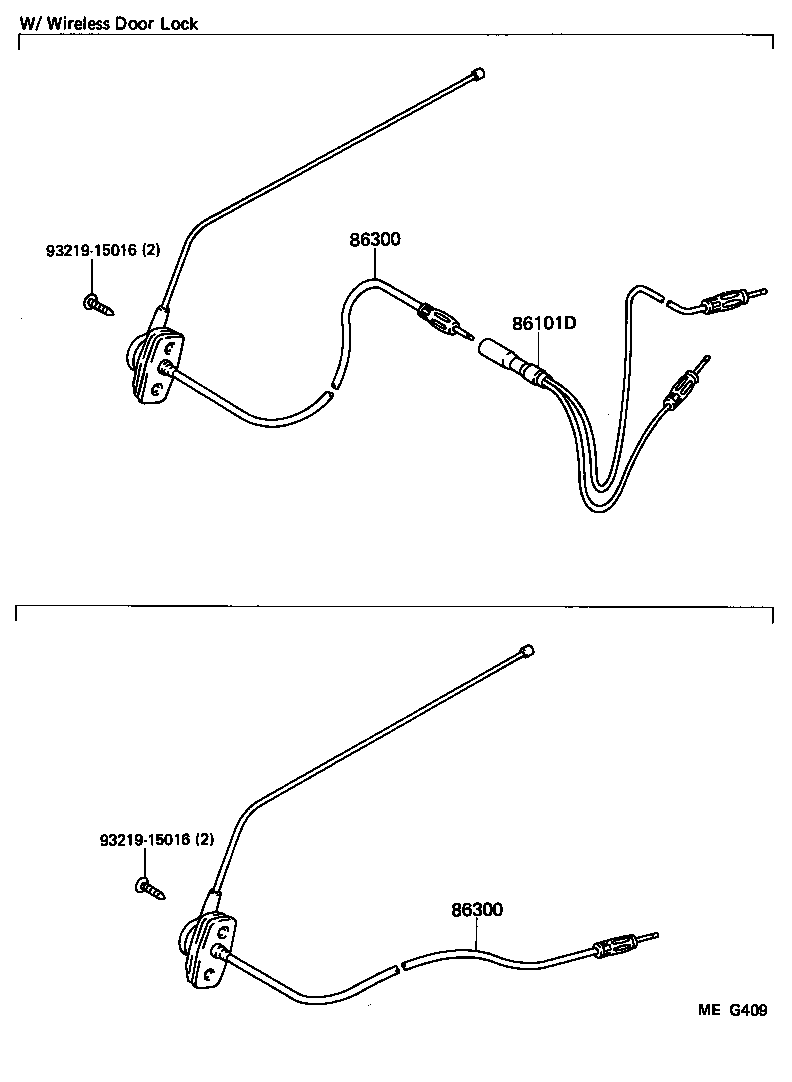

Click highlighted areas on diagram

diagram 86101D 86300 86300 9321915016 9321915016
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-90D02

LH8#

 1
86300-90D03

LH8#

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-90D02

LH8#

 1
86300-90D03

LH8#

 1
Common parts
93219-15016

(8807- )

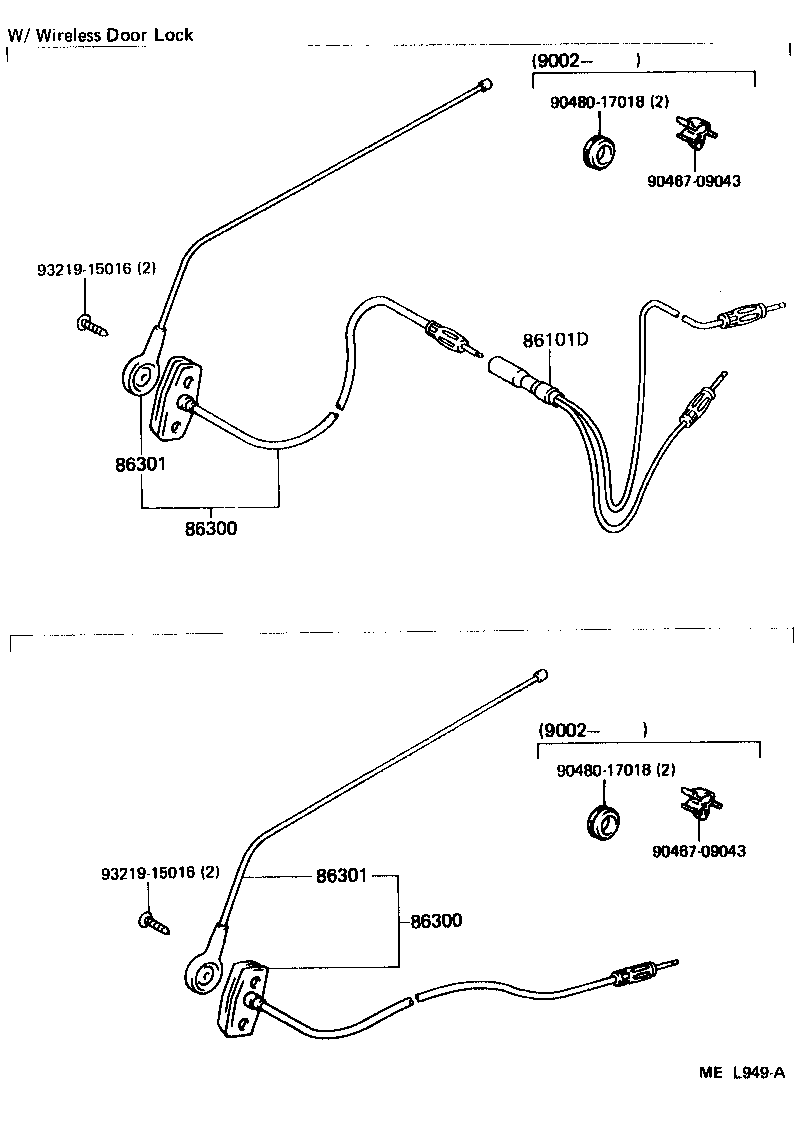

Click highlighted areas on diagram

diagram 86101D 86300 86300 86301 86301 9046709043 9046709043 9048017018 9048017018 9321915016 9321915016
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-90D02

LH8#

 1
86300-90D03

LH8#

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-90D02

LH8#

 1
86300-90D03

LH8#

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-90D00

LH8#

 1
86301-90D01

LH8#

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-90D00

LH8#

 1
86301-90D01

LH8#

 1
Common parts
90467-09043
90480-17018
93219-15016
