LH80VH-SDLTF (1985)
Toyota Hiace Quick Delivery
Production
Aug 1985
-
May 1995
Engine
2L
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

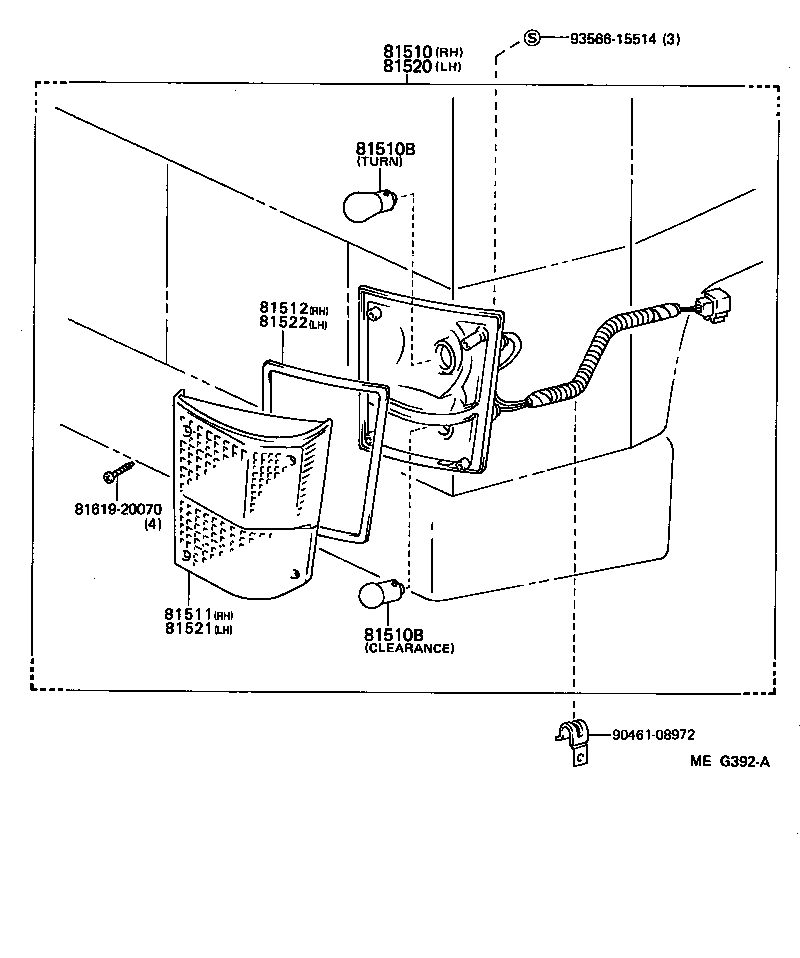

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-90D01 |
LH8# |
1 | ||
| 81510-90D00 |
LH80 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11050 |
LH8# 12V 5W,12V 5W(CLEARANCE) |
2 | ||
| 99132-11210 |
LH8# 12V 21W |
2 | ||
| 99132-11050 |
LH8# 12V 5W |
2 | ||
| 99132-11210 |
LH8# 12V 21W,12V 21W(TURN) |
2 | ||
| 99132-11230 |
LH80 12V 23W,12V 23W(TURN) |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11050 |
LH8# 12V 5W,12V 5W(CLEARANCE) |
2 | ||
| 99132-11210 |
LH8# 12V 21W |
2 | ||
| 99132-11050 |
LH8# 12V 5W |
2 | ||
| 99132-11210 |
LH8# 12V 21W,12V 21W(TURN) |
2 | ||
| 99132-11230 |
LH80 12V 23W,12V 23W(TURN) |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-90D00 |
LH8# |
1 | ||
| 81511-90D00 |
LH80 |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-90B00 |
LH8# |
1 | ||
| 81512-90B00 |
LH80 |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-90D01 |
LH8# |
1 | ||
| 81520-90D00 |
LH80 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-90D00 |
LH80 |
1 | ||
| 81521-90D00 |
LH8# |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-90B00 |
LH8# |
1 | ||
| 81512-90B00 |
LH80 |
1 | ||
| Common parts | ||||
| 81619-20070 | ||||
| 90461-08972 | ||||
| 93566-15514 | ||||
