LH80VH-SDLTF (1985)
Toyota Hiace Quick Delivery
Production
Aug 1985
-
May 1995
Engine
2L
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

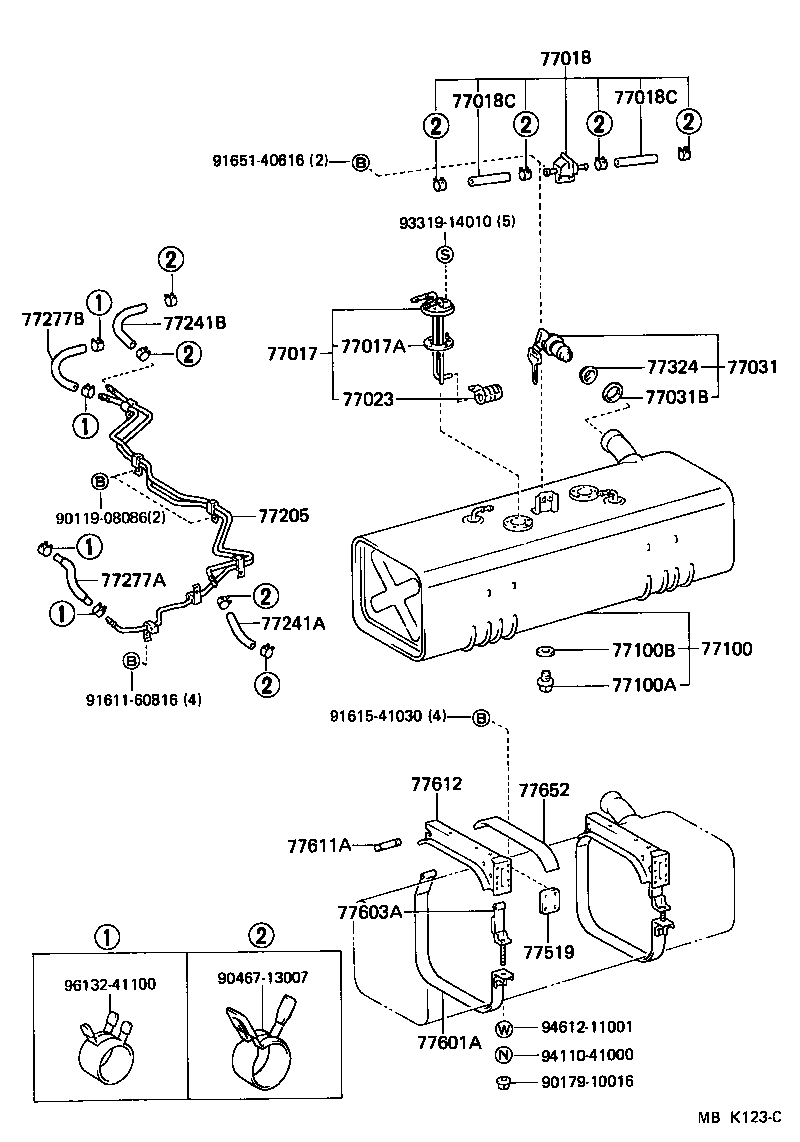

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-26120 |
LH80 |
1 | ||
| 77017-26121 |
LH8# |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14020 |
LH8# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-25110 |
LH8# |
1 | ||
| 77018C - HOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE) | ||||
| 95333-08020 |
LH8# 長さ=200,内径=8 |
2 | ||
| 95333-08020 |
LH8# *H,L=160 |
2 | ||
| 77018C - HOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE) | ||||
| 95333-08020 |
LH8# 長さ=200,内径=8 |
2 | ||
| 95333-08020 |
LH8# *H,L=160 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32010 |
LH8# |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-89102 |
LH8# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12031 |
LH80 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-26340 |
LH80 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
LH8# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LH8# |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-26080 |
LH80 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
LH8# 長さ=200,内径=8 |
1 | ||
| 95333-08020 |
LH80 長さ=200,内径=8 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
LH8# 長さ=200,内径=8 |
1 | ||
| 95333-08020 |
LH8# *H,L=180 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12109 |
LH80 長さ=310 |
1 | ||
| 90447-12018 |
LH80 |
1 | ||
| 90447-12109 |
LH8# 長さ=310 |
1 | ||
| 90447-12018 |
LH8# |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-06020 |
LH8# *H,L=140 |
1 | ||
| 95333-06020 |
LH8# *H,L=200 |
1 | ||
| 77324 - SPRING, FUEL TANK CAP | ||||
| 77324-12011 |
LH80 |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77519-26010 |
LH8# |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26050 |
LH80 |
2 | ||
| 77601-26060 |
LH8# |
2 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26030 |
LH8# |
2 | ||
| 77603-28010 |
LH80 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
LH80 |
4 | ||
| 77653-25010 |
LH8# |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-26040 |
LH8# |
2 | ||
| 77501-26031 |
LH80 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26040 |
LH8# |
2 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90179-10016 | ||||
| 90467-13007 | ||||
| 91611-60816 | ||||
| 91615-41030 | ||||
| 91651-40616 | ||||
| 93319-14010 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
| 96132-41100 | ||||
