LH80VH-SDLTF (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

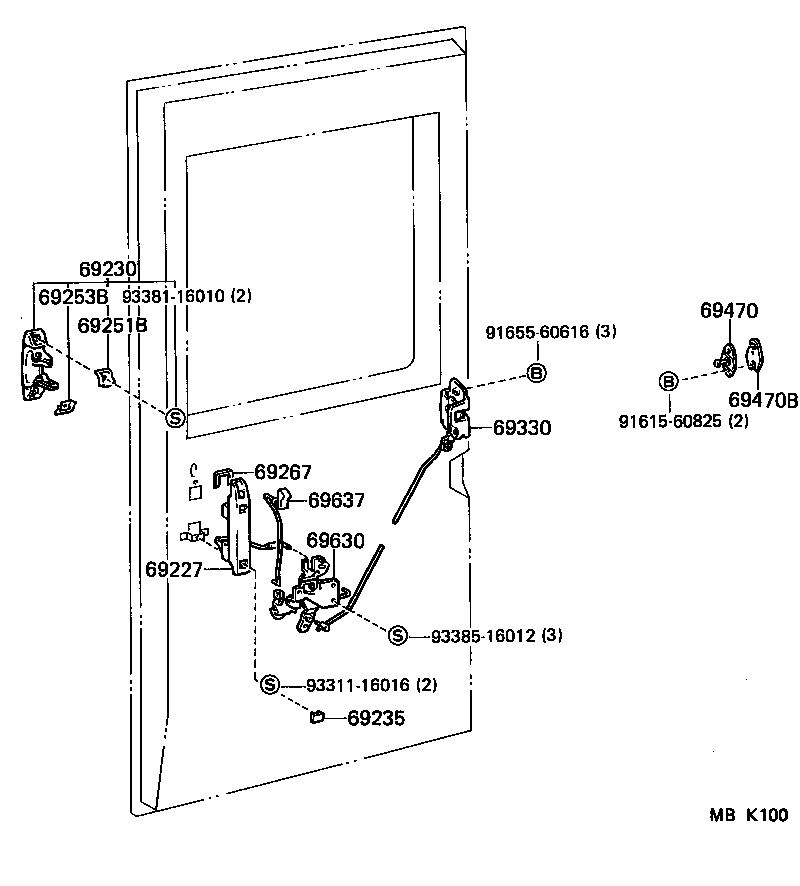

Click highlighted areas on diagram

diagram 69227 69230 69235 69251B 69253B 69267 69330 69470 69470B 69630 69637 9161560825 9165560616 9331116016 9338116010 9338516012
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69070-90D0005

LH80..4D

BEIGE,BEIGE

 1
69070-90D0005

LH80..4D

BEIGE,TRIM4#

 1
69070-90D0005

LH80..4D

BEIGE,BEIGE,TRIM4#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-95A90

LH80..4D

 1
69230-95A90

LH80..4D

 1
69235 - PLUG, SLIDE DOOR INSIDE HANDLE CASE
69235-95J0015

LH80..4D

BEIGE,BEIGE

 2
69235-95J0015

LH80..4D

BEIGE,TRIM4#

 2
69235-95J0015

LH80..4D

BEIGE,BEIGE,TRIM4#

 2
69251B - PAD, REAR DOOR OUTSIDE HANDLE, NO.1 RH
69246-95A00

LH80..4D

 1
69246-95A00

LH80..4D

 1
69253B - PAD, REAR DOOR OUTSIDE HANDLE, NO.2 RH
69247-95A00

LH80..4D

 1
69247-95A00

LH80..4D

 1
69267 - SEAL, SLIDE DOOR INSIDE HANDLE, NO.1
69267-90D00

LH80..4D

 1
69267-90D00

LH80..4D

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-90D01

LH80..4D

 1
69330-90D01

LH80..4D

 1
69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470-95700

LH80..4D

 1
69470-95700

LH80..4D

 1
69470B - SPACER, SLIDE DOOR LOCK STRIKER
69473-95700

LH80..4D

 1
69473-95700

LH80..4D

 2
69630 - CONTROL ASSY, SLIDE DOOR LOCK REMOTE
69610-90D00

LH80..4D

 1
69610-90D00

LH80..4D

 1
69637 - ROD, SLIDE DOOR INSIDE HANDLE LOCK REMOTE CONTROL
69707-90D0105

LH80..4D

BEIGE,TRIM4#

 1
69707-90D0105

LH80..4D

BEIGE,BEIGE

 1
69707-90D0105

LH80..4D

BEIGE,TRIM4#

 1
69707-90D0105

LH80..4D

BEIGE,BEIGE,TRIM4#

 1
Common parts
91615-60825
91655-60616
93311-16016
93381-16010
93385-16012
