LH80VH-SDLTF (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

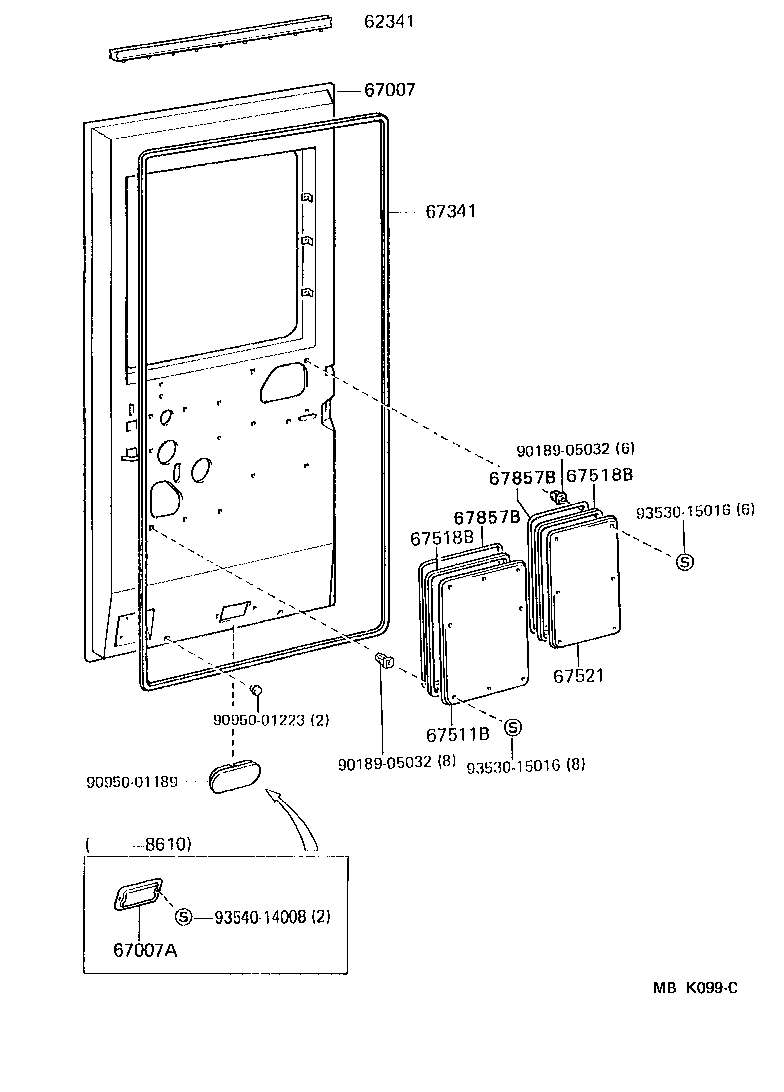

Click highlighted areas on diagram

diagram 62341 67007 67007A 67341 67511B 67518B 67518B 67521 67857B 67857B 9018905032 9018905032 9095001189 9095001223 9353015016 9353015016 9354014008
Part # Description Qty Price
62341 - WEATHERSTRIP, DOOR OPENING, UPPER RH
67871-90D02

LH80..4D

 1
67871-90D02

LH80..4D

 1
67007 - PANEL SUB-ASSY, SLIDE DOOR, RH
67003-90D08

LH80..D..4D

 1
67003-90D07

LH80..4D

W/WINDOW

 1
67003-90D05

LH80..D..4D

 1
67003-90D04

LH80..4D

W/WINDOW

 1
67003-90D10

LH80..D..4D

ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ)

 1
67003-90D08

LH80..D..4D

 1
67003-90D07

LH80..D..4D

ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ)

 1
67003-90D11

LH80..D..4D

 1
67007A - COVER SUB-ASSY, SLIDE DOOR PANEL LOWER, RH
61791-90A00

LH80..4D

 1
67341 - WEATHERSTRIP, SLIDE DOOR, RH
62331-90D04

LH80..4D

ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ)

 1
62331-90D02

LH80..4D

 1
62331-90D02

LH80..4D

 1
62331-90D04

LH80..4D

 1
67511B - COVER, SLIDE DOOR SERVICE HOLE, NO.1
67511-95A13

LH80..4D

 1
67511-95A13

LH80..4D

 1
67518B - PACKING, SLIDE DOOR SERVICE HOLE COVER, NO.1
67518-95A00

LH80..4D

 1
67518-95A00

LH80..4D

 2
67518B - PACKING, SLIDE DOOR SERVICE HOLE COVER, NO.1
67518-95A00

LH80..4D

 1
67518-95A00

LH80..4D

 2
67521 - COVER SUB-ASSY, SLIDE DOOR PANEL, RH
67523-95A00

LH80..4D

 1
67523-95A00

LH80..4D

 1
67857B - PROTECTOR, REAR DOOR PANEL, RH
67855-90D00

LH80..4D

 1
67857B - PROTECTOR, REAR DOOR PANEL, RH
67855-90D00

LH80..4D

 1
Common parts
90189-05032
90950-01189
90950-01223
93530-15016
93540-14008
