LH80VH-SDLTF (1985)
Toyota Hiace Quick Delivery
Production
Aug 1985
-
May 1995
Engine
2L
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

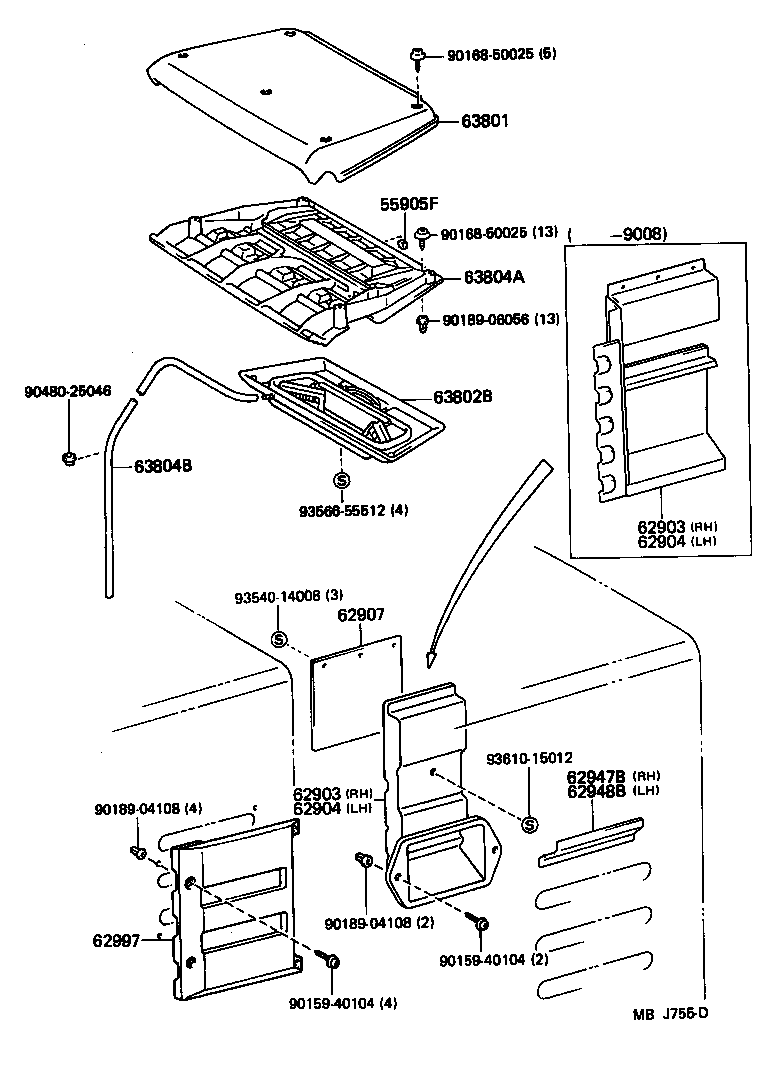

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905F - KNOB SUB-ASSY, CONTROL | ||||
| 55905-10110 |
LH8# |
1 | ||
| 62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH | ||||
| 62903-90D01 |
LH8#..CBU |
1 | ||
| 62903-90D01 |
LH8# |
1 | ||
| 62903-90D02 |
LH8#..CBU |
1 | ||
| 62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH | ||||
| 62903-90D01 |
LH8#..CBU |
1 | ||
| 62903-90D01 |
LH8# |
1 | ||
| 62903-90D02 |
LH8#..CBU |
1 | ||
| 62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH | ||||
| 62904-90D02 |
LH8#..CBU |
1 | ||
| 62903-90D02 |
LH8#..CBU |
1 | ||
| 62904-90D02 |
LH8# |
1 | ||
| 62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH | ||||
| 62904-90D02 |
LH8#..CBU |
1 | ||
| 62903-90D02 |
LH8#..CBU |
1 | ||
| 62904-90D02 |
LH8# |
1 | ||
| 62907 - BUTTERFLY SUB-ASSY, VENT | ||||
| 62935-90D01 |
LH8# |
2 | ||
| 62935-90D01 |
LH8#..125..CBU ｱﾘ(ﾀｲｽｲﾍﾞﾆﾔ) |
2 | ||
| 62947B - SHIELD, QUARTER VENT DUCT WATER, RH | ||||
| 62947-90D00 |
LH80 |
1 | ||
| 62948B - SHIELD, QUARTER VENT DUCT WATER, LH | ||||
| 62948-90D00 |
LH80 |
1 | ||
| 62997 - COVER, QUARTER VENT HOLE | ||||
| 62997-90D0008 |
LH8# WHITE,WHITE |
2 | ||
| 62997-90D0028 |
LH8#..D..CBU WHITE,045 |
2 | ||
| 62997-90D0018 |
LH8# CREAME,CREAM |
2 | ||
| 62997-90D0008 |
LH8#..D..CBU WHITE,033 |
2 | ||
| 62997-90D0108 |
LH8#..D..CBU WHITE,045 |
2 | ||
| 62997-90D00 |
LH8# |
2 | ||
| 62997-90901 |
LH8#..D..CBU |
2 | ||
| 62997-90D0118 |
LH8#..CBU CREAM,CREAM,9A7 |
2 | ||
| 62997-90D0108 |
LH8#..CBU WHITE,WHITE,045 |
2 | ||
| 63801 - COVER SUB-ASSY, ROOF VENTILATOR, FRONT | ||||
| 63801-95401 |
LH8# |
1 | ||
| 63802B - COVER SUB-ASSY, ROOF VENTILATOR, INNER | ||||
| 63802-9540003 |
LH8# GRAY,TRIM4# |
1 | ||
| 63802-9540003 |
LH8# GRAY,GRAY |
1 | ||
| 63802-95400B6 |
LH8# GRAY,TRIM4# |
1 | ||
| 63804A - HOUSING SUB-ASSY, ROOF VENTILATOR | ||||
| 63804-95400 |
LH8# |
1 | ||
| 63804B - HOSE, DRAIN(FOR ROOF VENTILATOR) | ||||
| 63849-90D00 |
LH8# |
1 | ||
| 63849-90F00 |
LH8# |
1 | ||
| Common parts | ||||
| 90159-40104 | ||||
| 90168-50025 | ||||
| 90189-04108 | ||||
| 90189-06056 | ||||
| 90480-25046 | ||||
| 93540-14008 | ||||
| 93566-55512 | ||||
| 93610-15012 | ||||
