LH80VH-SDLTF (1985)
Toyota Hiace Quick Delivery
Production
Aug 1985
-
May 1995
Engine
2L
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )LH80

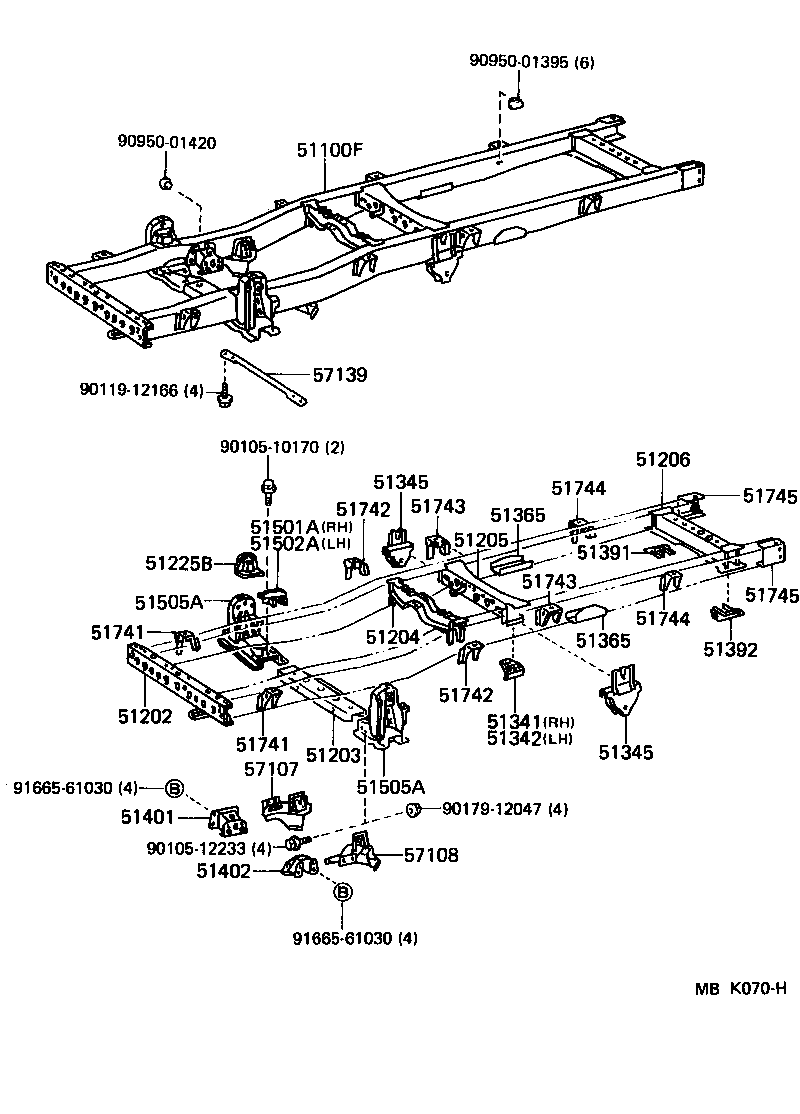

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-26480 |
LH80..D |
1 | ||
| 51001-26481 |
LH80..D |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-26080 |
LH80 |
1 | ||
| 51201-26081 |
LH8# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51203-26110 |
LH80 |
1 | ||
| 51203-26111 |
LH80 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-26120 |
LH80 |
1 | ||
| 51203-26120 |
LH8# |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-26020 |
LH8# |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51209-26040 |
LH8#..D |
1 | ||
| 51209-26040 |
LH85;LH80..D |
1 | ||
| 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH | ||||
| 51225-26010 |
LH80 |
2 | ||
| 51341 - GUSSET, FRAME NO.4 CROSSMEMBER, RH | ||||
| 51342-26020 |
LH8# |
1 | ||
| 51342 - GUSSET, FRAME NO.4 CROSSMEMBER, LH | ||||
| 51342-26020 |
LH8# |
1 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51345-26030 |
LH8# |
2 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51345-26030 |
LH8# |
2 | ||
| 51365 - STOPPER, REAR BUMPER | ||||
| 51365-26020 |
LH8# |
2 | ||
| 51365 - STOPPER, REAR BUMPER | ||||
| 51365-26020 |
LH8# |
2 | ||
| 51391 - GUSSET, FRAME REAR CROSSMEMBER, RH | ||||
| 51393-26010 |
LH8# |
1 | ||
| 51392 - GUSSET, FRAME REAR CROSSMEMBER, LH | ||||
| 51393-26010 |
LH8# |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-26010 |
LH80 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51401-26010 |
LH80 |
1 | ||
| 51501A - REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, RH | ||||
| 51501-26010 |
LH80 |
1 | ||
| 51502A - REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, LH | ||||
| 51502-26010 |
LH80 |
1 | ||
| 51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM | ||||
| 51505-26901 |
LH80 右側 |
1 | ||
| 51505-26900 |
LH80 RH |
1 | ||
| 51506-26901 |
LH80 左側 |
1 | ||
| 51506-26900 |
LH80 LH |
1 | ||
| 51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM | ||||
| 51505-26901 |
LH80 右側 |
1 | ||
| 51505-26900 |
LH80 RH |
1 | ||
| 51506-26901 |
LH80 左側 |
1 | ||
| 51506-26900 |
LH80 LH |
1 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51711-26080 |
LH8# |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51711-26080 |
LH8# |
2 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51743-26010 |
LH8# |
2 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51743-26010 |
LH8# |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51711-26080 |
LH8# |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51711-26080 |
LH8# |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51743-26010 |
LH8# |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51743-26010 |
LH8# |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51744-26011 |
LH8# |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51744-26011 |
LH8# |
2 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-26010 |
LH80 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-26010 |
LH80 |
1 | ||
| 57139 - ROD, STRUT BAR BRACKET BRACE | ||||
| 57139-26010 |
LH80 |
1 | ||
| Common parts | ||||
| 90105-10170 | ||||
| 90105-12233 | ||||
| 90119-12166 | ||||
| 90179-12047 | ||||
| 90950-01395 | ||||
| 90950-01420 | ||||
| 91665-61030 | ||||
