LH80VH-SDLTF (1985)
Toyota Hiace Quick Delivery
Production
Aug 1985
-
May 1995
Engine
2L
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

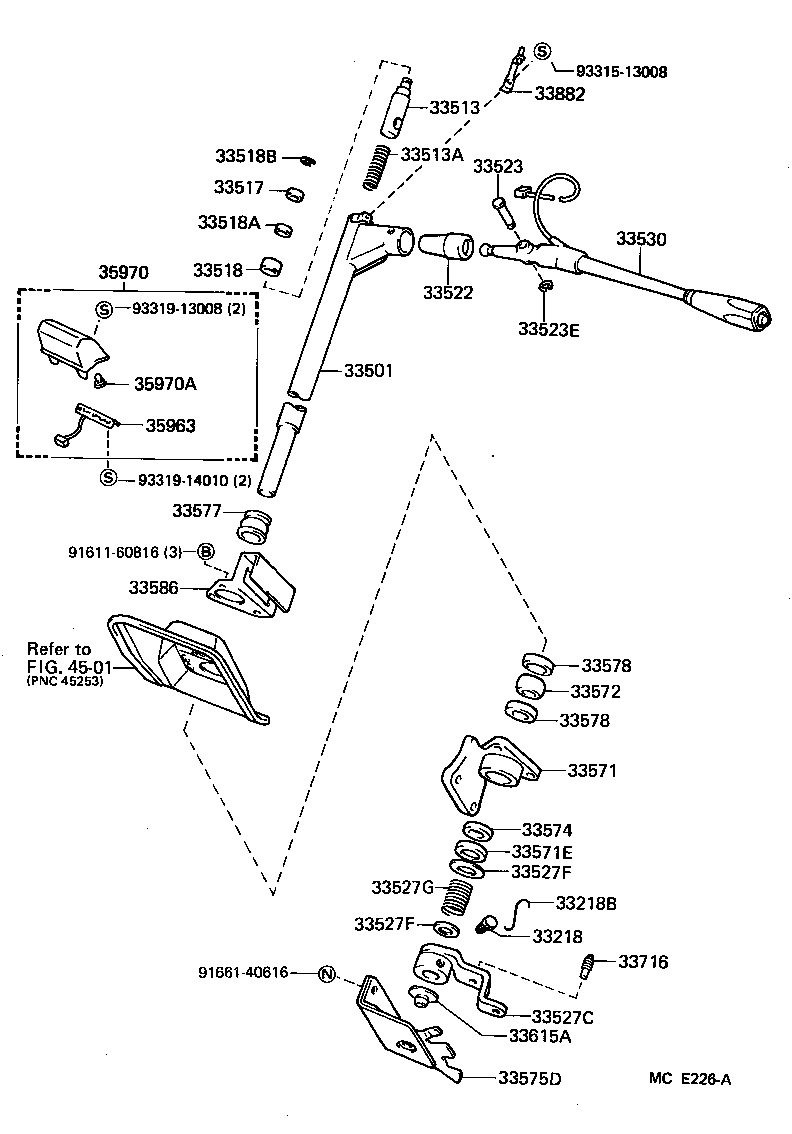

ILLUST NO. 1 OF 2(8708-8910)4HC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33218 - BOLT, SHIFT LEVER LOCK | ||||
| 33218-35010 |
LH80..4HC |
1 | ||
| 33218-35010 |
LH8# |
1 | ||
| 33218B - WIRE(FOR SHIFT LEVER LOCK BOLT) | ||||
| 90580-14002 |
LH80..4HC |
1 | ||
| 90580-14002 |
LH8# |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-26230 |
LH80..4HC |
1 | ||
| 33501-26240 |
LH80..4HC |
1 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-26020 |
LH8# |
1 | ||
| 33513-36020 |
LH80..4HC |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14395 |
LH8# |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
LH8# |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-35010 |
LH8# |
1 | ||
| 33518-36010 |
LH8# |
1 | ||
| 33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 33515-30010 |
LH8# |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
LH8# |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-36010 |
LH8# |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07001 |
LH8# |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
LH8# |
1 | ||
| 33527C - LEVER, CONTROL SHIFT (FOR COLUMN SHIFT) | ||||
| 33527-26090 |
LH80..4HC |
1 | ||
| 33527F - WASHER, PLATE (FOR CONTROL SHIFT LEVER) | ||||
| 90201-17044 |
LH80..4HC 下側 |
1 | ||
| 90201-17048 |
LH80..4HC 上側 |
1 | ||
| 90201-17048 |
LH80..4HC UPR |
1 | ||
| 90201-17044 |
LH80..4HC LWR |
1 | ||
| 90201-17048 |
LH80..4HC |
1 | ||
| 33527F - WASHER, PLATE (FOR CONTROL SHIFT LEVER) | ||||
| 90201-17044 |
LH80..4HC 下側 |
1 | ||
| 90201-17048 |
LH80..4HC 上側 |
1 | ||
| 90201-17048 |
LH80..4HC UPR |
1 | ||
| 90201-17044 |
LH80..4HC LWR |
1 | ||
| 90201-17048 |
LH80..4HC |
1 | ||
| 33527G - SPRING, COMPRESSION (FOR CONTROL SHIFT LEVER) | ||||
| 90501-12115 |
LH80..4HC |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33530-26020 |
LH80..4HC |
1 | ||
| 33530-26050 |
LH80..4HC |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-26040 |
LH80..4HC |
1 | ||
| 33571E - SEAL, DUST (FOR CONTROL SHAFT LOWER BRACKET) | ||||
| 90303-17005 |
LH80..4HC |
1 | ||
| 90303-17001 |
LH80..4HC |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-28010 |
LH80..4HC |
1 | ||
| 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33574-25010 |
LH8# |
1 | ||
| 33574-25010 |
LH80..4HC |
1 | ||
| 33575D - RETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33575-26070 |
LH80..4HC |
1 | ||
| 33577 - COVER, CONTROL SHAFT HOLE | ||||
| 33577-27020 |
LH80..4HC |
1 | ||
| 33577-27010 |
LH80..4HC |
1 | ||
| 33578 - SEAT, CONTROL SHAFT LOWER BUSH, NO.1 | ||||
| 33578-28010 |
LH80..4HC |
2 | ||
| 33578-28010 |
LH80..4HC |
1 | ||
| 33578 - SEAT, CONTROL SHAFT LOWER BUSH, NO.1 | ||||
| 33578-28010 |
LH80..4HC |
2 | ||
| 33578-28010 |
LH80..4HC |
1 | ||
| 33586 - STOPPER, CONTROL SHIFT LEVER | ||||
| 33586-26011 |
LH80..4HC |
1 | ||
| 33615A - BUSH, CONTROL SHIFT LEVER RETAINER | ||||
| 33615-26010 |
LH80..4HC |
1 | ||
| 33716 - PIN, CONTROL SHAFT LEVER STOPPER | ||||
| 33716-26010 |
LH80..4HC |
1 | ||
| 33882 - PIECE, CONTROL SHAFT, UPPER | ||||
| 33882-26011 |
LH80..4HC |
1 | ||
| 33882-27010 |
LH80..4HC |
1 | ||
| 35963 - PLATE, INDICATOR LAMP EARTH (FOR COLUMN SHIFT) | ||||
| 35963-26030 |
LH80..4HC |
1 | ||
| 35970 - HOUSING ASSY, POSITION INDICATOR (FOR COLUMN SHIFT) | ||||
| 35970-2605026 |
LH80..4HC BROWN,TRIM4# |
1 | ||
| 35970-2607006 |
LH80..4HC BROWN,TRIM4# |
1 | ||
| 35970A - BULB (FOR COLUMN SHIFT POSITION INDICATOR LAMP) | ||||
| 90981-11024 |
LH80..4HC |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91661-40616 | ||||
| 93315-13008 | ||||
| 93319-13008 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 4501 | ||||

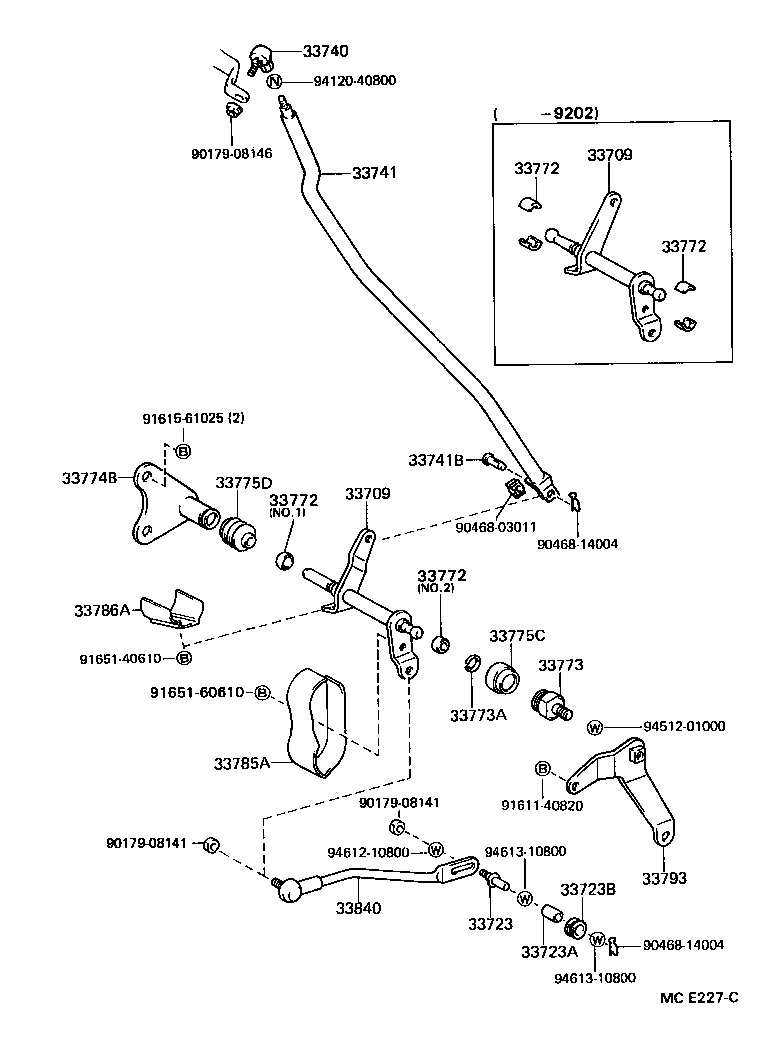

ILLUST NO. 2 OF 2(8708- )4HC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33709 - SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT) | ||||
| 33709-26130 |
LH80..4HC |
1 | ||
| 33709-26131 |
LH80..4HC |
1 | ||
| 33709 - SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT) | ||||
| 33709-26130 |
LH80..4HC |
1 | ||
| 33709-26131 |
LH80..4HC |
1 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-22010 |
LH80..4HC |
1 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
LH8# |
1 | ||
| 33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
LH8# |
1 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-26010 |
LH80..4HC |
1 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33702-26120 |
LH80..4HC |
1 | ||
| 33741B - PIN, W/HOLE (FOR COLUMN SHIFTING ROD) | ||||
| 90240-08042 |
LH8# |
2 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LH80..4HC |
4 | ||
| 33772-35011 |
LH80..4HC NO.1 |
1 | ||
| 33772-26010 |
LH80..4HC NO.2 |
1 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LH80..4HC |
4 | ||
| 33772-35011 |
LH80..4HC NO.1 |
1 | ||
| 33772-26010 |
LH80..4HC NO.2 |
1 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LH80..4HC |
4 | ||
| 33772-35011 |
LH80..4HC NO.1 |
1 | ||
| 33772-26010 |
LH80..4HC NO.2 |
1 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LH80..4HC |
4 | ||
| 33772-35011 |
LH80..4HC NO.1 |
1 | ||
| 33772-26010 |
LH80..4HC NO.2 |
1 | ||
| 33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT) | ||||
| 33773-20020 |
LH80..4HC |
1 | ||
| 33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LH80..4HC |
1 | ||
| 33774B - SUPPORT, CROSS SHAFT, NO.2 (FOR COLUMN SHIFT) | ||||
| 33705-26091 |
LH80..4HC |
1 | ||
| 33705-26090 |
LH80..4HC |
1 | ||
| 33775C - COVER, CROSS SHAFT DUST, NO.1 (FOR COLUMN SHIFT) | ||||
| 33775-20020 |
LH80..4HC |
1 | ||
| 33775D - COVER, CROSS SHAFT DUST, NO.2 (FOR COLUMN SHIFT) | ||||
| 33775-35010 |
LH80..4HC |
1 | ||
| 33775-20040 |
LH80..4HC |
1 | ||
| 33785A - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1(FOR COLUMN SHIF | ||||
| 33785-26020 |
LH80..4HC |
1 | ||
| 33786A - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2(FOR COLUMN SHIF | ||||
| 33786-26010 |
LH80..4HC |
1 | ||
| 33793 - BRACKET, CROSS SHAFT, NO.2(FOR COLUMN SHIFT) | ||||
| 33793-26050 |
LH80..4HC |
1 | ||
| 33840 - ROD ASSY, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33840-26080 |
LH80..4HC |
1 | ||
| Common parts | ||||
| 90179-08141 | ||||
| 90179-08146 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 91611-40820 | ||||
| 91615-61025 | ||||
| 91651-40610 | ||||
| 91651-60610 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||

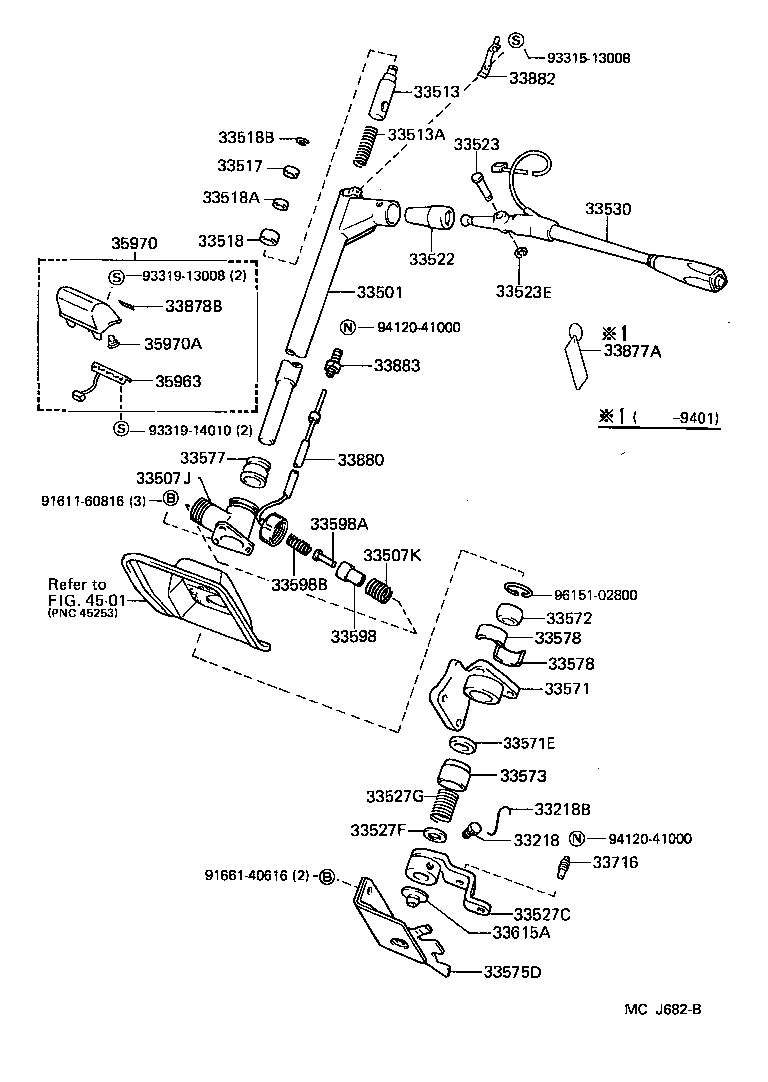

ILLUST NO. 1 OF 2(8910- )4HC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33218 - BOLT, SHIFT LEVER LOCK | ||||
| 33218-35010 |
LH80..4HC |
1 | ||
| 33218-35010 |
LH8# |
1 | ||
| 33218B - WIRE(FOR SHIFT LEVER LOCK BOLT) | ||||
| 90580-14002 |
LH80..4HC |
1 | ||
| 90580-14002 |
LH8# |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-26230 |
LH80..4HC |
1 | ||
| 33501-26240 |
LH80..4HC |
1 | ||
| 33507J - SUPPORT SUB-ASSY, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33507-26010 |
LH80..4HC |
1 | ||
| 33507K - SPRING, COMPRESSION (FOR CONTROL SHAFT SUPPORT) | ||||
| 90501-10137 |
LH80..4HC |
1 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-26020 |
LH8# |
1 | ||
| 33513-36020 |
LH80..4HC |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14395 |
LH8# |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
LH8# |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-35010 |
LH8# |
1 | ||
| 33518-36010 |
LH8# |
1 | ||
| 33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 33515-30010 |
LH8# |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
LH8# |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-36010 |
LH8# |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07001 |
LH8# |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
LH8# |
1 | ||
| 33527C - LEVER, CONTROL SHIFT (FOR COLUMN SHIFT) | ||||
| 33527-26090 |
LH80..4HC |
1 | ||
| 33527F - WASHER, PLATE (FOR CONTROL SHIFT LEVER) | ||||
| 90201-17044 |
LH80..4HC 下側 |
1 | ||
| 90201-17048 |
LH80..4HC 上側 |
1 | ||
| 90201-17048 |
LH80..4HC UPR |
1 | ||
| 90201-17044 |
LH80..4HC LWR |
1 | ||
| 90201-17048 |
LH80..4HC |
1 | ||
| 33527G - SPRING, COMPRESSION (FOR CONTROL SHIFT LEVER) | ||||
| 90501-12115 |
LH80..4HC |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33530-26020 |
LH80..4HC |
1 | ||
| 33530-26050 |
LH80..4HC |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-26040 |
LH80..4HC |
1 | ||
| 33571E - SEAL, DUST (FOR CONTROL SHAFT LOWER BRACKET) | ||||
| 90303-17005 |
LH80..4HC |
1 | ||
| 90303-17001 |
LH80..4HC |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-28010 |
LH80..4HC |
1 | ||
| 33573 - COVER, CONTROL SHAFT DUST, LOWER | ||||
| 33573-26050 |
LH80..4HC |
1 | ||
| 33575D - RETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33575-26070 |
LH80..4HC |
1 | ||
| 33577 - COVER, CONTROL SHAFT HOLE | ||||
| 33577-27020 |
LH80..4HC |
1 | ||
| 33577-27010 |
LH80..4HC |
1 | ||
| 33578 - SEAT, CONTROL SHAFT LOWER BUSH, NO.1 | ||||
| 33578-28010 |
LH80..4HC |
2 | ||
| 33578-28010 |
LH80..4HC |
1 | ||
| 33578 - SEAT, CONTROL SHAFT LOWER BUSH, NO.1 | ||||
| 33578-28010 |
LH80..4HC |
2 | ||
| 33578-28010 |
LH80..4HC |
1 | ||
| 33598 - HOLDER, SELECT SHATT LOCK PIN (FOR COLUMN SHIFT) | ||||
| 33598-35010 |
LH80..4HC |
1 | ||
| 33598A - PIN (FOR COLUMN SHIFT SELECT SHAFT LOCK PIN HOLDER) | ||||
| 90249-06124 |
LH80..4HC |
1 | ||
| 33598B - SPRING, COMPRESSION (FOR SELECT SHAFT LOCK PIN HOLDER) | ||||
| 90501-05020 |
LH80..4HC |
1 | ||
| 33615A - BUSH, CONTROL SHIFT LEVER RETAINER | ||||
| 33615-26010 |
LH80..4HC |
1 | ||
| 33716 - PIN, CONTROL SHAFT LEVER STOPPER | ||||
| 33716-26010 |
LH80..4HC |
1 | ||
| 33877A - LABEL, SHIFT LOCK INFORMATION | ||||
| 33877-27010 |
LH80..4HC |
1 | ||
| 33878B - LABEL, SHIFT LOCK INFORMATION, NO.2(FOR COLUMN SHIFT) | ||||
| 33878-27020 |
LH80..4HC |
1 | ||
| 33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT) | ||||
| 33880-26010 |
LH80..4HC |
1 | ||
| 33882 - PIECE, CONTROL SHAFT, UPPER | ||||
| 33882-26011 |
LH80..4HC |
1 | ||
| 33882-27010 |
LH80..4HC |
1 | ||
| 33883 - HOLDER, CABLE END ROD | ||||
| 33883-35010 |
LH80..4HC |
1 | ||
| 33883-35020 |
LH80..4HC |
1 | ||
| 35963 - PLATE, INDICATOR LAMP EARTH (FOR COLUMN SHIFT) | ||||
| 35963-26030 |
LH80..4HC |
1 | ||
| 35970 - HOUSING ASSY, POSITION INDICATOR (FOR COLUMN SHIFT) | ||||
| 35970-2605026 |
LH80..4HC BROWN,TRIM4# |
1 | ||
| 35970-2607006 |
LH80..4HC BROWN,TRIM4# |
1 | ||
| 35970A - BULB (FOR COLUMN SHIFT POSITION INDICATOR LAMP) | ||||
| 90981-11024 |
LH80..4HC |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91661-40616 | ||||
| 93315-13008 | ||||
| 93319-13008 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||
| 96151-02800 | ||||
| Linked diagrams | ||||
| 4501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
