LH80VH-SDLTF (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

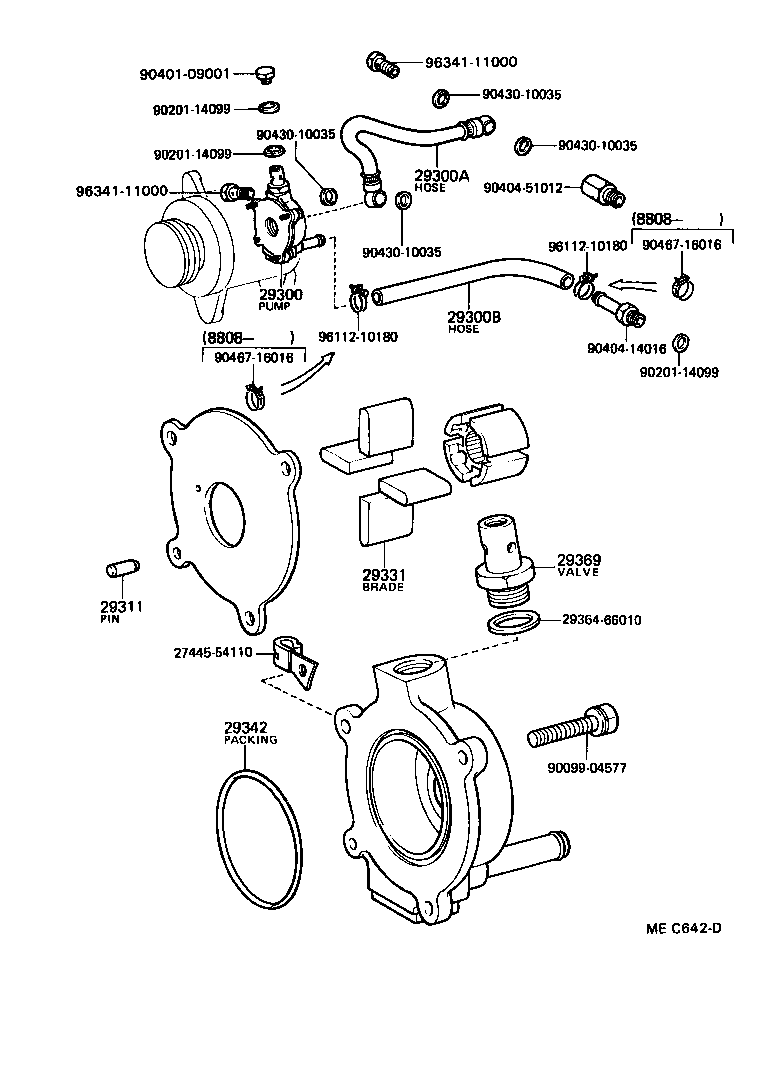

Click highlighted areas on diagram

diagram 2744554110 29300 29300A 29300B 29311 29331 29342 2936466010 29369 9009904577 9020114099 9020114099 9020114099 9040109001 9040414016 9040451012 9043010035 9043010035 9043010035 9043010035 9046716016 9046716016 9611210180 9611210180 9634111000 9634111000
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-54051

2L..LH80;2L..LH85..D

 1
29300-54050

2L..LH80;2L..LH85..D

 1
29300-54050

2L..LH8#

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02077

2L..LH8#

L=245

 1
90923-02077

2L..LH80;2L..LH85..D

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02076

2L..LH8#

 1
29611-54030

2L..LH8#

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

2L..LH8#

 1
29311-76010

2L..LH8#

 1
29331 - BLADE, VACUUM PUMP, A
29331-56070

2L..LH80;2L..LH85..D

 4
29331-56070

2L..LH8#

 4
29342 - PACKING, VACUUM PUMP
96740-02063

2L..LH8#

 1
29369 - VALVE SUB-ASSY, CHECK
29369-56070

2L..LH8#

 1
Common parts
27445-54110
29364-66010
90099-04577
90201-14099
90401-09001
90404-14016
90404-51012
90430-10035
90467-16016
96112-10180
96341-11000
