LH80VH-SDLT3 (1985)
Toyota Hiace Quick Delivery
Production
Aug 1985
-
May 1995
Engine
2L
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508-8601)

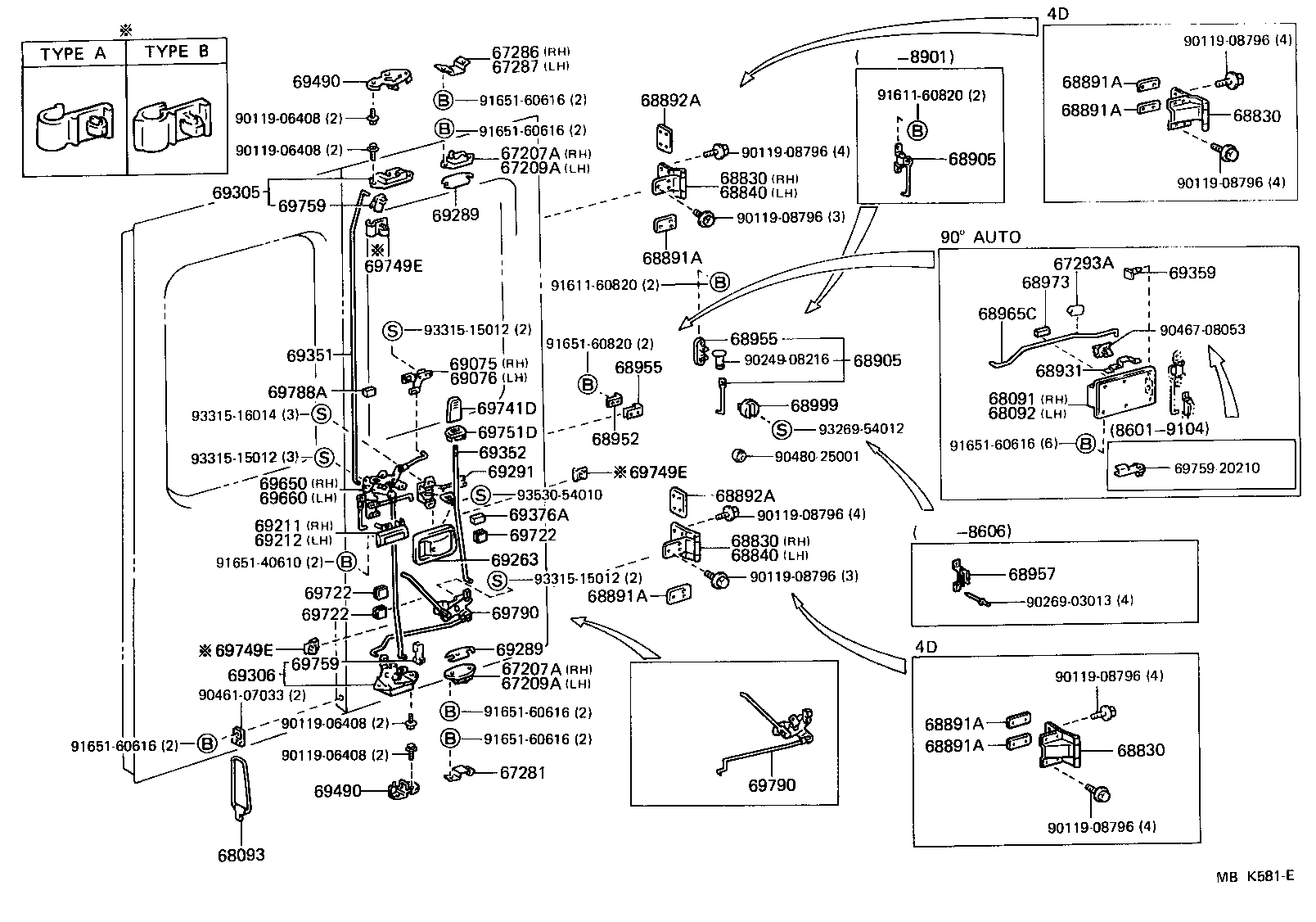

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67207A - STOPPER SUB-ASSY, BACK DOOR, RH | ||||
| 67207-90D00 |
LH8# LWR |
1 | ||
| 67209-90A01 |
LH8# UPR |
1 | ||
| 67207A - STOPPER SUB-ASSY, BACK DOOR, RH | ||||
| 67207-90D00 |
LH8# LWR |
1 | ||
| 67209-90A01 |
LH8# UPR |
1 | ||
| 67209A - STOPPER SUB-ASSY, BACK DOOR, LH | ||||
| 67209-90A01 |
LH8# LWR |
1 | ||
| 67207-90D00 |
LH8# UPR |
1 | ||
| 67209A - STOPPER SUB-ASSY, BACK DOOR, LH | ||||
| 67209-90A01 |
LH8# LWR |
1 | ||
| 67207-90D00 |
LH8# UPR |
1 | ||
| 67281 - PLATE, BACK DOOR STOPPER | ||||
| 67281-90D00 |
LH8# |
2 | ||
| 67286 - ANTI-RATTLE, BACK DOOR, RH | ||||
| 67285-90D00 |
LH8# |
1 | ||
| 67287 - ANTI-RATTLE, BACK DOOR, LH | ||||
| 67285-90D00 |
LH8# |
1 | ||
| 68092 - RAIL SUB-ASSY, BACK DOOR STAY, LH | ||||
| 68092-90D02 |
LH8# |
1 | ||
| 68093 - STAY SUB-ASSY, BACK DOOR, NO.2 | ||||
| 68093-90D00 |
LH8# |
2 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68802-90D01 |
LH8# UPR |
1 | ||
| 68804-90D00 |
LH8# LWR |
1 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68802-90D01 |
LH8# UPR |
1 | ||
| 68804-90D00 |
LH8# LWR |
1 | ||
| 68892A - PACKING, BACK DOOR HINGE FEMALE | ||||
| 68892-90D01 |
LH8# |
4 | ||
| 68892A - PACKING, BACK DOOR HINGE FEMALE | ||||
| 68892-90D01 |
LH8# |
4 | ||
| 68905 - STOPPER SUB-ASSY, BACK DOOR OPEN | ||||
| 68906-90D02 |
LH8# LH |
1 | ||
| 68931 - STAY, BACK DOOR, NO.1 | ||||
| 68931-90D03 |
LH8# |
2 | ||
| 68952 - RETAINER, BACK DOOR STAY | ||||
| 68952-90D00 |
LH8#..D |
2 | ||
| 68955 - BRACKET, BACK DOOR STAY | ||||
| 68955-90D04 |
LH8#..D |
2 | ||
| 68965C - SHAFT, BACK DOOR STAY | ||||
| 68965-90D01 |
LH8# LH |
1 | ||
| 68965-90D00 |
LH8# RH |
1 | ||
| 68973 - CUSHION, BACK DOOR STAY | ||||
| 68973-90D01 |
LH8# |
2 | ||
| 69075 - LINK SUB-ASSY, BACK DOOR LOCK CONTROL, NO.2 | ||||
| 69075-90D01 |
LH8# |
1 | ||
| 69076 - LINK SUB-ASSY, BACK DOOR LOCK CONTROL, NO.3 | ||||
| 69076-90D01 |
LH8# |
1 | ||
| 69211 - HANDLE, BACK DOOR OUTSIDE, RH | ||||
| 69090-90D02 |
LH8# |
1 | ||
| 69212 - HANDLE, BACK DOOR OUTSIDE, LH | ||||
| 69190-90D01 |
LH8#..125 |
1 | ||
| 69263 - BEZEL, BACK DOOR INSIDE HANDLE | ||||
| 69277-1604001 |
LH8# BLACK,BLACK |
2 | ||
| 69289 - SHIM, BACK DOOR STOPPER | ||||
| 69289-90A00 |
LH8# |
4 | ||
| 69289 - SHIM, BACK DOOR STOPPER | ||||
| 69289-90A00 |
LH8# |
4 | ||
| 69291 - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69205-90D00 |
LH8# |
2 | ||
| 69305 - LOCK SUB-ASSY, BACK DOOR, UPPER | ||||
| 69350-90D01 |
LH8# |
2 | ||
| 69306 - LOCK SUB-ASSY, BACK DOOR, LOWER | ||||
| 69380-90D00 |
LH80 |
2 | ||
| 69380-90D01 |
LH8# |
2 | ||
| 69351 - ROD, BACK DOOR LOCK CONTROL, UPPER | ||||
| 69357-90D05 |
LH8# RH |
1 | ||
| 69378-90D04 |
LH8# LH |
1 | ||
| 69352 - ROD, BACK DOOR LOCK CONTROL, LOWER | ||||
| 69396-90D02 |
LH8#..125 LH |
1 | ||
| 69395-90D02 |
LH8# RH |
1 | ||
| 69359 - CUSHION, BACK DOOR LOCK | ||||
| 90541-03004 |
LH80 |
2 | ||
| 69376A - SILENCER, BACK DOOR LOCK LINK | ||||
| 69759-30021 |
LH8# |
4 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-95701 |
LH8# UPR |
2 | ||
| 69430-90D00 |
LH8# LWR |
2 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-95701 |
LH8# UPR |
2 | ||
| 69430-90D00 |
LH8# LWR |
2 | ||
| 69650 - CONTROL ASSY, BACK DOOR LOCK REMOTE, RH | ||||
| 69690-90D08 |
LH8# |
1 | ||
| 69660 - CONTROL ASSY, BACK DOOR LOCK REMOTE, LH | ||||
| 69670-90D12 |
LH8#..125 |
1 | ||
| 69722 - PAD, BACK DOOR LOCK CONTROL | ||||
| 69722-90A00 |
LH8# |
4 | ||
| 69722 - PAD, BACK DOOR LOCK CONTROL | ||||
| 69722-90A00 |
LH8# |
4 | ||
| 69722 - PAD, BACK DOOR LOCK CONTROL | ||||
| 69722-90A00 |
LH8# |
4 | ||
| 69741D - KNOB, DOOR LOCK CONTROL(FOR BACK DOOR) | ||||
| 69741-90K0001 |
LH8# BLACK,BLACK |
2 | ||
| 69741-2002001 |
LH8# BLACK,BLACK |
2 | ||
| 69749E - CLAMP, BACK DOOR LOCK LINK | ||||
| 69749-12010 |
LH8# TYPE A |
4 | ||
| 69749-20020 |
LH8# TYPE B |
2 | ||
| 69749E - CLAMP, BACK DOOR LOCK LINK | ||||
| 69749-12010 |
LH8# TYPE A |
4 | ||
| 69749-20020 |
LH8# TYPE B |
2 | ||
| 69751D - HOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR) | ||||
| 69751-2003101 |
LH8# BLACK,BLACK |
2 | ||
| 69790 - CONTROL ASSY, BACK DOOR LOCK | ||||
| 69860-90D01 |
LH8#..125 LH |
1 | ||
| 69790-90D03 |
LH8# RH |
1 | ||
| 69790 - CONTROL ASSY, BACK DOOR LOCK | ||||
| 69860-90D01 |
LH8#..125 LH |
1 | ||
| 69790-90D03 |
LH8# RH |
1 | ||
| Common parts | ||||
| 69759-20210 | ||||
| 90119-08796 | ||||
| 90269-03013 | ||||
| 90461-07033 | ||||
| 90480-25001 | ||||
| 91611-60820 | ||||
| 91651-40610 | ||||
| 91651-60616 | ||||
| 91651-60820 | ||||
| 91661-60616 | ||||
| 93315-15012 | ||||
| 93315-16014 | ||||
| 93530-54010 | ||||
(8601- )

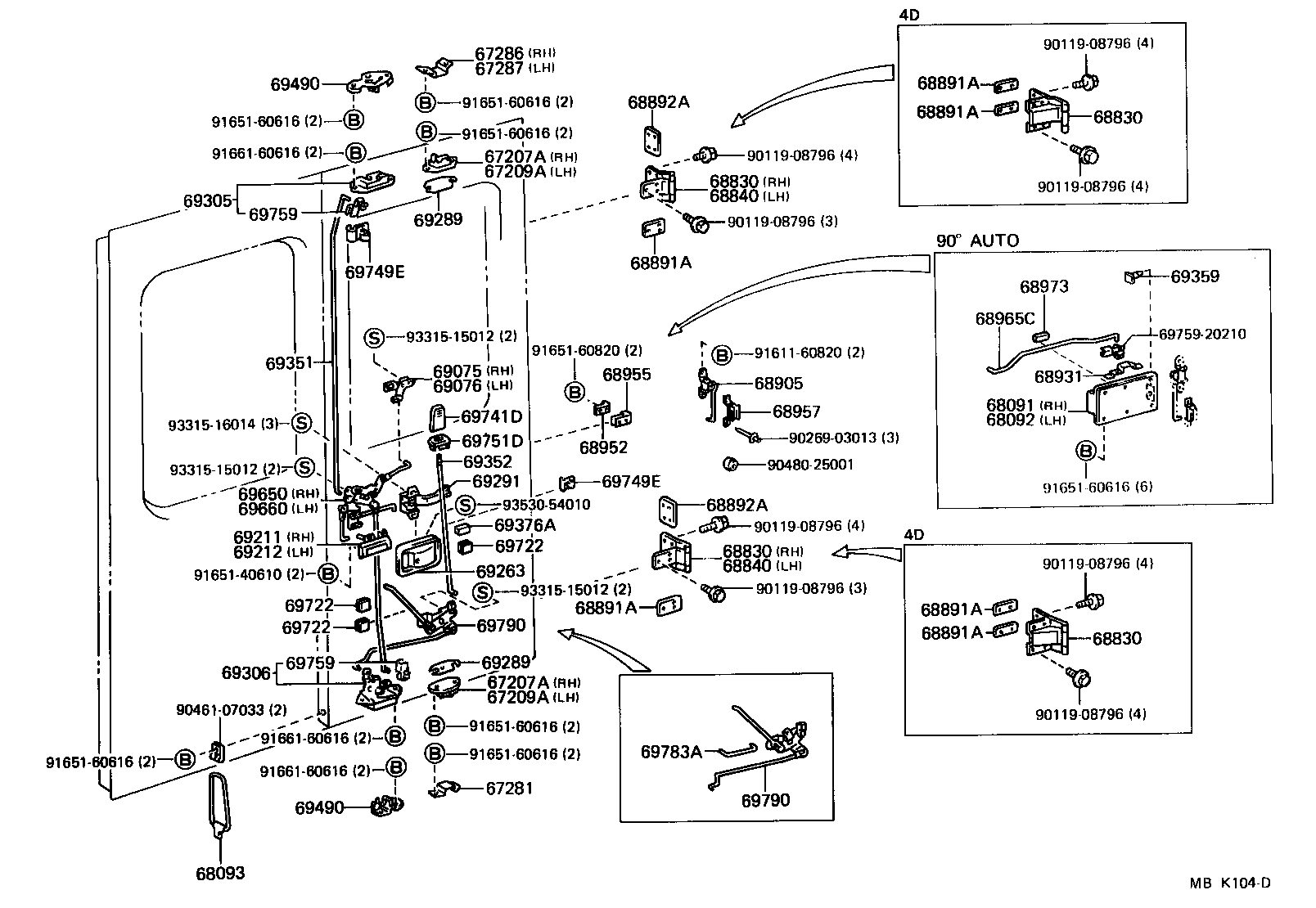

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67207A - STOPPER SUB-ASSY, BACK DOOR, RH | ||||
| 67207-90D00 |
LH8# LWR |
1 | ||
| 67209-90A01 |
LH8# UPR |
1 | ||
| 67207A - STOPPER SUB-ASSY, BACK DOOR, RH | ||||
| 67207-90D00 |
LH8# LWR |
1 | ||
| 67209-90A01 |
LH8# UPR |
1 | ||
| 67209A - STOPPER SUB-ASSY, BACK DOOR, LH | ||||
| 67209-90A01 |
LH8# LWR |
1 | ||
| 67207-90D00 |
LH8# UPR |
1 | ||
| 67209A - STOPPER SUB-ASSY, BACK DOOR, LH | ||||
| 67209-90A01 |
LH8# LWR |
1 | ||
| 67207-90D00 |
LH8# UPR |
1 | ||
| 67281 - PLATE, BACK DOOR STOPPER | ||||
| 67281-90D00 |
LH8# |
2 | ||
| 67286 - ANTI-RATTLE, BACK DOOR, RH | ||||
| 67285-90D00 |
LH8# |
1 | ||
| 67287 - ANTI-RATTLE, BACK DOOR, LH | ||||
| 67285-90D00 |
LH8# |
1 | ||
| 68092 - RAIL SUB-ASSY, BACK DOOR STAY, LH | ||||
| 68092-90D02 |
LH8# |
1 | ||
| 68093 - STAY SUB-ASSY, BACK DOOR, NO.2 | ||||
| 68093-90D00 |
LH8# |
2 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68802-90D01 |
LH8# UPR |
1 | ||
| 68804-90D00 |
LH8# LWR |
1 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68802-90D01 |
LH8# UPR |
1 | ||
| 68804-90D00 |
LH8# LWR |
1 | ||
| 68892A - PACKING, BACK DOOR HINGE FEMALE | ||||
| 68892-90D01 |
LH8# |
4 | ||
| 68892A - PACKING, BACK DOOR HINGE FEMALE | ||||
| 68892-90D01 |
LH8# |
4 | ||
| 68905 - STOPPER SUB-ASSY, BACK DOOR OPEN | ||||
| 68906-90D02 |
LH8# LH |
1 | ||
| 68905 - STOPPER SUB-ASSY, BACK DOOR OPEN | ||||
| 68906-90D02 |
LH8# LH |
1 | ||
| 68931 - STAY, BACK DOOR, NO.1 | ||||
| 68931-90D03 |
LH8# |
2 | ||
| 68952 - RETAINER, BACK DOOR STAY | ||||
| 68952-90D00 |
LH8#..D |
2 | ||
| 68955 - BRACKET, BACK DOOR STAY | ||||
| 68955-90D04 |
LH8#..D |
2 | ||
| 68955 - BRACKET, BACK DOOR STAY | ||||
| 68955-90D04 |
LH8#..D |
2 | ||
| 68965C - SHAFT, BACK DOOR STAY | ||||
| 68965-90D01 |
LH8# LH |
1 | ||
| 68965-90D00 |
LH8# RH |
1 | ||
| 68973 - CUSHION, BACK DOOR STAY | ||||
| 68973-90D01 |
LH8# |
2 | ||
| 68999 - CATCH, BACK DOOR STAY | ||||
| 68999-90D00 |
LH8# |
2 | ||
| 69075 - LINK SUB-ASSY, BACK DOOR LOCK CONTROL, NO.2 | ||||
| 69075-90D01 |
LH8# |
1 | ||
| 69076 - LINK SUB-ASSY, BACK DOOR LOCK CONTROL, NO.3 | ||||
| 69076-90D01 |
LH8# |
1 | ||
| 69211 - HANDLE, BACK DOOR OUTSIDE, RH | ||||
| 69090-90D02 |
LH8# |
1 | ||
| 69212 - HANDLE, BACK DOOR OUTSIDE, LH | ||||
| 69190-90D01 |
LH8#..125 |
1 | ||
| 69263 - BEZEL, BACK DOOR INSIDE HANDLE | ||||
| 69277-1604001 |
LH8# BLACK,BLACK |
2 | ||
| 69289 - SHIM, BACK DOOR STOPPER | ||||
| 69289-90A00 |
LH8# |
4 | ||
| 69289 - SHIM, BACK DOOR STOPPER | ||||
| 69289-90A00 |
LH8# |
4 | ||
| 69291 - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69205-90D00 |
LH8# |
2 | ||
| 69305 - LOCK SUB-ASSY, BACK DOOR, UPPER | ||||
| 69350-90D01 |
LH8# |
2 | ||
| 69306 - LOCK SUB-ASSY, BACK DOOR, LOWER | ||||
| 69380-90D00 |
LH80 |
2 | ||
| 69380-90D01 |
LH8# |
2 | ||
| 69351 - ROD, BACK DOOR LOCK CONTROL, UPPER | ||||
| 69357-90D05 |
LH8# RH |
1 | ||
| 69378-90D04 |
LH8# LH |
1 | ||
| 69352 - ROD, BACK DOOR LOCK CONTROL, LOWER | ||||
| 69396-90D02 |
LH8#..125 LH |
1 | ||
| 69395-90D02 |
LH8# RH |
1 | ||
| 69359 - CUSHION, BACK DOOR LOCK | ||||
| 90541-03004 |
LH80 |
2 | ||
| 69376A - SILENCER, BACK DOOR LOCK LINK | ||||
| 69759-30021 |
LH8# |
4 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-95701 |
LH8# UPR |
2 | ||
| 69430-90D00 |
LH8# LWR |
2 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-95701 |
LH8# UPR |
2 | ||
| 69430-90D00 |
LH8# LWR |
2 | ||
| 69650 - CONTROL ASSY, BACK DOOR LOCK REMOTE, RH | ||||
| 69690-90D08 |
LH8# |
1 | ||
| 69660 - CONTROL ASSY, BACK DOOR LOCK REMOTE, LH | ||||
| 69670-90D12 |
LH8#..125 |
1 | ||
| 69722 - PAD, BACK DOOR LOCK CONTROL | ||||
| 69722-90A00 |
LH8# |
4 | ||
| 69722 - PAD, BACK DOOR LOCK CONTROL | ||||
| 69722-90A00 |
LH8# |
4 | ||
| 69722 - PAD, BACK DOOR LOCK CONTROL | ||||
| 69722-90A00 |
LH8# |
4 | ||
| 69741D - KNOB, DOOR LOCK CONTROL(FOR BACK DOOR) | ||||
| 69741-90K0001 |
LH8# BLACK,BLACK |
2 | ||
| 69741-2002001 |
LH8# BLACK,BLACK |
2 | ||
| 69749E - CLAMP, BACK DOOR LOCK LINK | ||||
| 69749-12010 |
LH8# TYPE A |
4 | ||
| 69749-20020 |
LH8# TYPE B |
2 | ||
| 69749E - CLAMP, BACK DOOR LOCK LINK | ||||
| 69749-12010 |
LH8# TYPE A |
4 | ||
| 69749-20020 |
LH8# TYPE B |
2 | ||
| 69749E - CLAMP, BACK DOOR LOCK LINK | ||||
| 69749-12010 |
LH8# TYPE A |
4 | ||
| 69749-20020 |
LH8# TYPE B |
2 | ||
| 69751D - HOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR) | ||||
| 69751-2003101 |
LH8# BLACK,BLACK |
2 | ||
| 69788A - CUSHION, BACK DOOR LOCK LOCKING LINK | ||||
| 69788-90D00 |
LH8# |
2 | ||
| 69790 - CONTROL ASSY, BACK DOOR LOCK | ||||
| 69860-90D01 |
LH8#..125 LH |
1 | ||
| 69790-90D03 |
LH8# RH |
1 | ||
| 69790 - CONTROL ASSY, BACK DOOR LOCK | ||||
| 69860-90D01 |
LH8#..125 LH |
1 | ||
| 69790-90D03 |
LH8# RH |
1 | ||
| Common parts | ||||
| 69759-20210 | ||||
| 90119-06408 | ||||
| 90119-08796 | ||||
| 90249-08216 | ||||
| 90269-03013 | ||||
| 90461-07033 | ||||
| 90467-08053 | ||||
| 90480-25001 | ||||
| 91611-60820 | ||||
| 91651-40610 | ||||
| 91651-60616 | ||||
| 91651-60820 | ||||
| 93269-54012 | ||||
| 93315-15012 | ||||
| 93315-16014 | ||||
| 93530-54010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
