LH80VH-SDLT (1985)
Toyota Hiace Quick Delivery
Production
Aug 1985
-
May 1995
Engine
2L
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

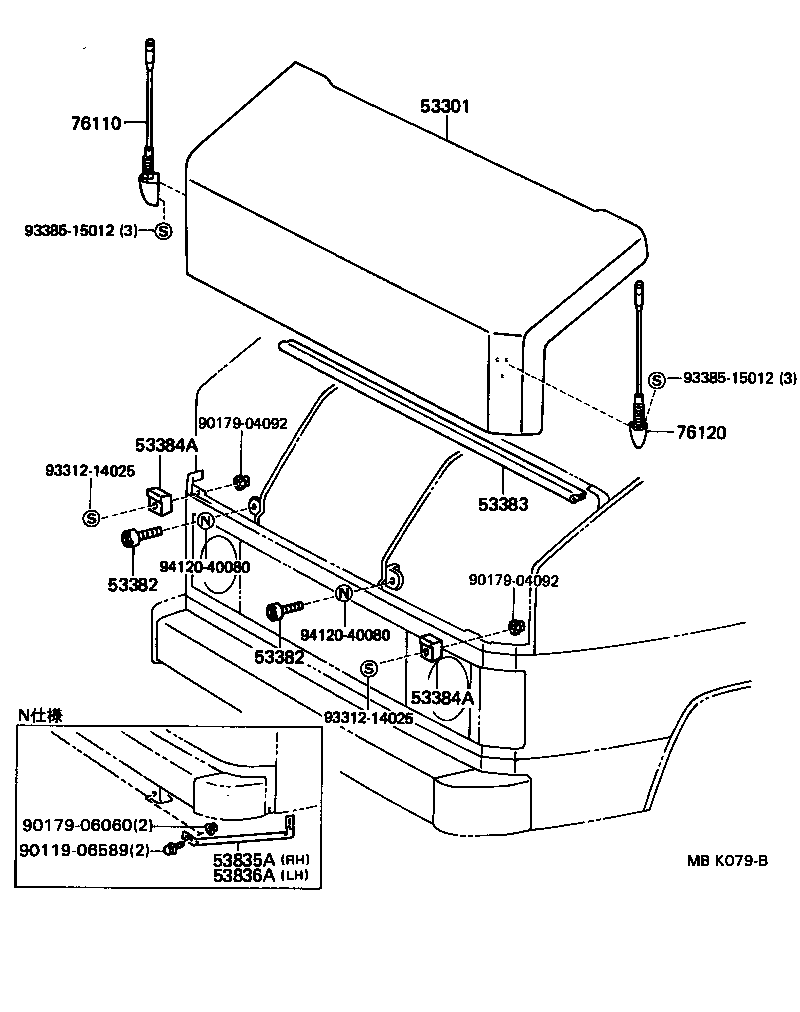

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-90D03 |
LH8# |
1 | ||
| 53301-90D04 |
LH8# W/FENDER POLE |
1 | ||
| 53301-90D03 |
LH8#..D |
1 | ||
| 53301-90D04 |
LH8#..D ｱﾘ(ﾌｴﾝﾀﾞ ﾎﾟ-ﾙ) |
1 | ||
| 53301-90D07 |
LH8#..D |
1 | ||
| 53301-90D06 |
LH8#..D ｱﾘ(ﾌｴﾝﾀﾞ ﾎﾟ-ﾙ) |
1 | ||
| 53301-90D05 |
LH8#..D |
1 | ||
| 53301-90D08 |
LH8#..D ｱﾘ(ﾌｴﾝﾀﾞ ﾎﾟ-ﾙ) |
1 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-60010 |
LH8# |
2 | ||
| 53382-90A00 |
LH8# |
2 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-60010 |
LH8# |
2 | ||
| 53382-90A00 |
LH8# |
2 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-90D01 |
LH8# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53383-90D00 |
LH8# |
1 | ||
| 53383-36010 |
LH8# |
1 | ||
| 53383-90D01 |
LH8# COLD SPEC |
1 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-90D01 |
LH8# |
2 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-90D01 |
LH8# |
2 | ||
| 76110 - POLE ASSY, FENDER, RH | ||||
| 76110-90D01 |
LH8# |
1 | ||
| 76110-90D01 |
LH8#..CBU |
1 | ||
| 76120 - POLE ASSY, FENDER, LH | ||||
| 76110-90D01 |
LH8# |
1 | ||
| 76110-90D01 |
LH8#..CBU |
1 | ||
| Common parts | ||||
| 90119-06589 | ||||
| 90179-04092 | ||||
| 90179-06060 | ||||
| 93312-14025 | ||||
| 93385-15012 | ||||
| 94120-40080 | ||||
