Toyota Hiace quick delivery LH80 STEERING WHEEL

LH80VH-SDLT (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995

Engine 2L

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8508- )

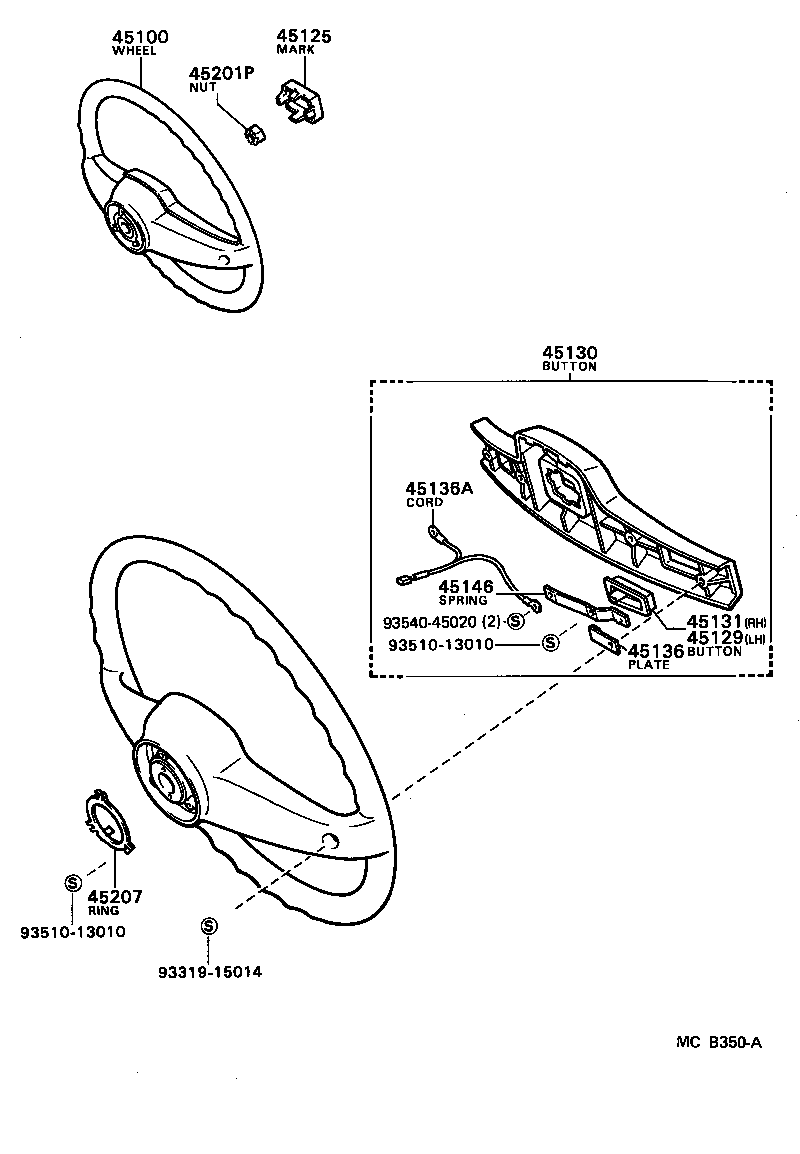

Click highlighted areas on diagram

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-2508006	LH80..D BROWN	08/1985 - 08/1987	1
45100-2610006	LH80 W/POWER STEERING,BROWN	08/1985 - 08/1987	1
45100-2612106	LH8# 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,BROWN,TRIM4#	08/1990 - 05/1995	1
45100-2612106	LH8# 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,TRIM4#	04/1988 - 08/1990	1
45100-2612106	LH8# 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN	08/1987 - 04/1988	1
45125 - MARK, STEERING WHEEL PAD
45125-2606006	LH80 W/POWER STEERING,BROWN	08/1985 - 08/1987	1
45125-2606006	LH8# BROWN,TRIM4#	04/1988 - 08/1990	1
45125-2606006	LH8# BROWN,BROWN,TRIM4#	08/1990 - 05/1995	1
45125-2503006	LH80..D BROWN,BROWN	08/1985 - 08/1987	1
45125-2606006	LH8# BROWN	08/1987 - 04/1988	1
45129 - BUTTON, HORN, NO.2
45129-36010	LH80..D	08/1985 - 08/1987	1
45130 - BUTTON ASSY, HORN
45130-2611006	LH8# BROWN,BROWN,TRIM4#	08/1990 - 05/1995	1
45130-2611006	LH8# BROWN,TRIM4#	04/1988 - 08/1990	1
45130-2608006	LH80 W/POWER STEERING,BROWN	08/1985 - 08/1987	1
45130-2611006	LH8# BROWN	08/1987 - 04/1988	1
45130-2506006	LH80..D BROWN	08/1985 - 08/1987	1
45131 - BUTTON, HORN, NO.1
45131-36050	LH80..D	08/1985 - 08/1987	1
45131-2605006	LH8# BROWN	08/1987 - 04/1988	1
45131-26040	LH80 W/POWER STEERING	08/1985 - 08/1987	2
45131-26050	LH8#	04/1988 - 05/1995	2
45136 - PLATE, HORN BUTTON CONTACT
45136-26020	LH8#	08/1985 - 05/1995	1
45136A - CORD(FOR HORN CONTACT RING)
90945-02040	LH80..D	08/1985 - 08/1987	1
45146 - SPRING, HORN BUTTON CONTACT
45146-26030	LH80 W/POWER STEERING	08/1985 - 08/1987	2
45146-26030	LH8#	08/1987 - 05/1995	2
45146-36010	LH80..D	08/1985 - 08/1987	2
45201P - NUT, STEERING WHEEL SET
90179-12086	LH8#	08/1985 - 06/1993	1
90179-12071	LH8#	06/1993 - 05/1995	1
45207 - RING, HORN CONTACT
45176-30070	LH80 W/POWER STEERING	08/1985 - 08/1987	1
45176-30070	LH8#	08/1987 - 05/1995	1
45176-20030	LH80..D	08/1985 - 08/1987	1
Common parts
93319-15014
93510-13010
93540-45020

(8508- ) ; (8708- )

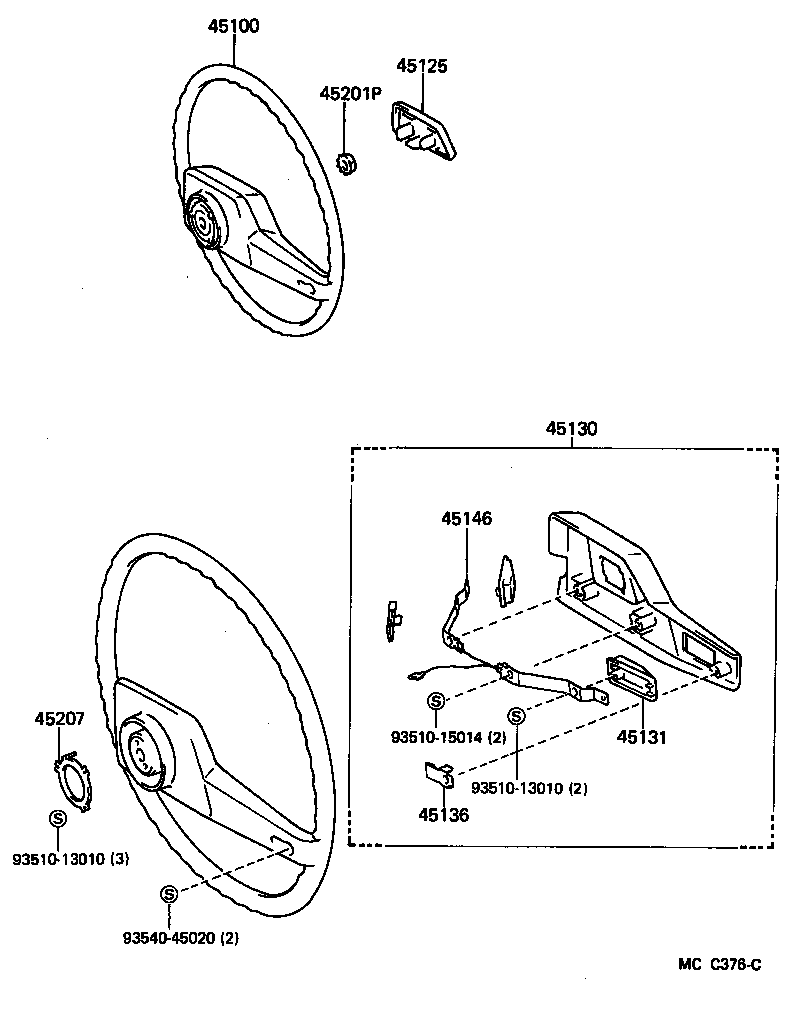

Click highlighted areas on diagram

W/POWER STEERING

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-2508006	LH80..D BROWN	08/1985 - 08/1987	1
45100-2610006	LH80 W/POWER STEERING,BROWN	08/1985 - 08/1987	1
45100-2612106	LH8# 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,BROWN,TRIM4#	08/1990 - 05/1995	1
45100-2612106	LH8# 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN,TRIM4#	04/1988 - 08/1990	1
45100-2612106	LH8# 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BROWN	08/1987 - 04/1988	1
45125 - MARK, STEERING WHEEL PAD
45125-2606006	LH80 W/POWER STEERING,BROWN	08/1985 - 08/1987	1
45125-2606006	LH8# BROWN,TRIM4#	04/1988 - 08/1990	1
45125-2606006	LH8# BROWN,BROWN,TRIM4#	08/1990 - 05/1995	1
45125-2503006	LH80..D BROWN,BROWN	08/1985 - 08/1987	1
45125-2606006	LH8# BROWN	08/1987 - 04/1988	1
45130 - BUTTON ASSY, HORN
45130-2611006	LH8# BROWN,BROWN,TRIM4#	08/1990 - 05/1995	1
45130-2611006	LH8# BROWN,TRIM4#	04/1988 - 08/1990	1
45130-2608006	LH80 W/POWER STEERING,BROWN	08/1985 - 08/1987	1
45130-2611006	LH8# BROWN	08/1987 - 04/1988	1
45130-2506006	LH80..D BROWN	08/1985 - 08/1987	1
45131 - BUTTON, HORN, NO.1
45131-36050	LH80..D	08/1985 - 08/1987	1
45131-2605006	LH8# BROWN	08/1987 - 04/1988	1
45131-26040	LH80 W/POWER STEERING	08/1985 - 08/1987	2
45131-26050	LH8#	04/1988 - 05/1995	2
45136 - PLATE, HORN BUTTON CONTACT
45136-26020	LH8#	08/1985 - 05/1995	1
45146 - SPRING, HORN BUTTON CONTACT
45146-26030	LH80 W/POWER STEERING	08/1985 - 08/1987	2
45146-26030	LH8#	08/1987 - 05/1995	2
45146-36010	LH80..D	08/1985 - 08/1987	2
45201P - NUT, STEERING WHEEL SET
90179-12086	LH8#	08/1985 - 06/1993	1
90179-12071	LH8#	06/1993 - 05/1995	1
45207 - RING, HORN CONTACT
45176-30070	LH80 W/POWER STEERING	08/1985 - 08/1987	1
45176-30070	LH8#	08/1987 - 05/1995	1
45176-20030	LH80..D	08/1985 - 08/1987	1
Common parts
93510-13010
93510-15014
93540-45020

LH80VH-SDLT (1985)

(8508- )

(8508- ) ; (8708- )
