LH80VH-QNLTF (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

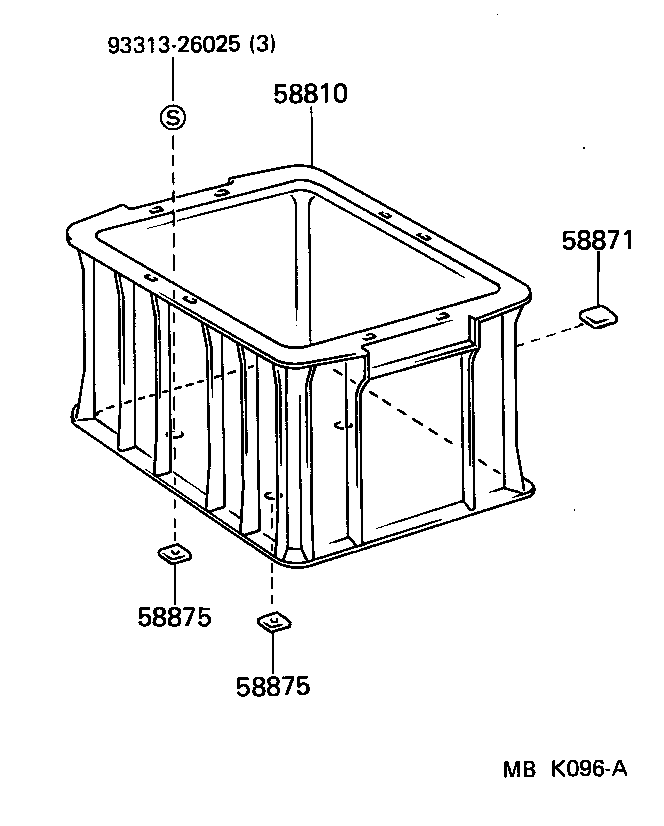

Click highlighted areas on diagram

diagram 58810 58871 58875 58875 9331326025
Part # Description Qty Price
58810 - CONSOLE ASSY
58811-90D02

LH8#..D

 1
58871 - CUSHION, CONSOLE BOX
58871-90D00

LH8#..D

 1
58875 - SPACER, CONSOLE BOX
58875-90D02

LH8#..D

 2
58875-90D00

LH80..D

 2
58875 - SPACER, CONSOLE BOX
58875-90D02

LH8#..D

 2
58875-90D00

LH80..D

 2
Common parts
93313-26025
