LH80VH-QNLTF (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

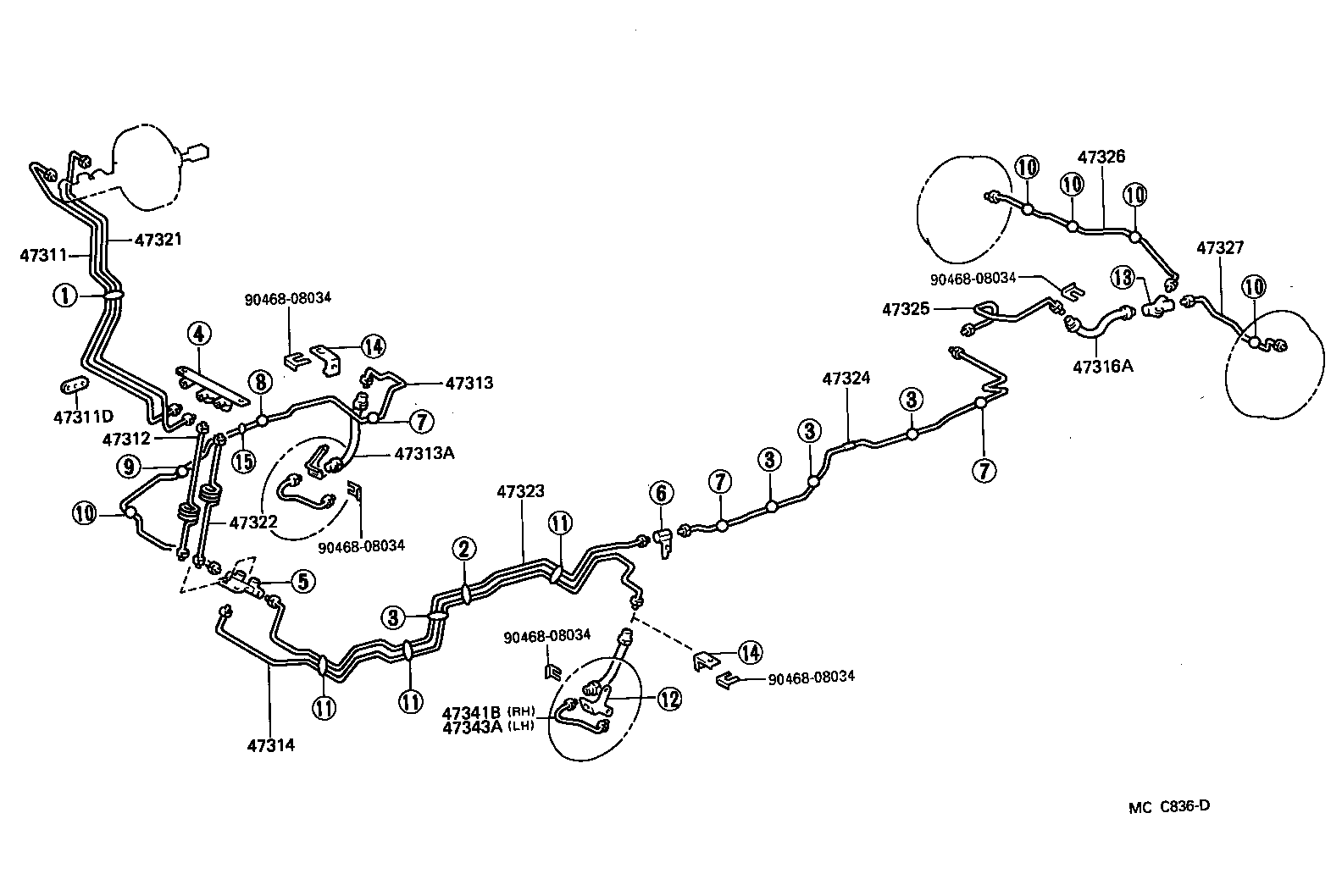

ILLUST NO. 1 OF 3(8508- )LH80

Click highlighted areas on diagram

diagram 47311 47311D 47312 47313 47313A 47314 47316A 47321 47322 47323 47324 47325 47326 47327 47341B 47343A 9046808034 9046808034 9046808034 9046808034 9046808034
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26270

LH8#

 1
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-01030

LH8#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-26221

LH80

 1
47312-26220

LH80..5H

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26110

LH80

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02477

LH80

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26100

LH80

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33805

LH80

 1
90947-02557

LH80

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26180

LH8#

 1
47322 - TUBE, REAR BRAKE, NO.2
47312-26221

LH80

 1
47312-26220

LH80..5H

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26280

LH80

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26150

LH80

 1
47324-26151

LH8#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26190

LH8#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26180

LH8#

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26060

LH8#

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-26060

LH80

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-26060

LH80

 1
Common parts
90468-08034

ILLUST NO. 3 OF 3(8508- )

Click highlighted areas on diagram

diagram 04477 47910 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908703 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160820 9411040800 9411040800 9411040800 9411041000 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-26010

LH8#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-25121

LH80

 1
47910-25120

LH80..5H

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-25121

LH80

 1
47910-25120

LH80..5H

 1
47920 - SPRING ASSY, LOAD SENSING
47920-26060

LH8#

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH8#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH8#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

LH8#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH8#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH8#

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-26091

LH8#

 1
47931-26090

LH8#

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-26080

LH8#

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

LH8#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

LH8#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH8#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH8#

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

LH8#

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

LH8#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

LH8#

 1
Common parts
90119-08703
90201-23360
91131-50840
91611-60820
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

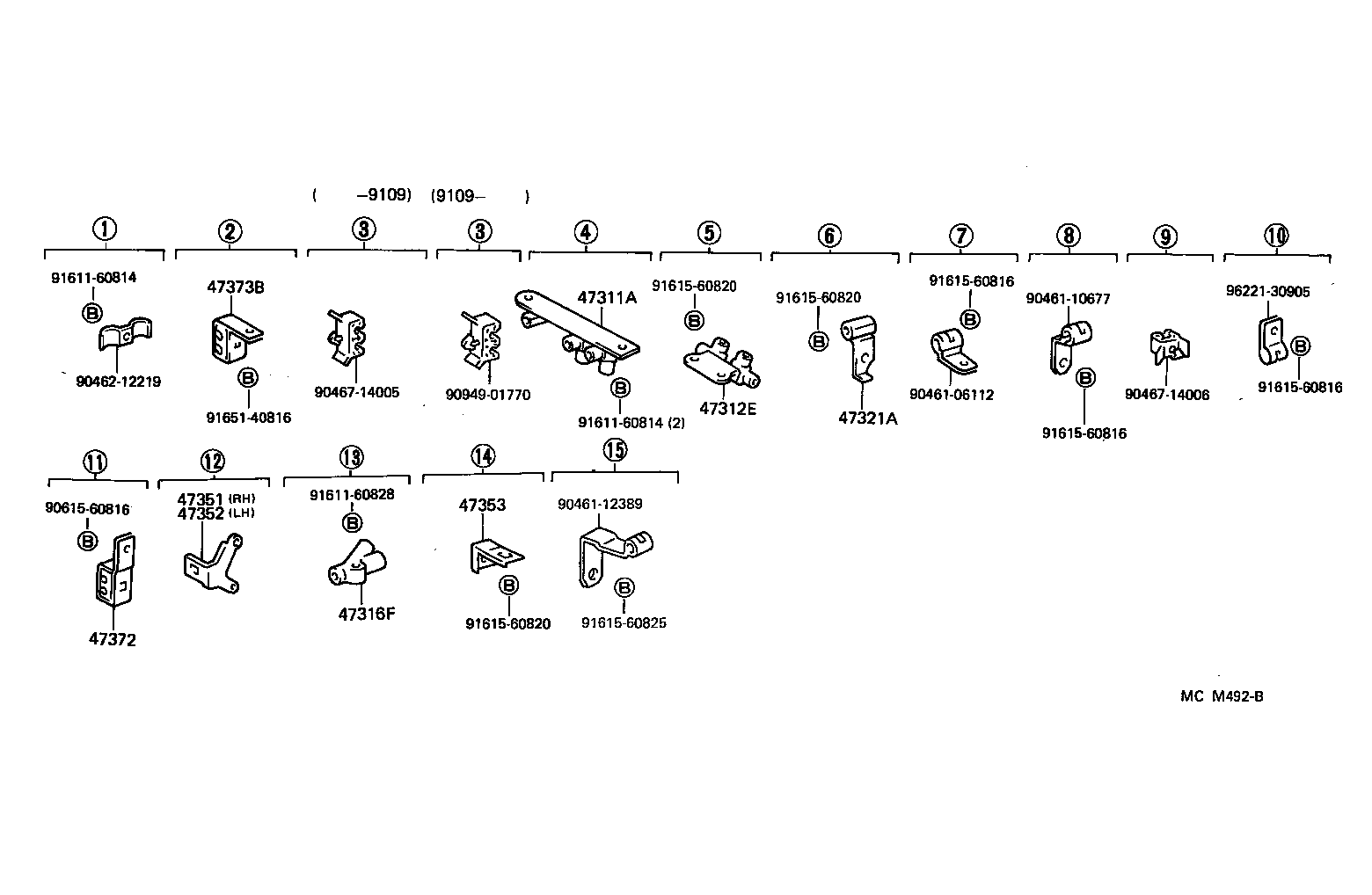

ILLUST NO. 2 OF 3(8508- )LH80

Click highlighted areas on diagram

diagram 47311A 47312E 47316F 47321A 47351 47352 47353 47372 47373B 9046106112 9046110677 9046112389 9046212219 9046714005 9046714006 9061560816 9094901770 9161160814 9161160814 9161160828 9161560816 9161560816 9161560816 9161560820 9161560820 9161560820 9161560825 9165140816 9622130905
Part # Description Qty Price
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10104

LH8#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10187

LH8#

 1
47316F - WAY, 3(FOR REAR BRAKE TUBE)
90413-10147

LH8#

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90412-10134

LH8#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26070

LH80

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26070

LH80

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-26030

LH80

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47372-25010

LH80

 3
47372-25010

LH8#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47373-26010

LH80

 1
Common parts
90461-06112
90461-10677
90461-12389
90462-12219
90467-14005
90467-14006
90615-60816
90949-01770
91611-60814
91611-60828
91615-60816
91615-60820
91615-60825
91651-40816
96221-30905
