Toyota Hiace quick delivery LH80 FRONT DISC BRAKE CALIPER & DUST COVER

Part #	Description	Period	Qty
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-40010	LH80	08/1985 - 05/1995	1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-26200	LH80	04/1988 - 08/1988	1
04491-26200	LH80..D	08/1988 - 05/1995	1
04491-26300	LH80..N	10/1991 - 05/1995	1
04491-26220	LH80..N	08/1988 - 10/1991	1
04491-26080	LH80	08/1985 - 04/1988	1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12132	LH80 *12−1.25P−31X20	04/1988 - 05/1995	4
90101-12132	LH80 *12−1.25P−31X20	08/1985 - 04/1988	4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010	LH80	08/1985 - 05/1995	2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010	LH80	08/1985 - 05/1995	2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26040	LH80	09/1991 - 05/1995	4
47716-40010	LH80	08/1985 - 09/1991	4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26040	LH80	09/1991 - 05/1995	4
47716-40010	LH80	08/1985 - 09/1991	4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-40010	LH80	08/1985 - 09/1991	4
47717-26010	LH80	09/1991 - 05/1995	4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-40010	LH80	08/1985 - 09/1991	4
47717-26010	LH80	09/1991 - 05/1995	4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-26060	LH80	08/1985 - 05/1995	1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10014	LH8# 10−1.25PX65.5−30,10-1.25PX65-25	08/1985 - 04/1988	2
90119-10014	LH8# *10−1.25PX65.5−30	04/1988 - 05/1995	2
90119-10249	LH8# 10−1.25PX95.5−30,10-1.25PX93-25	08/1985 - 04/1988	2
90119-10249	LH8# *10−1.25PX95.5−30	04/1988 - 05/1995	2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10014	LH8# 10−1.25PX65.5−30,10-1.25PX65-25	08/1985 - 04/1988	2
90119-10014	LH8# *10−1.25PX65.5−30	04/1988 - 05/1995	2
90119-10249	LH8# 10−1.25PX95.5−30,10-1.25PX93-25	08/1985 - 04/1988	2
90119-10249	LH8# *10−1.25PX95.5−30	04/1988 - 05/1995	2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-16004	LH80	04/1988 - 05/1995	2
90387-16004	LH80 L=6	08/1985 - 04/1988	2
90387-16005	LH80	04/1988 - 05/1995	2
90387-16005	LH80 L=36	08/1985 - 04/1988	2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-16004	LH80	04/1988 - 05/1995	2
90387-16004	LH80 L=6	08/1985 - 04/1988	2
90387-16005	LH80	04/1988 - 05/1995	2
90387-16005	LH80 L=36	08/1985 - 04/1988	2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-26060	LH80	08/1985 - 05/1995	1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-26090	LH80	08/1985 - 05/1995	1
47731 - PISTON, FRONT DISC BRAKE
47731-40010	LH80	08/1985 - 05/1995	2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-70001	LH80	08/1985 - 05/1995	2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-26040	LH80	08/1985 - 05/1995	2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-26020	LH80	08/1985 - 05/1995	2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-26090	LH80	08/1985 - 05/1995	1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-40010	LH8#	08/1985 - 05/1995	2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-26011	LH80..D	12/1988 - 05/1995	4
47771-26010	LH80	04/1988 - 08/1988	4
47771-26010	LH80..D	08/1988 - 12/1988	4
47771-26040	LH80..N	08/1988 - 05/1995	4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-26011	LH80..D	12/1988 - 05/1995	4
47771-26010	LH80	04/1988 - 08/1988	4
47771-26010	LH80..D	08/1988 - 12/1988	4
47771-26040	LH80..N	08/1988 - 05/1995	4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010	LH80	08/1985 - 08/1987	8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010	LH80	08/1985 - 08/1987	8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010	LH80	08/1985 - 08/1987	8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010	LH80	08/1985 - 08/1987	8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-40010	LH8#	08/1985 - 05/1995	2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-26040	LH80	08/1985 - 05/1995	1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90102-12005	LH80	04/1988 - 05/1995	4
90102-12005	LH80	08/1985 - 04/1988	4
47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90171-12004	LH80	08/1985 - 05/1995	4
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-26040	LH80	08/1985 - 05/1995	1
Common parts
90201-12452
91651-60816
95381-03020

LH80VH-QNLTF (1985)

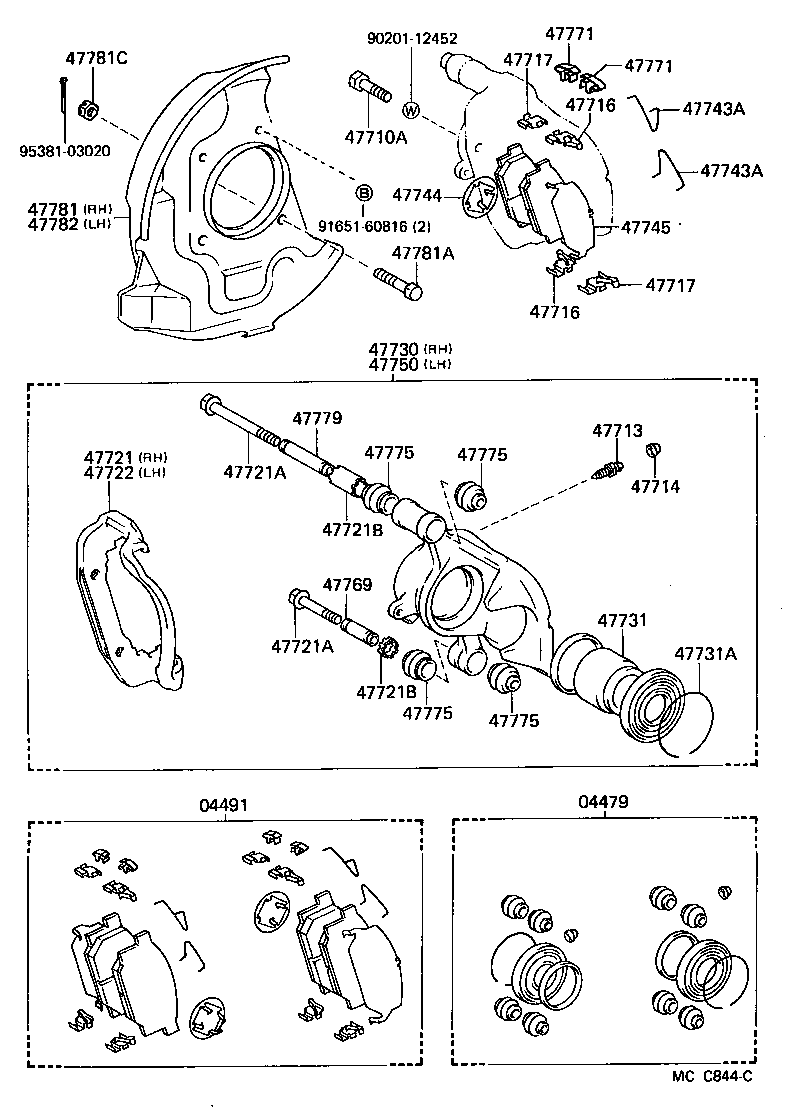

ILLUST NO. 1 OF 2(8508- )LH80

ILLUST NO. 2 OF 2(8508- )

Part Price Details

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-26020	LH80..D ﾏｰｸ NBK PD66	08/1988 - 05/1995	1
04465-26020	LH80 ﾏｰｸ NBK PD66	08/1985 - 08/1988	1
04465-26140	LH80..N	08/1988 - 05/1995	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-26030	LH80..D	08/1988 - 05/1995	1
04945-26030	LH80	08/1985 - 08/1988	1
04945-26040	LH80..N	08/1988 - 05/1995	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-26010	LH80	08/1985 - 05/1995	1
