LH80VH-QNLT (1985)
Toyota Hiace Quick Delivery
Production
Aug 1985
-
May 1995
Engine
2L
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)

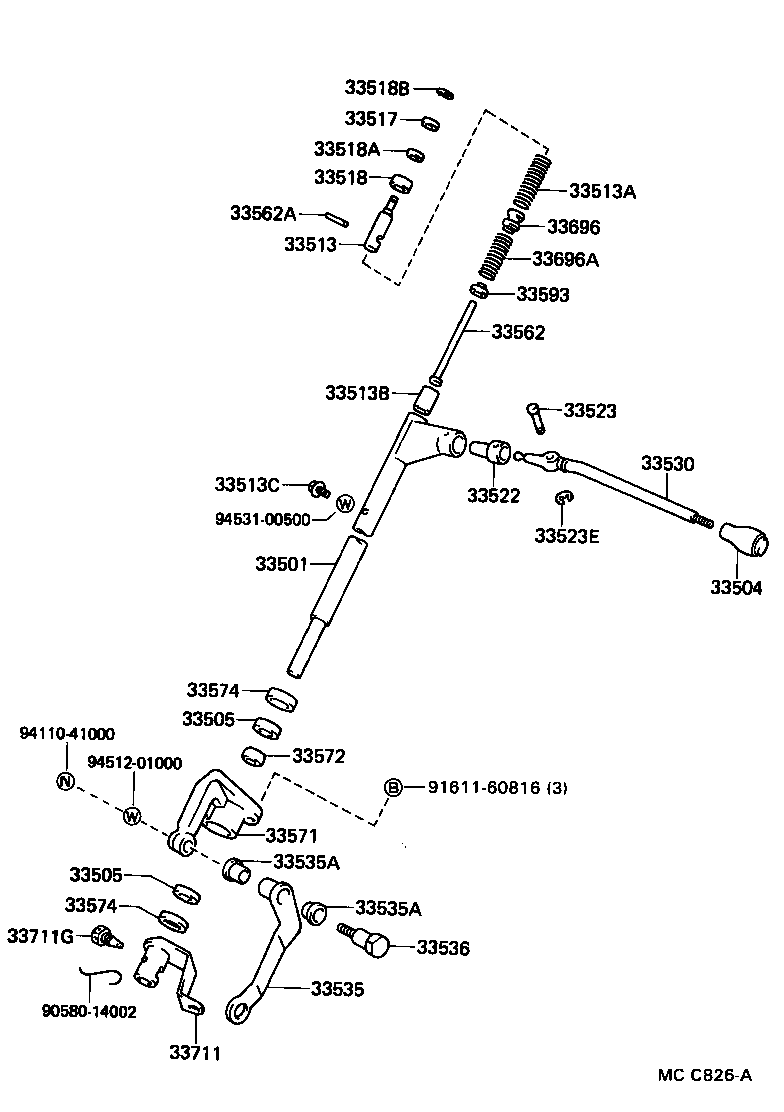

ILLUST NO. 1 OF 2(8508- )5H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-26210 |
LH8#..5H |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
LH8#..5H |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 90303-17005 |
LH8#..5H |
2 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 90303-17005 |
LH8#..5H |
2 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-26020 |
LH8#..5H |
1 | ||
| 33513-26020 |
LH8# |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14395 |
LH8# |
1 | ||
| 33513B - SPACER (FOR CONTROL SHAFT BRACKET UPPER SHAFT) | ||||
| 90560-11015 |
LH8#..5H |
1 | ||
| 33513C - BOLT (FOR CONTROL SHAFT BRACKET UPPER SHAFT) | ||||
| 90109-05012 |
LH8#..5H |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
LH8# |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-35010 |
LH8# |
1 | ||
| 33518-36010 |
LH8# |
1 | ||
| 33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 33515-30010 |
LH8# |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
LH8# |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-36010 |
LH8# |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07001 |
LH8# |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
LH8# |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33541-26050 |
LH8#..5H |
1 | ||
| 33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT) | ||||
| 33535-26020 |
LH8#..5H |
1 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
LH8#..5H |
2 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
LH8#..5H |
2 | ||
| 33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT) | ||||
| 33536-25010 |
LH8#..5H |
1 | ||
| 33562 - STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT | ||||
| 33562-26010 |
LH8#..5H |
1 | ||
| 33562A - PIN (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER) | ||||
| 90254-03006 |
LH8#..5H |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-26012 |
LH8#..5H |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-36010 |
LH8#..5H |
1 | ||
| 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33574-25010 |
LH8# |
1 | ||
| 33574-25010 |
LH8#..5H |
2 | ||
| 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33574-25010 |
LH8# |
1 | ||
| 33574-25010 |
LH8#..5H |
2 | ||
| 33593 - HOLDER, SPRING (FOR SELECT LEVER) | ||||
| 33593-26030 |
LH8#..5H |
1 | ||
| 33696 - SEAT, SELECT SPRING | ||||
| 33696-26020 |
LH8#..5H |
1 | ||
| 33696A - SPRING, COMPRESSION | ||||
| 90501-18049 |
LH8#..5H |
1 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33527-26050 |
LH8#..5H |
1 | ||
| 33711G - BOLT, CONTROL SHAFT LEVER LOCK | ||||
| 33218-35010 |
LH8#..5H |
1 | ||
| Common parts | ||||
| 90580-14002 | ||||
| 91611-60816 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 94531-00500 | ||||

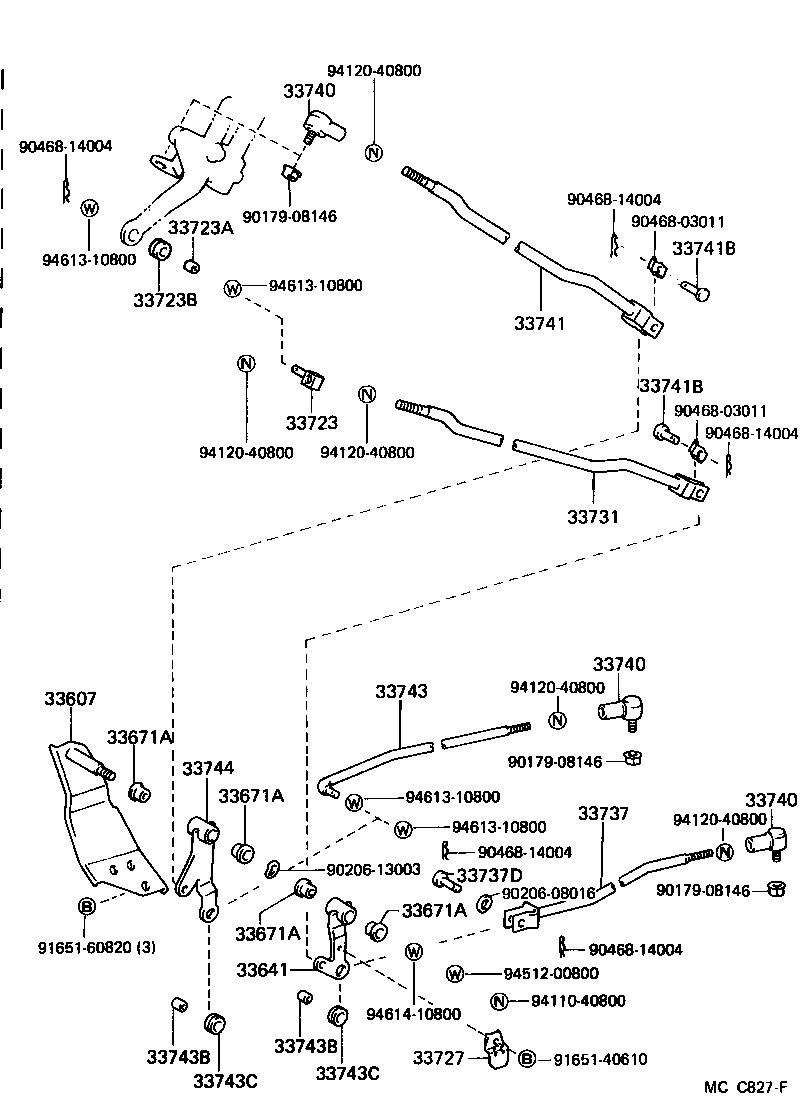

ILLUST NO. 2 OF 2(8508- )LH80..5H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33607 - SUPPORT SUB-ASSY, CONTROL ROD (FOR COLUMN SHIFT) | ||||
| 33607-26220 |
LH80..5H |
1 | ||
| 33641 - LINK, SELECTING (FOR COLUMN SHIFT) | ||||
| 33641-26060 |
LH80..5H |
1 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13192 |
LH8#..5H |
4 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13192 |
LH8#..5H |
4 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13192 |
LH8#..5H |
4 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13192 |
LH8#..5H |
4 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-10020 |
LH8#..5H |
2 | ||
| 33723-10020 |
LH8#..5H |
1 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
LH8# |
1 | ||
| 33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
LH8# |
1 | ||
| 33727 - INSULATOR, CONNECTING ROD BUSH HEAT | ||||
| 33727-25020 |
LH8#..5H |
1 | ||
| 33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33701-26180 |
LH80..5H |
1 | ||
| 33737 - ROD, GEAR SELECTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33701-25190 |
LH80..5H |
1 | ||
| 33737D - PIN, W/HOSE (FOR GEAR SELECTING ROD NO.3) | ||||
| 90240-08068 |
LH8#..5H |
1 | ||
| 90240-08034 |
LH8#..5H |
1 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-26010 |
LH80..5H |
3 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-26010 |
LH80..5H |
3 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-26010 |
LH80..5H |
3 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33702-26100 |
LH80..5H |
1 | ||
| 33741B - PIN, W/HOLE (FOR COLUMN SHIFTING ROD) | ||||
| 90240-08042 |
LH8# |
2 | ||
| 33741B - PIN, W/HOLE (FOR COLUMN SHIFTING ROD) | ||||
| 90240-08042 |
LH8# |
2 | ||
| 33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33743-25130 |
LH80..5H |
1 | ||
| 33743B - BUSH, NO.1 | ||||
| 90389-08005 |
LH8#..5H |
2 | ||
| 90389-08005 |
LH80..5H |
2 | ||
| 33743B - BUSH, NO.1 | ||||
| 90389-08005 |
LH8#..5H |
2 | ||
| 90389-08005 |
LH80..5H |
2 | ||
| 33743C - GROMMET | ||||
| 90480-17177 |
LH8#..5H |
2 | ||
| 33743C - GROMMET | ||||
| 90480-17177 |
LH8#..5H |
2 | ||
| 33744 - LEVER, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33744-26130 |
LH80..5H |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90206-08016 | ||||
| 90206-13003 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 91651-40610 | ||||
| 91651-60820 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||
