LH80VH-QNLT (1985)
Toyota Hiace Quick Delivery
Production
Aug 1985
-
May 1995
Engine
2L
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )5H

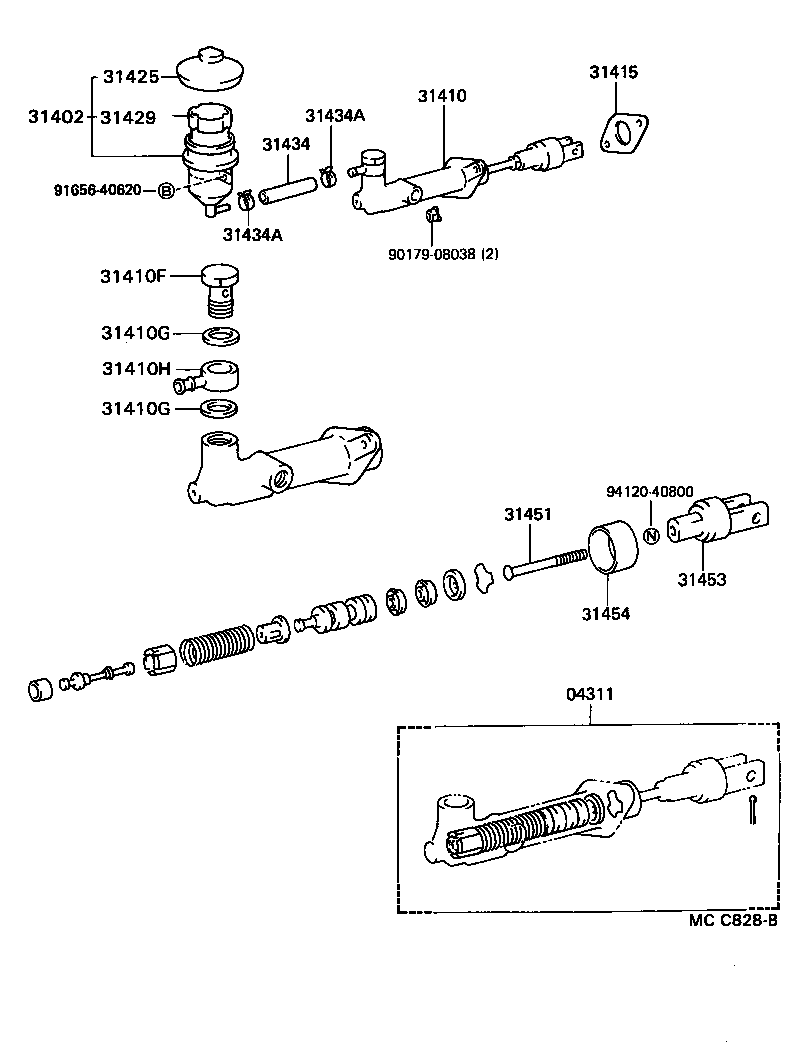

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-26040 |
LH80..5H |
1 | ||
| 04311-60080 |
LH8#..5H |
1 | ||
| 04311-22050 |
LH8#..5H |
1 | ||
| 04311-14031 |
LH8# |
1 | ||
| 04311-14030 |
LH80..5H |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 47202-12080 |
LH8#..5H |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-26151 |
LH80..5H |
1 | ||
| 31420-26150 |
LH80..5H |
1 | ||
| 31420-26152 |
LH8#..5H |
1 | ||
| 31410F - BOLT, UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90401-16078 |
LH8#..5H |
1 | ||
| 31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION) | ||||
| 90430-16242 |
LH8#..5H |
2 | ||
| 31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION) | ||||
| 90430-16242 |
LH8#..5H |
2 | ||
| 31410H - UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90405-10125 |
LH8#..5H |
1 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-30030 |
LH8#..5H |
1 | ||
| 31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20030 |
LH8#..5H |
1 | ||
| 31429 - STRAINER, MASTER CYLINDER RESERVOIR | ||||
| 47299-22020 |
LH8#..5H |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 90445-14144 |
LH8#..5H |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
LH8#..5H |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
LH8#..5H |
2 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-12040 |
LH80..5H |
1 | ||
| 31451-12060 |
LH8#..5H |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-28011 |
LH8#..5H |
1 | ||
| 31404-28012 |
LH8#..5H |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-24010 |
LH8#..5H |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91656-40620 | ||||
| 94120-40800 | ||||
