LH80VH-QNLT (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )5H

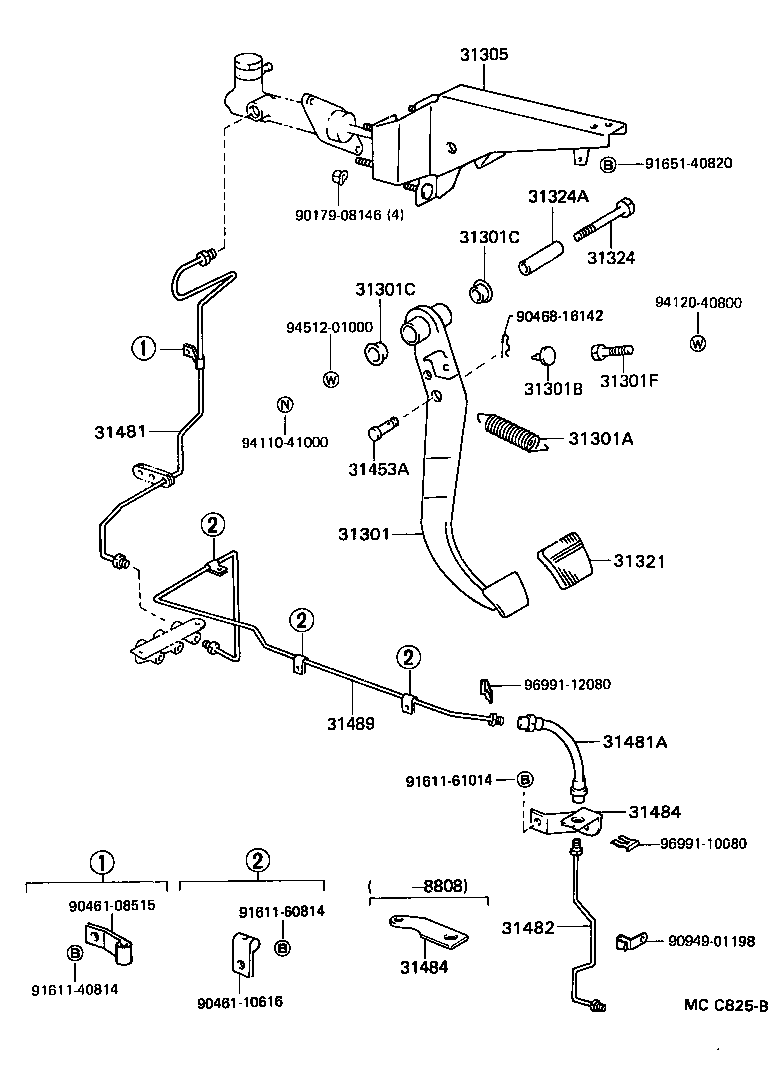

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31324 31324A 31453A 31481 31481A 31482 31484 31484 31489 9017908146 9046108515 9046110616 9046816142 9094901198 9161140814 9161160814 9161161014 9165140820 9411041000 9412040800 9451201000 9699110080 9699112080
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-26050

LH8#..5H

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-16021

LH8#..5H

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

LH8#..5H

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LH8#..5H

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LH8#..5H

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91131-50835

LH8#..5H

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55156-90D00

LH8#..5H

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

LH8#..5H

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51060

LH8#..5H

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

LH8#..5H

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

LH8#..5H

長さ=29.5

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-26170

LH8#..5H

 1
31481A - HOSE, CLUTCH, NO.1
96815-50285

LH80..5H

 1
96815-50300

LH80..5H

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26150

LH8#..5H

 1
31482-26111

LH80..5H

 1
31482-26150

LH80..5H

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-26110

LH8#..5H

 1
31484-26110

LH80..5H

 1
31484-26040

LH8#..5H

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-26110

LH8#..5H

 1
31484-26110

LH80..5H

 1
31484-26040

LH8#..5H

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26180

LH8#..5H

 1
31489-26180

LH80..5H

 1
31489-26160

LH8#..5H

 1
Common parts
90179-08146
90461-08515
90461-10616
90468-16142
90949-01198
91611-40814
91611-60814
91611-61014
91651-40820
94110-41000
94120-40800
94512-01000
96991-10080
96991-12080
