Toyota Hiace quick delivery LH80 CLUTCH & RELEASE FORK

LH80VH-QNLT (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995

Engine 2L

Transmission 5H MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070	LH80..5H	08/1985 - 05/1995	1
31210 - COVER ASSY, CLUTCH
31210-14130	LH8#..5H	08/1985 - 08/1988	1
31210-35090	LH8#..5H	08/1988 - 05/1995	1
31231 - HUB, CLUTCH RELEASE BEARING
31231-20090	LH80..5H	08/1985 - 07/1988	1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022	LH8#..5H	08/1985 - 07/1988	1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010	LH80..5H	08/1985 - 07/1988	2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010	LH80..5H	08/1985 - 07/1988	2
31236 - BALL, RELEASE FORK
31236-30060	LH80..5H	08/1985 - 05/1995	1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20090	LH80..5H	08/1985 - 07/1988	1
31204-35050	LH80..5H	07/1988 - 05/1995	1
31250 - DISC ASSY, CLUTCH
31250-35220	LH80..5H..D	08/1988 - 10/1989	1
31250-25110	LH80..5H	08/1985 - 08/1987	1
31250-35220	LH85;LH80..5H..D	10/1989 - 05/1995	1
31250-25111	LH80..5H	08/1987 - 08/1988	1
31250-25111	LH80..5H..N	08/1988 - 12/1989	1
31250-26052	LH80..5H..N	12/1989 - 05/1995	1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002	LH8#..5H	08/1985 - 05/1995	1
Common parts
90119-08026

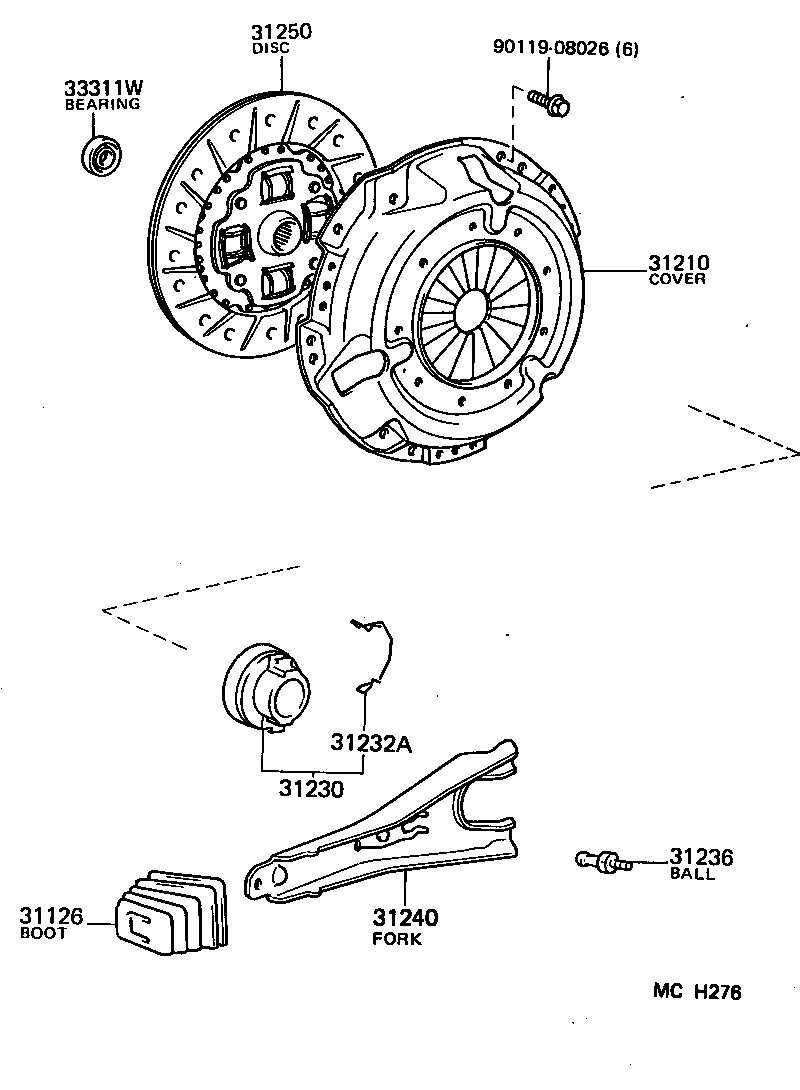

Click highlighted areas on diagram

Part #	Description	Period	Qty
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070	LH80..5H	08/1985 - 05/1995	1
31210 - COVER ASSY, CLUTCH
31210-14130	LH8#..5H	08/1985 - 08/1988	1
31210-35090	LH8#..5H	08/1988 - 05/1995	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35070	LH8#..5H	07/1988 - 05/1995	1
31232A - CLIP, RELEASE BEARING HUB
31232-35030	LH8#..5H KOYO BEARING	07/1988 - 05/1994	1
31232-35030	LH80..5H KOYO BEARING	05/1994 - 05/1995	1
31232-35020	LH80..5H NSK BEARING	05/1994 - 05/1995	1
31232-35020	LH8#..5H NSK BEARING	07/1988 - 05/1994	1
31236 - BALL, RELEASE FORK
31236-30060	LH80..5H	08/1985 - 05/1995	1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20090	LH80..5H	08/1985 - 07/1988	1
31204-35050	LH80..5H	07/1988 - 05/1995	1
31250 - DISC ASSY, CLUTCH
31250-35220	LH80..5H..D	08/1988 - 10/1989	1
31250-25110	LH80..5H	08/1985 - 08/1987	1
31250-35220	LH85;LH80..5H..D	10/1989 - 05/1995	1
31250-25111	LH80..5H	08/1987 - 08/1988	1
31250-25111	LH80..5H..N	08/1988 - 12/1989	1
31250-26052	LH80..5H..N	12/1989 - 05/1995	1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002	LH8#..5H	08/1985 - 05/1995	1
Common parts
90119-08026
