Toyota Hiace quick delivery LH80 ALTERNATOR

LH80VH-QNLT (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995

Engine 2L

Transmission 5H MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8808)2L..LH80..5H..D ; (8711- )2L

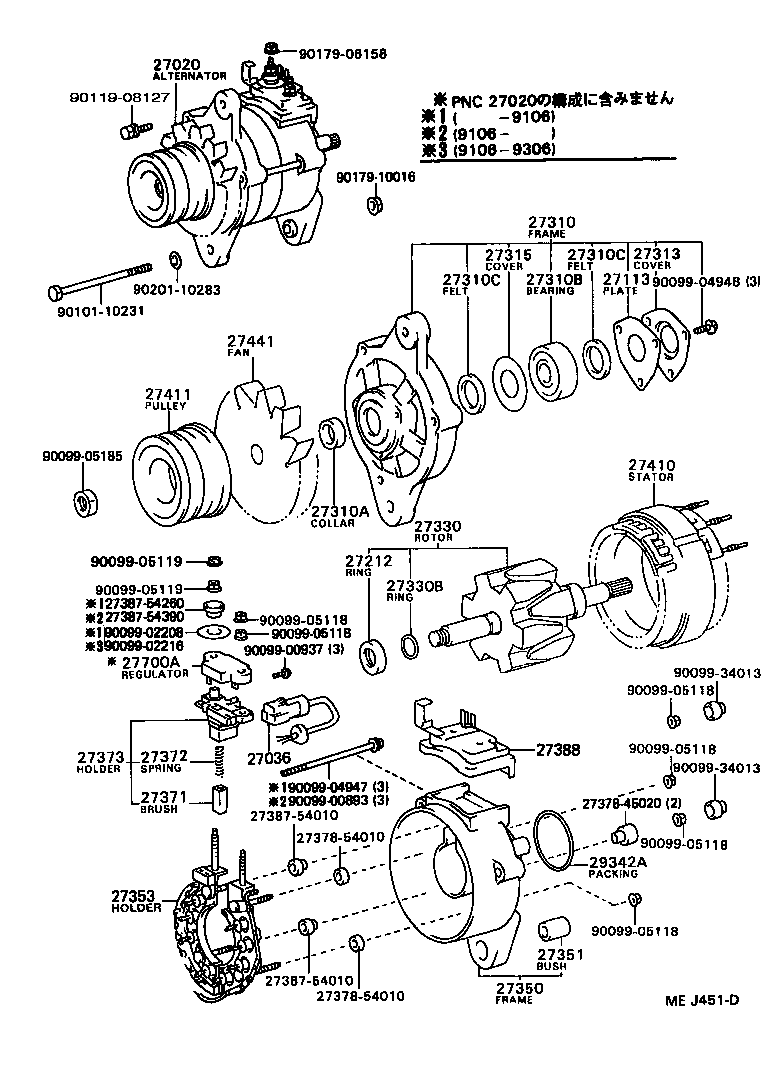

Click highlighted areas on diagram

12V 45A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-54200	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D 12V 45A	04/1988 - 08/1988	1
27020-54380	2L..LH80..4HC;2L..LH8#..5H..D 12V 45A	10/1989 - 01/1991	1
27020-54200	2L..LH80..5H..D 12V 45A,12V 45A	08/1987 - 04/1988	1
27020-54200	2L..LH80 12V 45A,12V 45A	08/1985 - 08/1987	1
27020-54320	2L..LH80..5H..N 12V 60A	04/1988 - 08/1988	1
27020-54410	2L..LH80..5H..N 12V 60A	08/1988 - 08/1989	1
27020-54411	2L..LH80..5H..N 12V 60A	08/1989 - 01/1991	1
27020-54320	2L..LH80..5H..N 12V 60A,12V 60A	08/1987 - 04/1988	1
27020-54381	2L..LH80..4HC;2L..LH8#..5H..D 12V 45A	01/1991 - 06/1991	1
27020-54380	2L..LH80..4HC;2L..LH80..5H..D 12V 45A	08/1988 - 10/1989	1
27020-54382	2L..LH80..4HC;2L..LH8#..5H..D 12V 45A	06/1991 - 02/1992	1
27020-54413	2L..LH80..5H..N 12V 60A	02/1992 - 05/1995	1
27020-54383	2L..LH80..4HC;2L..LH8#..5H..D 12V 45A	02/1992 - 05/1995	1
27020-54412	2L..LH80..5H..N 12V 60A	01/1991 - 02/1992	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-54010	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 08/1988	1
27036-54010	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27036-54320	2L..LH80..5H..N	04/1988 - 08/1988	2
27036-54320	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27036-54320	2L..LH80..5H..N	08/1988 - 08/1989	1
27036-54410	2L..LH80..5H..N	08/1989 - 05/1995	1
27036-54010	2L..LH80 12V 45A	08/1985 - 08/1987	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27312-57060	2L..LH8#	04/1988 - 05/1995	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27333-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27333-57060	2L..LH8#	04/1988 - 05/1995	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54110	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27310-54110	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 02/1992	1
27310-54130	2L..LH8#..5H..N	10/1989 - 02/1992	1
27310-54111	2L..LH80..4HC;2L..LH8#..5H..D	02/1992 - 05/1995	1
27310-54131	2L..LH80..5H..N	02/1992 - 05/1995	1
27310-54130	2L..LH80..5H..N	04/1988 - 10/1989	1
27310-54110	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27310-54130	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27310-54110	2L..LH80 12V 45A	08/1985 - 08/1987	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-57060	2L..LH8#	04/1988 - 05/1995	1
27412-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
90099-10137	2L..LH8#	04/1988 - 08/1988	1
90099-10137	2L..LH85;2L..LH80..5H..N	08/1988 - 10/1989	1
90099-10137	2L..LH8#..5H..N	10/1989 - 05/1995	1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	2
90099-02209	2L..LH8#..5H..N	02/1992 - 05/1995	2
90099-02209	2L..LH8#	04/1988 - 02/1992	2
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	2
90099-02209	2L..LH8#..5H..N	02/1992 - 05/1995	2
90099-02209	2L..LH8#	04/1988 - 02/1992	2
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27313-57060	2L..LH8#	04/1988 - 02/1992	1
27313-57060	2L..LH8#..5H..N	02/1992 - 05/1995	1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060	2L..LH8#	04/1988 - 05/1995	1
27315-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27330 - ROTOR ASSY, ALTERNATOR
27330-64170	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27330-54200	2L..LH80 12V 45A	08/1985 - 08/1987	1
27330-64170	2L..LH80..5H..N	04/1988 - 01/1991	1
27330-54201	2L..LH80..4HC;2L..LH8#..5H..D	01/1991 - 02/1992	1
27330-54200	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 08/1988	1
27330-54270	2L..LH80..5H..N	02/1992 - 05/1995	1
27330-54200	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27330-54202	2L..LH80..4HC;2L..LH8#..5H..D	02/1992 - 05/1995	1
27330-54200	2L..LH80..4HC;2L..LH80..5H..D	08/1988 - 10/1989	1
27330-64171	2L..LH80..5H..N	01/1991 - 02/1992	1
27330-54200	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 01/1991	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103	2L..LH8#	04/1988 - 08/1988	1
90099-07103	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
90099-07103	2L..LH85;2L..LH80..5H..N	08/1988 - 10/1989	1
90099-07103	2L..LH8#..5H..N	10/1989 - 05/1995	1
27350 - FRAME ASSY, RECTIFIER END
27350-54190	2L..LH80 12V 45A	08/1985 - 08/1987	1
27350-54190	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27350-54190	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27350-54130	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27350-54130	2L..LH80..5H..N	04/1988 - 10/1989	1
27350-54130	2L..LH8#..5H..N	10/1989 - 05/1995	1
27350-54190	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27350B - CONDENSER, ALTERNATOR
90099-52082	2L..LH80 12V 45A	08/1985 - 08/1987	1
90099-52082	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27351-56013	2L..LH8#	04/1988 - 05/1995	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-54190	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27357-54190	2L..LH80 12V 45A	08/1985 - 08/1987	1
27357-54190	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27357-54190	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-54010	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27370-54010	2L..LH80 12V 45A	08/1985 - 08/1987	1
27370-54250	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27370-54250	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27371 - BRUSH, ALTERNATOR
27371-56070	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	2
27371-56070	2L..LH8#	04/1988 - 05/1995	2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070	2L..LH8#	04/1988 - 05/1995	2
27372-56070	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	2
27388 - COVER, ALTERNATOR BRUSH
27388-64010	2L..LH80 12V 45A	08/1985 - 08/1987	1
27388-54320	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27388-54341	2L..LH80..4HC;2L..LH8#..5H..D	06/1991 - 05/1995	1
27388-54200	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 06/1991	1
27388-54410	2L..LH80..5H..N	08/1989 - 05/1995	1
27388-54320	2L..LH80..5H..N	04/1988 - 08/1989	1
27388-54200	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27388-64010	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27410 - STATOR ASSY, ALTERNATOR
27410-43040	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27410-64090	2L..LH80 12V 45A	08/1985 - 08/1987	1
27410-43040	2L..LH8#..5H..N	10/1989 - 05/1995	1
27410-64090	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27410-64090	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27410-43040	2L..LH80..5H..N	04/1988 - 10/1989	1
27410-64090	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27411 - PULLEY, ALTERNATOR
27411-54170	2L..LH8#	04/1988 - 08/1988	1
27411-54170	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27411-54351	2L..LH80;2L..LH85..D	02/1992 - 05/1995	1
27411-54350	2L..LH80	08/1988 - 10/1989	1
27411-54350	2L..LH8#	10/1989 - 02/1992	1
27441 - FAN, ALTERNATOR
27441-64030	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27441-56090	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27441-56090	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27441-64030	2L..LH80..5H..N	04/1988 - 10/1989	1
27441-56090	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27441-64030	2L..LH8#..5H..N	10/1989 - 05/1995	1
27441-56090	2L..LH80 12V 45A	08/1985 - 08/1987	1
27700A - REGULATOR ASSY, GENERATOR
27700-35030	2L..LH80..5H..D	08/1987 - 04/1988	1
27700-64040	2L..LH80..5H..N	08/1987 - 10/1989	1
27700-35030	2L..LH80	08/1985 - 08/1987	1
27700-64040	2L..LH8#..5H..N	10/1989 - 05/1995	1
27700-35030	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27700-35030	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
29342A - PACKING, VACUUM PUMP
90099-14055	2L..LH80	08/1988 - 10/1989	1
90099-14055	2L..LH8#	04/1988 - 08/1988	2
90099-14055	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
90099-14055	2L..LH8#	10/1989 - 05/1995	1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90101-10231
90119-08127
90179-06158
90179-10016
90201-10283
93319-15008
93386-16012

(8708- )2L..LH80..5H..N ; (8910- )2L..LH85..N

Click highlighted areas on diagram

12V 60A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-54200	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D 12V 45A	04/1988 - 08/1988	1
27020-54380	2L..LH80..4HC;2L..LH8#..5H..D 12V 45A	10/1989 - 01/1991	1
27020-54200	2L..LH80..5H..D 12V 45A,12V 45A	08/1987 - 04/1988	1
27020-54200	2L..LH80 12V 45A,12V 45A	08/1985 - 08/1987	1
27020-54320	2L..LH80..5H..N 12V 60A	04/1988 - 08/1988	1
27020-54410	2L..LH80..5H..N 12V 60A	08/1988 - 08/1989	1
27020-54411	2L..LH80..5H..N 12V 60A	08/1989 - 01/1991	1
27020-54320	2L..LH80..5H..N 12V 60A,12V 60A	08/1987 - 04/1988	1
27020-54381	2L..LH80..4HC;2L..LH8#..5H..D 12V 45A	01/1991 - 06/1991	1
27020-54380	2L..LH80..4HC;2L..LH80..5H..D 12V 45A	08/1988 - 10/1989	1
27020-54382	2L..LH80..4HC;2L..LH8#..5H..D 12V 45A	06/1991 - 02/1992	1
27020-54413	2L..LH80..5H..N 12V 60A	02/1992 - 05/1995	1
27020-54383	2L..LH80..4HC;2L..LH8#..5H..D 12V 45A	02/1992 - 05/1995	1
27020-54412	2L..LH80..5H..N 12V 60A	01/1991 - 02/1992	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-54010	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 08/1988	1
27036-54010	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27036-54320	2L..LH80..5H..N	04/1988 - 08/1988	2
27036-54320	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27036-54320	2L..LH80..5H..N	08/1988 - 08/1989	1
27036-54410	2L..LH80..5H..N	08/1989 - 05/1995	1
27036-54010	2L..LH80 12V 45A	08/1985 - 08/1987	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27312-57060	2L..LH8#	04/1988 - 05/1995	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27333-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27333-57060	2L..LH8#	04/1988 - 05/1995	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54110	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27310-54110	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 02/1992	1
27310-54130	2L..LH8#..5H..N	10/1989 - 02/1992	1
27310-54111	2L..LH80..4HC;2L..LH8#..5H..D	02/1992 - 05/1995	1
27310-54131	2L..LH80..5H..N	02/1992 - 05/1995	1
27310-54130	2L..LH80..5H..N	04/1988 - 10/1989	1
27310-54110	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27310-54130	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27310-54110	2L..LH80 12V 45A	08/1985 - 08/1987	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-57060	2L..LH8#	04/1988 - 05/1995	1
27412-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
90099-10137	2L..LH8#	04/1988 - 08/1988	1
90099-10137	2L..LH85;2L..LH80..5H..N	08/1988 - 10/1989	1
90099-10137	2L..LH8#..5H..N	10/1989 - 05/1995	1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	2
90099-02209	2L..LH8#..5H..N	02/1992 - 05/1995	2
90099-02209	2L..LH8#	04/1988 - 02/1992	2
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	2
90099-02209	2L..LH8#..5H..N	02/1992 - 05/1995	2
90099-02209	2L..LH8#	04/1988 - 02/1992	2
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27313-57060	2L..LH8#	04/1988 - 02/1992	1
27313-57060	2L..LH8#..5H..N	02/1992 - 05/1995	1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060	2L..LH8#	04/1988 - 05/1995	1
27315-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27330 - ROTOR ASSY, ALTERNATOR
27330-64170	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27330-54200	2L..LH80 12V 45A	08/1985 - 08/1987	1
27330-64170	2L..LH80..5H..N	04/1988 - 01/1991	1
27330-54201	2L..LH80..4HC;2L..LH8#..5H..D	01/1991 - 02/1992	1
27330-54200	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 08/1988	1
27330-54270	2L..LH80..5H..N	02/1992 - 05/1995	1
27330-54200	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27330-54202	2L..LH80..4HC;2L..LH8#..5H..D	02/1992 - 05/1995	1
27330-54200	2L..LH80..4HC;2L..LH80..5H..D	08/1988 - 10/1989	1
27330-64171	2L..LH80..5H..N	01/1991 - 02/1992	1
27330-54200	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 01/1991	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103	2L..LH8#	04/1988 - 08/1988	1
90099-07103	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
90099-07103	2L..LH85;2L..LH80..5H..N	08/1988 - 10/1989	1
90099-07103	2L..LH8#..5H..N	10/1989 - 05/1995	1
27350 - FRAME ASSY, RECTIFIER END
27350-54190	2L..LH80 12V 45A	08/1985 - 08/1987	1
27350-54190	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27350-54190	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27350-54130	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27350-54130	2L..LH80..5H..N	04/1988 - 10/1989	1
27350-54130	2L..LH8#..5H..N	10/1989 - 05/1995	1
27350-54190	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27351-56013	2L..LH8#	04/1988 - 05/1995	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-64170	2L..LH80..5H..N	04/1988 - 05/1995	1
27353-64170	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27371 - BRUSH, ALTERNATOR
27371-56070	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	2
27371-56070	2L..LH8#	04/1988 - 05/1995	2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070	2L..LH8#	04/1988 - 05/1995	2
27372-56070	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	2
27373 - HOLDER, ALTERNATOR BRUSH, A
27373-64170	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27373-64170	2L..LH80..5H..N	04/1988 - 10/1989	1
27373-64170	2L..LH8#..5H..N	10/1989 - 05/1995	1
27388 - COVER, ALTERNATOR BRUSH
27388-64010	2L..LH80 12V 45A	08/1985 - 08/1987	1
27388-54320	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27388-54341	2L..LH80..4HC;2L..LH8#..5H..D	06/1991 - 05/1995	1
27388-54200	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 06/1991	1
27388-54410	2L..LH80..5H..N	08/1989 - 05/1995	1
27388-54320	2L..LH80..5H..N	04/1988 - 08/1989	1
27388-54200	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27388-64010	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27410 - STATOR ASSY, ALTERNATOR
27410-43040	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27410-64090	2L..LH80 12V 45A	08/1985 - 08/1987	1
27410-43040	2L..LH8#..5H..N	10/1989 - 05/1995	1
27410-64090	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27410-64090	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27410-43040	2L..LH80..5H..N	04/1988 - 10/1989	1
27410-64090	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27411 - PULLEY, ALTERNATOR
27411-54170	2L..LH8#	04/1988 - 08/1988	1
27411-54170	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27411-54351	2L..LH80;2L..LH85..D	02/1992 - 05/1995	1
27411-54350	2L..LH80	08/1988 - 10/1989	1
27411-54350	2L..LH8#	10/1989 - 02/1992	1
27441 - FAN, ALTERNATOR
27441-64030	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27441-56090	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27441-56090	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27441-64030	2L..LH80..5H..N	04/1988 - 10/1989	1
27441-56090	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27441-64030	2L..LH8#..5H..N	10/1989 - 05/1995	1
27441-56090	2L..LH80 12V 45A	08/1985 - 08/1987	1
27700A - REGULATOR ASSY, GENERATOR
27700-35030	2L..LH80..5H..D	08/1987 - 04/1988	1
27700-64040	2L..LH80..5H..N	08/1987 - 10/1989	1
27700-35030	2L..LH80	08/1985 - 08/1987	1
27700-64040	2L..LH8#..5H..N	10/1989 - 05/1995	1
27700-35030	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27700-35030	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
29342A - PACKING, VACUUM PUMP
90099-14055	2L..LH80	08/1988 - 10/1989	1
90099-14055	2L..LH8#	04/1988 - 08/1988	2
90099-14055	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
90099-14055	2L..LH8#	10/1989 - 05/1995	1
Common parts
27378-45020
27378-54010
27387-54010
27387-54260
27387-54390
90099-00893
90099-00937
90099-02208
90099-02216
90099-04947
90099-04948
90099-05118
90099-05119
90099-05185
90099-34013
90101-10231
90119-08127
90179-06158
90179-10016
90201-10283

(8808- )2L..LH80..4HC ; (8808- )2L..LH80..5H..D

Click highlighted areas on diagram

12V 45A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-54200	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D 12V 45A	04/1988 - 08/1988	1
27020-54380	2L..LH80..4HC;2L..LH8#..5H..D 12V 45A	10/1989 - 01/1991	1
27020-54200	2L..LH80..5H..D 12V 45A,12V 45A	08/1987 - 04/1988	1
27020-54200	2L..LH80 12V 45A,12V 45A	08/1985 - 08/1987	1
27020-54320	2L..LH80..5H..N 12V 60A	04/1988 - 08/1988	1
27020-54410	2L..LH80..5H..N 12V 60A	08/1988 - 08/1989	1
27020-54411	2L..LH80..5H..N 12V 60A	08/1989 - 01/1991	1
27020-54320	2L..LH80..5H..N 12V 60A,12V 60A	08/1987 - 04/1988	1
27020-54381	2L..LH80..4HC;2L..LH8#..5H..D 12V 45A	01/1991 - 06/1991	1
27020-54380	2L..LH80..4HC;2L..LH80..5H..D 12V 45A	08/1988 - 10/1989	1
27020-54382	2L..LH80..4HC;2L..LH8#..5H..D 12V 45A	06/1991 - 02/1992	1
27020-54413	2L..LH80..5H..N 12V 60A	02/1992 - 05/1995	1
27020-54383	2L..LH80..4HC;2L..LH8#..5H..D 12V 45A	02/1992 - 05/1995	1
27020-54412	2L..LH80..5H..N 12V 60A	01/1991 - 02/1992	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-54010	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 08/1988	1
27036-54010	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27036-54320	2L..LH80..5H..N	04/1988 - 08/1988	2
27036-54320	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27036-54320	2L..LH80..5H..N	08/1988 - 08/1989	1
27036-54410	2L..LH80..5H..N	08/1989 - 05/1995	1
27036-54010	2L..LH80 12V 45A	08/1985 - 08/1987	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27312-57060	2L..LH8#	04/1988 - 05/1995	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27333-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27333-57060	2L..LH8#	04/1988 - 05/1995	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54110	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27310-54110	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 02/1992	1
27310-54130	2L..LH8#..5H..N	10/1989 - 02/1992	1
27310-54111	2L..LH80..4HC;2L..LH8#..5H..D	02/1992 - 05/1995	1
27310-54131	2L..LH80..5H..N	02/1992 - 05/1995	1
27310-54130	2L..LH80..5H..N	04/1988 - 10/1989	1
27310-54110	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27310-54130	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27310-54110	2L..LH80 12V 45A	08/1985 - 08/1987	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-57060	2L..LH8#	04/1988 - 05/1995	1
27412-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
90099-10137	2L..LH8#	04/1988 - 08/1988	1
90099-10137	2L..LH85;2L..LH80..5H..N	08/1988 - 10/1989	1
90099-10137	2L..LH8#..5H..N	10/1989 - 05/1995	1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	2
90099-02209	2L..LH8#..5H..N	02/1992 - 05/1995	2
90099-02209	2L..LH8#	04/1988 - 02/1992	2
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27313-57060	2L..LH8#	04/1988 - 02/1992	1
27313-57060	2L..LH8#..5H..N	02/1992 - 05/1995	1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060	2L..LH8#	04/1988 - 05/1995	1
27315-57060	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27330 - ROTOR ASSY, ALTERNATOR
27330-64170	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27330-54200	2L..LH80 12V 45A	08/1985 - 08/1987	1
27330-64170	2L..LH80..5H..N	04/1988 - 01/1991	1
27330-54201	2L..LH80..4HC;2L..LH8#..5H..D	01/1991 - 02/1992	1
27330-54200	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 08/1988	1
27330-54270	2L..LH80..5H..N	02/1992 - 05/1995	1
27330-54200	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27330-54202	2L..LH80..4HC;2L..LH8#..5H..D	02/1992 - 05/1995	1
27330-54200	2L..LH80..4HC;2L..LH80..5H..D	08/1988 - 10/1989	1
27330-64171	2L..LH80..5H..N	01/1991 - 02/1992	1
27330-54200	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 01/1991	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103	2L..LH8#	04/1988 - 08/1988	1
90099-07103	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
90099-07103	2L..LH85;2L..LH80..5H..N	08/1988 - 10/1989	1
90099-07103	2L..LH8#..5H..N	10/1989 - 05/1995	1
27350 - FRAME ASSY, RECTIFIER END
27350-54190	2L..LH80 12V 45A	08/1985 - 08/1987	1
27350-54190	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27350-54190	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27350-54130	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27350-54130	2L..LH80..5H..N	04/1988 - 10/1989	1
27350-54130	2L..LH8#..5H..N	10/1989 - 05/1995	1
27350-54190	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27351-56013	2L..LH8#	04/1988 - 05/1995	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-54190	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27357-54190	2L..LH80 12V 45A	08/1985 - 08/1987	1
27357-54190	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27357-54190	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-54010	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27370-54010	2L..LH80 12V 45A	08/1985 - 08/1987	1
27370-54250	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27370-54250	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27371 - BRUSH, ALTERNATOR
27371-56070	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	2
27371-56070	2L..LH8#	04/1988 - 05/1995	2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070	2L..LH8#	04/1988 - 05/1995	2
27372-56070	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	2
27388 - COVER, ALTERNATOR BRUSH
27388-64010	2L..LH80 12V 45A	08/1985 - 08/1987	1
27388-54320	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27388-54341	2L..LH80..4HC;2L..LH8#..5H..D	06/1991 - 05/1995	1
27388-54200	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 06/1991	1
27388-54410	2L..LH80..5H..N	08/1989 - 05/1995	1
27388-54320	2L..LH80..5H..N	04/1988 - 08/1989	1
27388-54200	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27388-64010	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27410 - STATOR ASSY, ALTERNATOR
27410-43040	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27410-64090	2L..LH80 12V 45A	08/1985 - 08/1987	1
27410-43040	2L..LH8#..5H..N	10/1989 - 05/1995	1
27410-64090	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27410-64090	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27410-43040	2L..LH80..5H..N	04/1988 - 10/1989	1
27410-64090	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27411 - PULLEY, ALTERNATOR
27411-54170	2L..LH8#	04/1988 - 08/1988	1
27411-54170	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
27411-54351	2L..LH80;2L..LH85..D	02/1992 - 05/1995	1
27411-54350	2L..LH80	08/1988 - 10/1989	1
27411-54350	2L..LH8#	10/1989 - 02/1992	1
27441 - FAN, ALTERNATOR
27441-64030	2L..LH80..5H..N 12V 60A	08/1987 - 04/1988	1
27441-56090	2L..LH80..5H..D 12V 45A	08/1987 - 04/1988	1
27441-56090	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
27441-64030	2L..LH80..5H..N	04/1988 - 10/1989	1
27441-56090	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27441-64030	2L..LH8#..5H..N	10/1989 - 05/1995	1
27441-56090	2L..LH80 12V 45A	08/1985 - 08/1987	1
27700A - REGULATOR ASSY, GENERATOR
27700-35030	2L..LH80..5H..D	08/1987 - 04/1988	1
27700-64040	2L..LH80..5H..N	08/1987 - 10/1989	1
27700-35030	2L..LH80	08/1985 - 08/1987	1
27700-64040	2L..LH8#..5H..N	10/1989 - 05/1995	1
27700-35030	2L..LH80..4HC;2L..LH8#..5H..D	10/1989 - 05/1995	1
27700-35030	2L..LH85;2L..LH80..4HC;2L..LH80..5H..D	04/1988 - 10/1989	1
29342A - PACKING, VACUUM PUMP
90099-14055	2L..LH80	08/1988 - 10/1989	1
90099-14055	2L..LH8#	04/1988 - 08/1988	2
90099-14055	2L..LH8# 12V 45A,60A	08/1985 - 04/1988	1
90099-14055	2L..LH8#	10/1989 - 05/1995	1
Common parts
27378-45020
27378-54010
27383-54010
27387-54010
27387-54310
27387-56070
90009-05185
90099-00893
90099-02208
90099-02216
90099-04322
90099-04948
90099-05118
90099-05119
90101-10231
90119-08127
90179-06158
90179-10016
90201-10283
93386-16012

LH80VH-QNLT (1985)

(8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8808)2L..LH80..5H..D ; (8711- )2L

(8708- )2L..LH80..5H..N ; (8910- )2L..LH85..N

(8808- )2L..LH80..4HC ; (8808- )2L..LH80..5H..D

Part Price Details
