LH80VH-QDLTF (1985)
Toyota Hiace Quick Delivery
Production
Aug 1985
-
May 1995
Engine
2L
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)

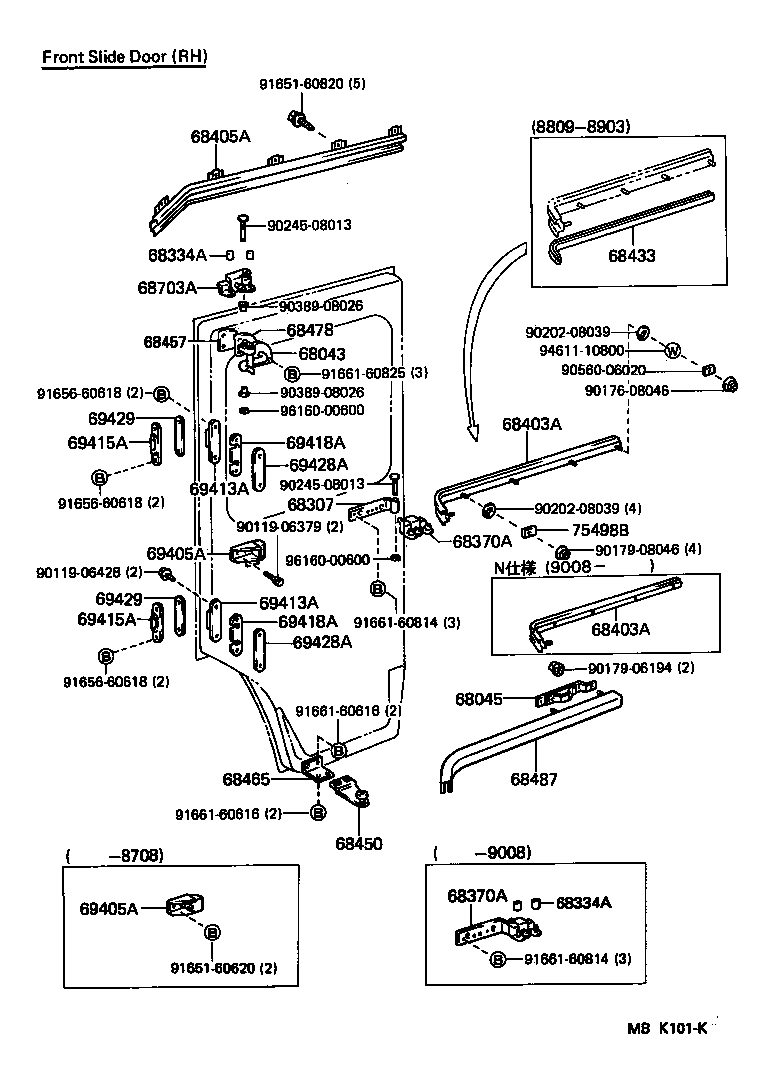

ILLUST NO. 1 OF 2(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68043 - ARM SUB-ASSY, FRONT SLIDE DOOR UPPER ROLLER, RH | ||||
| 68043-90D03 |
LH8# |
1 | ||
| 68045 - BRACKET SUB-ASSY, FRONT SLIDE DOOR CATCH | ||||
| 68045-90D02 |
LH8# |
2 | ||
| 68307 - HINGE SUB-ASSY, SLIDE DOOR CENTER MALE | ||||
| 68307-95702 |
LH8# |
1 | ||
| 68334A - ROLLER, FRONT SLIDE DOOR CENTER GUIDE | ||||
| 68334-95700 |
LH8# |
8 | ||
| 68334-95700 |
LH8# |
4 | ||
| 68334-95700 |
LH8# |
2 | ||
| 68334A - ROLLER, FRONT SLIDE DOOR CENTER GUIDE | ||||
| 68334-95700 |
LH8# |
8 | ||
| 68334-95700 |
LH8# |
4 | ||
| 68334-95700 |
LH8# |
2 | ||
| 68370A - HINGE ASSY, FRONT SLIDE DOOR, CENTER RH | ||||
| 68710-90D00 |
LH8# |
1 | ||
| 68701-90D01 |
LH8# |
1 | ||
| 68701-26010 |
LH8# |
1 | ||
| 68370A - HINGE ASSY, FRONT SLIDE DOOR, CENTER RH | ||||
| 68710-90D00 |
LH8# |
1 | ||
| 68701-90D01 |
LH8# |
1 | ||
| 68701-26010 |
LH8# |
1 | ||
| 68403A - RAIL SUB-ASSY, FRONT SLIDE DOOR, CENTER RH | ||||
| 68403-90D03 |
LH8#..D |
1 | ||
| 68403-90D03 |
LH8# |
1 | ||
| 68403-90D02 |
LH8# |
1 | ||
| 68403-90F02 |
LH8#..CBU |
1 | ||
| 68403A - RAIL SUB-ASSY, FRONT SLIDE DOOR, CENTER RH | ||||
| 68403-90D03 |
LH8#..D |
1 | ||
| 68403-90D03 |
LH8# |
1 | ||
| 68403-90D02 |
LH8# |
1 | ||
| 68403-90F02 |
LH8#..CBU |
1 | ||
| 68405A - RAIL SUB-ASSY, FRONT SLIDE DOOR, UPPER RH | ||||
| 68405-90D01 |
LH8# |
1 | ||
| 68433 - PROTECTOR, FRONT SLIDE DOOR CENTER RAIL, RH | ||||
| 68433-90D00 |
LH8# |
1 | ||
| 68450 - ROLLER ASSY, FRONT SLIDE DOOR, LOWER RH | ||||
| 68450-90D01 |
LH8# |
1 | ||
| 68457 - BASE, FRONT SLIDE DOOR CUSHION | ||||
| 68457-26010 |
LH8# |
1 | ||
| 68465 - BRACKET, FRONT SLIDE DOOR LOWER ROLLER | ||||
| 68466-90D01 |
LH8# LH |
1 | ||
| 68465-90D01 |
LH8# RH |
1 | ||
| 68465-90D01 |
LH8# RH |
1 | ||
| 68466-90D01 |
LH8# LH |
1 | ||
| 68478 - PLATE, FRONT SLIDE DOOR ARM STOPPER | ||||
| 68478-90D00 |
LH8# |
1 | ||
| 68478-90D00 |
LH8# |
8 | ||
| 68487 - GUIDE, FRONT SLIDE DOOR LOWER ROLLER, RH | ||||
| 68407-90D04 |
LH8# |
1 | ||
| 68487-90D07 |
LH8# |
1 | ||
| 68703A - HINGE SUB-ASSY, FRONT SLIDE DOOR, UPPER RH | ||||
| 68704-26010 |
LH8# |
1 | ||
| 68704-90D00 |
LH8# |
1 | ||
| 69405A - STOP, FRONT SLIDE DOOR | ||||
| 69405-90D04 |
LH80 RH |
1 | ||
| 69405-90D05 |
LH8# 右側 |
1 | ||
| 69405-90D03 |
LH80 LH |
1 | ||
| 69405-90D05 |
LH8# RH |
1 | ||
| 69406-90D00 |
LH8# 左側 |
1 | ||
| 69406-90D00 |
LH8# LH |
1 | ||
| 69405A - STOP, FRONT SLIDE DOOR | ||||
| 69405-90D04 |
LH80 RH |
1 | ||
| 69405-90D05 |
LH8# 右側 |
1 | ||
| 69405-90D03 |
LH80 LH |
1 | ||
| 69405-90D05 |
LH8# RH |
1 | ||
| 69406-90D00 |
LH8# 左側 |
1 | ||
| 69406-90D00 |
LH8# LH |
1 | ||
| 69413A - STOP, FRONT SLIDE DOOR DOWN MALE | ||||
| 69406-95J01 |
LH8# |
4 | ||
| 69406-95J01 |
LH8#..CBU |
4 | ||
| 69406-95J00 |
LH8# |
4 | ||
| 69413A - STOP, FRONT SLIDE DOOR DOWN MALE | ||||
| 69406-95J01 |
LH8# |
4 | ||
| 69406-95J01 |
LH8#..CBU |
4 | ||
| 69406-95J00 |
LH8# |
4 | ||
| 69415A - STOP, FRONT SLIDE DOOR DOWN FEMALE | ||||
| 69415-95J01 |
LH8# |
4 | ||
| 69415-95J00 |
LH8# |
4 | ||
| 69415-95J00 |
LH8#..CBU |
4 | ||
| 69415A - STOP, FRONT SLIDE DOOR DOWN FEMALE | ||||
| 69415-95J01 |
LH8# |
4 | ||
| 69415-95J00 |
LH8# |
4 | ||
| 69415-95J00 |
LH8#..CBU |
4 | ||
| 69418A - SHIM, FRONT SLIDE DOOR DOWN STOP MALE | ||||
| 69418-95700 |
LH8# |
1 | ||
| 69418-95700 |
LH8# |
8 | ||
| 69418-95700 |
LH8#..CBU |
1 | ||
| 69418A - SHIM, FRONT SLIDE DOOR DOWN STOP MALE | ||||
| 69418-95700 |
LH8# |
1 | ||
| 69418-95700 |
LH8# |
8 | ||
| 69418-95700 |
LH8#..CBU |
1 | ||
| 69428A - PAD, FRONT SLIDE DOOR DOWN STOP, MALE | ||||
| 69428-90D00 |
LH8# |
4 | ||
| 69428-90D00 |
LH8#..CBU |
4 | ||
| 69428A - PAD, FRONT SLIDE DOOR DOWN STOP, MALE | ||||
| 69428-90D00 |
LH8# |
4 | ||
| 69428-90D00 |
LH8#..CBU |
4 | ||
| 69429 - PAD, FRONT SLIDE DOOR DOWN STOP, FEMAIL | ||||
| 69429-90D00 |
LH8# |
4 | ||
| 69429-90D00 |
LH8#..CBU |
4 | ||
| 69429 - PAD, FRONT SLIDE DOOR DOWN STOP, FEMAIL | ||||
| 69429-90D00 |
LH8# |
4 | ||
| 69429-90D00 |
LH8#..CBU |
4 | ||
| 75498B - SEAL, OUTSIDE MOULDING, NO.2 | ||||
| 75498-90F01 |
LH8#..CBU |
4 | ||
| Common parts | ||||
| 90119-06379 | ||||
| 90119-06428 | ||||
| 90176-08046 | ||||
| 90179-06194 | ||||
| 90179-08046 | ||||
| 90202-08039 | ||||
| 90245-08013 | ||||
| 90389-08026 | ||||
| 90560-06020 | ||||
| 91651-60620 | ||||
| 91651-60820 | ||||
| 91656-60618 | ||||
| 91661-60616 | ||||
| 91661-60814 | ||||
| 91661-60825 | ||||
| 94611-10800 | ||||
| 96160-00600 | ||||

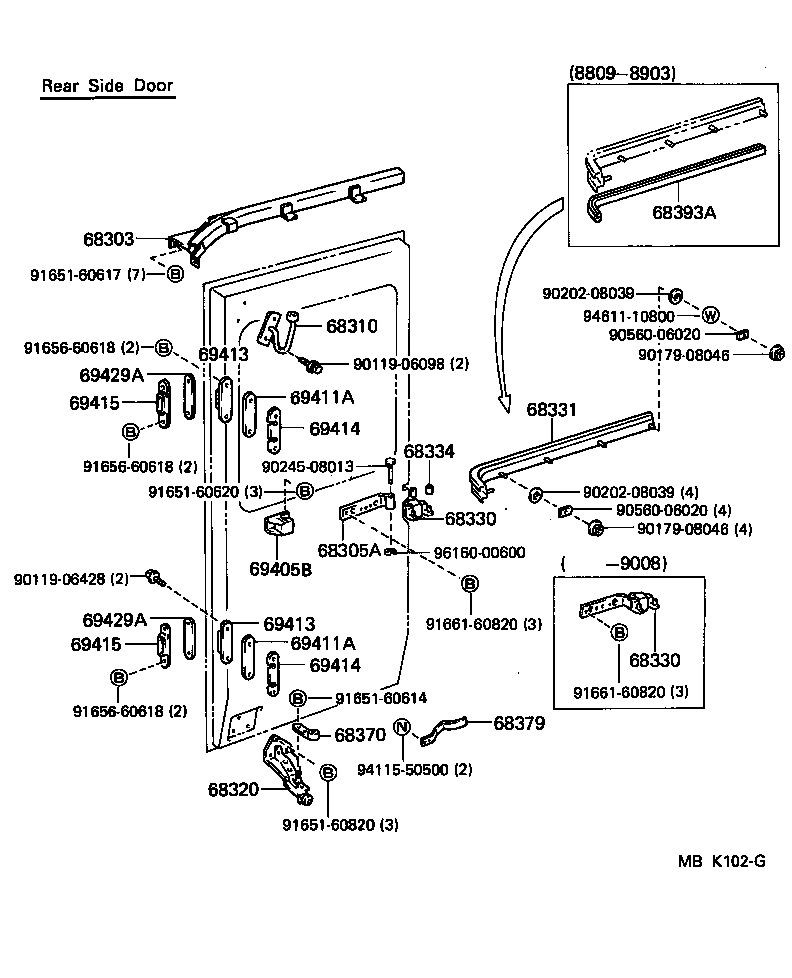

(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68303 - RAIL SUB-ASSY, SLIDE DOOR, UPPER | ||||
| 68301-90D02 |
LH80..4D W/ROOF BOARD |
1 | ||
| 68301-90D04 |
LH80..D..4D ｱﾘ(ﾘﾔ ﾙ-ﾌ ﾍﾂﾄﾞﾗｲﾆﾝｸﾞ) |
1 | ||
| 68301-90D03 |
LH80..D..4D |
1 | ||
| 68301-90D04 |
LH80..4D W/ROOF BOARD |
1 | ||
| 68301-90D03 |
LH80..D..4D |
1 | ||
| 68305A - HINGE SUB-ASSY, SLIDE DOOR CENTER MALE | ||||
| 68305-90D00 |
LH80..4D |
3 | ||
| 68310 - ROLLER ASSY, SLIDE DOOR, UPPER | ||||
| 68310-90D01 |
LH80..4D |
1 | ||
| 68310-90D01 |
LH80..4D |
1 | ||
| 68320 - ROLLER ASSY, SLIDE DOOR, LOWER | ||||
| 68350-87001 |
LH80..4D |
1 | ||
| 68330 - ROLLER ASSY, SLIDE DOOR, CENTER | ||||
| 68380-90D00 |
LH80..4D |
1 | ||
| 68701-90D01 |
LH80..4D |
1 | ||
| 68701-26010 |
LH80..4D |
1 | ||
| 68380-90D00 |
LH80..4D |
1 | ||
| 68330 - ROLLER ASSY, SLIDE DOOR, CENTER | ||||
| 68380-90D00 |
LH80..4D |
1 | ||
| 68701-90D01 |
LH80..4D |
1 | ||
| 68701-26010 |
LH80..4D |
1 | ||
| 68380-90D00 |
LH80..4D |
1 | ||
| 68331 - RAIL, SLIDE DOOR, CENTER | ||||
| 68303-90D01 |
LH80..4D |
1 | ||
| 68303-90D01 |
LH80..4D |
1 | ||
| 68303-90D02 |
LH80..4D |
1 | ||
| 68334 - ROLLER, SLIDE DOOR CENTER, NO.2 | ||||
| 68334-95700 |
LH80..4D |
2 | ||
| 68334-95700 |
LH80..4D |
2 | ||
| 68370 - ROLLER ASSY, SLIDE DOOR, LOWER SUB | ||||
| 68370-90D00 |
LH80..4D |
1 | ||
| 68370-90D00 |
LH80..4D |
1 | ||
| 68370-87001 |
LH80..4D |
1 | ||
| 68379 - SPRING, SLIDE DOOR CATCH, RH | ||||
| 68379-90D00 |
LH80..4D |
1 | ||
| 68379-90D00 |
LH80..4D |
1 | ||
| 68393A - PROTECTOR, SLIDE DOOR CENTER RAIL | ||||
| 68433-90D00 |
LH80..4D |
1 | ||
| 69405B - STOP SUB-ASSY, SLIDE DOOR OPEN | ||||
| 69405-90D03 |
LH80..4D |
1 | ||
| 69405-90D03 |
LH80..4D |
1 | ||
| 69411A - SPACER, SLIDE DOOR OPEN STOP | ||||
| 62411-90D07 |
LH80..4D |
2 | ||
| 62411-90D07 |
LH80..4D |
2 | ||
| 69411A - SPACER, SLIDE DOOR OPEN STOP | ||||
| 62411-90D07 |
LH80..4D |
2 | ||
| 62411-90D07 |
LH80..4D |
2 | ||
| 69413 - STOP, SLIDE DOOR DOWN MALE | ||||
| 69406-95J01 |
LH80..4D |
2 | ||
| 69406-95J00 |
LH80..4D |
2 | ||
| 69406-95J01 |
LH80..4D |
2 | ||
| 69413 - STOP, SLIDE DOOR DOWN MALE | ||||
| 69406-95J01 |
LH80..4D |
2 | ||
| 69406-95J00 |
LH80..4D |
2 | ||
| 69406-95J01 |
LH80..4D |
2 | ||
| 69414 - SHIM, SLIDE DOOR DOWN STOP MALE | ||||
| 69418-95700 |
LH80..4D |
1 | ||
| 69418-95700 |
LH80..4D |
4 | ||
| 69414 - SHIM, SLIDE DOOR DOWN STOP MALE | ||||
| 69418-95700 |
LH80..4D |
1 | ||
| 69418-95700 |
LH80..4D |
4 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-95J00 |
LH80..4D |
2 | ||
| 69415-95J00 |
LH80..4D |
2 | ||
| 69415-95J01 |
LH80..4D |
2 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-95J00 |
LH80..4D |
2 | ||
| 69415-95J00 |
LH80..4D |
2 | ||
| 69415-95J01 |
LH80..4D |
2 | ||
| 69429A - PAD, SLIDE DOOR DOWN STOP, FEMAIL | ||||
| 69429-90D00 |
LH80..4D |
2 | ||
| 69429-90D00 |
LH80 |
2 | ||
| 69429A - PAD, SLIDE DOOR DOWN STOP, FEMAIL | ||||
| 69429-90D00 |
LH80..4D |
2 | ||
| 69429-90D00 |
LH80 |
2 | ||
| Common parts | ||||
| 90119-06098 | ||||
| 90119-06428 | ||||
| 90179-08046 | ||||
| 90202-08039 | ||||
| 90245-08013 | ||||
| 90560-06020 | ||||
| 91651-60614 | ||||
| 91651-60617 | ||||
| 91651-60620 | ||||
| 91651-60820 | ||||
| 91656-60618 | ||||
| 91661-60820 | ||||
| 94115-50500 | ||||
| 94611-10800 | ||||
| 96160-00600 | ||||

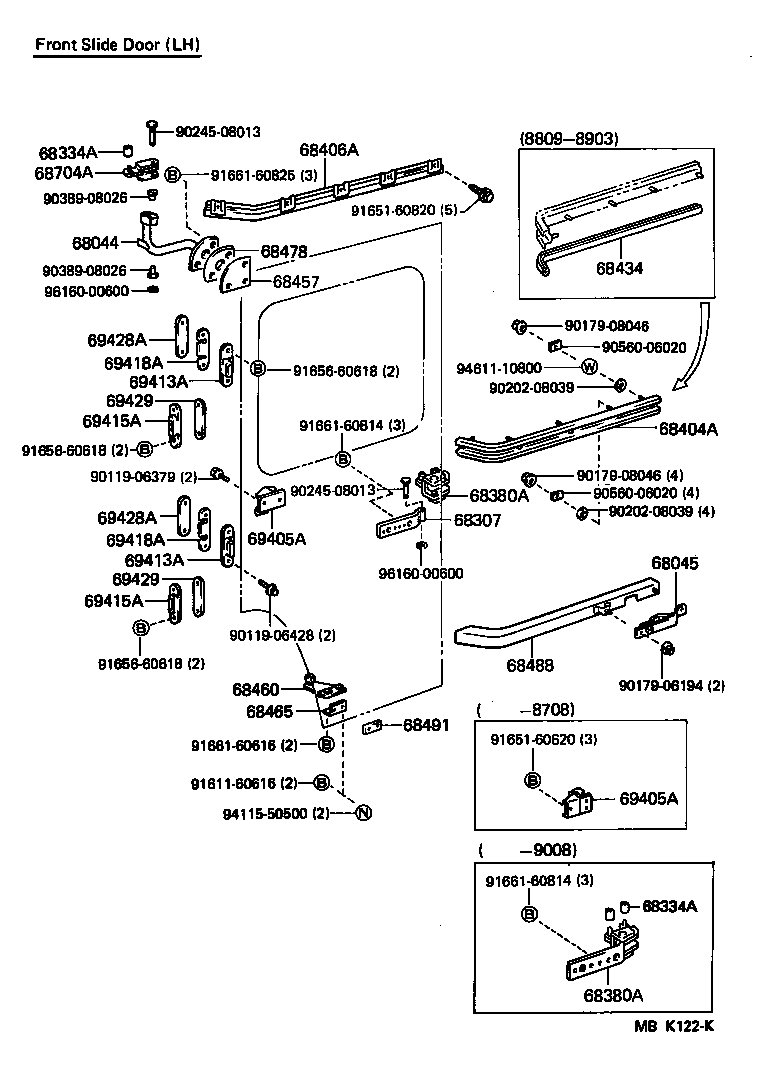

ILLUST NO. 2 OF 2(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68044 - ARM SUB-ASSY, FRONT SLIDE DOOR UPPER ROLLER, LH | ||||
| 68044-90D03 |
LH8# |
1 | ||
| 68045 - BRACKET SUB-ASSY, FRONT SLIDE DOOR CATCH | ||||
| 68045-90D02 |
LH8# |
2 | ||
| 68307 - HINGE SUB-ASSY, SLIDE DOOR CENTER MALE | ||||
| 68307-95702 |
LH8# |
1 | ||
| 68334A - ROLLER, FRONT SLIDE DOOR CENTER GUIDE | ||||
| 68334-95700 |
LH8# |
8 | ||
| 68334-95700 |
LH8# |
4 | ||
| 68334-95700 |
LH8# |
2 | ||
| 68334A - ROLLER, FRONT SLIDE DOOR CENTER GUIDE | ||||
| 68334-95700 |
LH8# |
8 | ||
| 68334-95700 |
LH8# |
4 | ||
| 68334-95700 |
LH8# |
2 | ||
| 68380A - HINGE ASSY, FRONT SLIDE DOOR, CENTER LH | ||||
| 68702-90D01 |
LH8# |
1 | ||
| 68720-90D00 |
LH8# |
1 | ||
| 68702-26010 |
LH8# |
1 | ||
| 68380A - HINGE ASSY, FRONT SLIDE DOOR, CENTER LH | ||||
| 68702-90D01 |
LH8# |
1 | ||
| 68720-90D00 |
LH8# |
1 | ||
| 68702-26010 |
LH8# |
1 | ||
| 68404A - RAIL SUB-ASSY, FRONT SLIDE DOOR, CENTER LH | ||||
| 68404-90D02 |
LH8#..CBU |
1 | ||
| 68404-90D02 |
LH8# |
1 | ||
| 68404-90D01 |
LH8# |
1 | ||
| 68406A - RAIL SUB-ASSY, FRONT SLIDE DOOR, UPPER LH | ||||
| 68406-90D01 |
LH8# |
1 | ||
| 68434 - PROTECTOR, FRONT SLIDE DOOR CENTER RAIL, LH | ||||
| 67849-90D00 |
LH8# |
1 | ||
| 68457 - BASE, FRONT SLIDE DOOR CUSHION | ||||
| 68457-26010 |
LH8# |
1 | ||
| 68460 - ROLLER ASSY, FRONT SLIDE DOOR, LOWER LH | ||||
| 68460-90D01 |
LH8# |
1 | ||
| 68465 - BRACKET, FRONT SLIDE DOOR LOWER ROLLER | ||||
| 68466-90D01 |
LH8# LH |
1 | ||
| 68465-90D01 |
LH8# RH |
1 | ||
| 68465-90D01 |
LH8# RH |
1 | ||
| 68466-90D01 |
LH8# LH |
1 | ||
| 68478 - PLATE, FRONT SLIDE DOOR ARM STOPPER | ||||
| 68478-90D00 |
LH8# |
1 | ||
| 68478-90D00 |
LH8# |
8 | ||
| 68488 - GUIDE, FRONT SLIDE DOOR LOWER ROLLER, LH | ||||
| 68488-90D05 |
LH8# |
1 | ||
| 68408-90D02 |
LH8# |
1 | ||
| 68491 - PACKING, FRONT SLIDE DOOR LOWER ROLLER | ||||
| 68491-90D00 |
LH8# |
1 | ||
| 68704A - HINGE SUB-ASSY, FRONT SLIDE DOOR, UPPER LH | ||||
| 68703-26010 |
LH8# |
1 | ||
| 68703-90D00 |
LH8# |
1 | ||
| 69405A - STOP, FRONT SLIDE DOOR | ||||
| 69405-90D04 |
LH80 RH |
1 | ||
| 69405-90D05 |
LH8# 右側 |
1 | ||
| 69405-90D03 |
LH80 LH |
1 | ||
| 69405-90D05 |
LH8# RH |
1 | ||
| 69406-90D00 |
LH8# 左側 |
1 | ||
| 69406-90D00 |
LH8# LH |
1 | ||
| 69405A - STOP, FRONT SLIDE DOOR | ||||
| 69405-90D04 |
LH80 RH |
1 | ||
| 69405-90D05 |
LH8# 右側 |
1 | ||
| 69405-90D03 |
LH80 LH |
1 | ||
| 69405-90D05 |
LH8# RH |
1 | ||
| 69406-90D00 |
LH8# 左側 |
1 | ||
| 69406-90D00 |
LH8# LH |
1 | ||
| 69413A - STOP, FRONT SLIDE DOOR DOWN MALE | ||||
| 69406-95J01 |
LH8# |
4 | ||
| 69406-95J01 |
LH8#..CBU |
4 | ||
| 69406-95J00 |
LH8# |
4 | ||
| 69413A - STOP, FRONT SLIDE DOOR DOWN MALE | ||||
| 69406-95J01 |
LH8# |
4 | ||
| 69406-95J01 |
LH8#..CBU |
4 | ||
| 69406-95J00 |
LH8# |
4 | ||
| 69415A - STOP, FRONT SLIDE DOOR DOWN FEMALE | ||||
| 69415-95J01 |
LH8# |
4 | ||
| 69415-95J00 |
LH8# |
4 | ||
| 69415-95J00 |
LH8#..CBU |
4 | ||
| 69415A - STOP, FRONT SLIDE DOOR DOWN FEMALE | ||||
| 69415-95J01 |
LH8# |
4 | ||
| 69415-95J00 |
LH8# |
4 | ||
| 69415-95J00 |
LH8#..CBU |
4 | ||
| 69418A - SHIM, FRONT SLIDE DOOR DOWN STOP MALE | ||||
| 69418-95700 |
LH8# |
1 | ||
| 69418-95700 |
LH8# |
8 | ||
| 69418-95700 |
LH8#..CBU |
1 | ||
| 69418A - SHIM, FRONT SLIDE DOOR DOWN STOP MALE | ||||
| 69418-95700 |
LH8# |
1 | ||
| 69418-95700 |
LH8# |
8 | ||
| 69418-95700 |
LH8#..CBU |
1 | ||
| 69428A - PAD, FRONT SLIDE DOOR DOWN STOP, MALE | ||||
| 69428-90D00 |
LH8# |
4 | ||
| 69428-90D00 |
LH8#..CBU |
4 | ||
| 69428A - PAD, FRONT SLIDE DOOR DOWN STOP, MALE | ||||
| 69428-90D00 |
LH8# |
4 | ||
| 69428-90D00 |
LH8#..CBU |
4 | ||
| 69429 - PAD, FRONT SLIDE DOOR DOWN STOP, FEMAIL | ||||
| 69429-90D00 |
LH8# |
4 | ||
| 69429-90D00 |
LH8#..CBU |
4 | ||
| 69429 - PAD, FRONT SLIDE DOOR DOWN STOP, FEMAIL | ||||
| 69429-90D00 |
LH8# |
4 | ||
| 69429-90D00 |
LH8#..CBU |
4 | ||
| Common parts | ||||
| 90119-06379 | ||||
| 90119-06428 | ||||
| 90179-06194 | ||||
| 90179-08046 | ||||
| 90202-08039 | ||||
| 90245-08013 | ||||
| 90389-08026 | ||||
| 90560-06020 | ||||
| 91611-60616 | ||||
| 91651-60620 | ||||
| 91651-60820 | ||||
| 91656-60618 | ||||
| 91661-60616 | ||||
| 91661-60814 | ||||
| 91661-60825 | ||||
| 94115-50500 | ||||
| 94611-10800 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
