LH80VH-QDLTF (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

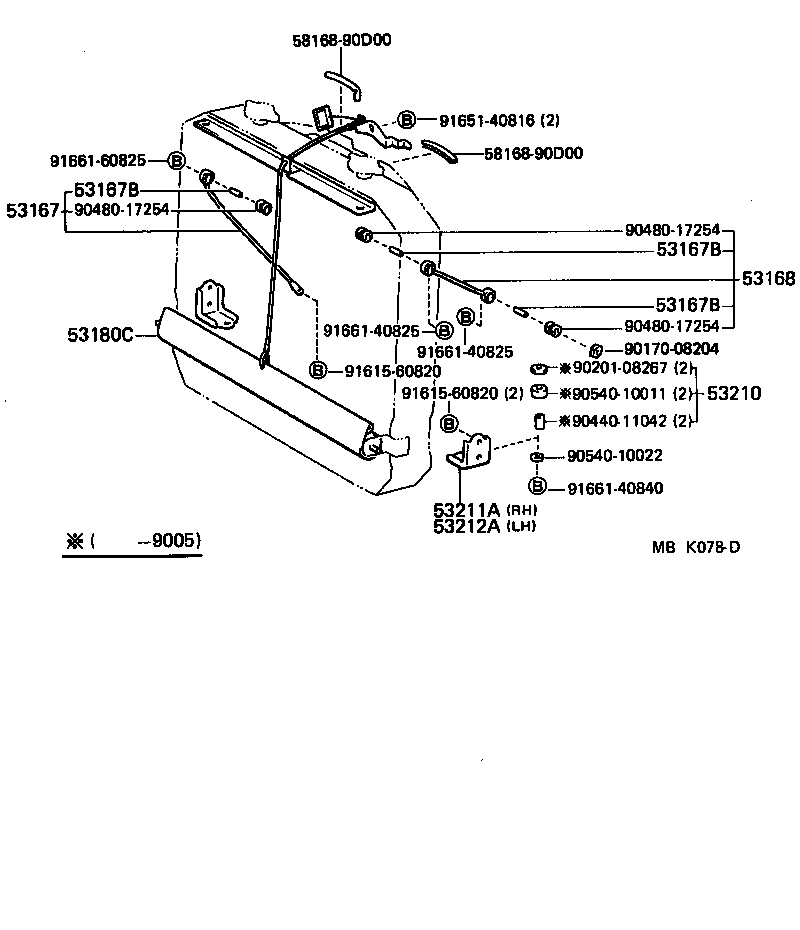

Click highlighted areas on diagram

diagram 53167 53167B 53167B 53167B 53168 53180C 53210 53211A 53212A 5816890D00 5816890D00 9017008204 9020108267 9044011042 9048017254 9048017254 9048017254 9054010011 9054010022 9161560820 9161560820 9165140816 9166140825 9166140825 9166140840 9166160825
Part # Description Qty Price
53167 - ROD, RADIATOR BRACE, RH
53016-26020

LH80

 1
53167B - TUBE(FOR RADIATOR BRACE ROD)
90440-11043

LH80

 3
90440-11043

LH8#

 3
53167B - TUBE(FOR RADIATOR BRACE ROD)
90440-11043

LH80

 3
90440-11043

LH8#

 3
53167B - TUBE(FOR RADIATOR BRACE ROD)
90440-11043

LH80

 3
90440-11043

LH8#

 3
53168 - ROD, RADIATOR BRACE, LH
53018-26010

LH80

 1
53018-26010

LH8#

 1
53180C - SHUTTER ASSY, RADIATOR
53180-90D00

LH8#

 1
53210 - SUPPORT ASSY, RADIATOR
90540-10003

LH8#

 2
53210-26010

LH8#

 2
53211A - BRACKET, RADIATOR SUPPORT, RH
51411-26010

LH80

 1
53212A - BRACKET, RADIATOR SUPPORT, LH
51411-26010

LH80

 1
Common parts
58168-90D00
90170-08204
90201-08267
90440-11042
90480-17254
90540-10011
90540-10022
91615-60820
91651-40816
91661-40825
91661-40840
91661-60825
