LH80VH-QDLT3 (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

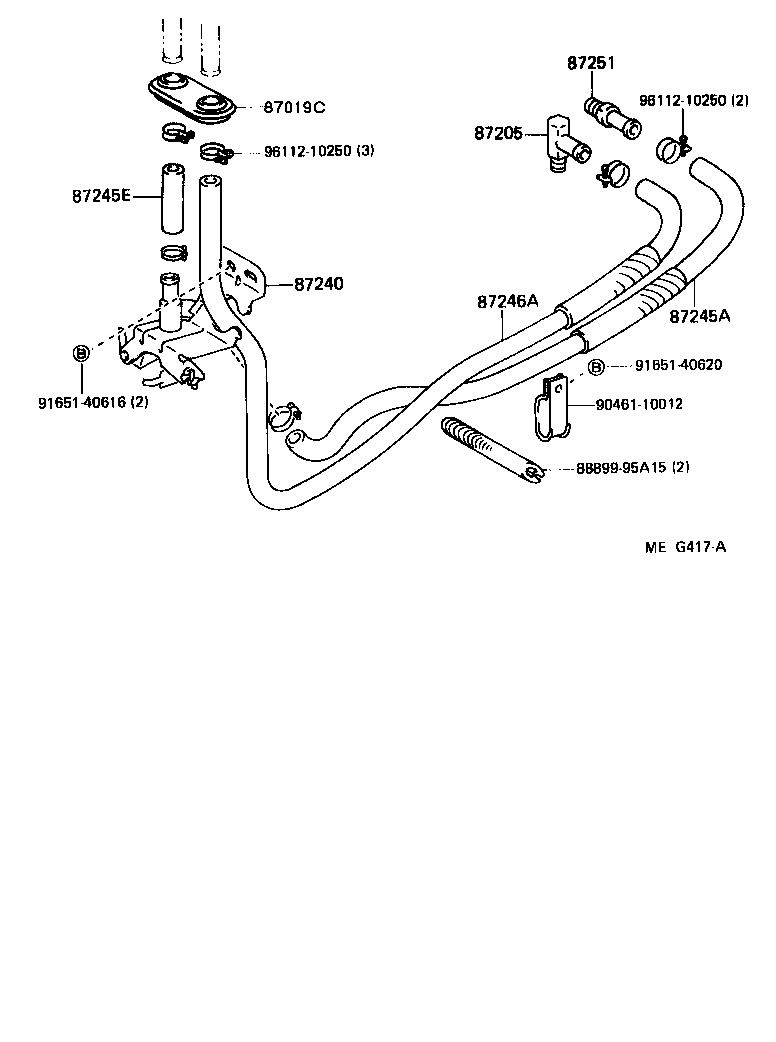

Click highlighted areas on diagram

diagram 87019C 87205 87240 87245A 87245E 87246A 87251 8889995A15 9046110012 9165140616 9165140620 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
96532-13017

LH8#

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30230

LH8#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95407

LH8#

 1
87245A - HOSE, HEATER WATER, INLET A
87209-90D00

LH8#

長さ=960

 1
87209-90D00

LH8#

長さ=960

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LH8#

*H,L=60

 1
99556-30100

LH8#

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-90D01

LH8#

長さ=1230

 1
87209-90D01

LH8#

長さ=1230

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LH8#

 1
Common parts
88899-95A15
90461-10012
91651-40616
91651-40620
96112-10250
