LH80VH-QDLT3 (1985)
Toyota Hiace Quick Delivery
Production
Aug 1985
-
May 1995
Engine
2L
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

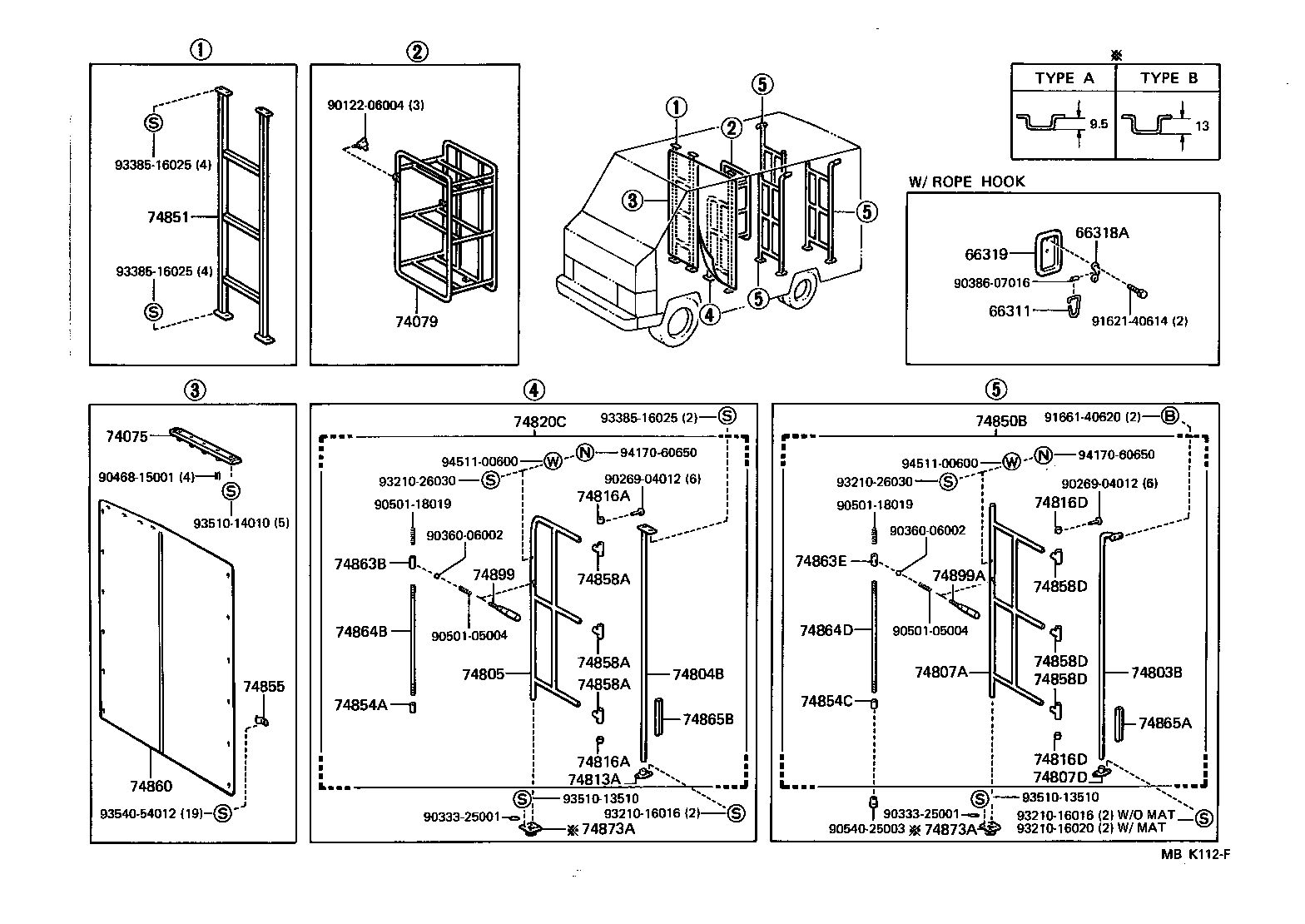

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66311 - HOOK, ROPE | ||||
| 66311-90K01 |
LH8# |
6 | ||
| 66311-90D01 |
LH80..5H |
6 | ||
| 66318A - BAND, ROPE HOOK | ||||
| 66318-90A00 |
LH8# |
6 | ||
| 66319 - PLATE, ROPE HOOK | ||||
| 66319-90D00 |
LH80..5H |
6 | ||
| 66319-90D01 |
LH8# |
6 | ||
| 74803B - BAR SUB-ASSY, SEPARATOR VERTICAL, RH | ||||
| 74803-90D02 |
LH8# |
3 | ||
| 74804B - BAR SUB-ASSY, SEPARATOR VERTICAL, LH | ||||
| 74804-90D03 |
LH8#..D |
1 | ||
| 74804-90D02 |
LH80..5H..D |
1 | ||
| 74805 - SEPARATOR SUB-ASSY | ||||
| 74807-90D03 |
LH8#..D FR |
1 | ||
| 74807-90D03 |
LH8# |
3 | ||
| 74807A - BAR SUB-ASSY, REAR SEPARATOR | ||||
| 74807-90D03 |
LH8# |
3 | ||
| 74807D - BRACKET, SEPARATOR | ||||
| 74813-90740 |
LH8# RR |
3 | ||
| 74813-90740 |
LH80 |
3 | ||
| 74813A - BRACKET, SEPARATOR | ||||
| 74822-90D00 |
LH8# FR |
1 | ||
| 74813-90740 |
LH80..5H |
4 | ||
| 74813-90740 |
LH8# RR |
3 | ||
| 74816A - RING, PIPE | ||||
| 74816-90050 |
LH80..5H |
8 | ||
| 74831-90D00 |
LH8# |
8 | ||
| 74816A - RING, PIPE | ||||
| 74816-90050 |
LH80..5H |
8 | ||
| 74831-90D00 |
LH8# |
8 | ||
| 74820C - SEPARATOR ASSY, FRONT LH | ||||
| 74820-90D03 |
LH8#..D |
1 | ||
| 74820-90D02 |
LH80..5H..D |
1 | ||
| 74850B - SEPARATOR SUB-ASSY, REAR | ||||
| 74850-90D02 |
LH8# |
3 | ||
| 74851 - BAR, SEPARATOR | ||||
| 74805-90D03 |
LH8#..D |
1 | ||
| 74854A - STOP, SEPARATOR | ||||
| 74854-90D03 |
LH8# FR |
1 | ||
| 74854-90D02 |
LH8# RR |
3 | ||
| 74854-90D02 |
LH80..5H |
4 | ||
| 74854C - STOP, SEPARATOR | ||||
| 74854-90D02 |
LH8# |
3 | ||
| 74855 - PLATE, SEPARATOR CURTAIN SET | ||||
| 74862-95661 |
LH8#..D |
19 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74622-90500 |
LH80..5H |
12 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74622-90500 |
LH80..5H |
12 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74622-90500 |
LH80..5H |
12 | ||
| 74858D - BRACKET, REAR SEPARATOR BAR, UPPER | ||||
| 74622-90500 |
LH80 |
9 | ||
| 74858-90D00 |
LH8# |
9 | ||
| 74858D - BRACKET, REAR SEPARATOR BAR, UPPER | ||||
| 74622-90500 |
LH80 |
9 | ||
| 74858-90D00 |
LH8# |
9 | ||
| 74858D - BRACKET, REAR SEPARATOR BAR, UPPER | ||||
| 74622-90500 |
LH80 |
9 | ||
| 74858-90D00 |
LH8# |
9 | ||
| 74860 - CURTAIN ASSY, SEPARATE | ||||
| 74870-90D03 |
LH8#..D |
1 | ||
| 74870-90D04 |
LH80..IV |
1 | ||
| 74863B - ROD, SEPARATOR | ||||
| 74863-90D01 |
LH8# |
4 | ||
| 74863E - ROD, SEPARATOR | ||||
| 74863-90D01 |
LH8# |
3 | ||
| 74864B - SHAFT, SEPARATOR | ||||
| 74864-90D01 |
LH80..5H |
4 | ||
| 74864-90D01 |
LH8# |
3 | ||
| 74864-90D02 |
LH8# FR |
1 | ||
| 74864D - SHAFT, SEPARATOR | ||||
| 74864-90D01 |
LH80 |
3 | ||
| 74864-90D01 |
LH8# |
3 | ||
| 74865A - COVER, CENTER PROTECTOR | ||||
| 74865-90D00 |
LH80 |
3 | ||
| 74865-90D01 |
LH8# |
3 | ||
| 74873A - BRACKET, SEPARATOR, LOWER, NO.1 | ||||
| 74835-90D00 |
LH8# TYPE A |
4 | ||
| 74835-90D01 |
LH8# TYPE B |
4 | ||
| 74873A - BRACKET, SEPARATOR, LOWER, NO.1 | ||||
| 74835-90D00 |
LH8# TYPE A |
4 | ||
| 74835-90D01 |
LH8# TYPE B |
4 | ||
| Common parts | ||||
| 90122-06004 | ||||
| 90269-04012 | ||||
| 90333-25001 | ||||
| 90360-06002 | ||||
| 90386-07016 | ||||
| 90468-15001 | ||||
| 90501-05004 | ||||
| 90501-18019 | ||||
| 90540-25003 | ||||
| 91621-40614 | ||||
| 91661-40620 | ||||
| 93210-16016 | ||||
| 93210-16020 | ||||
| 93210-26030 | ||||
| 93385-16025 | ||||
| 93510-13510 | ||||
| 93510-14010 | ||||
| 93540-54012 | ||||
| 94170-60650 | ||||
| 94511-00600 | ||||
