LH80VH-QDLT3 (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LH80..5H

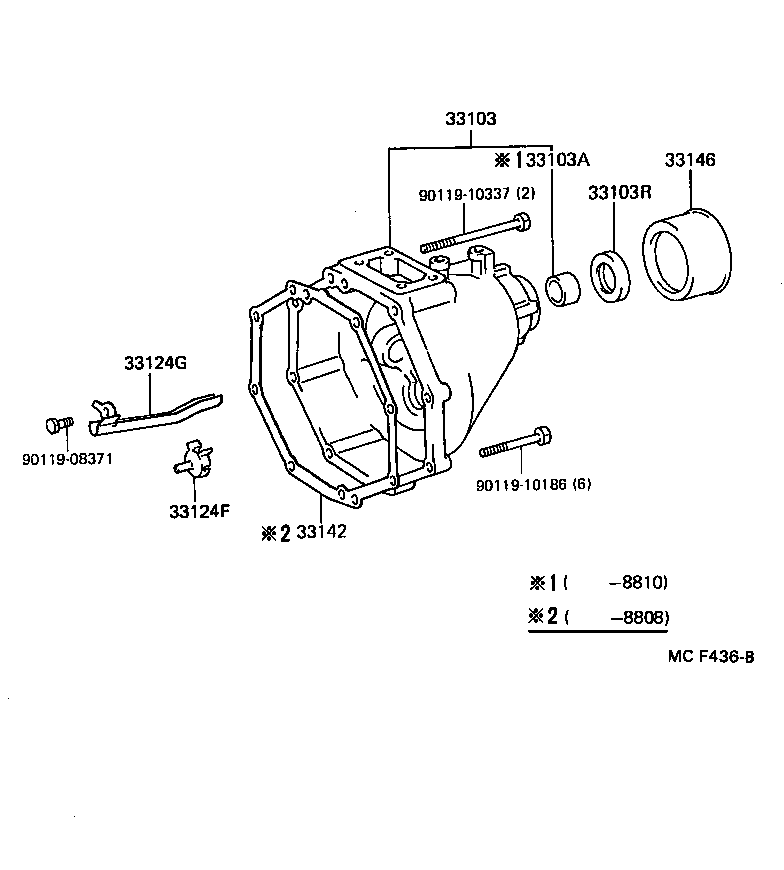

Click highlighted areas on diagram

diagram 33103 33103A 33103R 33124F 33124G 33142 33146 9011908371 9011910186 9011910337
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-26900

LH80..5H

 1
33103-28041

LH80..5H

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

LH80..5H

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38040

LH80..5H

 1
90311-38032

LH80..5H

 1
90311-38043

LH80..5H

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-36010

LH80..5H

 1
33124-36010

LH8#..5H

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33124-28011

LH80..5H

 1
33124-28010

LH80..5H

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33138-28020

LH80..5H

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30020

LH80..5H

 1
33146-30010

LH80..5H

 1
Common parts
90119-08371
90119-10186
90119-10337
