LH80VH-QDLT3 (1985)
Toyota Hiace Quick Delivery
Production
Aug 1985
-
May 1995
Engine
2L
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

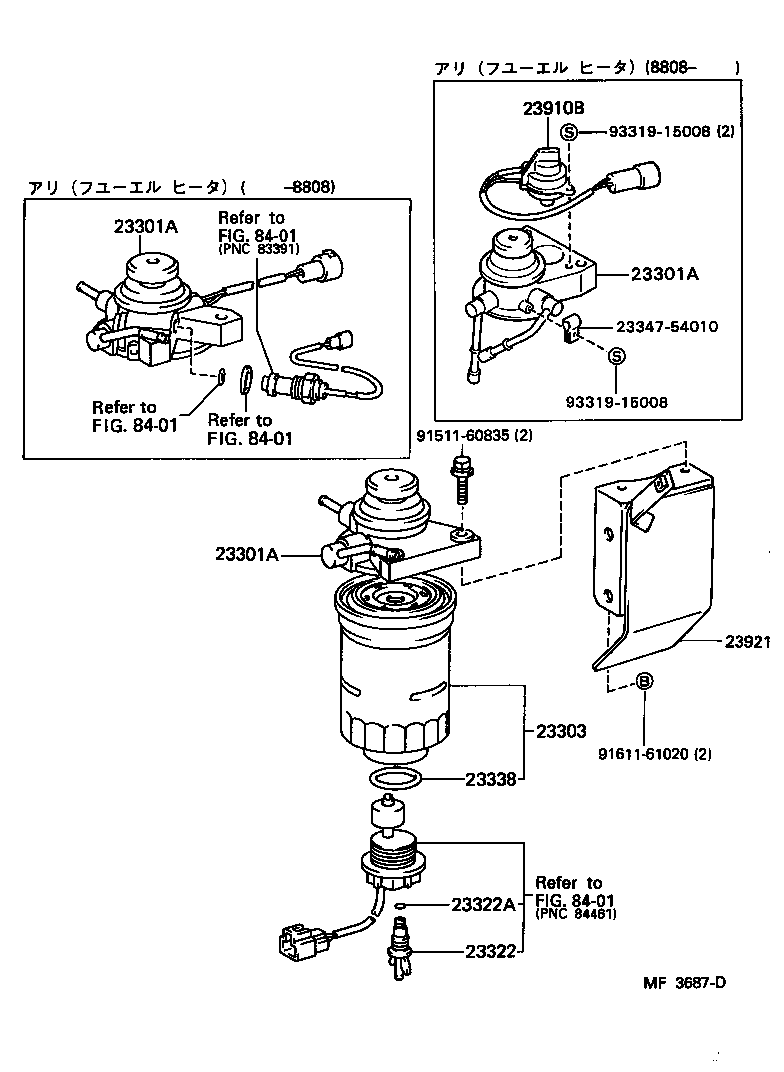

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54100 |
2L..LH8# W/FUEL HEATER |
1 | ||
| 23301-54100 |
2L..LH8# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23301-54450 |
2L..LH8# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23301-54090 |
2L..LH8# |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54100 |
2L..LH8# W/FUEL HEATER |
1 | ||
| 23301-54100 |
2L..LH8# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23301-54450 |
2L..LH8# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23301-54090 |
2L..LH8# |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54100 |
2L..LH8# W/FUEL HEATER |
1 | ||
| 23301-54100 |
2L..LH8# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23301-54450 |
2L..LH8# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23301-54090 |
2L..LH8# |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-64010 |
2L..LH8# |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64010 |
2L..LH8# |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
2L..LH8# |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
2L..LH8# |
1 | ||
| 23910B - HEATER ASSY, FUEL | ||||
| 23910-64010 |
2L..LH8# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23910-54050 |
2L..LH8# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54380 |
2L..LH8# |
1 | ||
| Common parts | ||||
| 23347-54010 | ||||
| 91511-60835 | ||||
| 91611-61020 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
