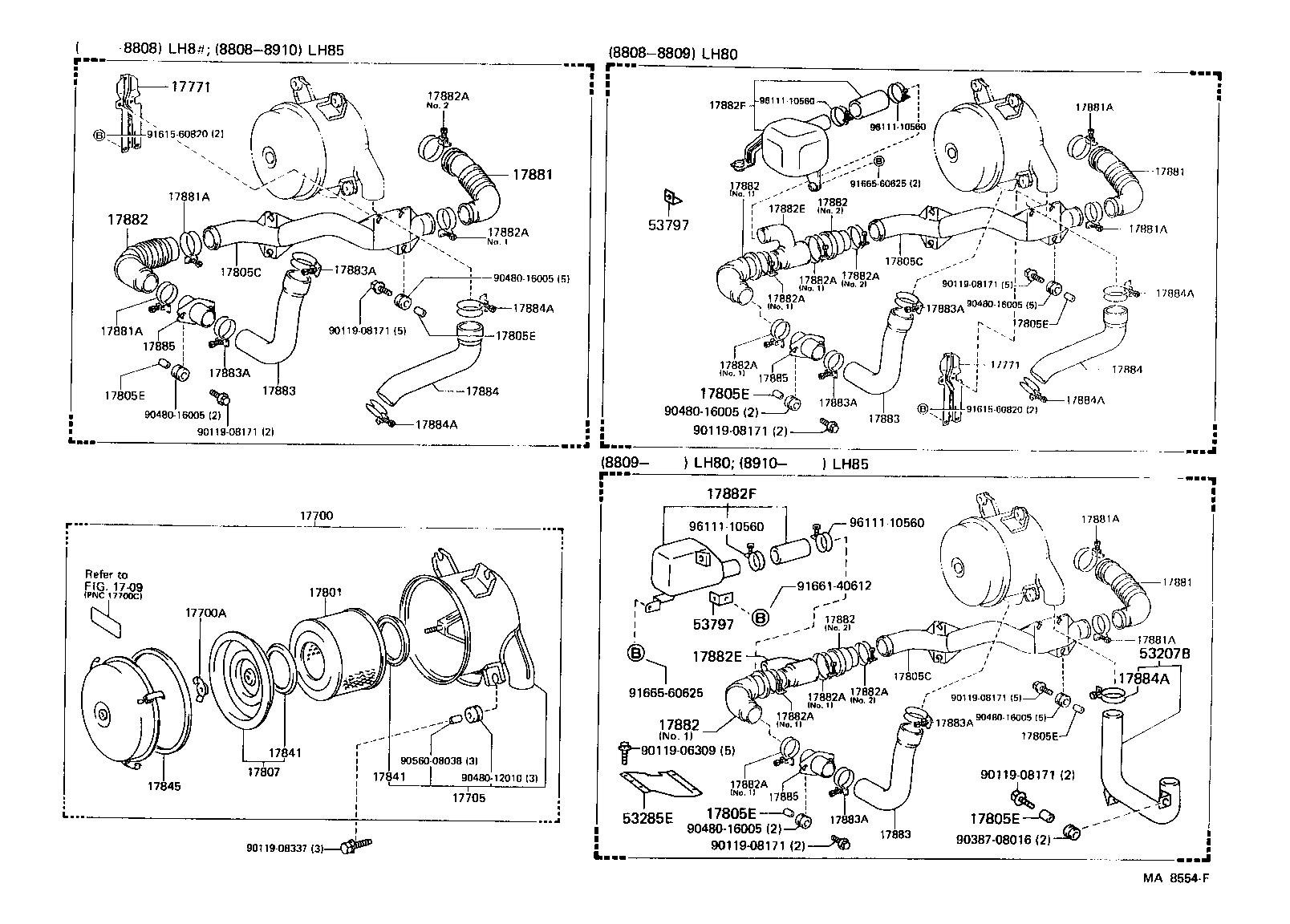

LH80VH-QDLT3 (1985)
Toyota Hiace Quick Delivery
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54410 |
2L..LH8# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
2L..LH8# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17701-54210 |
2L..LH8# |
1 | ||
| 17701-54210 |
2L..LH80 |
1 | ||
| 17705-54190 |
2L..LH8# |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-54041 |
2L..LH80 |
1 | ||
| 17771-54040 |
2L..LH80 |
1 | ||
| 17771-54020 |
2L..LH80 |
1 | ||
| 17771-54020 |
2L..LH80 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-54041 |
2L..LH80 |
1 | ||
| 17771-54040 |
2L..LH80 |
1 | ||
| 17771-54020 |
2L..LH80 |
1 | ||
| 17771-54020 |
2L..LH80 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56020 |
2L..LH8# |
1 | ||
| 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 | ||||
| 59111-90D02 |
2L..LH80 |
1 | ||
| 59111-90D00 |
2L..LH80 |
1 | ||
| 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 | ||||
| 59111-90D02 |
2L..LH80 |
1 | ||
| 59111-90D00 |
2L..LH80 |
1 | ||
| 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 | ||||
| 59111-90D02 |
2L..LH80 |
1 | ||
| 59111-90D00 |
2L..LH80 |
1 | ||
| 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) | ||||
| 90387-08016 |
2L..LH8# |
9 | ||
| 90387-08016 |
2L..LH8# |
7 | ||
| 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) | ||||
| 90387-08016 |
2L..LH8# |
9 | ||
| 90387-08016 |
2L..LH8# |
7 | ||
| 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) | ||||
| 90387-08016 |
2L..LH8# |
9 | ||
| 90387-08016 |
2L..LH8# |
7 | ||
| 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) | ||||
| 90387-08016 |
2L..LH8# |
9 | ||
| 90387-08016 |
2L..LH8# |
7 | ||
| 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) | ||||
| 90387-08016 |
2L..LH8# |
9 | ||
| 90387-08016 |
2L..LH8# |
7 | ||
| 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) | ||||
| 90387-08016 |
2L..LH8# |
9 | ||
| 90387-08016 |
2L..LH8# |
7 | ||
| 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) | ||||
| 90387-08016 |
2L..LH8# |
9 | ||
| 90387-08016 |
2L..LH8# |
7 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56011 |
2L..LH8# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
2L..LH8# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
2L..LH8# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
2L..LH8# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54391 |
2L..LH8# |
1 | ||
| 17881-54290 |
2L..LH8# |
1 | ||
| 17881-54390 |
2L..LH8# |
1 | ||
| 17881-54390 |
2L..LH80 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54391 |
2L..LH8# |
1 | ||
| 17881-54290 |
2L..LH8# |
1 | ||
| 17881-54390 |
2L..LH8# |
1 | ||
| 17881-54390 |
2L..LH80 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54391 |
2L..LH8# |
1 | ||
| 17881-54290 |
2L..LH8# |
1 | ||
| 17881-54390 |
2L..LH8# |
1 | ||
| 17881-54390 |
2L..LH80 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10830 |
2L..LH8# ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10710 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10830 |
2L..LH80 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10690 |
2L..LH8# ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10850 |
2L..LH80 PIPE SIDE |
1 | ||
| 96111-10690 |
2L..LH8# ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10830 |
2L..LH8# ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10710 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10830 |
2L..LH80 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10690 |
2L..LH8# ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10850 |
2L..LH80 PIPE SIDE |
1 | ||
| 96111-10690 |
2L..LH8# ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10830 |
2L..LH8# ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10710 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10830 |
2L..LH80 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10690 |
2L..LH8# ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10850 |
2L..LH80 PIPE SIDE |
1 | ||
| 96111-10690 |
2L..LH8# ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10830 |
2L..LH8# ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10710 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10830 |
2L..LH80 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10690 |
2L..LH8# ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10850 |
2L..LH80 PIPE SIDE |
1 | ||
| 96111-10690 |
2L..LH8# ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10830 |
2L..LH8# ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10710 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10830 |
2L..LH80 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10690 |
2L..LH8# ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10850 |
2L..LH80 PIPE SIDE |
1 | ||
| 96111-10690 |
2L..LH8# ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10830 |
2L..LH8# ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10710 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10830 |
2L..LH80 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10690 |
2L..LH8# ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10850 |
2L..LH80 PIPE SIDE |
1 | ||
| 96111-10690 |
2L..LH8# ENGINE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 59133-90D00 |
2L..LH80 NO.1 |
1 | ||
| 59134-90D00 |
2L..LH80 NO.2 |
1 | ||
| 17881-56060 |
2L..LH8# |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 59133-90D00 |
2L..LH80 NO.1 |
1 | ||
| 59134-90D00 |
2L..LH80 NO.2 |
1 | ||
| 17881-56060 |
2L..LH8# |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 59133-90D00 |
2L..LH80 NO.1 |
1 | ||
| 59134-90D00 |
2L..LH80 NO.2 |
1 | ||
| 17881-56060 |
2L..LH8# |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 59133-90D00 |
2L..LH80 NO.1 |
1 | ||
| 59134-90D00 |
2L..LH80 NO.2 |
1 | ||
| 17881-56060 |
2L..LH8# |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 59133-90D00 |
2L..LH80 NO.1 |
1 | ||
| 59134-90D00 |
2L..LH80 NO.2 |
1 | ||
| 17881-56060 |
2L..LH8# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2L..LH80..5H NO.1 |
1 | ||
| 96111-10750 |
2L..LH80 NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 96111-10780 |
2L..LH80 NO.2 |
1 | ||
| 96111-10750 |
2L..LH8# NO.1 |
1 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10710 |
2L..LH80 NO.1 |
3 | ||
| 96111-10710 |
2L..LH80 NO.3 |
2 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2L..LH80..5H NO.1 |
1 | ||
| 96111-10750 |
2L..LH80 NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 96111-10780 |
2L..LH80 NO.2 |
1 | ||
| 96111-10750 |
2L..LH8# NO.1 |
1 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10710 |
2L..LH80 NO.1 |
3 | ||
| 96111-10710 |
2L..LH80 NO.3 |
2 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2L..LH80..5H NO.1 |
1 | ||
| 96111-10750 |
2L..LH80 NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 96111-10780 |
2L..LH80 NO.2 |
1 | ||
| 96111-10750 |
2L..LH8# NO.1 |
1 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10710 |
2L..LH80 NO.1 |
3 | ||
| 96111-10710 |
2L..LH80 NO.3 |
2 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2L..LH80..5H NO.1 |
1 | ||
| 96111-10750 |
2L..LH80 NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 96111-10780 |
2L..LH80 NO.2 |
1 | ||
| 96111-10750 |
2L..LH8# NO.1 |
1 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10710 |
2L..LH80 NO.1 |
3 | ||
| 96111-10710 |
2L..LH80 NO.3 |
2 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2L..LH80..5H NO.1 |
1 | ||
| 96111-10750 |
2L..LH80 NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 96111-10780 |
2L..LH80 NO.2 |
1 | ||
| 96111-10750 |
2L..LH8# NO.1 |
1 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10710 |
2L..LH80 NO.1 |
3 | ||
| 96111-10710 |
2L..LH80 NO.3 |
2 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2L..LH80..5H NO.1 |
1 | ||
| 96111-10750 |
2L..LH80 NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 96111-10780 |
2L..LH80 NO.2 |
1 | ||
| 96111-10750 |
2L..LH8# NO.1 |
1 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10710 |
2L..LH80 NO.1 |
3 | ||
| 96111-10710 |
2L..LH80 NO.3 |
2 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2L..LH80..5H NO.1 |
1 | ||
| 96111-10750 |
2L..LH80 NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 96111-10780 |
2L..LH80 NO.2 |
1 | ||
| 96111-10750 |
2L..LH8# NO.1 |
1 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10710 |
2L..LH80 NO.1 |
3 | ||
| 96111-10710 |
2L..LH80 NO.3 |
2 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2L..LH80..5H NO.1 |
1 | ||
| 96111-10750 |
2L..LH80 NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 96111-10780 |
2L..LH80 NO.2 |
1 | ||
| 96111-10750 |
2L..LH8# NO.1 |
1 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10710 |
2L..LH80 NO.1 |
3 | ||
| 96111-10710 |
2L..LH80 NO.3 |
2 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2L..LH80..5H NO.1 |
1 | ||
| 96111-10750 |
2L..LH80 NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 96111-10780 |
2L..LH80 NO.2 |
1 | ||
| 96111-10750 |
2L..LH8# NO.1 |
1 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10710 |
2L..LH80 NO.1 |
3 | ||
| 96111-10710 |
2L..LH80 NO.3 |
2 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2L..LH80..5H NO.1 |
1 | ||
| 96111-10750 |
2L..LH80 NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 96111-10780 |
2L..LH80 NO.2 |
1 | ||
| 96111-10750 |
2L..LH8# NO.1 |
1 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10710 |
2L..LH80 NO.1 |
3 | ||
| 96111-10710 |
2L..LH80 NO.3 |
2 | ||
| 96111-10710 |
2L..LH8# NO.2 |
1 | ||
| 96111-10780 |
2L..LH8# NO.1 |
1 | ||
| 17882E - PIPE, COOL AIR INTAKE, NO.2 | ||||
| 59112-90D00 |
2L..LH80 |
1 | ||
| 17882E - PIPE, COOL AIR INTAKE, NO.2 | ||||
| 59112-90D00 |
2L..LH80 |
1 | ||
| 17882F - SILENCER SUB-ASSY, COOL AIR INTAKE | ||||
| 53205-90D00 |
2L..LH80 |
1 | ||
| 53205-90D00 |
2L..LH8# |
1 | ||
| 17882F - SILENCER SUB-ASSY, COOL AIR INTAKE | ||||
| 53205-90D00 |
2L..LH80 |
1 | ||
| 53205-90D00 |
2L..LH8# |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 59131-90D01 |
2L..LH8# |
1 | ||
| 59131-90D00 |
2L..LH8# |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 59131-90D01 |
2L..LH8# |
1 | ||
| 59131-90D00 |
2L..LH8# |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 59131-90D01 |
2L..LH8# |
1 | ||
| 59131-90D00 |
2L..LH8# |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10800 |
2L..LH80..5H AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10730 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10730 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10800 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10800 |
2L..LH80..5H AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10730 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10730 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10800 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10800 |
2L..LH80..5H AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10730 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10730 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10800 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10800 |
2L..LH80..5H AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10730 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10730 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10800 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10800 |
2L..LH80..5H AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10730 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10730 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10800 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10800 |
2L..LH80..5H AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10730 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10730 |
2L..LH8# PIPE SIDE |
1 | ||
| 96111-10800 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 59132-90D00 |
2L..LH8# |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 59132-90D00 |
2L..LH8# |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10750 |
2L..LH8# |
1 | ||
| 96111-10800 |
2L..LH80..5H AIR CLEANER SIDE |
1 | ||
| 96111-10710 |
2L..LH8# BODY SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10710 |
2L..LH8# BODY SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10750 |
2L..LH8# |
1 | ||
| 96111-10800 |
2L..LH80..5H AIR CLEANER SIDE |
1 | ||
| 96111-10710 |
2L..LH8# BODY SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10710 |
2L..LH8# BODY SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10750 |
2L..LH8# |
1 | ||
| 96111-10800 |
2L..LH80..5H AIR CLEANER SIDE |
1 | ||
| 96111-10710 |
2L..LH8# BODY SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10710 |
2L..LH8# BODY SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10750 |
2L..LH8# |
1 | ||
| 96111-10800 |
2L..LH80..5H AIR CLEANER SIDE |
1 | ||
| 96111-10710 |
2L..LH8# BODY SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10710 |
2L..LH8# BODY SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10750 |
2L..LH8# |
1 | ||
| 96111-10800 |
2L..LH80..5H AIR CLEANER SIDE |
1 | ||
| 96111-10710 |
2L..LH8# BODY SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 96111-10710 |
2L..LH8# BODY SIDE |
1 | ||
| 96111-10780 |
2L..LH8# AIR CLEANER SIDE |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 53297-90D00 |
2L..LH8# |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 53297-90D00 |
2L..LH8# |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 53297-90D00 |
2L..LH8# |
1 | ||
| 53207B - DUCT SUB-ASSY, COOL AIR | ||||
| 53207-90D00 |
LH8# |
1 | ||
| 53285E - GUARD, COOL AIR | ||||
| 53285-26010 |
LH8# |
1 | ||
| 53285-90D01 |
LH8# |
1 | ||
| 53285-90D00 |
LH8# |
1 | ||
| 53797 - BRACKET, COOL AIR INTAKE SILENCER | ||||
| 53797-90D00 |
LH80 |
1 | ||
| 53797-90D00 |
LH8# |
1 | ||
| 53797 - BRACKET, COOL AIR INTAKE SILENCER | ||||
| 53797-90D00 |
LH80 |
1 | ||
| 53797-90D00 |
LH8# |
1 | ||
| Common parts | ||||
| 90119-06309 | ||||
| 90119-08171 | ||||
| 90119-08337 | ||||
| 90387-08016 | ||||
| 90480-12010 | ||||
| 90480-16005 | ||||
| 90560-08038 | ||||
| 91615-60820 | ||||
| 91661-40612 | ||||
| 91665-60625 | ||||
| 96111-10560 | ||||
| Linked diagrams | ||||
| 1709 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
