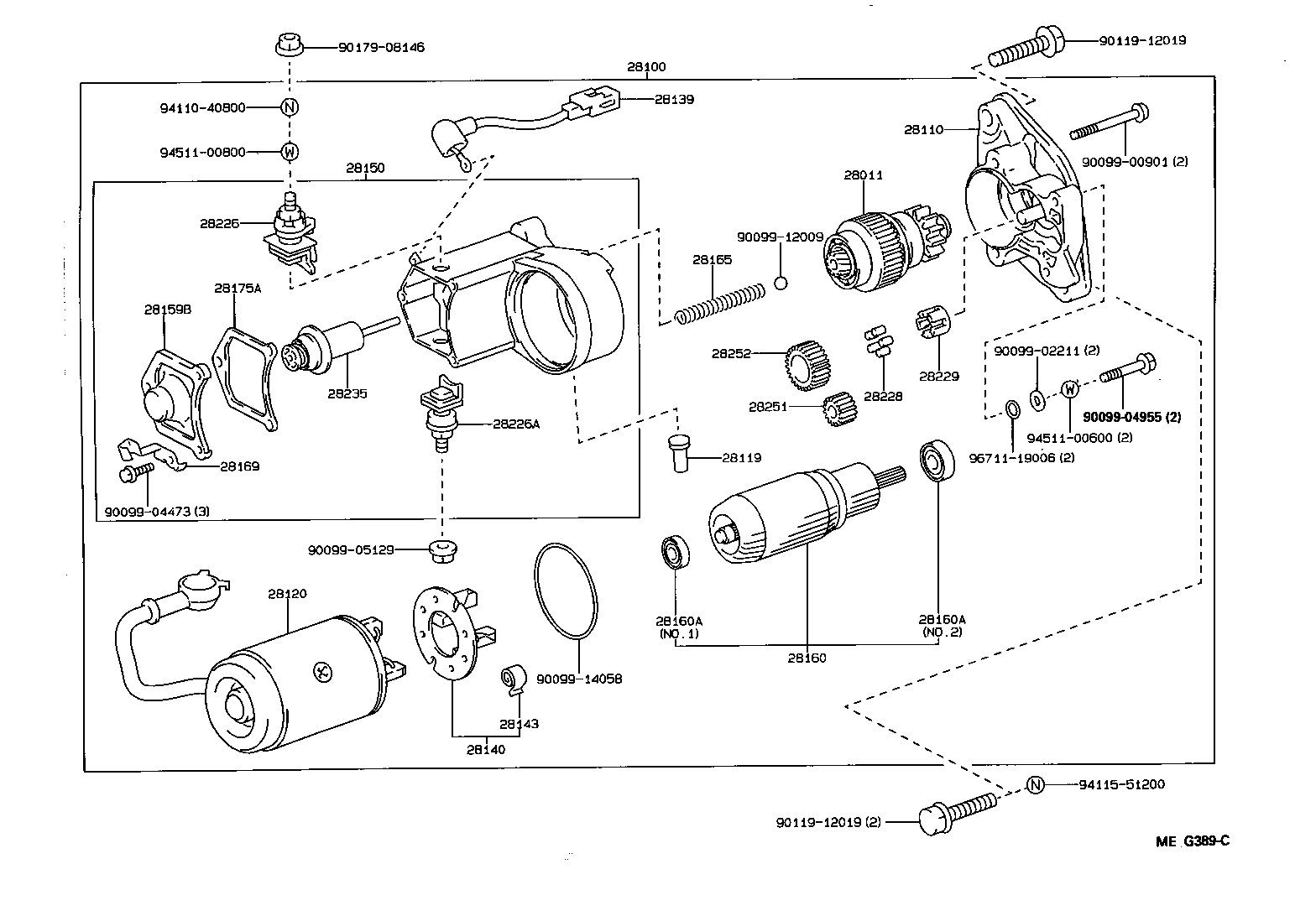

LH80VH-QDLT (1985)
Toyota Hiace Quick Delivery
(8508-9309)
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54070 |
2L..LH8#..5H |
1 | ||
| 28011-54010 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28011-54010 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28011-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28011-54380 |
2L..LH8#..5H |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54120 |
2L..LH8#..5H 12V 2.5KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54160 |
2L..LH8#..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54290 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28100-54110 |
2L..LH80..5H 12V 2.0KW,12V 2.0KW |
1 | ||
| 28100-54120 |
2L..LH8# 12V 2.5KW,12V 2.5KW |
1 | ||
| 28100-54400 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28100-54160 |
2L..LH80..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54300 |
2L..LH8#..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54430 |
2L..LH8#..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54110 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28115-54070 |
2L..LH8#..5H |
1 | ||
| 28115-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28110-54380 |
2L..LH8#..5H |
1 | ||
| 28115-54011 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28119-54070 |
2L..LH8#..5H |
1 | ||
| 28119-47070 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28199-54190 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28199-77090 |
2L..LH8# |
1 | ||
| 28119-47070 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28199-77090 |
2L..LH8#..5H |
1 | ||
| 28199-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28119-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28199-74110 |
2L..LH8#..5H |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56081 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28120-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28120-54070 |
2L..LH8#..5H |
1 | ||
| 28120-54380 |
2L..LH8#..5H |
1 | ||
| 28120-56081 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28139-77110 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28139-77110 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28139-54380 |
2L..LH8#..5H |
1 | ||
| 28139-54070 |
2L..LH8#..5H |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28140-54070 |
2L..LH8#..5H |
1 | ||
| 28140-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28140-54380 |
2L..LH8#..5H |
1 | ||
| 28140-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
2L..LH8#..5H 12V 2.0KW |
4 | ||
| 28143-54380 |
2L..LH8#..5H |
4 | ||
| 90099-17115 |
2L..LH8#..5H |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54110 |
2L..LH8#..5H |
1 | ||
| 28150-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150-54120 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28150-54400 |
2L..LH8#..5H |
1 | ||
| 28150-54430 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150-54160 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150-54110 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28150-54160 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-56310 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159-54170 |
2L..LH8#..5H |
1 | ||
| 28159-56310 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159-54380 |
2L..LH8#..5H |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54120 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28160-54070 |
2L..LH8#..5H |
1 | ||
| 28160-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28160-54160 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28160-54160 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28160-54380 |
2L..LH8#..5H |
1 | ||
| 28160-54071 |
2L..LH8#..5H |
1 | ||
| 28160-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-54120 |
2L..LH8# 12V 2.5KW,NO.2 |
1 | ||
| 28253-54070 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8# 12V 2.5KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H NO.2 |
1 | ||
| 90099-10208 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
2L..LH8#..5H 12V 2.0KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
2L..LH8#..5H NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-54120 |
2L..LH8# 12V 2.5KW,NO.2 |
1 | ||
| 28253-54070 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8# 12V 2.5KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H NO.2 |
1 | ||
| 90099-10208 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
2L..LH8#..5H 12V 2.0KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
2L..LH8#..5H NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2L..LH8#..5H |
1 | ||
| 28165-26040 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28165-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28165-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28165-76070 |
2L..LH8#..5H |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54380 |
2L..LH8#..5H |
1 | ||
| 28169-54070 |
2L..LH8#..5H |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-54380 |
2L..LH8#..5H |
1 | ||
| 28175-10040 |
2L..LH8#..5H |
1 | ||
| 28175-56310 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28175-56310 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54400 |
2L..LH8#..5H |
1 | ||
| 28226-54300 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-56330 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-54300 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-54360 |
2L..LH8#..5H |
1 | ||
| 28226-56270 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54100 |
2L..LH8#..5H |
1 | ||
| 28226-54220 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-72010 |
2L..LH8#..5H |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2L..LH8#..5H 12V 2.0KW |
5 | ||
| 28228-56080 |
2L..LH8# 12V 2.5KW |
5 | ||
| 28228-26040 |
2L..LH8#..5H |
5 | ||
| 28228-56080 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28229-26040 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28229-56080 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28229-26040 |
2L..LH8#..5H |
1 | ||
| 28229-74070 |
2L..LH8#..5H |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-17030 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28235-54380 |
2L..LH8#..5H |
1 | ||
| 28235-35080 |
2L..LH8#..5H |
1 | ||
| 28235-17030 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28251-54070 |
2L..LH8#..5H |
1 | ||
| 28254-54380 |
2L..LH8#..5H |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
2L..LH8#..5H |
1 | ||
| 28254-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28254-64130 |
2L..LH8#..5H |
1 | ||
| 28254-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28254-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| Common parts | ||||
| 90099-00901 | ||||
| 90099-02211 | ||||
| 90099-04473 | ||||
| 90099-04955 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14058 | ||||
| 90119-12019 | ||||
| 90179-08146 | ||||
| 94110-40800 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||
(8508-8910)
12V 2.5KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54070 |
2L..LH8#..5H |
1 | ||
| 28011-54010 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28011-54010 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28011-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28011-54380 |
2L..LH8#..5H |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54120 |
2L..LH8#..5H 12V 2.5KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54160 |
2L..LH8#..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54290 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28100-54110 |
2L..LH80..5H 12V 2.0KW,12V 2.0KW |
1 | ||
| 28100-54120 |
2L..LH8# 12V 2.5KW,12V 2.5KW |
1 | ||
| 28100-54400 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28100-54160 |
2L..LH80..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54300 |
2L..LH8#..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54430 |
2L..LH8#..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54110 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28115-54070 |
2L..LH8#..5H |
1 | ||
| 28115-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28110-54380 |
2L..LH8#..5H |
1 | ||
| 28115-54011 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28118-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28119-54070 |
2L..LH8#..5H |
1 | ||
| 28119-47070 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28199-54190 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28199-77090 |
2L..LH8# |
1 | ||
| 28119-47070 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28199-77090 |
2L..LH8#..5H |
1 | ||
| 28199-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28119-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28199-74110 |
2L..LH8#..5H |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56081 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28120-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28120-54070 |
2L..LH8#..5H |
1 | ||
| 28120-54380 |
2L..LH8#..5H |
1 | ||
| 28120-56081 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54060 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28130-54430 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28130-54060 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28130-54380 |
2L..LH8#..5H |
1 | ||
| 28139B - WIRE, LEAD | ||||
| 28139-54023 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28139-54251 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28139-54023 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28139-54250 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28140-54070 |
2L..LH8#..5H |
1 | ||
| 28140-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28140-54380 |
2L..LH8#..5H |
1 | ||
| 28140-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54110 |
2L..LH8#..5H |
1 | ||
| 28150-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150-54120 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28150-54400 |
2L..LH8#..5H |
1 | ||
| 28150-54430 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150-54160 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150-54110 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28150-54160 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-56310 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159-54170 |
2L..LH8#..5H |
1 | ||
| 28159-56310 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159-54380 |
2L..LH8#..5H |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54120 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28160-54070 |
2L..LH8#..5H |
1 | ||
| 28160-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28160-54160 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28160-54160 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28160-54380 |
2L..LH8#..5H |
1 | ||
| 28160-54071 |
2L..LH8#..5H |
1 | ||
| 28160-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-54120 |
2L..LH8# 12V 2.5KW,NO.2 |
1 | ||
| 28253-54070 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8# 12V 2.5KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H NO.2 |
1 | ||
| 90099-10208 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
2L..LH8#..5H 12V 2.0KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
2L..LH8#..5H NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-54120 |
2L..LH8# 12V 2.5KW,NO.2 |
1 | ||
| 28253-54070 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8# 12V 2.5KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H NO.2 |
1 | ||
| 90099-10208 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
2L..LH8#..5H 12V 2.0KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
2L..LH8#..5H NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2L..LH8#..5H |
1 | ||
| 28165-26040 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28165-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28165-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28165-76070 |
2L..LH8#..5H |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-54380 |
2L..LH8#..5H |
1 | ||
| 28175-10040 |
2L..LH8#..5H |
1 | ||
| 28175-56310 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28175-56310 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28191-54010 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28191-54010 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28222-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54400 |
2L..LH8#..5H |
1 | ||
| 28226-54300 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-56330 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-54300 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-54360 |
2L..LH8#..5H |
1 | ||
| 28226-56270 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54100 |
2L..LH8#..5H |
1 | ||
| 28226-54220 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-72010 |
2L..LH8#..5H |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2L..LH8#..5H 12V 2.0KW |
5 | ||
| 28228-56080 |
2L..LH8# 12V 2.5KW |
5 | ||
| 28228-26040 |
2L..LH8#..5H |
5 | ||
| 28228-56080 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28229-26040 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28229-56080 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28229-26040 |
2L..LH8#..5H |
1 | ||
| 28229-74070 |
2L..LH8#..5H |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-17030 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28235-54380 |
2L..LH8#..5H |
1 | ||
| 28235-35080 |
2L..LH8#..5H |
1 | ||
| 28235-17030 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
2L..LH8#..5H |
1 | ||
| 28254-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28254-64130 |
2L..LH8#..5H |
1 | ||
| 28254-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28254-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00158 | ||||
| 90099-00254 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-04473 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08026 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
(8808- )
12V 2.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54070 |
2L..LH8#..5H |
1 | ||
| 28011-54010 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28011-54010 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28011-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28011-54380 |
2L..LH8#..5H |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54120 |
2L..LH8#..5H 12V 2.5KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54160 |
2L..LH8#..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54290 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28100-54110 |
2L..LH80..5H 12V 2.0KW,12V 2.0KW |
1 | ||
| 28100-54120 |
2L..LH8# 12V 2.5KW,12V 2.5KW |
1 | ||
| 28100-54400 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28100-54160 |
2L..LH80..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54300 |
2L..LH8#..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54430 |
2L..LH8#..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54110 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28115-54070 |
2L..LH8#..5H |
1 | ||
| 28115-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28110-54380 |
2L..LH8#..5H |
1 | ||
| 28115-54011 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28118-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28119-54070 |
2L..LH8#..5H |
1 | ||
| 28119-47070 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28199-54190 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28199-77090 |
2L..LH8# |
1 | ||
| 28119-47070 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28199-77090 |
2L..LH8#..5H |
1 | ||
| 28199-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28119-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28199-74110 |
2L..LH8#..5H |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-77090 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28199-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28199-46080 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56081 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28120-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28120-54070 |
2L..LH8#..5H |
1 | ||
| 28120-54380 |
2L..LH8#..5H |
1 | ||
| 28120-56081 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54060 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28130-54430 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28130-54060 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28130-54380 |
2L..LH8#..5H |
1 | ||
| 28139B - WIRE, LEAD | ||||
| 28139-54023 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28139-54251 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28139-54023 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28139-54250 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28140-54070 |
2L..LH8#..5H |
1 | ||
| 28140-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28140-54380 |
2L..LH8#..5H |
1 | ||
| 28140-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54110 |
2L..LH8#..5H |
1 | ||
| 28150-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150-54120 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28150-54400 |
2L..LH8#..5H |
1 | ||
| 28150-54430 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150-54160 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150-54110 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28150-54160 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-56310 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159-54170 |
2L..LH8#..5H |
1 | ||
| 28159-56310 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159-54380 |
2L..LH8#..5H |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54120 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28160-54070 |
2L..LH8#..5H |
1 | ||
| 28160-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28160-54160 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28160-54160 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28160-54380 |
2L..LH8#..5H |
1 | ||
| 28160-54071 |
2L..LH8#..5H |
1 | ||
| 28160-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-54120 |
2L..LH8# 12V 2.5KW,NO.2 |
1 | ||
| 28253-54070 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8# 12V 2.5KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H NO.2 |
1 | ||
| 90099-10208 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
2L..LH8#..5H 12V 2.0KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
2L..LH8#..5H NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-54120 |
2L..LH8# 12V 2.5KW,NO.2 |
1 | ||
| 28253-54070 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8# 12V 2.5KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H NO.2 |
1 | ||
| 90099-10208 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
2L..LH8#..5H 12V 2.0KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
2L..LH8#..5H NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2L..LH8#..5H |
1 | ||
| 28165-26040 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28165-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28165-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28165-76070 |
2L..LH8#..5H |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-54380 |
2L..LH8#..5H |
1 | ||
| 28175-10040 |
2L..LH8#..5H |
1 | ||
| 28175-56310 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28175-56310 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28191-54010 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28191-54010 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28222-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54400 |
2L..LH8#..5H |
1 | ||
| 28226-54300 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-56330 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-54300 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-54360 |
2L..LH8#..5H |
1 | ||
| 28226-56270 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54100 |
2L..LH8#..5H |
1 | ||
| 28226-54220 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-72010 |
2L..LH8#..5H |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2L..LH8#..5H 12V 2.0KW |
5 | ||
| 28228-56080 |
2L..LH8# 12V 2.5KW |
5 | ||
| 28228-26040 |
2L..LH8#..5H |
5 | ||
| 28228-56080 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28229-26040 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28229-56080 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28229-26040 |
2L..LH8#..5H |
1 | ||
| 28229-74070 |
2L..LH8#..5H |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-17030 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28235-54380 |
2L..LH8#..5H |
1 | ||
| 28235-35080 |
2L..LH8#..5H |
1 | ||
| 28235-17030 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
2L..LH8#..5H |
1 | ||
| 28254-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28254-64130 |
2L..LH8#..5H |
1 | ||
| 28254-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28254-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00158 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-04473 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08026 | ||||
| 90179-12022 | ||||
| 93319-15008 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||

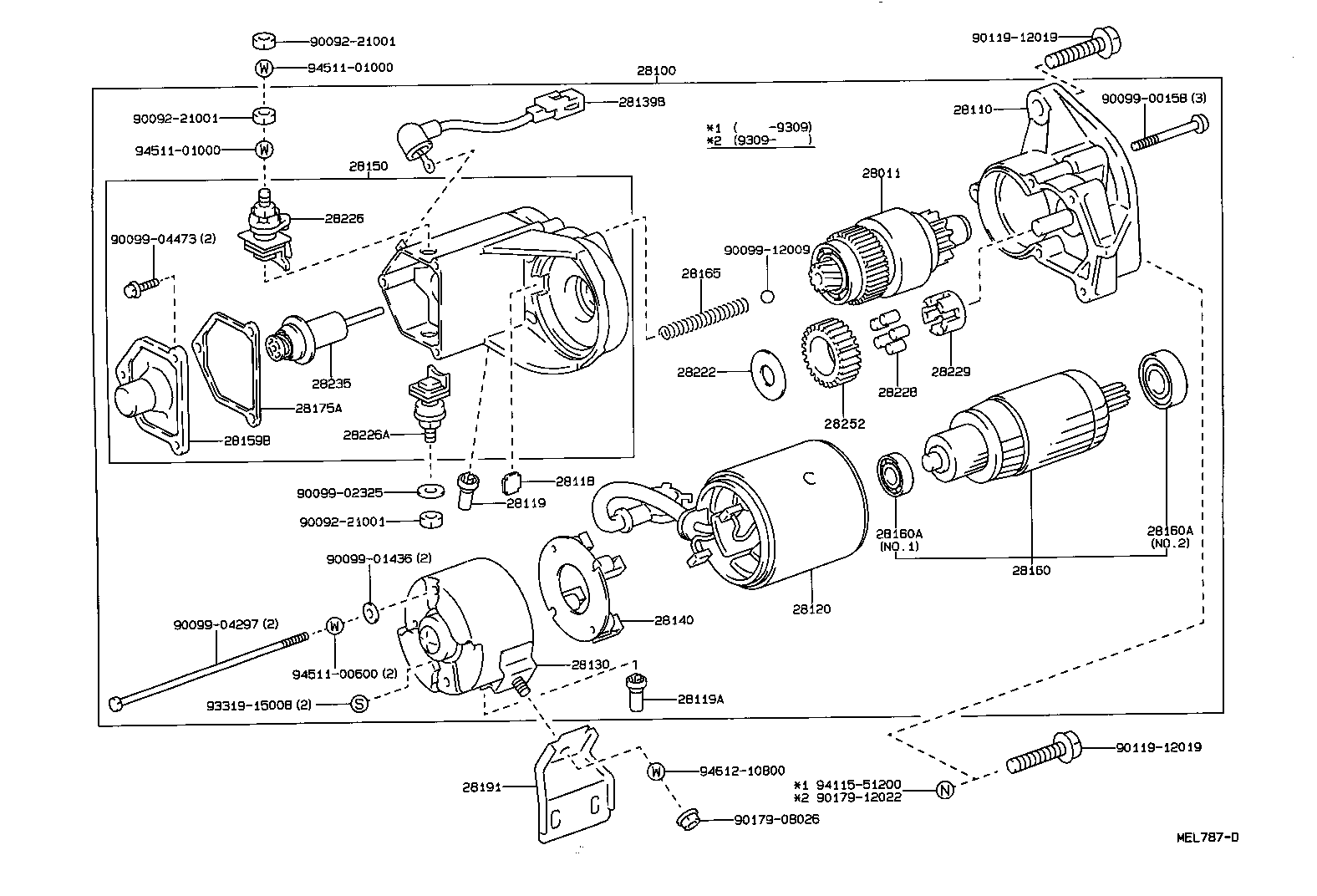

(9309- )
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54070 |
2L..LH8#..5H |
1 | ||
| 28011-54010 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28011-54010 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28011-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28011-54380 |
2L..LH8#..5H |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54120 |
2L..LH8#..5H 12V 2.5KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54160 |
2L..LH8#..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54290 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28100-54110 |
2L..LH80..5H 12V 2.0KW,12V 2.0KW |
1 | ||
| 28100-54120 |
2L..LH8# 12V 2.5KW,12V 2.5KW |
1 | ||
| 28100-54400 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28100-54160 |
2L..LH80..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54300 |
2L..LH8#..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54430 |
2L..LH8#..5H 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-54110 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28115-54070 |
2L..LH8#..5H |
1 | ||
| 28115-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28110-54380 |
2L..LH8#..5H |
1 | ||
| 28115-54011 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28119-54070 |
2L..LH8#..5H |
1 | ||
| 28119-47070 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28199-54190 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28199-77090 |
2L..LH8# |
1 | ||
| 28119-47070 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28199-77090 |
2L..LH8#..5H |
1 | ||
| 28199-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28119-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28199-74110 |
2L..LH8#..5H |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56081 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28120-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28120-54070 |
2L..LH8#..5H |
1 | ||
| 28120-54380 |
2L..LH8#..5H |
1 | ||
| 28120-56081 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54060 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28130-54430 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28130-54060 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28130-54380 |
2L..LH8#..5H |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28139-77110 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28139-77110 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28139-54380 |
2L..LH8#..5H |
1 | ||
| 28139-54070 |
2L..LH8#..5H |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28140-54070 |
2L..LH8#..5H |
1 | ||
| 28140-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28140-54380 |
2L..LH8#..5H |
1 | ||
| 28140-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
2L..LH8#..5H 12V 2.0KW |
4 | ||
| 28143-54380 |
2L..LH8#..5H |
4 | ||
| 90099-17115 |
2L..LH8#..5H |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54110 |
2L..LH8#..5H |
1 | ||
| 28150-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150-54120 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28150-54400 |
2L..LH8#..5H |
1 | ||
| 28150-54430 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150-54160 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28150-54110 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28150-54160 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-56310 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159-54170 |
2L..LH8#..5H |
1 | ||
| 28159-56310 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159-54380 |
2L..LH8#..5H |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54120 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28160-54070 |
2L..LH8#..5H |
1 | ||
| 28160-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28160-54160 |
2L..LH80..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28160-54160 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28160-54380 |
2L..LH8#..5H |
1 | ||
| 28160-54071 |
2L..LH8#..5H |
1 | ||
| 28160-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-54120 |
2L..LH8# 12V 2.5KW,NO.2 |
1 | ||
| 28253-54070 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8# 12V 2.5KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H NO.2 |
1 | ||
| 90099-10208 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
2L..LH8#..5H 12V 2.0KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
2L..LH8#..5H NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-54120 |
2L..LH8# 12V 2.5KW,NO.2 |
1 | ||
| 28253-54070 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8# 12V 2.5KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H NO.2 |
1 | ||
| 90099-10208 |
2L..LH8#..5H NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
2L..LH8#..5H 12V 2.0KW,NO.1 |
1 | ||
| 90099-10131 |
2L..LH8#..5H 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.1 |
1 | ||
| 90099-54120 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
2L..LH8#..5H NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2L..LH8#..5H |
1 | ||
| 28165-26040 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28165-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28165-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28165-76070 |
2L..LH8#..5H |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54380 |
2L..LH8#..5H |
1 | ||
| 28169-54070 |
2L..LH8#..5H |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-54380 |
2L..LH8#..5H |
1 | ||
| 28175-10040 |
2L..LH8#..5H |
1 | ||
| 28175-56310 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28175-56310 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54400 |
2L..LH8#..5H |
1 | ||
| 28226-54300 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-56330 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-54300 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-54360 |
2L..LH8#..5H |
1 | ||
| 28226-56270 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54100 |
2L..LH8#..5H |
1 | ||
| 28226-54220 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-72010 |
2L..LH8#..5H |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2L..LH8#..5H 12V 2.0KW |
5 | ||
| 28228-56080 |
2L..LH8# 12V 2.5KW |
5 | ||
| 28228-26040 |
2L..LH8#..5H |
5 | ||
| 28228-56080 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28229-26040 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28229-56080 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28229-26040 |
2L..LH8#..5H |
1 | ||
| 28229-74070 |
2L..LH8#..5H |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-17030 |
2L..LH8#..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28235-54380 |
2L..LH8#..5H |
1 | ||
| 28235-35080 |
2L..LH8#..5H |
1 | ||
| 28235-17030 |
2L..LH80..5H ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28251-54070 |
2L..LH8#..5H |
1 | ||
| 28254-54380 |
2L..LH8#..5H |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
2L..LH8#..5H |
1 | ||
| 28254-54070 |
2L..LH8#..5H 12V 2.0KW |
1 | ||
| 28254-64130 |
2L..LH8#..5H |
1 | ||
| 28254-77090 |
2L..LH8# 12V 2.5KW |
1 | ||
| 28254-77090 |
2L..LH8#..5H ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| Common parts | ||||
| 28176-54380 | ||||
| 90099-00253 | ||||
| 90099-04453 | ||||
| 90099-04475 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90119-12019 | ||||
| 90179-08146 | ||||
| 90179-12022 | ||||
| 93219-15008 | ||||
| 94531-00500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
