LH80VH-QDLT (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

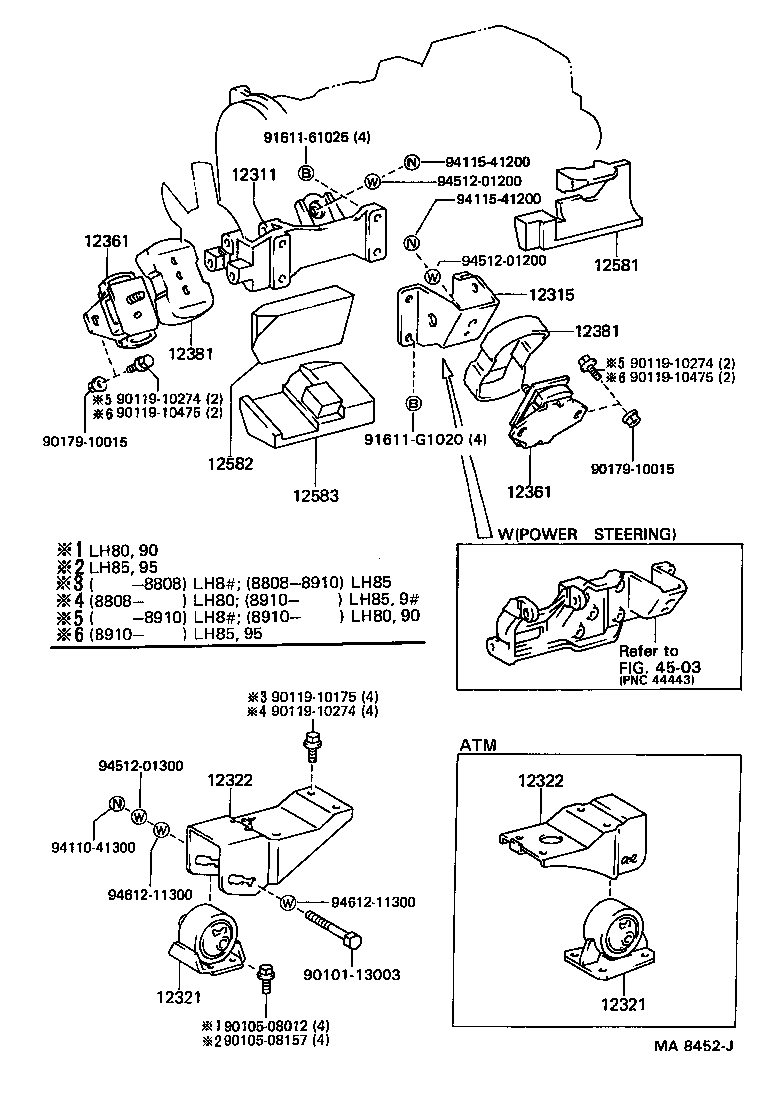

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12322 12322 12361 12361 12381 12381 12581 12582 12583 4503 9010113003 9010508012 9010508157 9011910175 9011910274 9011910274 9011910274 9011910475 9011910475 9017910015 9017910015 9161161025 91611G1020 9411041300 9411541200 9411541200 9451201200 9451201200 9451201300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54090

2L..LH80

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54020

2L..LH80..5H

 1
12312-54021

2L..LH80

 1
12312-54021

2L..LH80..D

 1
12312-54021

2L..LH80..5H..D..CBU

 1
12312-54021

2L..LH80..5H..D

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-72010

2L..LH80..5H

 1
12303-67020

2L..LH80..5H

 1
12303-54020

2L..LH80..5H

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-72010

2L..LH80..5H

 1
12303-67020

2L..LH80..5H

 1
12303-54020

2L..LH80..5H

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54050

2L..LH80..5H

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54050

2L..LH80..5H

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54120

2L..LH80

 2
12361-54121

2L..LH80

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54120

2L..LH80

 2
12361-54121

2L..LH80

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54020

2L..LH80..5H

 2
12381-54040

2L..LH80

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54020

2L..LH80..5H

 2
12381-54040

2L..LH80

 2
Common parts
90101-13003
90105-08012
90105-08157
90119-10175
90119-10274
90119-10475
90179-10015
91611-61025
91611-G1020
94110-41300
94115-41200
94512-01200
94512-01300
94612-11300
Linked diagrams
4503
